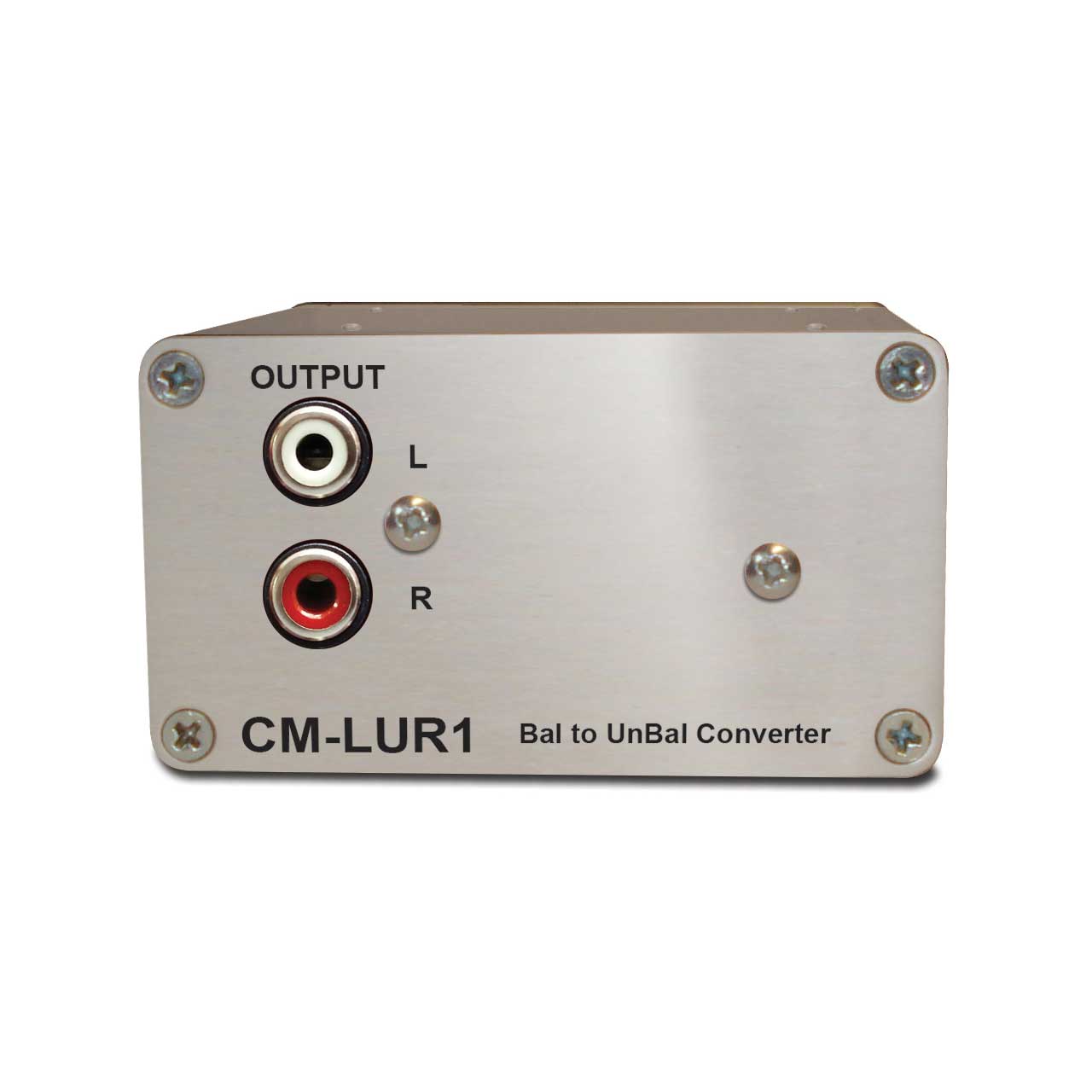

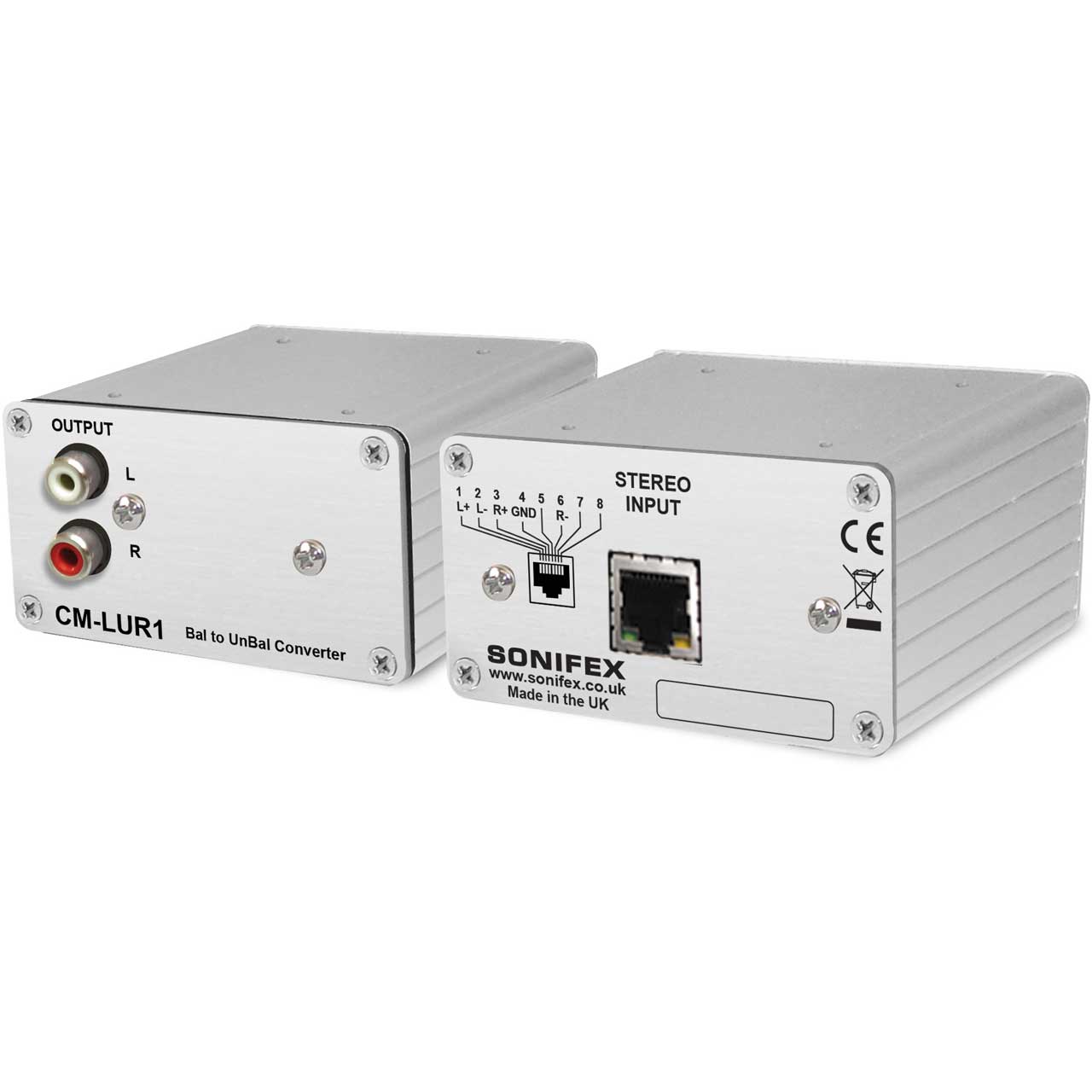

Sonifex CM-LUR1 Balanced to Unbalanced Converter Passive - RJ45 to Phone

ITEM #: SON-CM-LUR1 MFG #: CM-LUR1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$361.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CM-LUR1 - Overview

The Sonifex CM-LUR1 passive balanced to unbalanced audio convertor connects a balanced stereo line input via RJ45 using the StudioHub pinout to an unbalanced stereo phono output. Transformer balanced with a 2:1 ratio you get an additional 6DB of attenuation to help interfacing with pro and consumer devices. The CM-LUR1 provides an alternative to specialized cables when interfacing a balanced output to an unbalanced input and is particularly useful where a shared balanced audio feed needs to be interfaced to an unbalanced input on one or more pieces of equipment, galvanically isolating the audio without compromising the feed.

  • Specifications:

    • Audio Specification
    • Input/Output Level Ratio: 2:1
    • Input/Output Impedance Ratio: 4:1
    • Max Input Level: +28dBu
    • Max Output Level: +22dBu
    • Frequency Response: 20Hz to 20kHz, +0/-0.5dB
    • Noise: <-115dBu A-wgtd
    • Distortion Ref +8dBu (Output): <0.01%
    • Common Mode Rejection: >80dB

      Connections

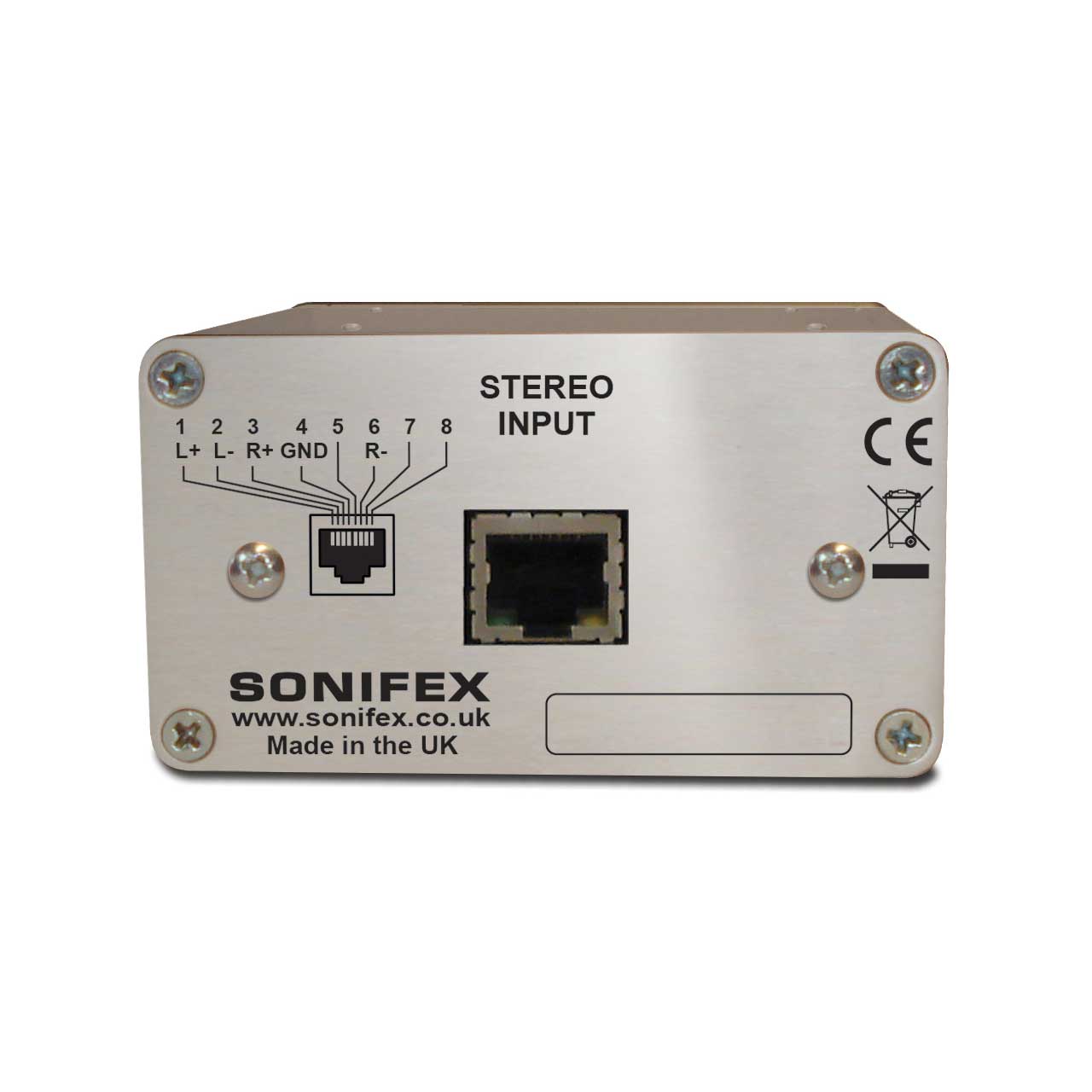

    • Balanced Line Input: 1 x RJ45 female StudioHub+T pinout
    • Unbalanced Line Output: 2 x RCA phono connectors

      Physical Specification
    • Dimensions (W x D x H): 3.0 inch x 3.3 inch x 1.7 inch (7.7cm x 8.3cm x 4.2cm)
    • Weight Nett: 0.49lbs Gross: 0.73lbs


CM-LUR1 - Required Accessories
