StarTech IMC1GSFP30W PoE+ Fiber to Ethernet Media Converter 30W / SFP-RJ45 - SM/MM Fiber to Copper Gigabit Ethernet

ITEM #: ST-IMC1GSFP30W MFG #: IMC1GSFP30W

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$229.99

Our Price:

$229.69

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IMC1GSFP30W - Overview

This StarTech IMC1GSFP30W open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.

Designed for Small Spaces & Harsh Environments!
At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options

  • Features:

    • Compact Size + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
    • Tech Specs: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included
    • Robust Design: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C | 2 yr warr
    • Open SFP Slot: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
    • Flexible Power Input: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
    • StarTech Advantage: IT professionals' choice for over 30 years | This media converter is backed for 2-years by StarTech, including free 24/5 North America based multi-lingual tech support

  • Specifications:

    • Connector(s): 1 - Terminal Block (3 Wire), 1 - RJ-45 (PoE+), 1 - SFP Slot
    • Environmental: Operating Temperature -40°C to 75°C, Storage Temperature -40°C to 85°C, Humidity 5% to 95% (non-condensing)
    • LED Indicators: 1 - Power, 1 - Activity, 1 - Link, 1 - PoE
    • Maximum Cable Length: 328.0 ft [100 m]
    • Bandwidth: 2G (Maximum per port)
    • Buffer Size: 512 KB
    • Flow Control: IEEE 802.3x Flow Control and Back Pressure
    • Surge Protection: IEC 61000-4-5
    • Power: 2KV
    • Compatible Networks: 10/100/1000 Mbps
    • Auto MDIX: Yes
    • Jumbo Frame Support: 16K max
    • Color: Black
    • Product Height: 1.9 in
    • Product Length: 2.3 in
    • Weight of Product: 2.8 oz
    • Product Width: 1.4 in
    • Material: Aluminum
    • Cable Length: 328.0 ft
    • Input Voltage: 48 ~ 56V DC
    • Plug Type: N
    • Power Consumption (In Watts): Terminal Block (3 Wire), Max. 30W

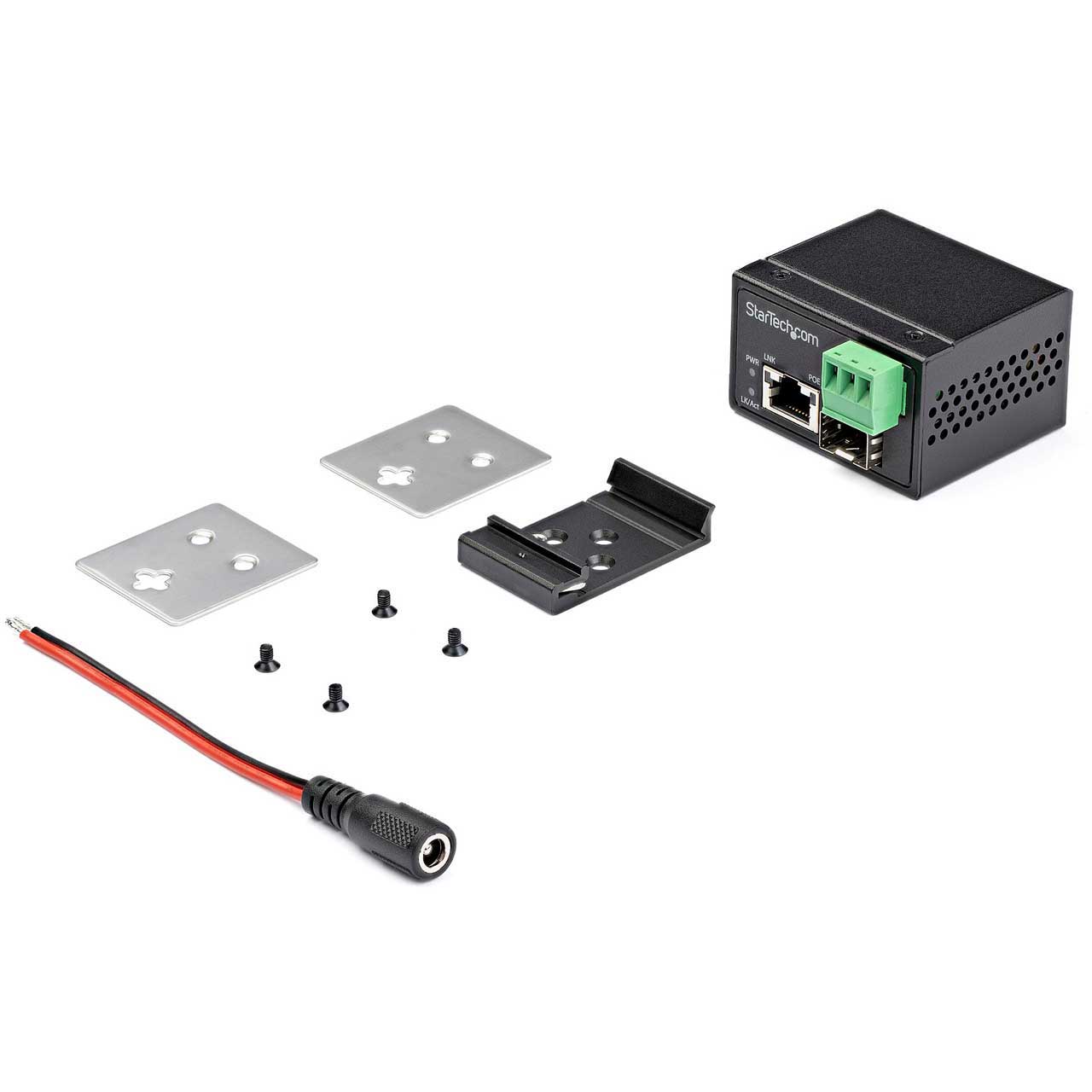

  • Item Includes:

    • 1x Mini PoE Media Converter
    • 1x Terminal Block
    • 1x Terminal Block to Barrel Power Connector Adapter
    • 1x Mounting Hardware
    • 1x Quick-Start Guide
