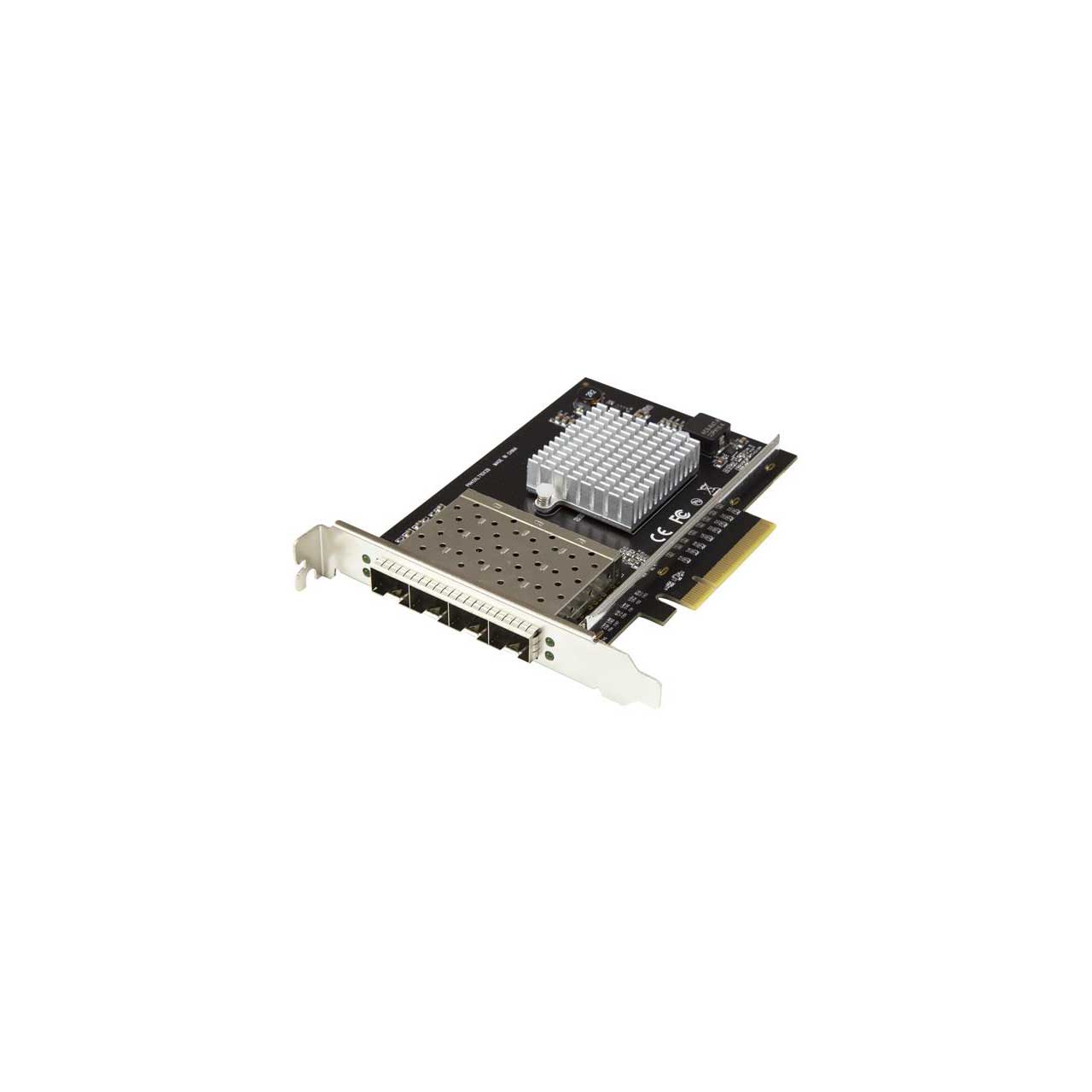

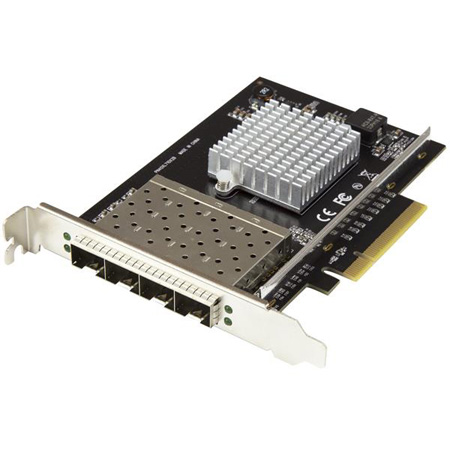

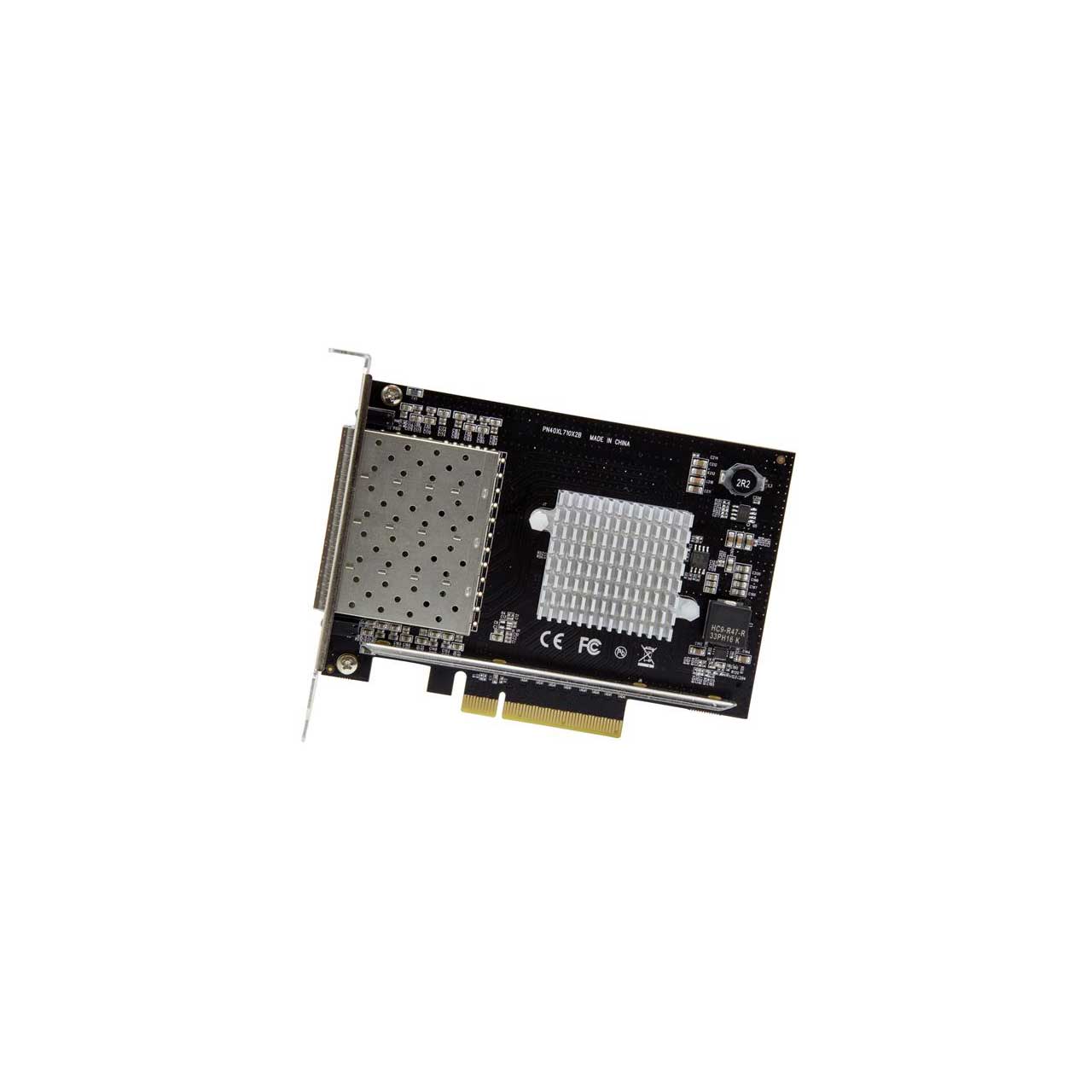

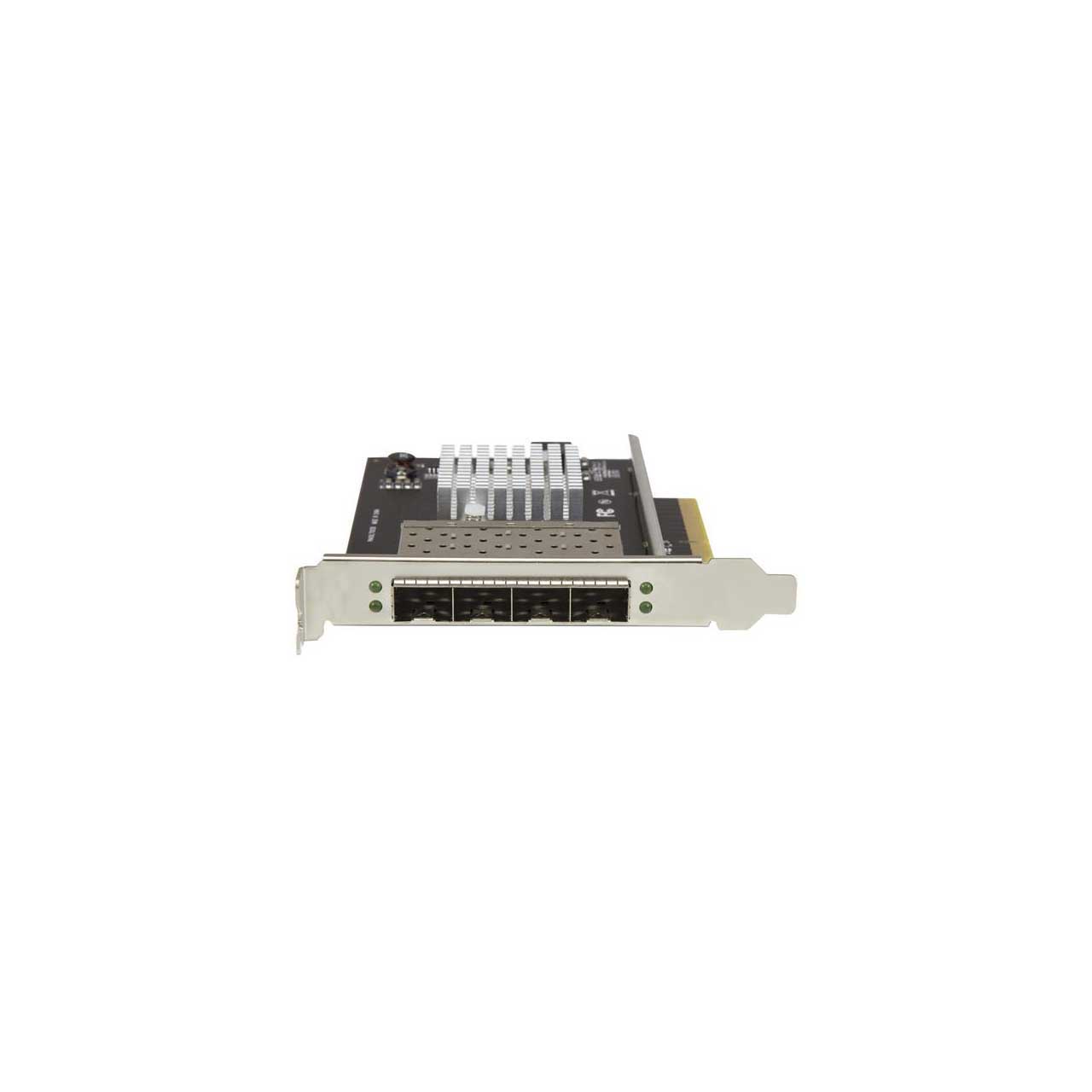

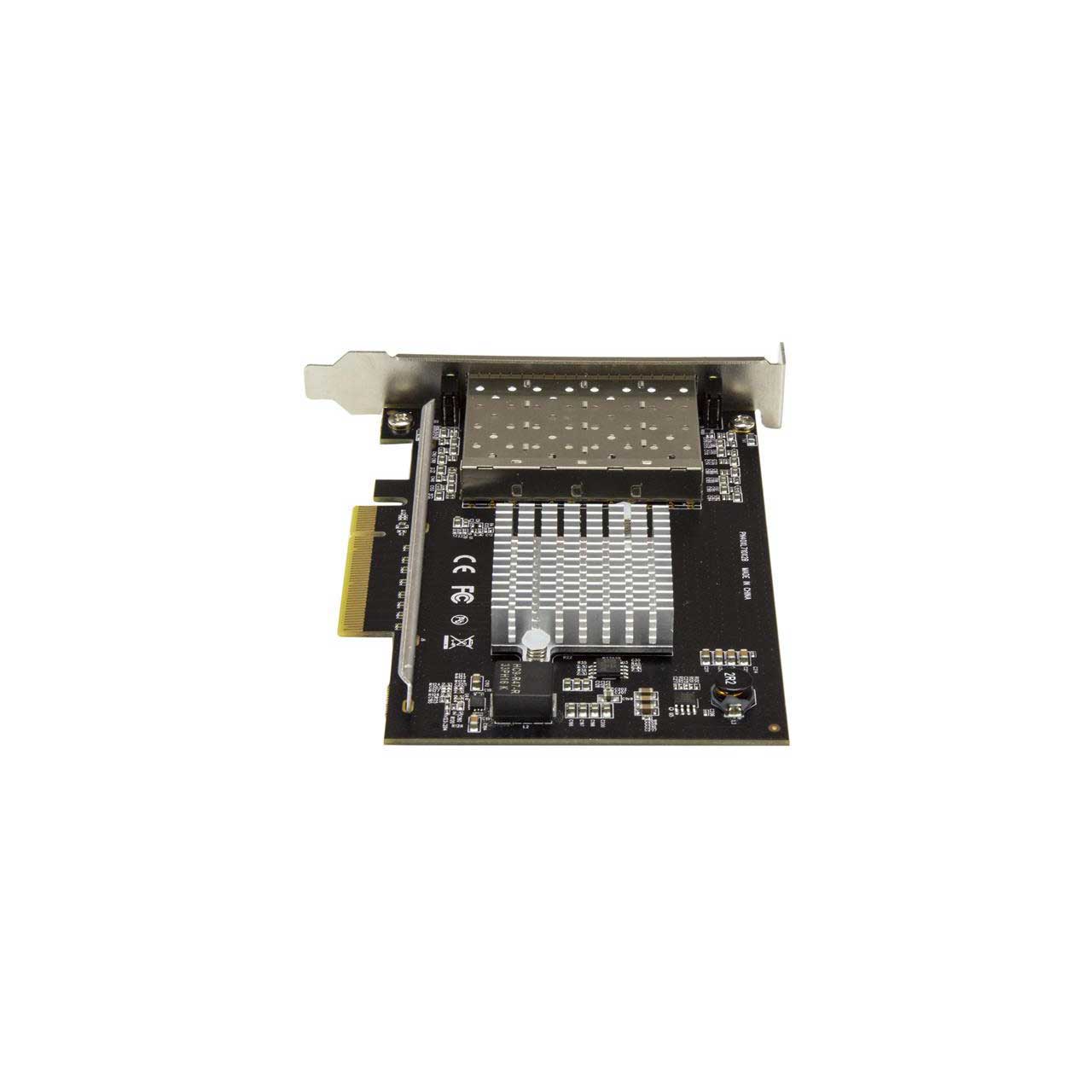

StarTech EX10GSFP4I Quad Port SFP+ Server Network Card - PCIe - Intel XL710 Chip

ITEM #: ST-PEX10GSFP4I MFG #: PEX10GSFP4I

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$585.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PEX10GSFP4I - Overview

This StarTech PEX10GSFP4I SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Applications:
Add 10Gbps network connectivity to database, file or application servers and high-performance workstations
Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
Create a video/audio editing console with 10Gbps access to network storage
Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance

  • Features:

    • QUAD SFP+ Adapter: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
    • Tested & Verified Performance: We use Spirent SmartBits to validate performance; converged network adapter is compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem

  • Specifications:

    • Hardware
    • Bus Type: PCI Express
    • Card Type: Standard Profile
    • Chipset ID: Intel - XL710
    • Industry Standards: IEEE 802.3ae (10GBASE-LR/SR only)
    • PCI Express Rev 3.0, using PCIe x8 (or higher) slot
    • Interface: Fiber (10 Gigabit Ethernet)
    • Ports: 4

      Performance
    • Compatible Networks: 10 Gbps
    • Full Duplex Support: Yes
    • Jumbo Frame Support: 9K max.
    • Maximum Data Transfer Rate: 20000 Mbps (20 Gbps) - Full-Duplex
    • Supported Protocols: IEEE 802.3ad (Link Aggregation)
    • IEEE 802.3x (Flow Control Support)
    • IEEE 802.1Q (VLAN tagging)

      Connector(S)
    • Connector Type(s): 1 - PCI Express x8 Male
    • Internal Ports: 4 - SFP+ Slot Female

      Software
    • OS Compatibility: Windows® 7, 8, 8.1, 10
    • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
    • (Windows Drivers are supported in 64-bit only)
    • Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only

      Indicators
    • LED Indicators: 4 - Link/Activity (green)

      Environmental
    • Humidity: 20 to 80% RH
    • Operating Temperature: 5°C to 50°C (41°F to 122°F)
    • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

      Physical Characteristics
    • Color: Black
    • Height: 3.9" (10cm)
    • Length: 5.5" (13.9cm)
    • Width: 0.6" (15mm)
    • Weight: 4.3oz (122g)

      Packaging Information
    • Height: 1.2" (30mm)
    • Length: 6.7" (17cm)
    • Width: 5.6" (14.2cm)
    • Weight: 6.4oz (182g)

  • Item Includes:

    • 1x Network card
    • 1x Quick-start guide

  • Warranty:

    • 2 Years

  • GTIN:

    0065030867740
