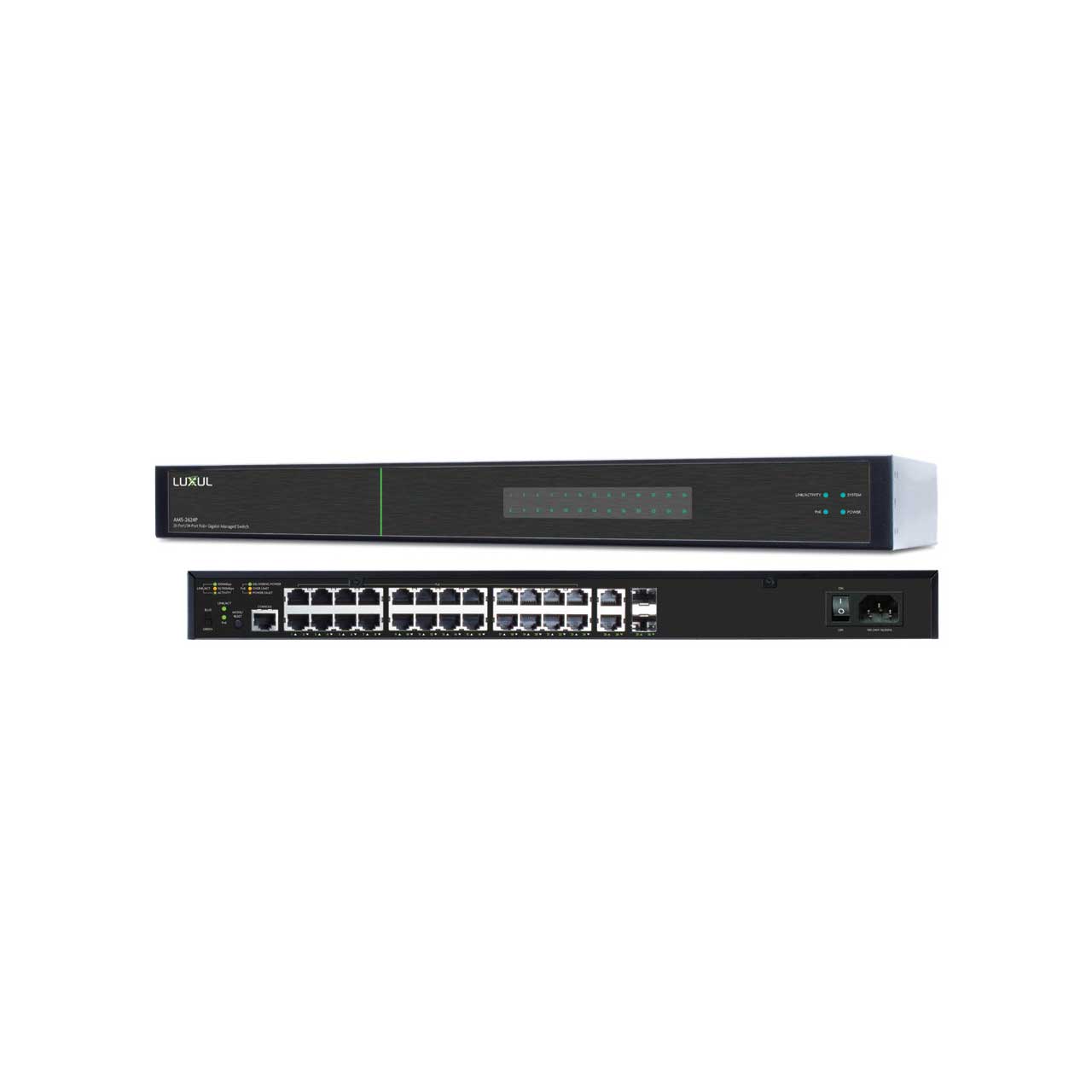

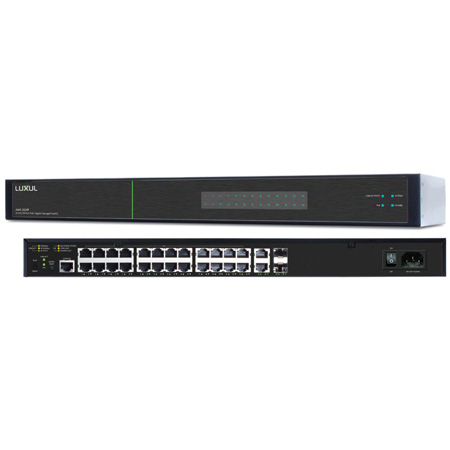

Luxul AMS-2624P AV Series 26-port/24 PoE+ Gigabit Managed Switch with US Power Cord

ITEM #: LUXU-AMS-2624P MFG #: AMS-2624P

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,415.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AMS-2624P - Overview

The Luxul AV-Series 26-port/24 PoE+ Gigabit Managed Switch AMS-2624P features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The 26-port Gigabit switch includes 24 PoE+ ports, allowing you to use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices. It also features advanced management, VLAN and security capabilities to ensure optimal benefit from your home or office network.

  • Features:

    • PoE Self-Healing with auto-recovery and power scheduling
    • 24 Gigabit RJ45 Ports
    • 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports)
    • 24 Ports Support 802.3af/at PoE+ with 250 Watt Power Budget
    • 52Gbps Switching Capacity (Non-Blocking and Full-Duplex)
    • 802.1Q VLAN (with Trunking) and QoS Support
    • Port Based Authentication
    • Intuitive Management
    • User Selectable Green or Blue Front facing LEDs
    • Variable Speed Fans for Quiet Operation
    • Standard 19" Rack-Mount
    • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)

  • Specifications:

    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1D, IEEE 802.3x IEEE 802.1P, IEEE 802.1Q, IEEE 802.1X
    • Surge Protection: The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 Port, Surge 6KV)
    • LEDS Front: Per Unit: Power, Per Port: Link/Activity, Dual color, user selectable
    • LED's Back: Per Port: Link/Activity 10/100/1000
    • Power Budget: 250 Watts
    • Max Power Consumption: 337W
    • Power: Internal Switched Power, AC 100-240V, 50-60Hz input
    • Layer 3: Layer 3 Static Routing
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Operating Humidity: 10% to 90% (Non-condensing)
    • Dimensions LxWxH in. (mm): 17.3"(439.5) x 8.25"(209.5) x 1.75"(44.5)
    • Weight lbs (kg): 8.75 (3.96)
    • Certification: FCC, CE, RoHS

  • Item Includes:

    • 26-Port Gigabit Managed Switch
    • Rack Mount Kit
    • Rubber Feet
    • Power Cord
    • Quick Install Guide

  • Warranty:

    • 3-year limited warranty
