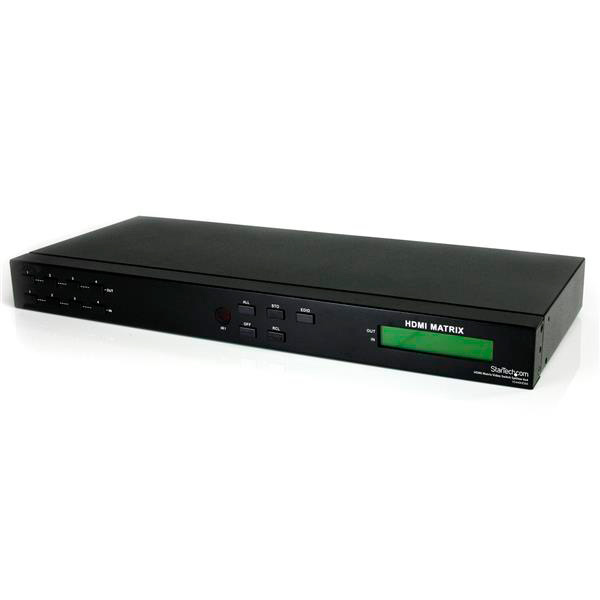

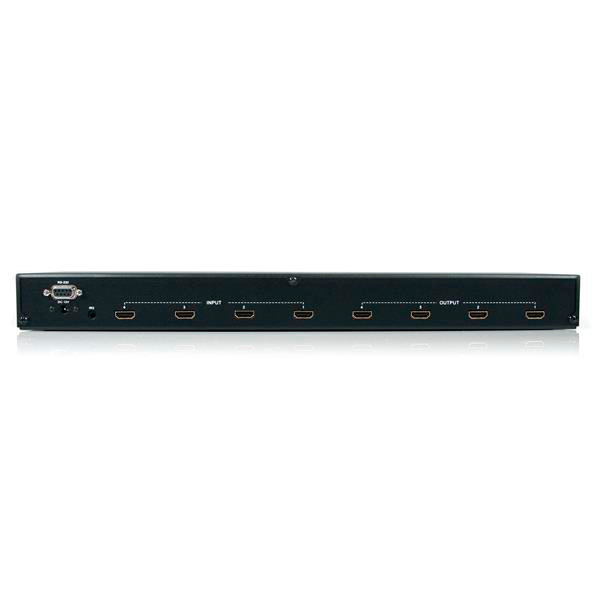

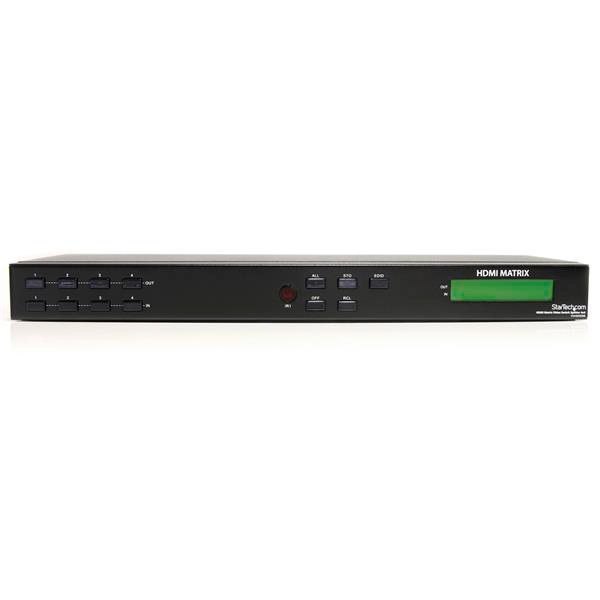

Startech VS440HDMI 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232

ITEM #: ST-VS440HDMI MFG #: VS440HDMI

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-VS440HDMI

VS440HDMI - Overview

The VS440HDMI 4x4 HDMI Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.

Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.

The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.

Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).

APPLICATIONS:

Ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities

Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected

Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes

Run multimedia presentations with supporting data displayed on another monitor in business conference rooms or at trade shows

Take full control of your A/V sources and displays/projectors - select any source on any display.

  • Features:

    • Included software allows storage of up to 4 distinct display combinations
    • Allows four PCs/Media Players to provide video to four displays
    • Allows storage and recall of a display combination using front panel buttons
    • Supports connection to DVI displays using HDMIr to DVI adapters (sold separately)
    • Equipped with easy to use front panel selection buttons
    • Supports resolutions up to 1920x1080/1080p
    • 10m (32ft) Maximum cable length
    • Front panel LCD for easy status monitoring
    • Includes remote control and IR extension module
    • RS232 interface for PC control

  • Specifications:

    • Audio: Yes
    • Cabling: HDMI
    • Ports: 4
    • Rack-Mountable: Yes
    • Bandwidth: 225MHz
    • Maximum Cable Length: 32.8 ft [10 m]
    • Wide Screen Supported: Yes
    • Connector A: 4 - HDMI (19 pin) Female
    • Connector B: 4 - HDMI (19 pin) Female
    • Connector Type(s): 1 - DB-9 (9 pin; D-Sub) Female
    • Color: Black
    • Enclosure Type: Steel
    • Product Height: 1.7 in [42 mm]
    • Product Length: 17.3 in [440 mm]
    • Product Weight: 5.2 lb [2.4 kg]
    • Product Width: 7.3 in [185 mm]
    • Center Tip Polarity: Positive
    • Input Current: 0.6A
    • Input Voltage: Universal 115 ~ 230 AC
    • Output Current: 1.5A
    • Output Voltage: 12 DC
    • Power Source: AC Adapter Included
    • Humidity: 0~95%
    • Operating Temperature: 0°C to 70°C (32°F to 158°F)
    • Storage Temperature: -20°C to 85°C (-4°F to 185°F)

  • Item Includes:

    • 1 - HDMI Matrix Selector Switch
    • 2 - Rack Mount Brackets
    • 1 - RS232 Cable
    • 1 - IR Remote Control
    • 6 - Screws for rack mount brackets
    • 1 - Universal Power Adapter (US/UK/EU)
    • 1 - Software Installation CD
    • 1 - Instruction Manual

  • Warranty:

    • 2 Year and FREE lifetime tech support

  • GTIN:

    0065030842105
