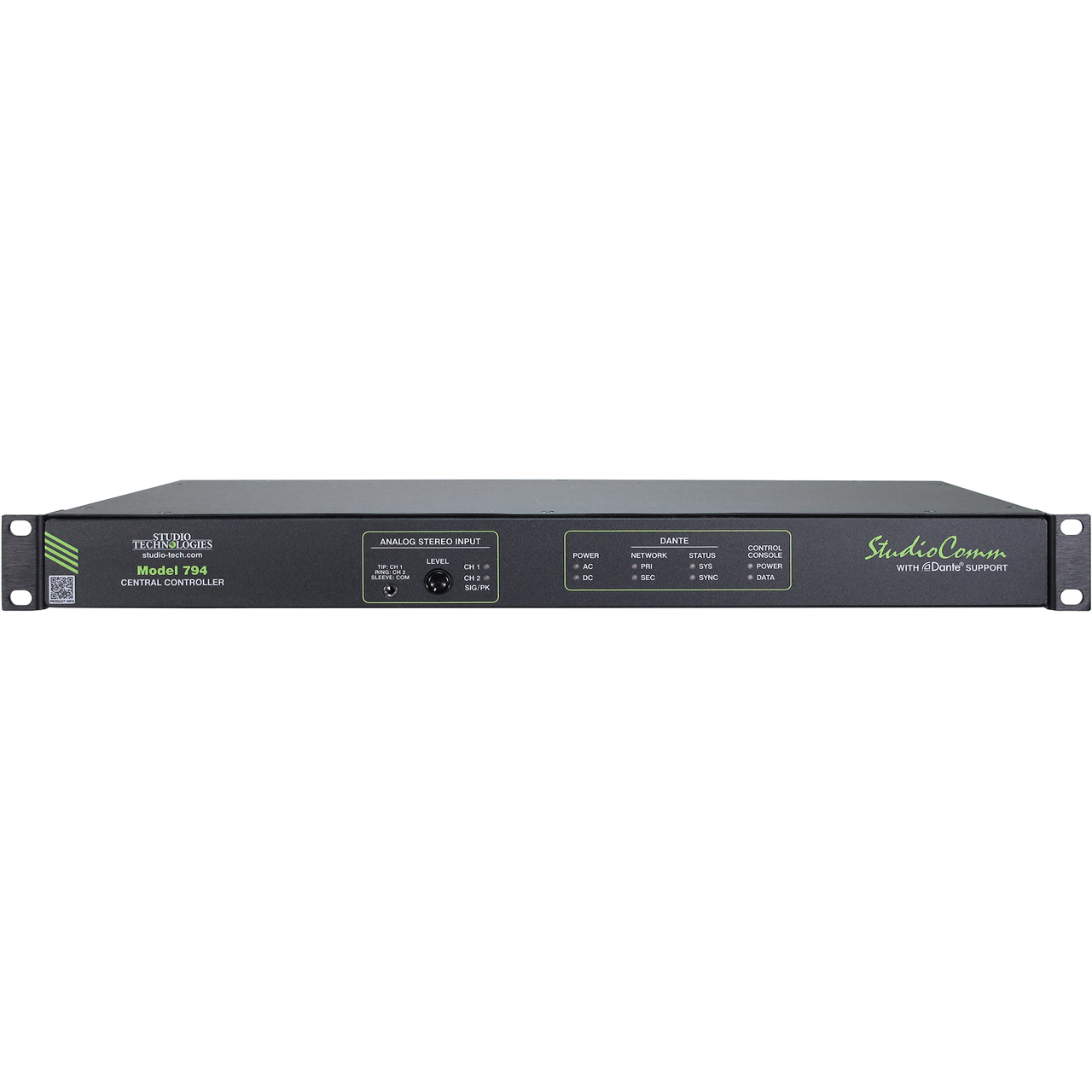

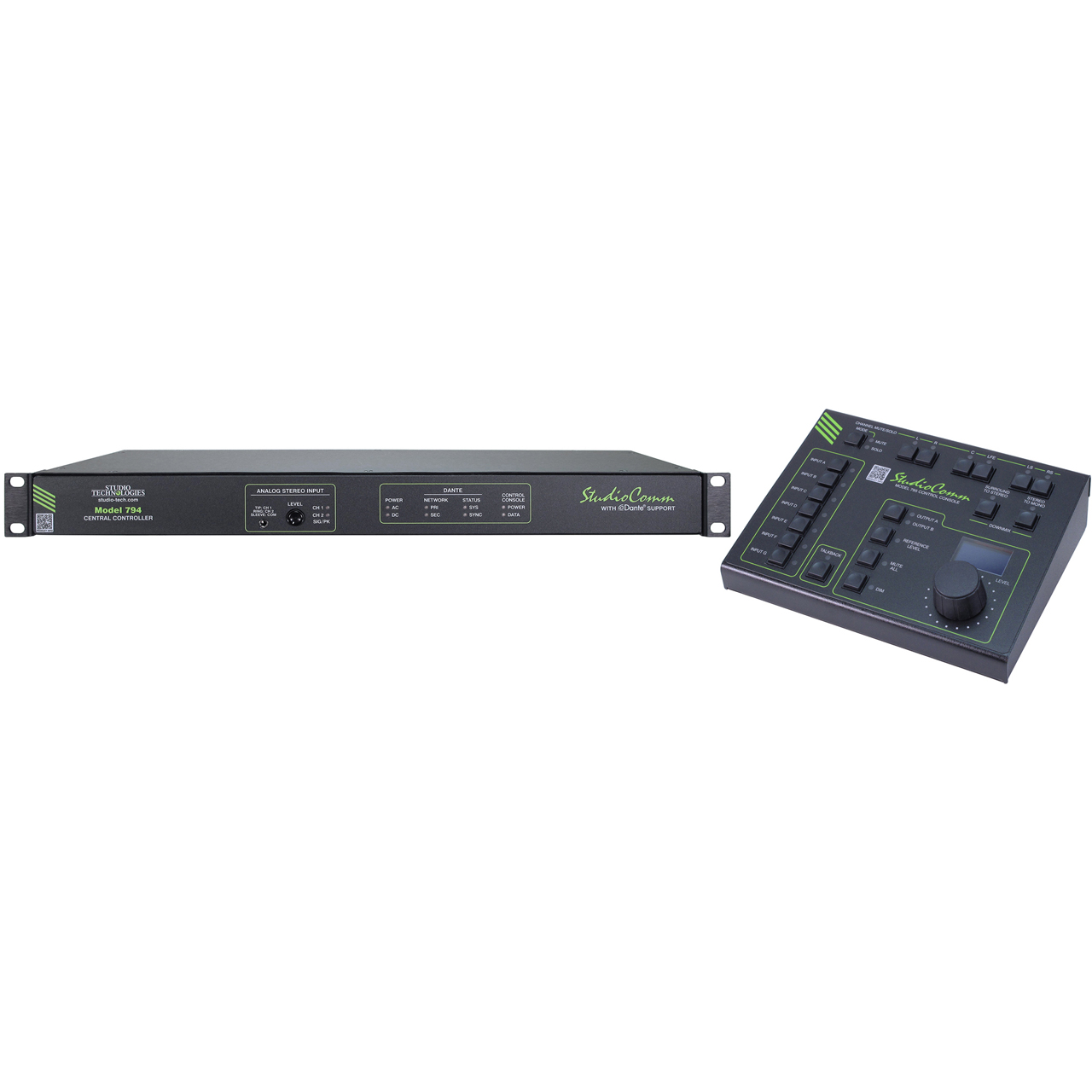

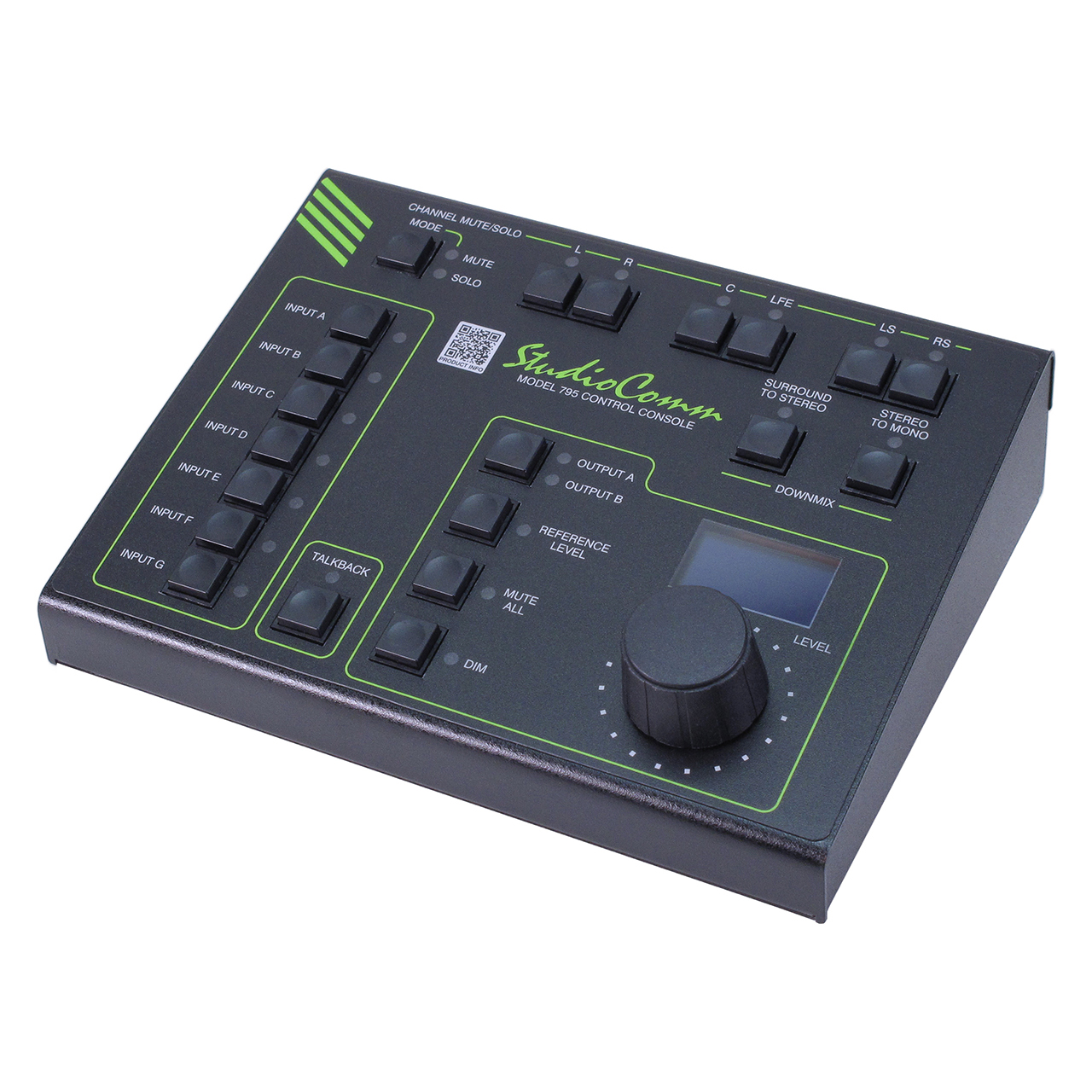

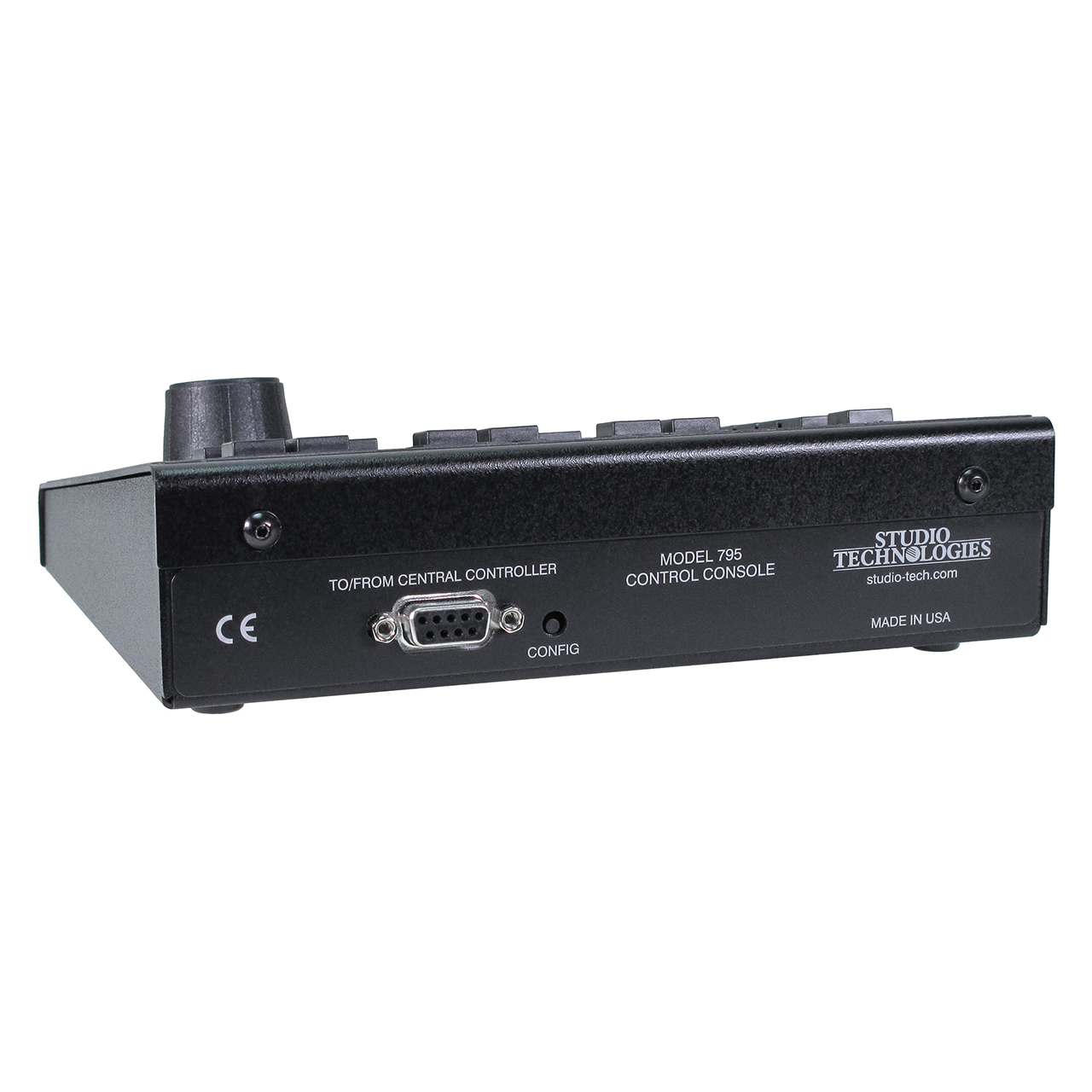

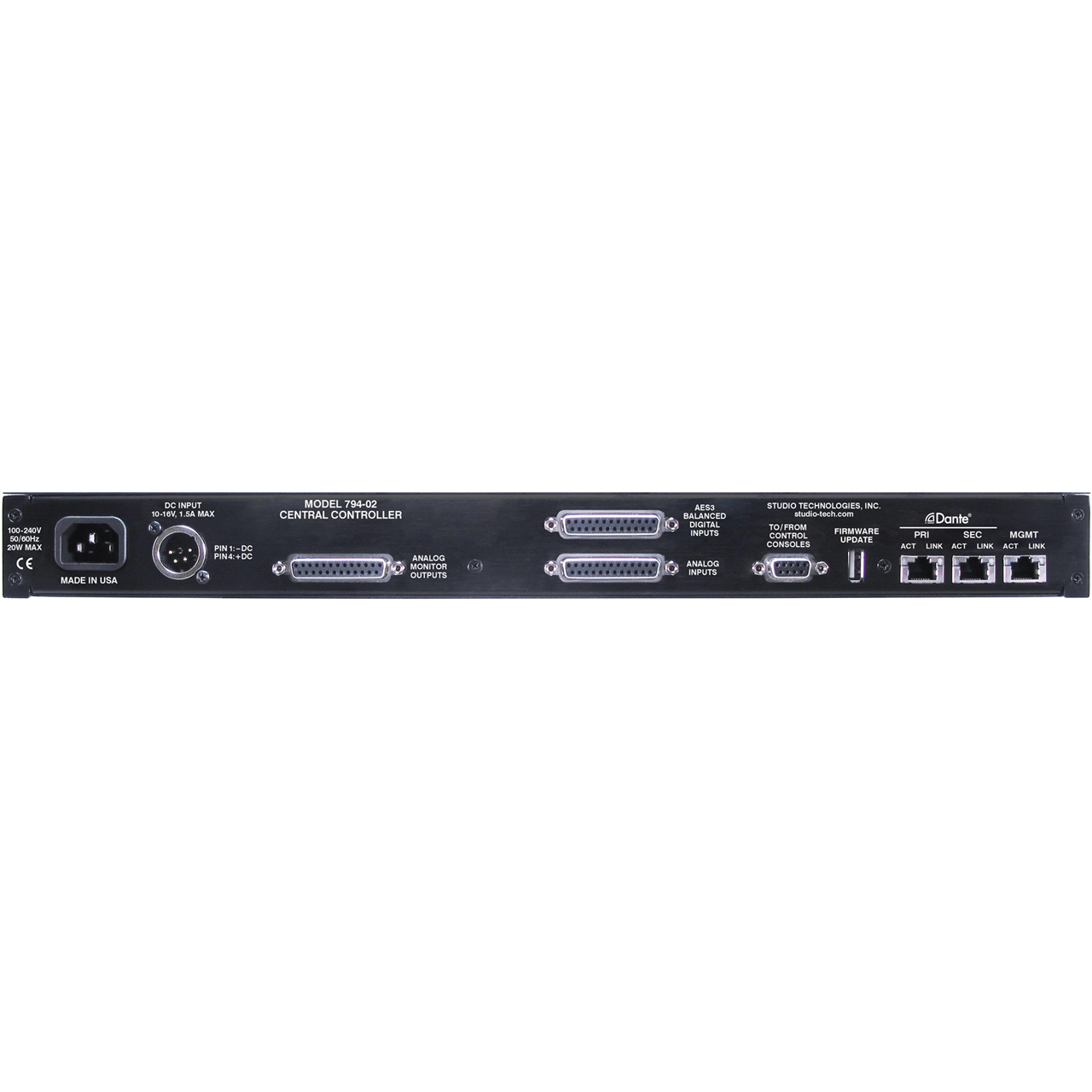

Studio Technologies M794-02 and M795 is a StudioComm for Dante system designed for supporting 5.1 and stereo monitoring applications. Dante and analog inputs and outputs; balanced AES3 digital inputs. Features include two 5.1 (6-channel) Dante digital audio inputs, two stereo (2-channel) Dante digital audio inputs, one 5.1 (6-channel) analog audio input, two stereo (2-channel) analog line inputs, one 5.1 (6-channel) balanced AES3 digital audio input, and one stereo (2-channel) balanced AES3 digital audio input. (Balanced AES3 digital audio inputs accessible on 25-pin D-sub connector.) Also includes two 5.1 (6-channel) Dante digital audio outputs, two stereo (2-channel) Dante digital audio outputs, one 5.1 (6-channel) analog audio output, and one stereo (2-channel) analog audio output. Includes bass management, downmix, and cue-mix capability. Three configurable Gigabit Ethernet network interfaces; two can be used for transporting audio (Redundant Dante) and the third for accessing the management menu system. Includes shielded multi-conductor cable with a 9-pin male D-sub plug on each end for linking Model 794-02 with Model 795. Powered by 100-240 V, 50/60 Hz. Can also be powered by an external source of 12 Vdc. (Connect both for redundant powering.)
