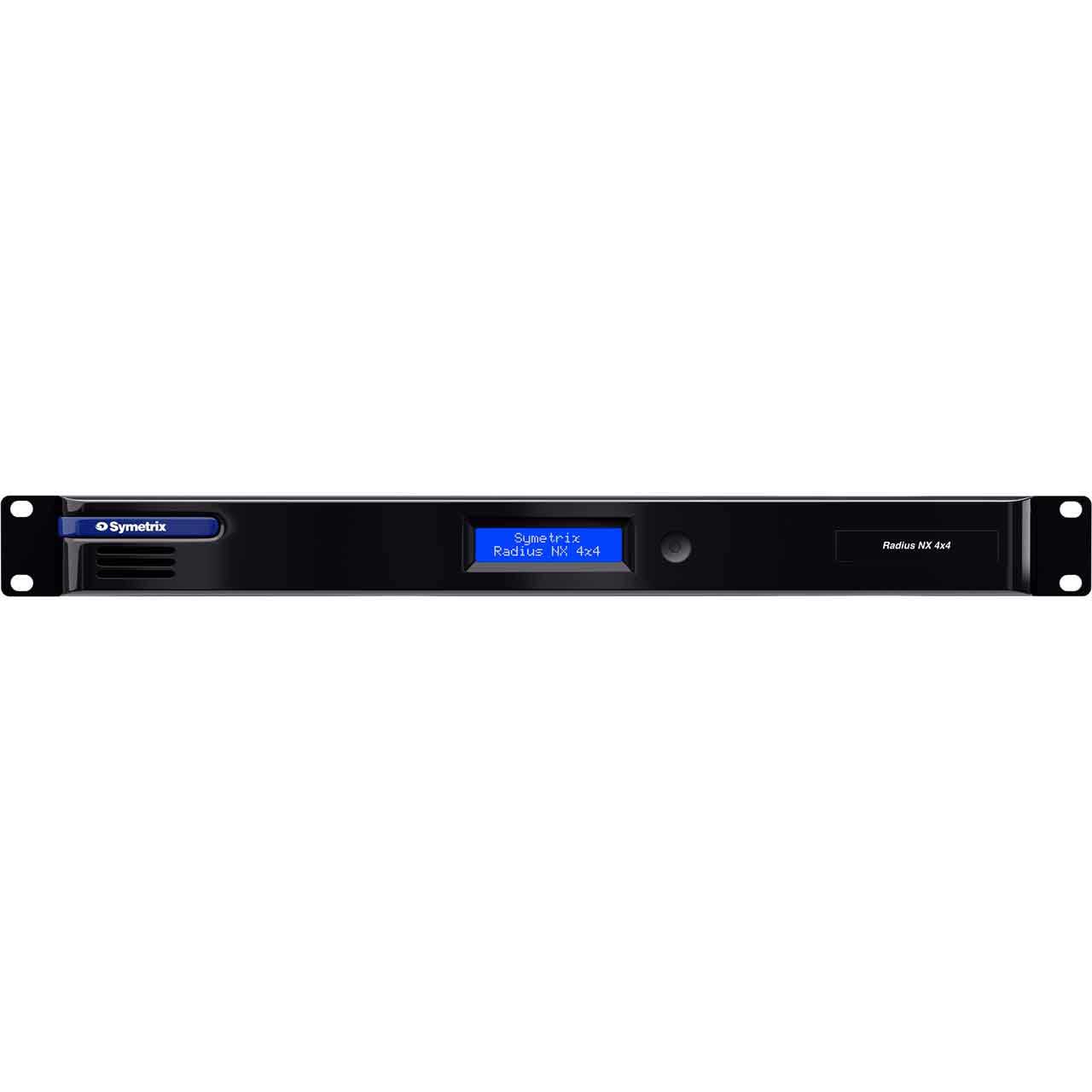

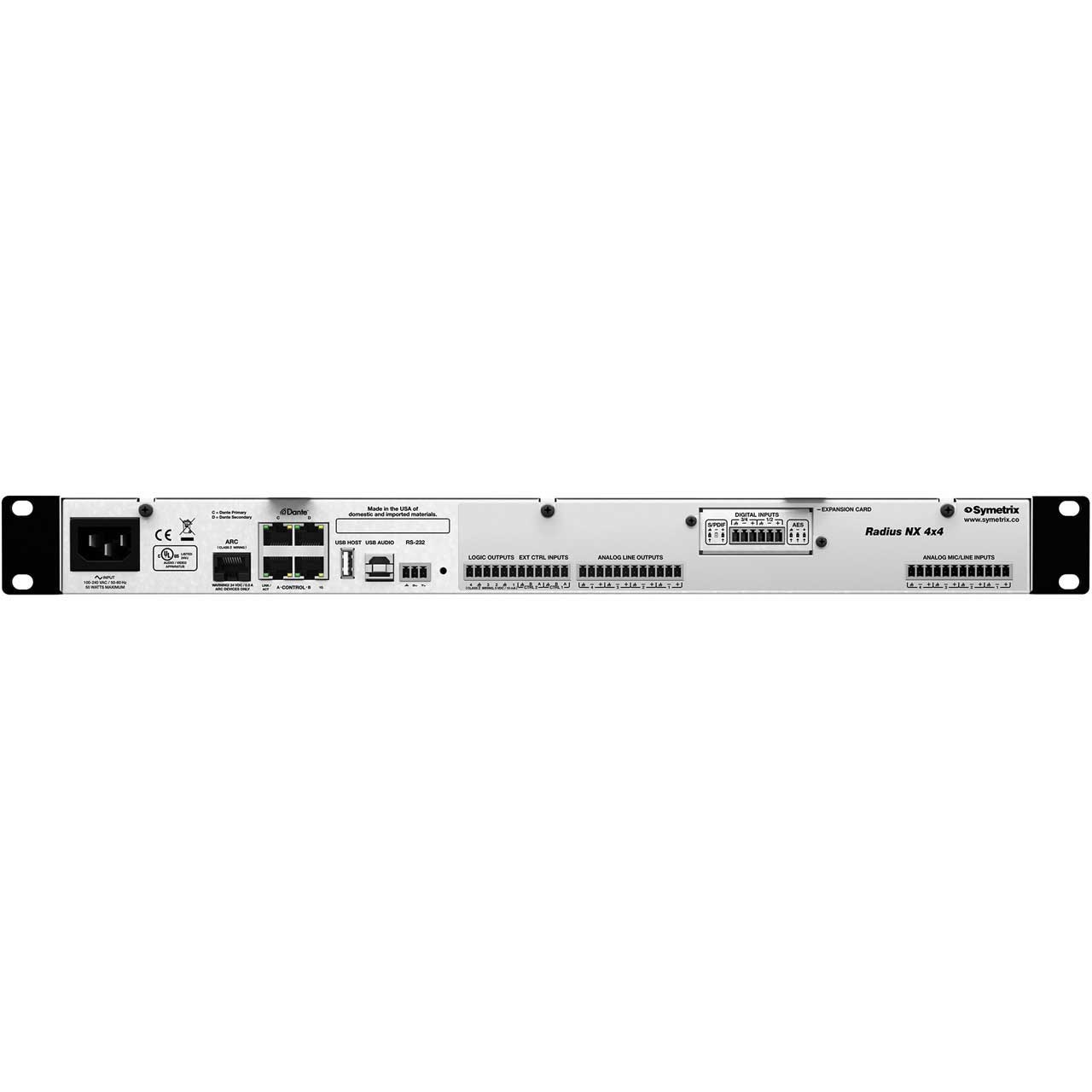

Symetrix RADIUS NX 4x4 DANTE+USB-B Programmable DSP - 4 Mic/Line In/4 Line Out/USB Audio/1 I/O Card/64x64 Dante - ARC

80-0144 - Overview

• Features:

  • Two Models: Radius NX 4x4 and Radius NX 12x8
  • Optional 64x64 Dante module
  • Optional AEC coprocessor module - up to 16 channels
  • USB audio port enables soft-codecs + record/playback
  • Dedicated roting resources for a 128x128 super matrix
  • 4-port gigabit switch serves Dante + control networks
  • Ultra-low noise preamps with 3dB gain steps
  • Support for Radius and Edge Expansion cards
  • Microsoft Teams Compatible


• Specifications:

  • System:
  • Processor: 1 x Analog Devices Griffin ADSP-SC587 dual-core DSP @ 500 MHz
  • Raw processing capacity: 500 MIPS, 6 GFLOPS, 2 GMACS
  • Sampling Rate: 48 kHz, ± 100 ppm
  • Frequency response (A/D/A): 20 Hz-20 kHz, ± 0.5 dB
  • Dynamic range (A/D/A): > 114 dB, A-weighted
  • THD + Noise: < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
  • Channel separation (A/D/A): > 110 dB @ 1 kHz, +24 dBu
  • Latency (A/D/A): 1.04 ms, inputs routed to outputs
  • Delay memory: 174 mono seconds
  • Analog control inputs: 0-3.3 VDC
  • Recommended external control potentiometer: 10k Ohm, linear
  • Logic outputs: Low (0V) when active, pulled high (5V) when inactive
  • Logic output maximum external power supply voltage/current sinking: 24 VDC / 50 mA
  • Logic output maximum output current: 10 mA
  • RS-232 accessory serial I/O: 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 require
  • RS-485 serial I/O: 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port
  • Ethernet Cable: Standard CAT5/6, maximum device to device length = 328 feet
  • Dante Cable: Standard CAT6, maximum device to device length = 328 feet
  • ARC Cable: Standard CAT5/6, distance dependent upon load and number of devices
  • Maximum stored presets: 1000

    Analog Inputs:
  • Number of inputs: Four (4) switchable balanced mic or line level
  • Connectors: 3.81 mm terminal blocks
  • Nominal input level: +4 dBu
  • Maximum input level: +24 dBu
  • Mic pre-amp gain: 0 to 51 dB in 3 dB steps with ± 24 dB digital trim
  • Mic pre-amp EIN: < -125 dB with 150 Ohm source impedance, 22.4 kHz BW
  • Input impedance: 2k Ohms balanced, 1k Ohms unbalanced
  • Phantom power (per input): +48 VDC @ 10 mA maximum
  • Dynamic range: > 115 dB, A-weighted
  • THD + Noise: < -100 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
  • Latency: 0.31 mS

    Analog Outputs:
  • Number of outputs: Four (4) balanced line level
  • Connectors: 3.81 mm terminal blocks
  • Nominal Output Level: +4 dBu with 20 dB of headroom
  • Maximum Output Level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
  • Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced
  • Dynamic range: > 117 dB, A-weighted.
  • THD + Noise: < -97 dB (22.4 kHz BW, unweighted); 1 kHz, 0 dB
  • gain +8 dBu output
  • Latency: 0.65 ms

    Analog Inputs:
  • Number of inputs: Four (4) switchable balanced mic or line level
  • Connectors: 3.81 mm terminal blocks
  • Nominal input level: +4 dBu
  • Maximum input level: +24 dBu
  • Mic pre-amp gain: 0 to 51 dB in 3 dB steps with ± 24 dB digital trim
  • Mic pre-amp EIN: < -125 dB with 150 Ohm source impedance, 22.4 kHz BW
  • Input impedance: 2k Ohms balanced, 1k Ohms unbalanced
  • Phantom power (per input): +48 VDC @ 10 mA maximum
  • Dynamic range: > 115 dB, A-weighted
  • THD + Noise: < -100 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
  • Latency: 0.31 mS

    Analog Outputs:
  • Number of outputs: Four (4) balanced line level
  • Connectors: 3.81 mm terminal blocks
  • Nominal Output Level: +4 dBu with 20 dB of headroom
  • Maximum Output Level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
  • Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced
  • Dynamic range: > 117 dB, A-weighted.
  • THD + Noise: < -97 dB (22.4 kHz BW, unweighted); 1 kHz, 0 dB gain +8 dBu output
  • Latency: 0.65 ms

    Mechanical Data:
  • Space Required: 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in
  • Electrical: 100-240 VAC, 50/60 Hz, 60 Watts maximum, universal input
  • Ventilation: Maximum recommended ambient operating temperature is 86 F
  • Shipping Weight: 13 lbs
  • Certifications and Compliance: Safety: UL 60065, cUL 60065, IEC 60065
  • EMC: EN 55103-1, EN 55103-2, EN55032, EN 61000-3-2, EN 61000-3-3, ICES-003, FCC Part 15 (all Class A)
  • Environmental: RoHS


• Item Includes:

  • 1x Power cable
  • 13x Detachable 3.5 mm terminal block connectors
  • 1x Qucik Start Guide


• Warranty:

  • 5 years
