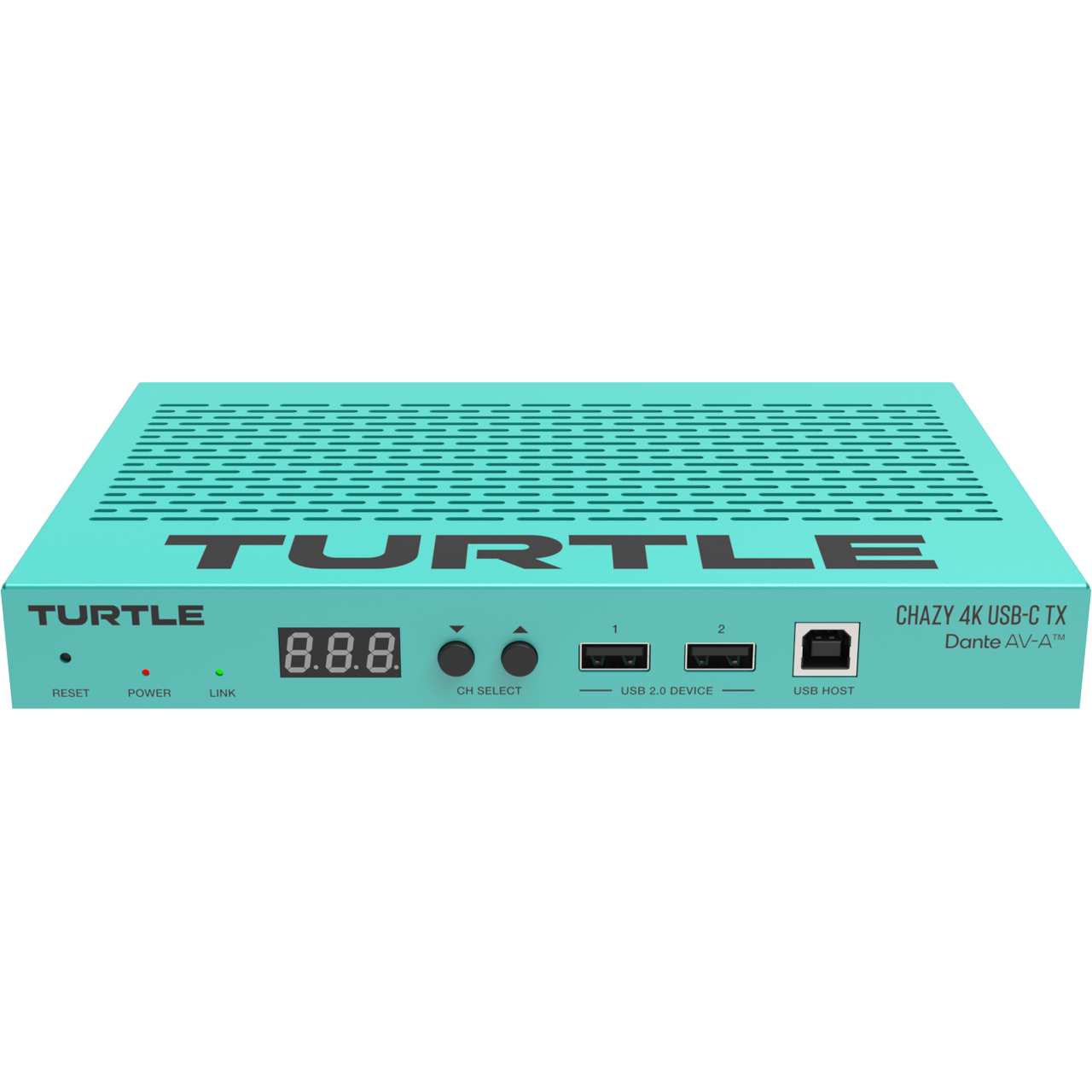

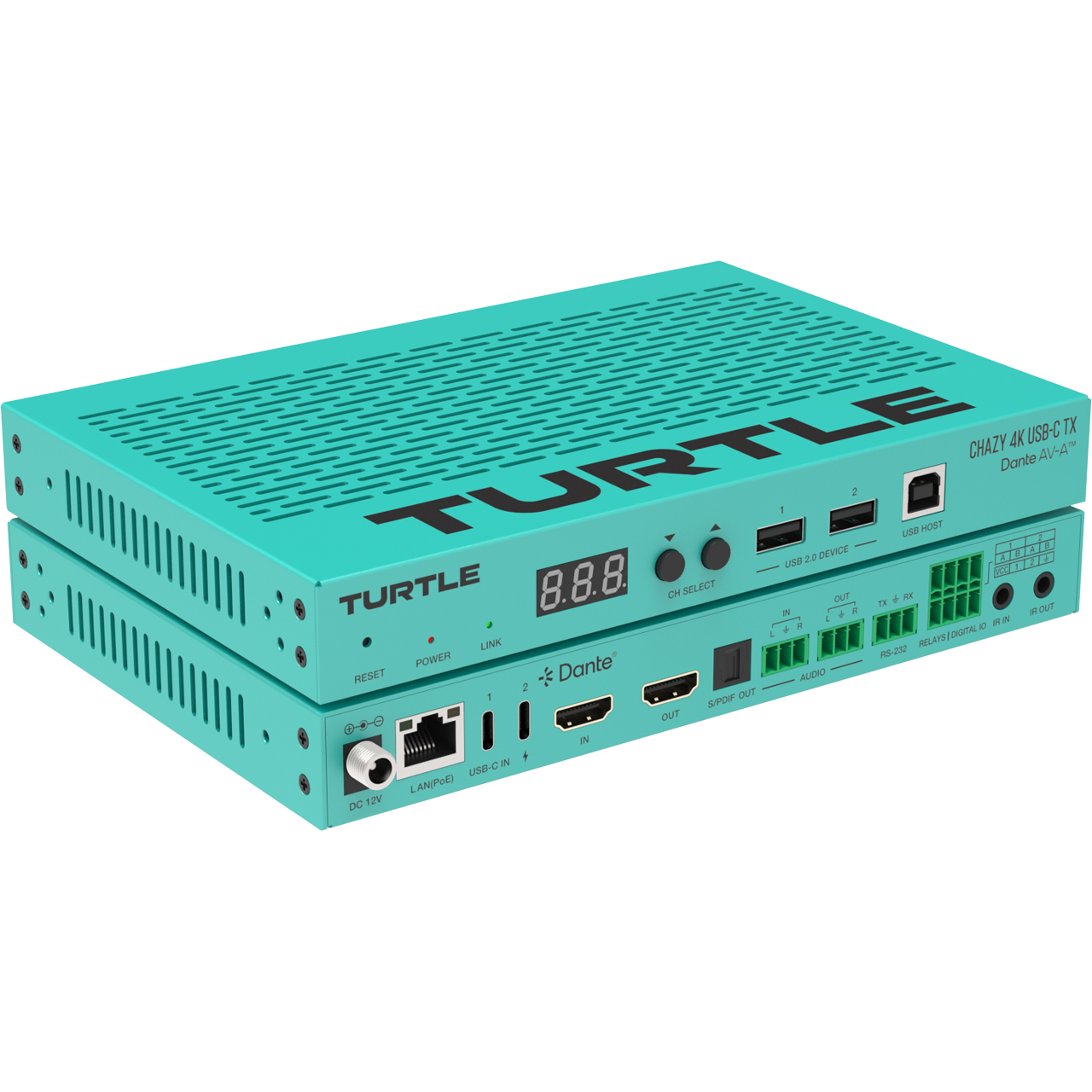

Turtle AV TAV-CHAZYUSB-TX CHAZY 4K Dante AV-A and JPEG 2000 USB-C Transmitter - TAA Compliant

Name: Turtle AV TAV-CHAZYUSB-TX CHAZY 4K Dante AV-A and JPEG 2000 USB-C Transmitter - TAA Compliant
Brand: Turtle AV
SKU: TAV-CHAZYUSBTX
Price: 1299.00 USD
Availability: PreSale

ITEM #: TAV-CHAZYUSBTX MFG #: TAVCHAZYUSBTX

Turtle AV

Our Price:

$1,299.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TAVCHAZYUSBTX - Overview

The Turtle AV Chazy 4K USB-C Tx is a Dante AV-A and JPEG 2000 encoder, allowing seamless transmission of 2160 60Hz 4:4:4 HDR video from laptops or tablets via USB-C, and from video sources via the HDMI 2.0b input. The Dante AV-A license is included and ready to go, which also has 2x2 Dante audio license. Chazy 4K USB-C Tx is PoE powered and supports a wide range of audio formats including 7.1 Dolby Atomos, and features advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, and true multicast support. TAA compliant, Chazy 4K USB-C Tx also comes with a 5-year warranty.

Features:
- 7.1-channel Dolby Atmos
- Dolby TrueHD
- Dolby Digital Plus
- DTS-HD Master Audio
- ARC & eARC
- SPDIF connectivity
- Analog audio return via Phoenix Connectors
- Dante 2x2 Audio license include
- Super easy Drag-and-Drop Routing
- All models are fan-less, totally silent, and without vibration
- TAA Compliant
Specifications:
- HDMI: 2.0b Compliant
- HDCP: 2.2 Compliant
- Video Bandwidth: 18Gbps
- Compression Codec: JPEG 2000 or Dante AV-A
- Network Bandwidth: 1Gbps
- USB Bandwidtch: 480Mbps
- Color Depth: Input: 8/10/12-bit; Output: 8-bit
- Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- HDMI Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master
- IR Level: Default 12V, Optional 5V
- IR Frequence: Wideband 20K - 60KHz
- ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

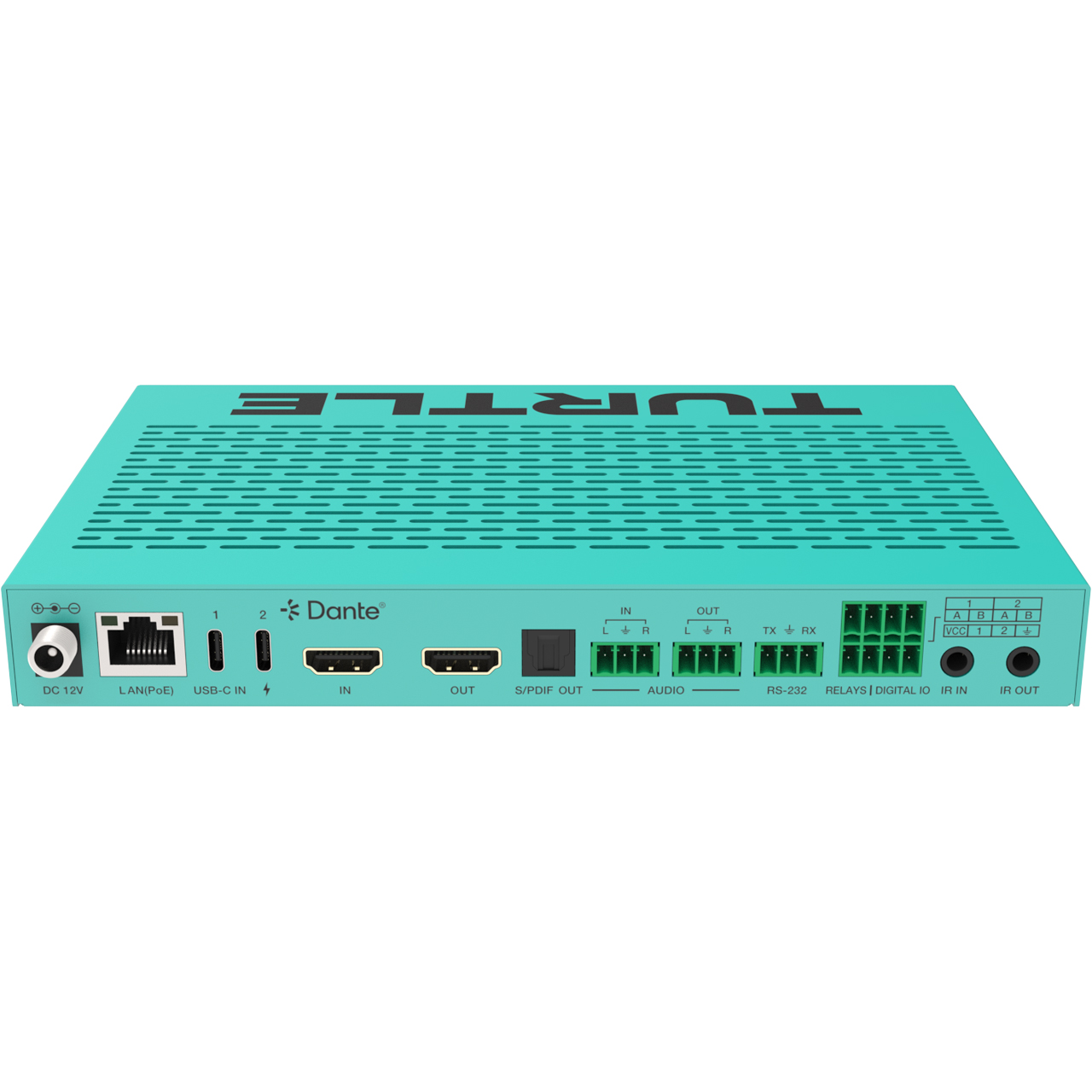

  Connections
- Input:
  - 1x HDMI IN [HDMI Type A, 19-pin female]
  - 2x USB-C IN [USB Type C, 24-pin female]
  - 1x AUDIO IN [3pin-3.5mm Phoenix connector]
- Output:
  - 1x HDMI (Type A, 19-pin female)
  - 1x L/R Audio (3-pin 3.81mm Phoenix connector)
  - 1x SPDIF OUT (Optical)
- Control:
  - 1x LAN (PoE IEEE 802.3af) RJ45 jack
  - 1x RS-232 (3-pin 3.81mm Phoenix connector)
  - 1x USB 2.0 HOST (Type B, 4-pin female)
  - 2x USB 2.0 DEVICE (Type A, 4-pin female)
  - 2x RELAYS (3-pin 3.81mm Phoenix connector)
  - 1x IR IN (3.5mm audio jack)
  - 1x IR Out (3.5mm audio jack)

  Mechanical
- Housing: Metal enclosure
- Color: Turtle Aqua
- Dimensions: 8.03" x 5.35" x 1" (204mm x 136mm x 25.5mm)
- Weight: 1.39lbs (631g)
- Power Supply:
  - Input: AC 100V - 240V 50/60Hz
  - Output: DC 12V/2.5A
  - PoE IEEE 802.3af
- Power Consumption: 8.52W
- Operating Temperature: 32°F - 104°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (no condensing)
Item Includes:
- 1x Turtle AV TAV-CHAZYUSB-TX CHAZY 4K USB-C TX
- 1x Power Supply
Warranty:
- 5 Year Limited Warranty
