MuxLab 500457 HDMI/USB2.0 Extender Kit

ITEM #: MUX-500457 MFG #: 500457

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$882.00

Our Price:

$609.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    500457 - Overview

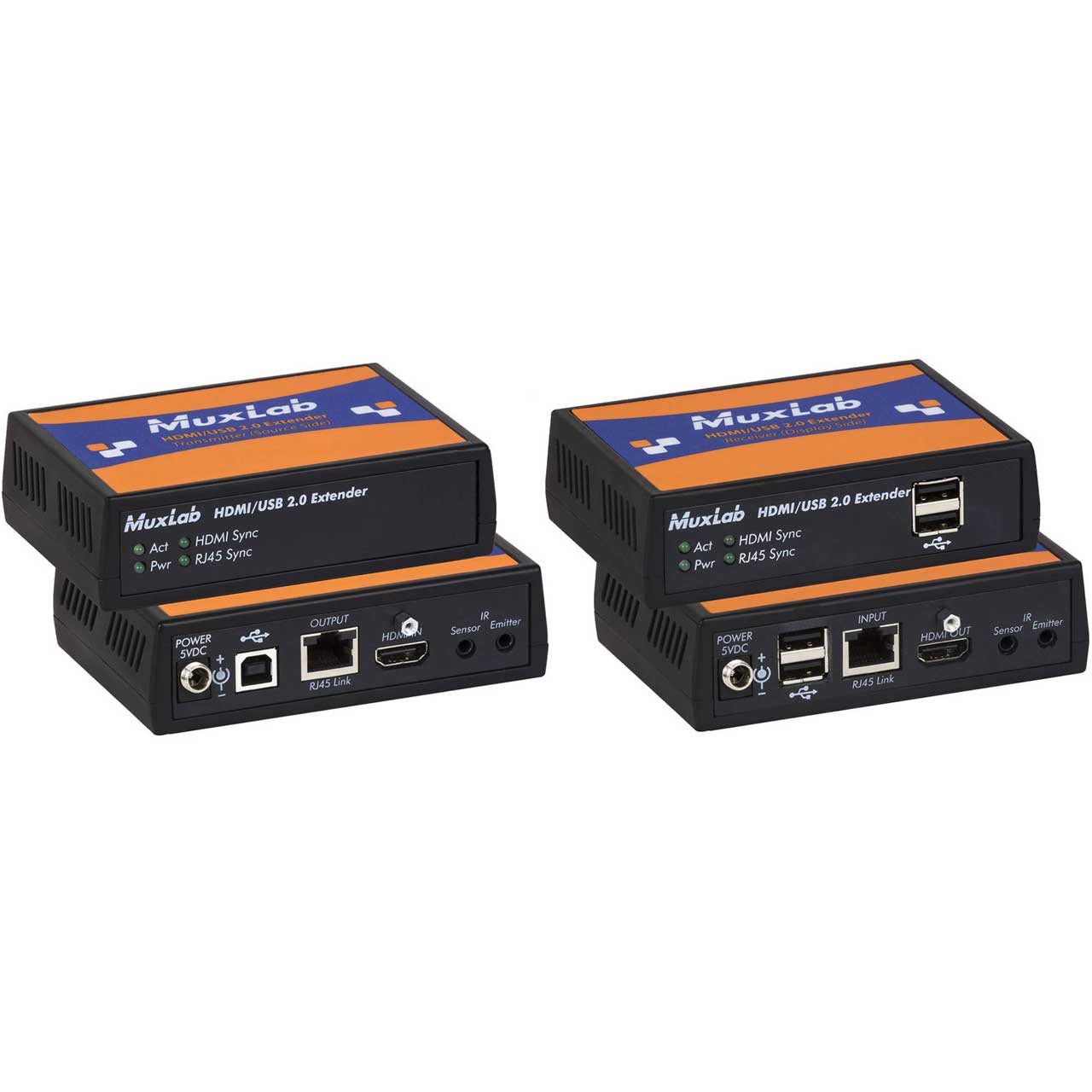

    The MuxLab 500457 HDMI/USB 2.0 Extender Kit allows one HDMI 1.4 and one USB 2.0 channel to be transmitted up to 330ft (100m) at all resolutions up to 1920×1200 @ 60Hz via one (1) Cat 5e/6 cable in a point-to-point configuration. The receive side includes a 4-port USB 2.0 hub, supporting KVM applications. Bi-directional IR transmission is supported.

    Typical KVM applications include:
    Commercial and residential AV systems
    Classroom projector system
    Boardroom systems
    Collaborative PC systems
    Medical information systems

    • Features:

      • Supports HDMI 4K @ 30fps (4:4:4)
      • Supports HDMI 4K @ 60fps (4:2:0)
      • Uncompressed signal transmission
      • USB 2.0 (250Mbps max)
      • Receiver side includes a 4-port USB hub, supporting KVM applications
      • Up to 330ft (100m) over Cat5e/6 at 4K30
      • Supports bi-directional IR transmission

    • Specifications:

      • Environment: KVM, HDMI 1.4 & USB 2.0
      • Devices: KVM, Monitors, TV, PC, laptops, mouse, keyboard.
      • Transmission: Transparent to the user.
      • Bandwidth: 340 MHz
      • Signals: HDMI 1.4 protocol and USB 2.0
      • USB: One input on TX side and 4 outputs on RX side. Bandwidth available: Up to 250 Mb/s.
        Connectors:
      • One (1) HDMI receptacle.
      • One (1) RJ45 for Cat 5e/6 unshielded or shielded twisted pair.
      • On TX: 1 standard USB connector, type B.
      • On RX: 4 standard USB connectors, type A.
        Cable: One (1) Cat 5e/6 or better twisted pair cable required.
      • Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades
      • Power Consumption: Transmitter: 3 Watts; Receiver: 7 Watts + USB power
      • Temperature: Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Aluminum casting with plastic side panel.
      • Dimensions: 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
      • Weight: 2.6 lb. (1.2 kg)
      • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0

    • Warranty:

      • 2 Years

    • GTIN:

      0627699004579
