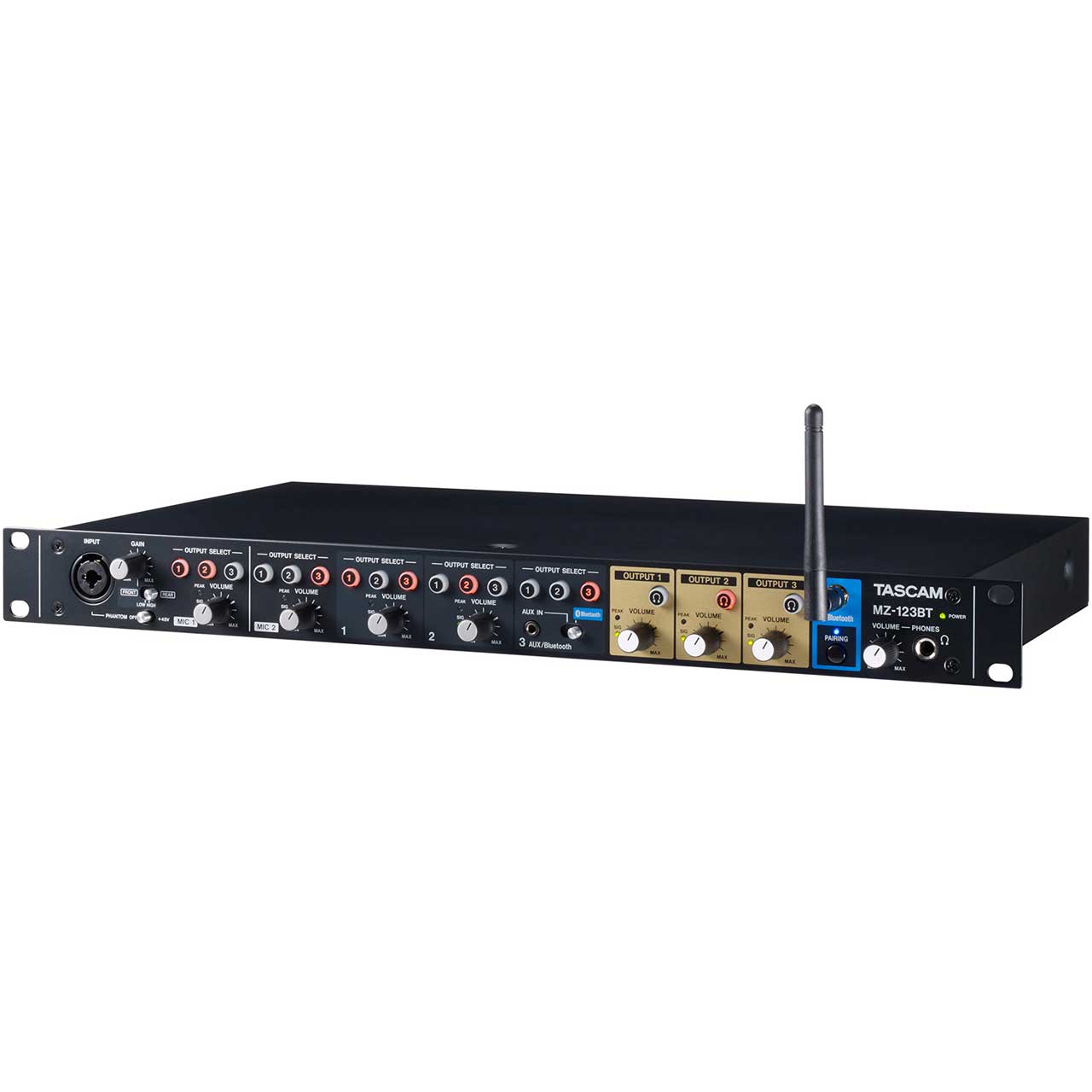

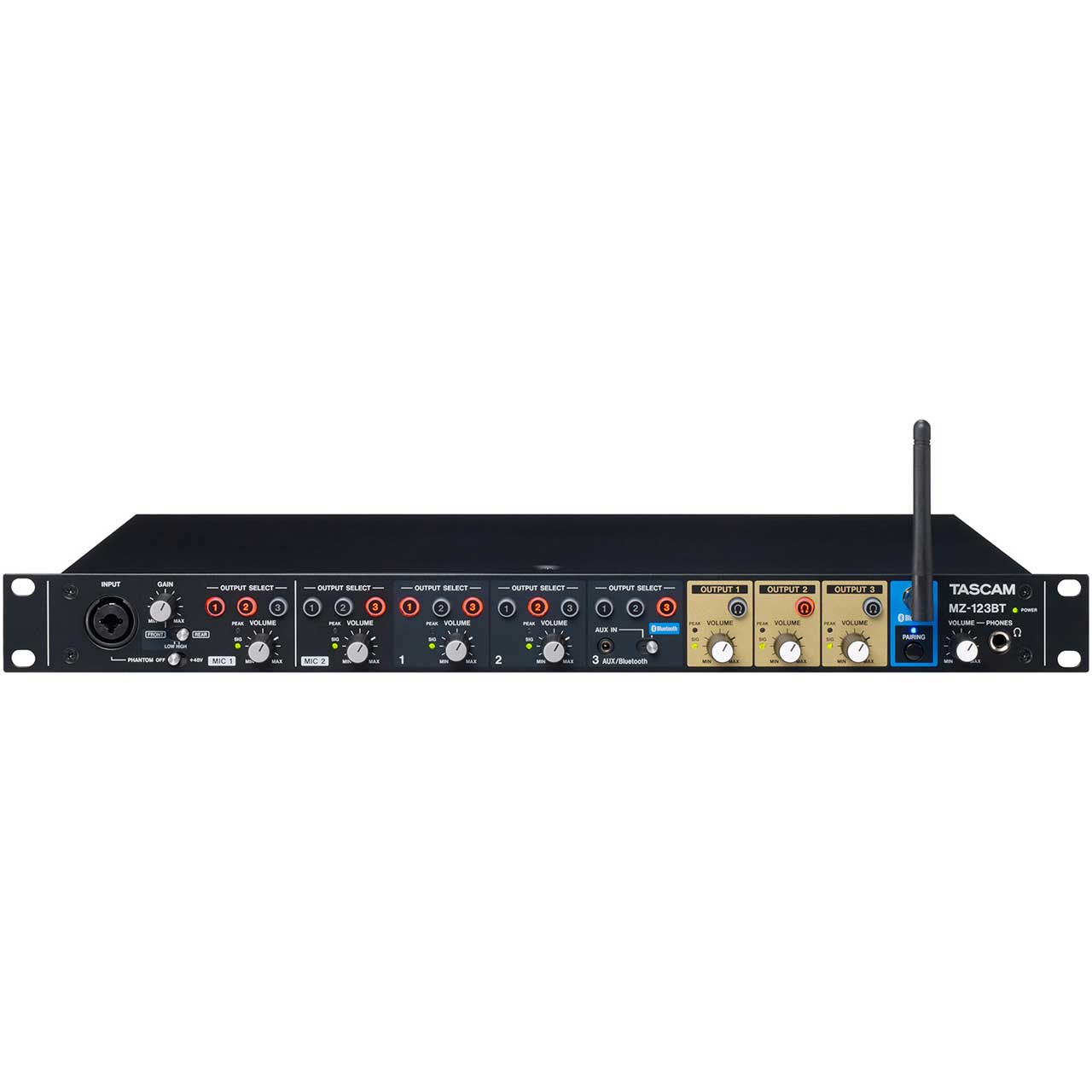

Tascam MZ-123BT Zone Mixer with Bluetooth

MZ-123BT - Overview

• Features:

  • Input Channel sources can be easily assigned to each of the individual 3 Zone Outputs
  • MONO/STEREO select switch on each Output Channel*
  • Euroblock connectors provide seamless connection and configuration in fixed installations
  • 3 Input Channels
  • 2 MIC inputs for announcements or Talk Over
  • Individual +48V phantom power switch on each channel
  • 3 band EQ and High Pass Filter for adjusting Input Channel signal tone and quality
  • MIC 1 connection available via a front panel XLR/TRS combo jack or rear panel Euroblock connectors
  • Talk Over feature enables automatic background music volume attenuation in desired Zone when mic audio is detected
  • Headphone jack enables monitoring of each output channel
  • Compact 1U rack-mount size
    Please Note!
  • *Stereo input sources will be mixed to monaural when output is set to MONO.
  • *Source selection either via AUX input or Bluetooth® during operation.


• Specifications:

  • Audio Inputs
  • Mic Input (Balanced) Jack (Front)
  • Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Rated Input Level: -26dBu (0.039 Vrms, when FRONT HIGH), -2dBu (0.616 Vrms, when FRONT LOW)
  • Maximum Input Level: -10dBu (0.245 Vrms, when FRONT HIGH), +14dBu (3.884 Vrms, when FRONT LOW)
  • Minimum Input Level: -65dBu (0.0004 Vrms, when FRONT HIGH), -41dBu (0.007 Vrms, when FRONT LOW)
  • Gain Adjustment Range: 39dB
  • Input Impedance: 2.4kΩ

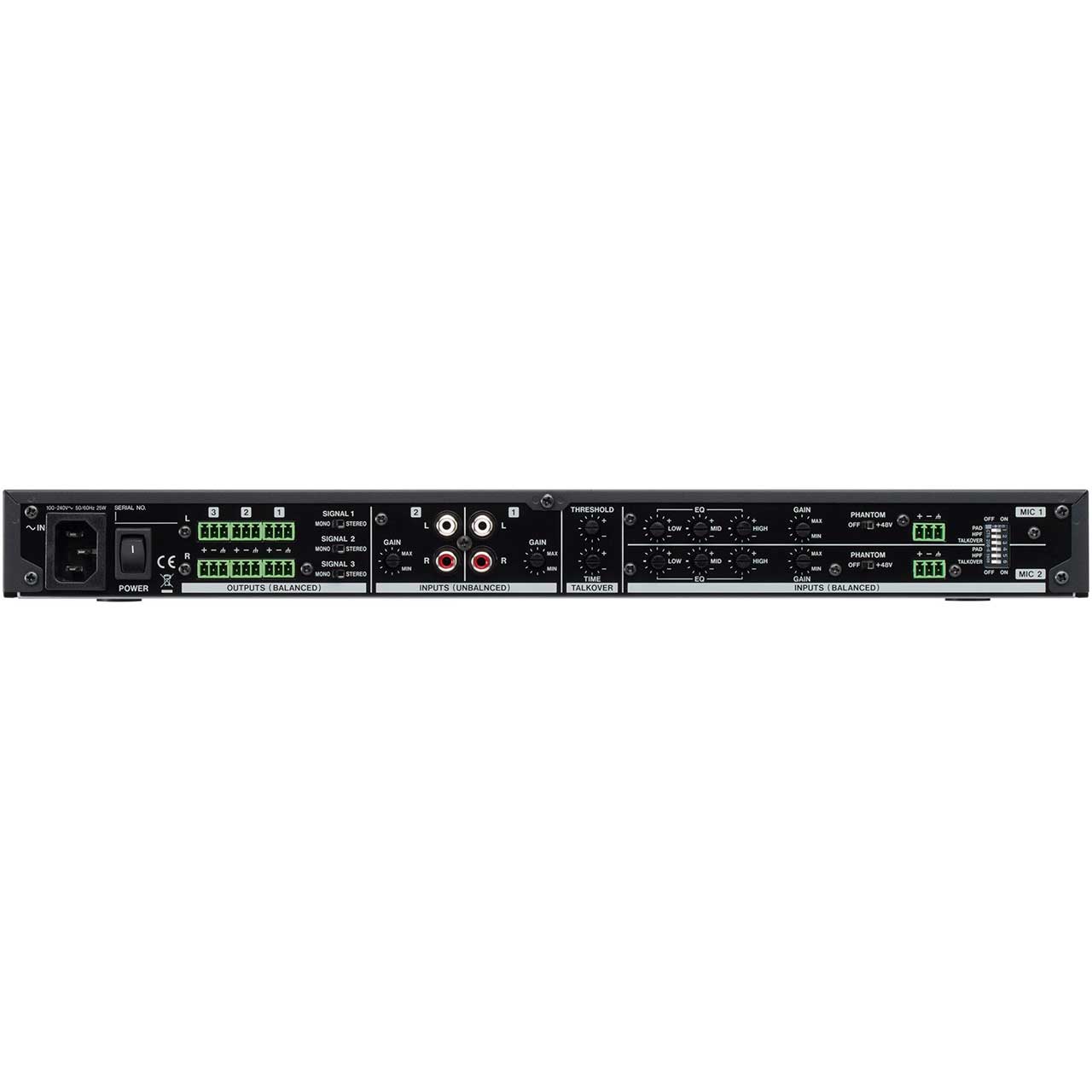

  • Mic In 1-2 (Balanced) Connectors (Rear)
  • Connectors: Euroblock (balanced) 3.81mm pitch
  • Rated Input Level: -26dBu (0.039 Vrms, when PAD switch OFF), -2dBu (0.616 Vrms, when PAD switch ON)
  • Maximum Input Level: -10dBu (0.245 Vrms, when PAD switch OFF), +14dBu (3.884 Vrms, when PAD switch ON)
  • Minimum Input Level: -65dBu (0.0004 Vrms, when PAD switch OFF), -41dBu (0.007 Vrms, when PAD switch ON)
  • Gain Adjustment Range: 39dB
  • Input Impedance: 2.4kΩ
  • Line Inputs 1-2 (Unbalanced) Connectors (rear)
  • Connectors: RCA pin jacks
  • Nominal Input Level: -10dBV (0.316 Vrms)
  • Maximum Input Level: +6dBV (2.0 Vrms)
  • Gain Adjustment Range: -16dB to +16dB
  • Input Impedance: 10kΩ or higher
  • AUX In (Unbalanced) Jack (Front)
  • Connector: 3.5mm (1/8") stereo mini jack
  • Nominal Input Level: -20dBV (0.1 Vrms)
  • Maximum Input Level: -4dBV (0.63 Vrms)
  • Input Impedance: 10kΩ or higher

    Audio Outputs
  • Outputs (Balanced) Connectors
  • Connectors: Euroblock (balanced) 3.81mm pitch
  • Rated output level: +4dBu (1.228 Vrms, when VOLUME knob at 0 dB)
  • Maximum output level: +24dBu (12.282 Vrms)
  • Output impedance: 200Ω
  • PHONES jack
  • Connectors: 6.3mm (1/4") standard stereo jack
  • Maximum output: 80mW + 80mW or higher (THD+N 0.1% or less, into 32Ω load)

    Bluetooth
  • Bluetooth Version: 4.2
  • Output class: 2 (about 10m unobstructed transmission distance)
  • The transmission distance is only an estimate and might vary depending on the surrounding environment and radio wave conditions.
  • Supported Profile: A2DP
  • Supported A2DP Codecs: SBC, AAC, Qualcomm® aptX™ audio
  • Supported A2DP Content Protection: SCMS-T

    General
  • Power: AC 100V - 240V 50/60Hz
  • Power consumption: 25W
  • Dimensions (WxHxD): 19.01 x 1.83 x 10.82" (483 x 46.5 x 274.8mm) including protrusions - excluding Bluetooth antenna
  • Weight: 6.61Lbs (3.0kg)
  • Operating temperature range: 32° to 104°F (0° to 40°C)

    Audio Performance
  • Frequency Response
  • Mic Input-Line Output: 20Hz - 20kHz: +0.5 dB/-1.0 dB*
  • Line Input-Line Output: 20Hz - 20kHz: ±0.5 dB*
  • Distortion
  • Mic Input (Front)-Line Output: 0.02% or less*
  • Mic Input (Rear)-Line Output: 0.01% or less*
  • Line Input-Line Output: 0.01% or less*
  • S/N ratio
  • Mic Input-Line Output: 90dB or higher*
  • Line Input-Line Output: 90dB or higher*
  • Crosstalk
  • Mic Input-Line Output: 80dB or higher*
  • Line Input-Line Output: 80dB or higher*
  • Mic amp EIN (equivalent input noise)
  • Mic Input-Line Output: -125dBu or less (150Ω, 20kHz LPF, A-weight)

  • Please Note! *when GAIN knob at minimum, VOLUME knob at 0 dB, JEITA: indicates compliance with JEITA CP-1301A


• Item Includes:

  • 1x Main unit
  • 1x Power cord set
  • 1x Bluetooth antenna
  • 8x Euroblock plug
  • 1x Cable band kit
  • 1x XLR cover
  • 1x Rackmount screw kit
  • 1x Owner's Manual (this document) including warranty


• GTIN:

  0043774034253
