Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximum flexibility, source content can include music, spoken word (microphone), turntable, and more - all easily controlled via familiar sliders and assignment controls.

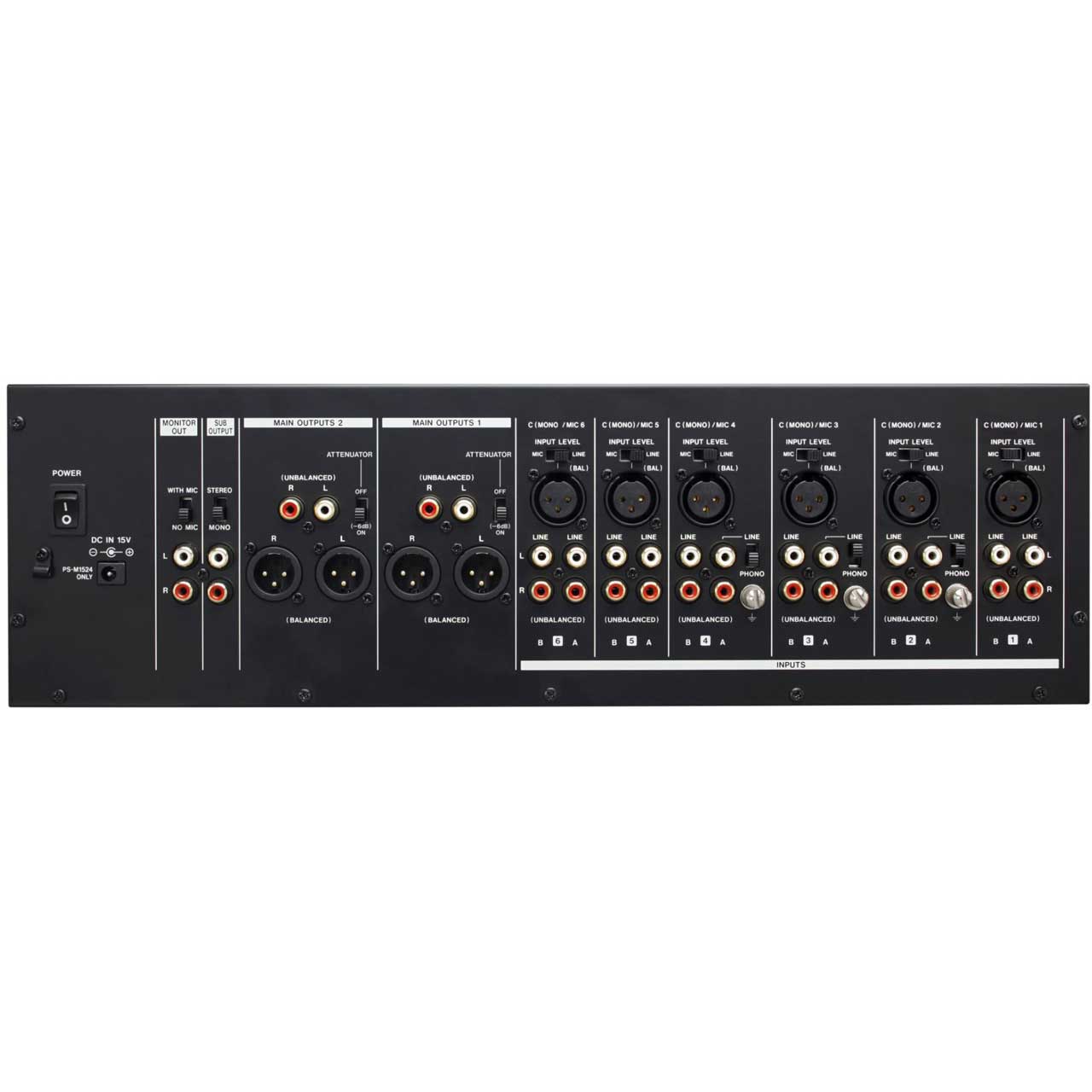

The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to two (2) redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via six (6) audio channels, each consisting of two (2) sets of unbalanced RCA-type stereo pairs, and six (6) XLR inputs for a total of twelve (12) sets of RCA-type inputs and six (6) XLR inputs. In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.
Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments - or any other audio source - to be selected or muted, and sent simultaneously to the dual outputs, each with its own volume control. Finally, the convenient "talkover" function will automatically lower any mixed channel source so the microphone connected to the front panel can easily be can be heard in whichever zones you choose.

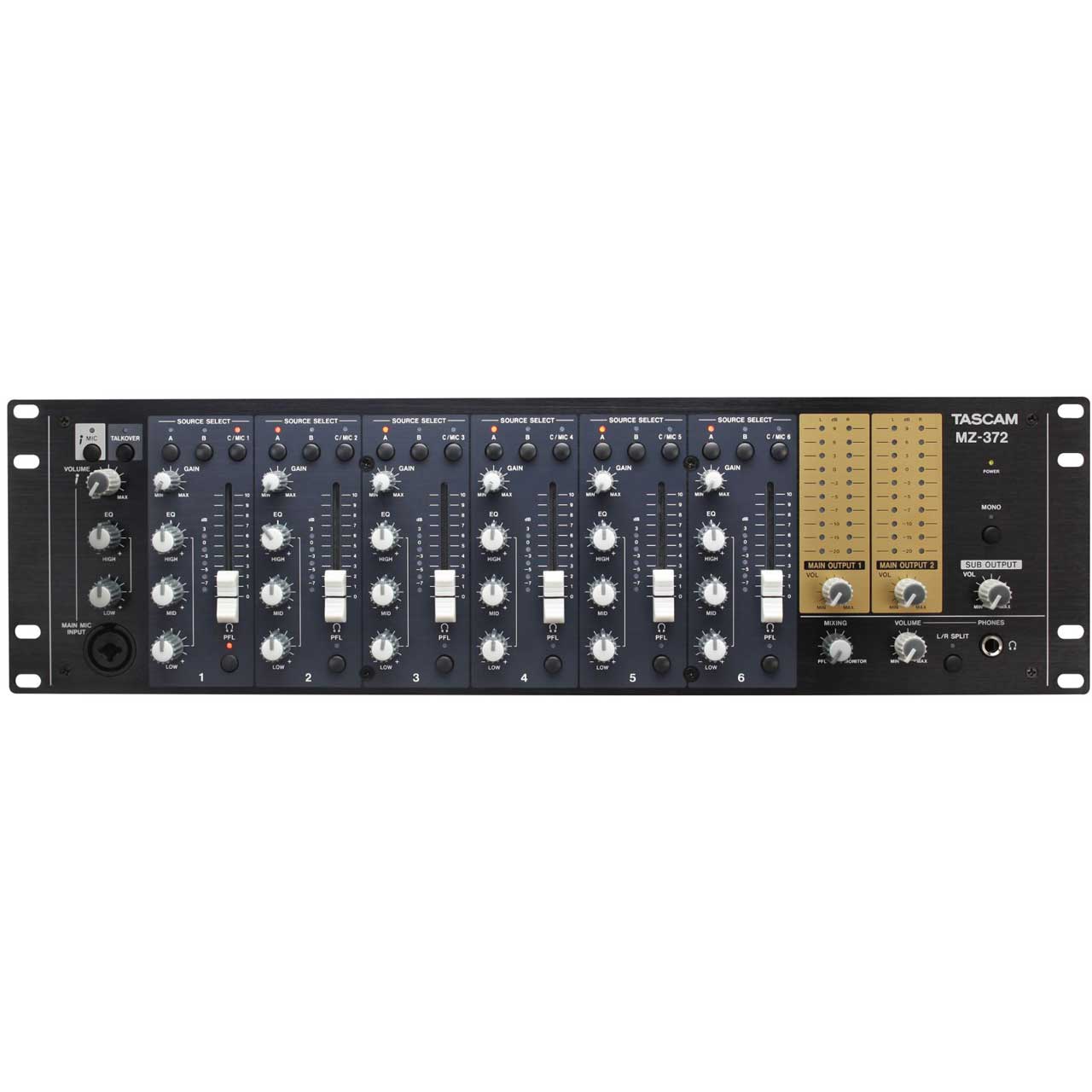

Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event or music performance capturing easy. The Booth outputs provide another stereo feed with independent control for additional monitoring.
