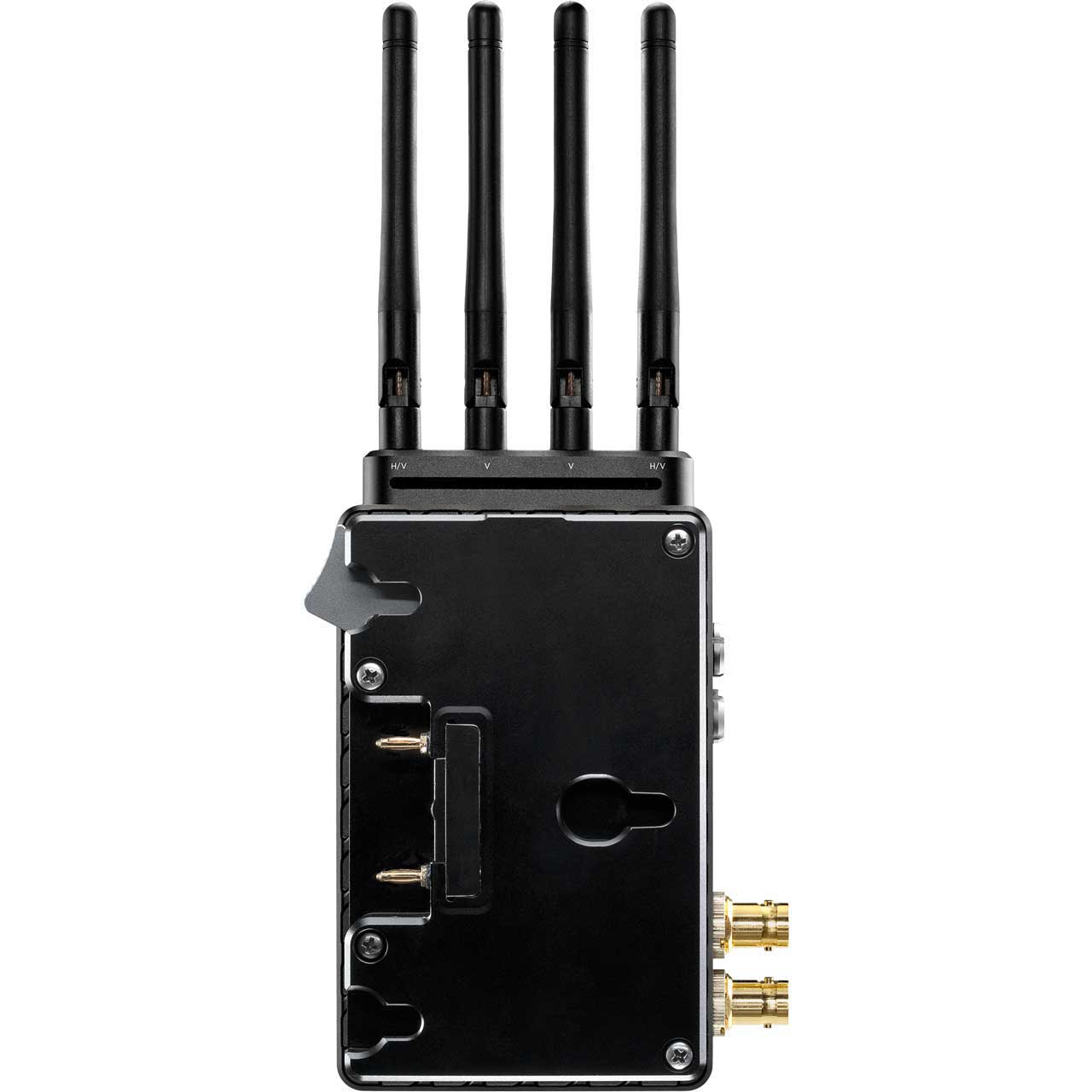

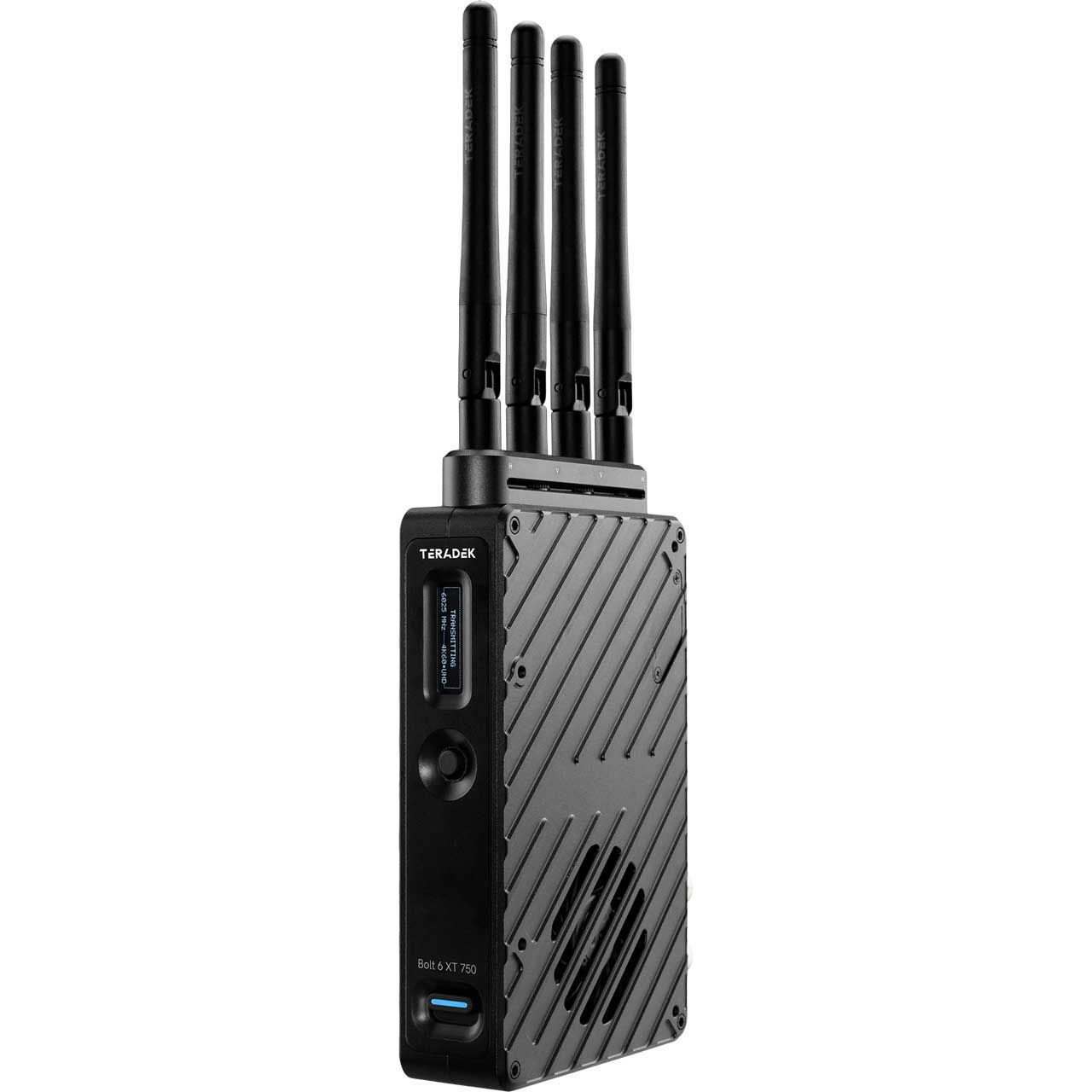

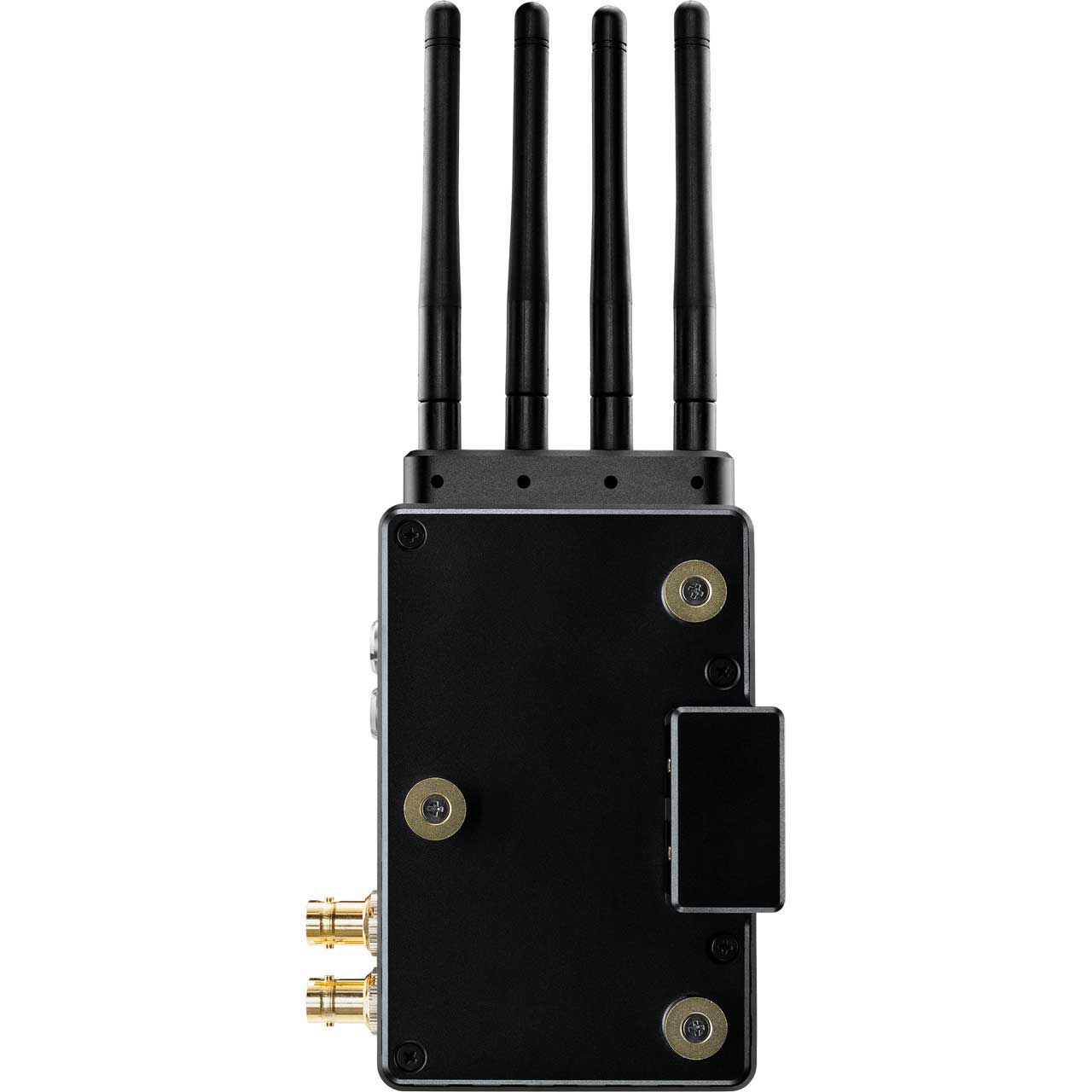

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Video Transmitter with Gold Mount Battery Plate

ITEM #: TER-BLT6XT75SHTG MFG #: 10-2301-G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,690.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


10-2301-G - Overview

Teradek Bolt 6 XT 750 is a 12G-SDI/HDMI Wireless Video Transmitter with Gold Mount Battery Plate. The Bolt 6 XT is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This transmitter allows you to send color accurate, True HDR videos in under 0.001 seconds.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

  • Features:

    • Zero Delay
    • 6GHz Wireless Frequency
    • Bolt 4K Cross-Compatibility
    • Lightweight and Quiet
    • Built in 5-pin USB for camera control
    • Inputs: 12G-SDI, HDMI 2.0
    • Outputs: 12G-SDI, HDMI 2.0

  • Specifications:

    • Video
    • Video Inputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1) 1x HDMI 2.0 Type-A receptacle
    • Video Outputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1)
    • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
    • Delay Tx To Rx: <0.001sec
    • Input Cross Conversion: Yes, HDMI to SDI

      Supported Resolutions
    • 4Kp23.98/24/25/29.97/30/50/59.94/60
    • 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p50 576p59.94/60
    • 480i(NTSC)/576i(PAL)

      Video Processing
    • Video Compression: Visually Lossless
    • Color Correction: None

      Audio Processing
    • Audio Compression: 48kHz 24-bit PCM

      Inputs
    • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

      Physical
    • Dimensions: 5.20 x 3.58 x 1.06"
    • Weight: 344g (12.1 Oz)
    • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

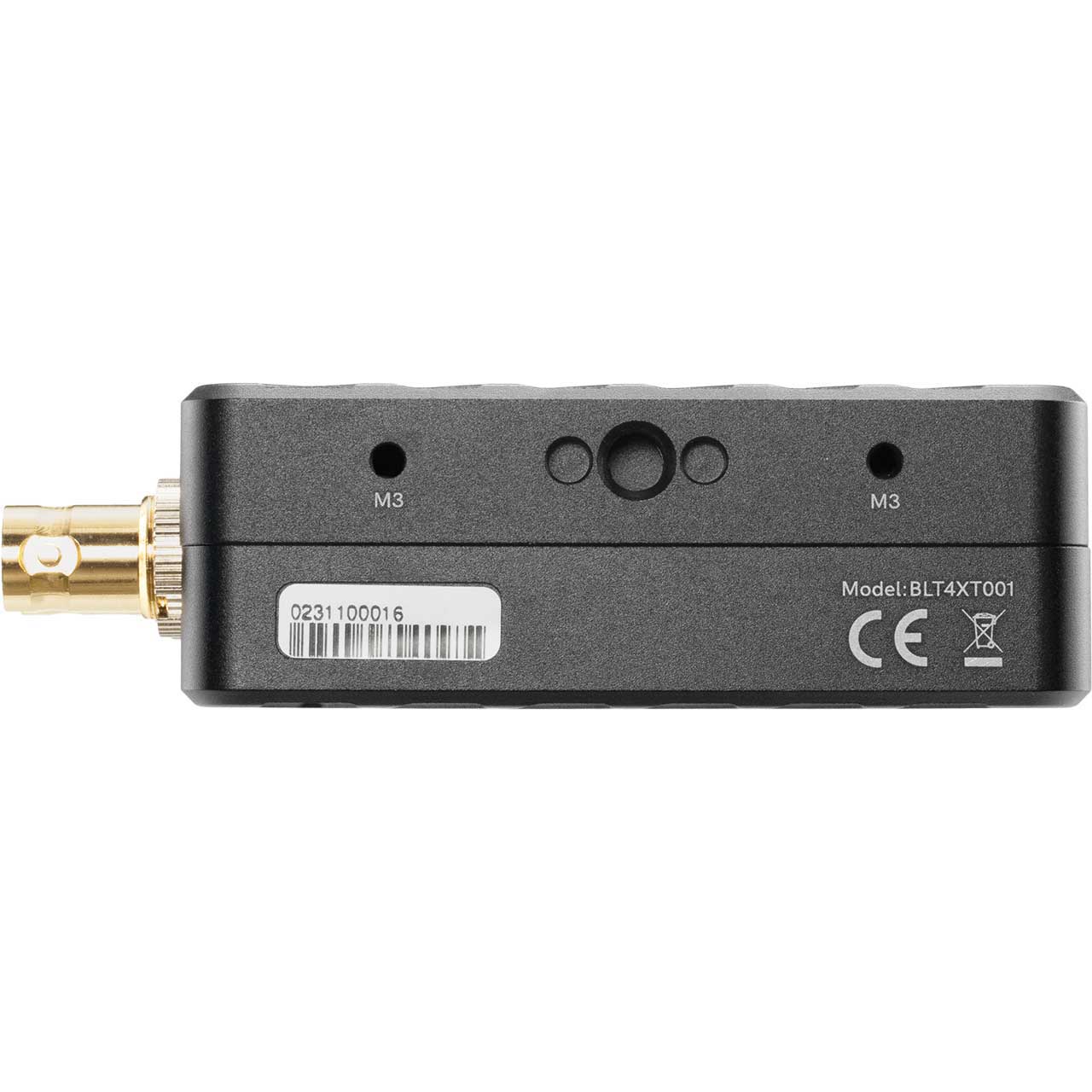

    • Mountability: Multiple mounting options with 1/4"x20 and M3 holes

      Interfaces
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Switches: On/Off Switch
    • USB Interface Functionality: Upgrade via USB-C and 5pin Locking Connector CCU
    • Bluetooth: 2.4 GHz

      Network

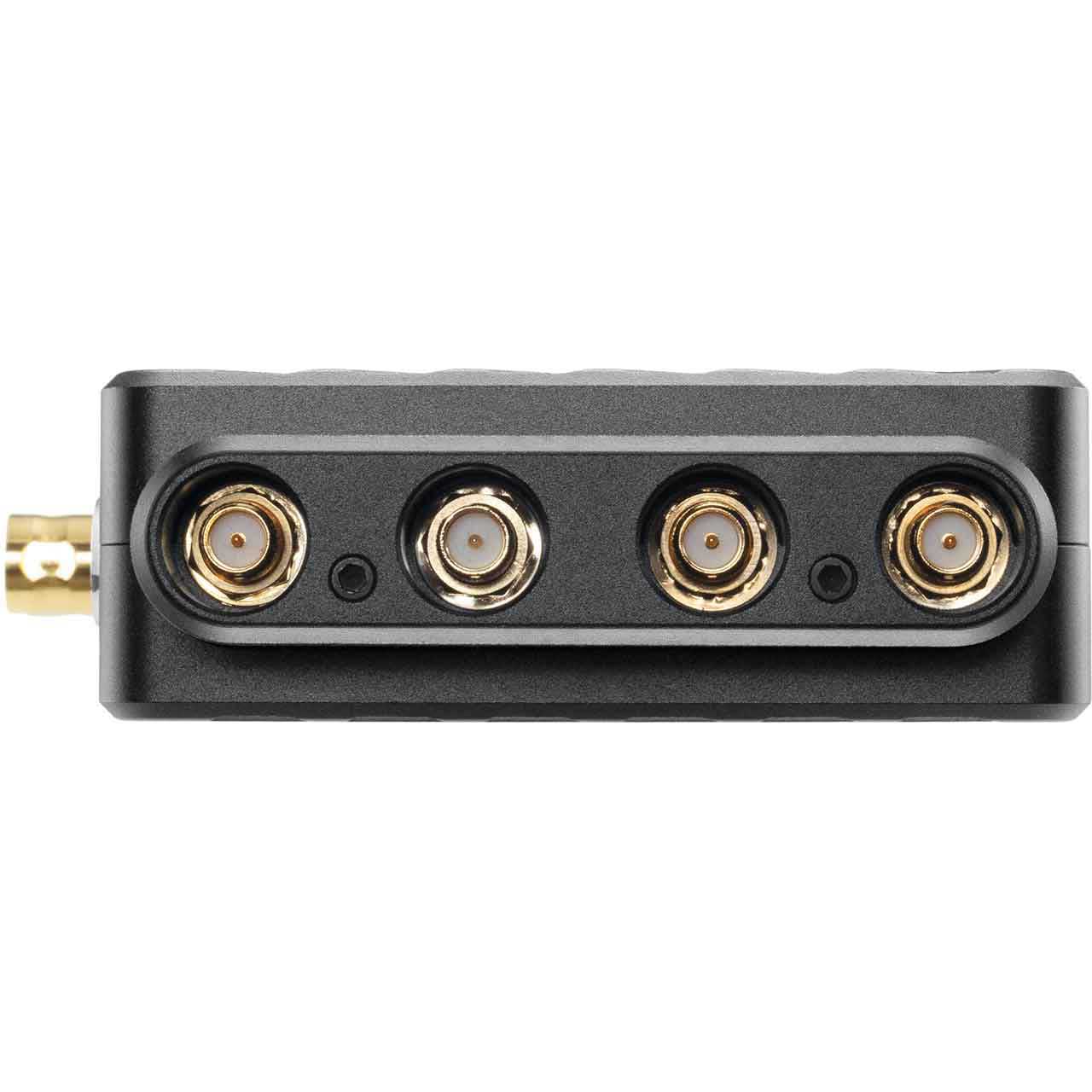

    • Antennas: 4 External 2dBi antennas (included)

      Wireless
    • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
    • DFS Frequencies: 5.270 ~ 5.670 GHz
    • Rf Channel Selection: Auto, Manual
    • Encryption: AES-256, RSA-1024 key exchange
    • Rf Power: 23 dbm EIRP
    • Range: Up to 750 ft, line of sight
    • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location

      Power
    • Power Input: 2-Pin Circular locking Connector 6-28 VDC
    • Battery: None, optional Sony/Canon dual battery plate
    • Battery Runtime: 20 Watts

      Environmental
    • Operating Temperature: 32° to 104°F

  • Item Includes:

    • 1x Bolt 6 XT 750 TX Gold Mount
    • 1x Bolt 6 XT Battery Cover Plate Front
    • 2x Screw Flat Head Phillips
    • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
    • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
    • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
    • 4x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
    • 1x USB 2.0 Type A Male to USB Type C Male - 1m Cable
    • 1x Bolt 6 XT Battery Cover Plate Rear

  • GTIN:

    0818264027127
