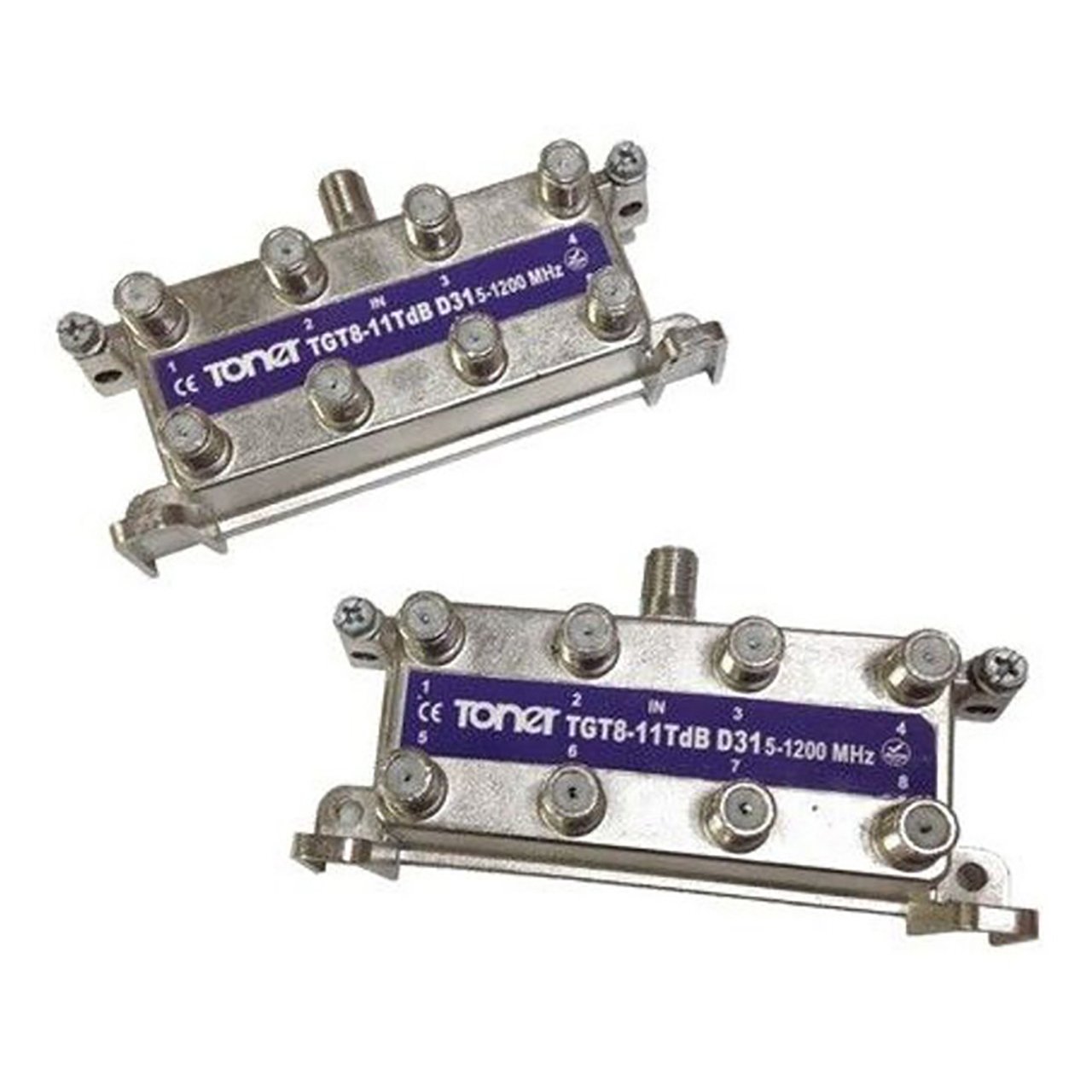

The Toner Cable TGT Series of 2, 4 and 8 Port Taps are designed for cable signal distribution systems. The bandwidth to 1220 MHz make these ideal for any system deploying DOCSIS 3.1 technology. They are also backwards compatible with other DOCSIS deployments. Built with SMT Technology on premium PC Boards the taps have the best performance available. Meeting all current SCTE and ANSI requirements these taps are ideal for any Cable TV system or other TV Signal RF distribution system.
This new TGT Series of cable tv taps from Toner are designed to work in digital systems deploying DOCSIS 3.1 that utilizes the 5-85 MHz spectrum for upstream, and the 105 to 1220 MHz spectrum for downstream. By using the latest in ferrite core and winding technology along with premium PC boards and components we have been able to increase bandwidth without any sacrifice in performance.
The TGT Series taps feature a diecast zinc alloy housing with a nickel plating for superior corrosion resistance. Each F port is machined with 3/8-32 UNEF threads to meet SCTE and ANSI specifications and incorporates a patented seal that is waterproof to 15 PSI. The seizure mechanism for the center conductor is also patented and contacts the center conductor on 4 sides and provides more than 200g of retention force which ensures correct electrical contact. The F ports are on 1" spacing which meets SCTE & ANSI specifications.
All of these taps feature DC blocking capacitors on all ports for power isolation protection and for induced spikes protection. The TGT Series feature superior performance, low intermodulation distortions and meet or exceed all current industry standards.
