Thor Fiber H-IP-HDMI 4K HEVC IP and USB HD Video Decoder - IP Stream Input HDMI Output

ITEM #: THR-H-IP-HDMI MFG #: H-IP-HDMI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the THR-H-IP-HDMI

H-IP-HDMI - Overview

Now, more than ever, IP transport has become the niche and priority of modern video architecture, the H-IP-HDMI has been built to be the ideal device for decoding any IP stream and outputting it to HDMI.

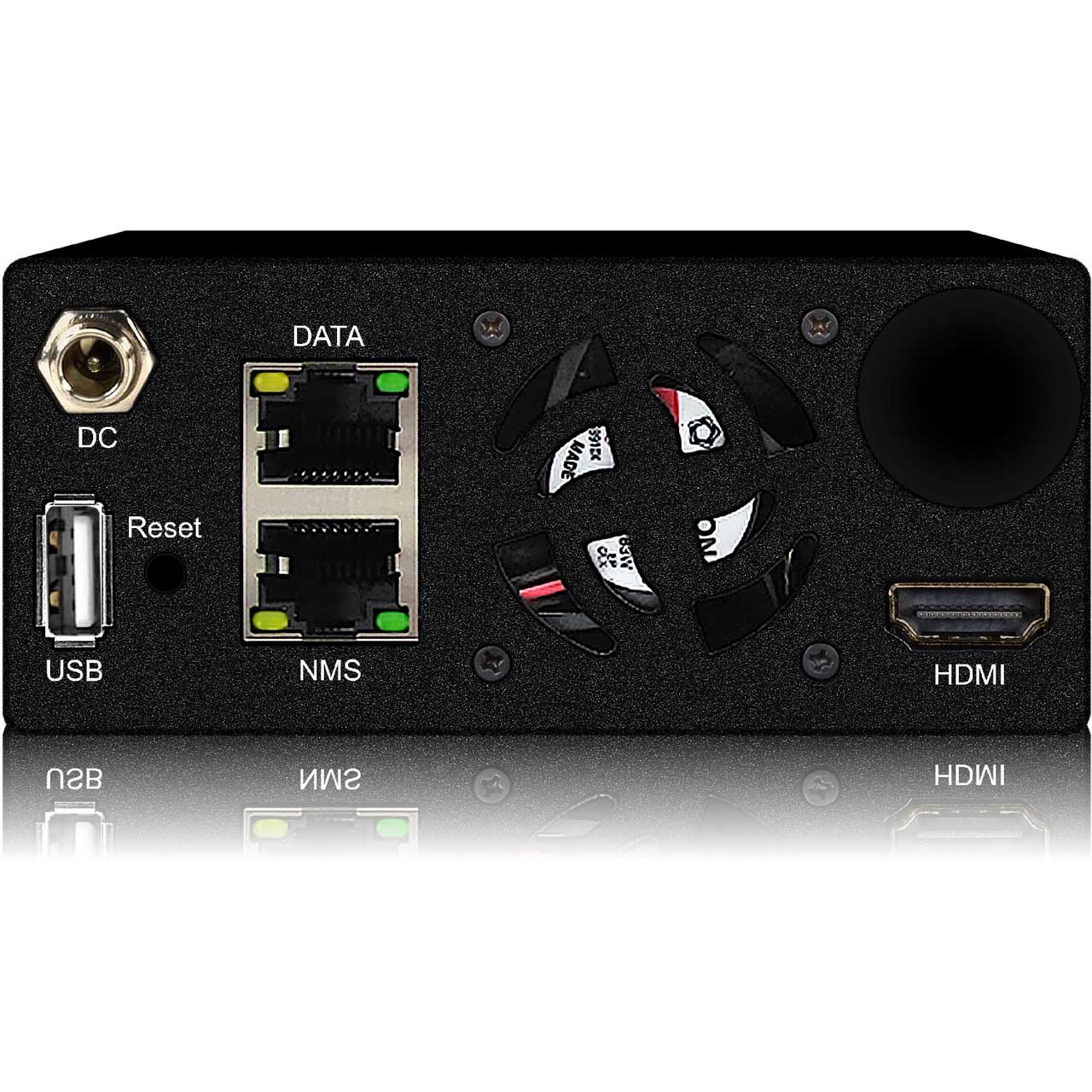

The unit has an RJ45 IP input and HDMI video output, all settings can be setup remotely, as the unit has a GUI interface, which can be accessed from any browser; using this interface you can create and setup exactly where the unit will pull the IP streams from, like an FTP server, Facebook or Youtube.

The flexibility creates an ability to utilize this IP Decoder in various applications; Point to Point or Point to Multipoint, Broadcast Applications, Video Distribution, Digital Signage, and more.

Digital signage is a creative and widely accepted medium to deliver, information, alerts and advertisements and entertainment across a wide range of industries. Information is always being offered regardless what industry you work in, IP based reception using existing televisions can offer your clients and visitors and special message that combines graphics, text and other visual elements, that can be updated remotely, preset, pre-configured and changed quickly on the fly using the intuitive GUI to deliver your message.

Applications
Fast Food Display Menu's
Sports Events
Outdoor IP Digital Billboards
Airport Displays
Hotel Welcome Screens
Restaurant Menu's and Happy Hours

  • Features:

    • Supports multiple network streaming protocols
    • HEVC, H. 265, H.264 and Mpeg-2 Decoding
    • Resolution supports up to 1920x1080@ 60fps and 3840x2160@ 30fps.
    • Supports local media storage playback through SD Card slot and USB port
    • NMS control directly from the ethernet port on the device
    • Security measures: password protection and IP address filtering
    • IPv4/v6, TCP, UDP, HTTP, HLS, RTP, RTSP, RTMP, FTP and IGMP Multicast
    • MPEG-TS, MPEG 4, AVI, MOV and MPEG, HEVC, H.265, H.264

  • Specifications:

    • Interface
    • Input: Rj45x2 10/100 Base-T (1x Management, 1x Streaming)
    • USB2.0-(FAT32): Micro SD-Delivered 16GB USB flash
    • Output: HDMI*1

      Video Decoding
    • Resolution: Max. up to 1920x1080 @60fps, 3840x2160 @30fps
    • Protocol:
      IPv4/v6, TCP, UDP, HTTP, HLS, RTP, RTSP,RTMP, IGMP(Multicast)
      Media formats: MPEG-TS, MPEG4, AVI, MOV, MPEG, MKV

      Audio Decoding
    • Format: Mpeg1L2, MP3, AAC-LC, HE-AAC, WMA
    • Sample rate: 32/44.1/48KHz

      System
    • Management: Web NMS - IP 192.168.0.168
    • Language: English
    • Security: Password protection, IP address filtering

      General
    • Power supply: DC 12V 2A

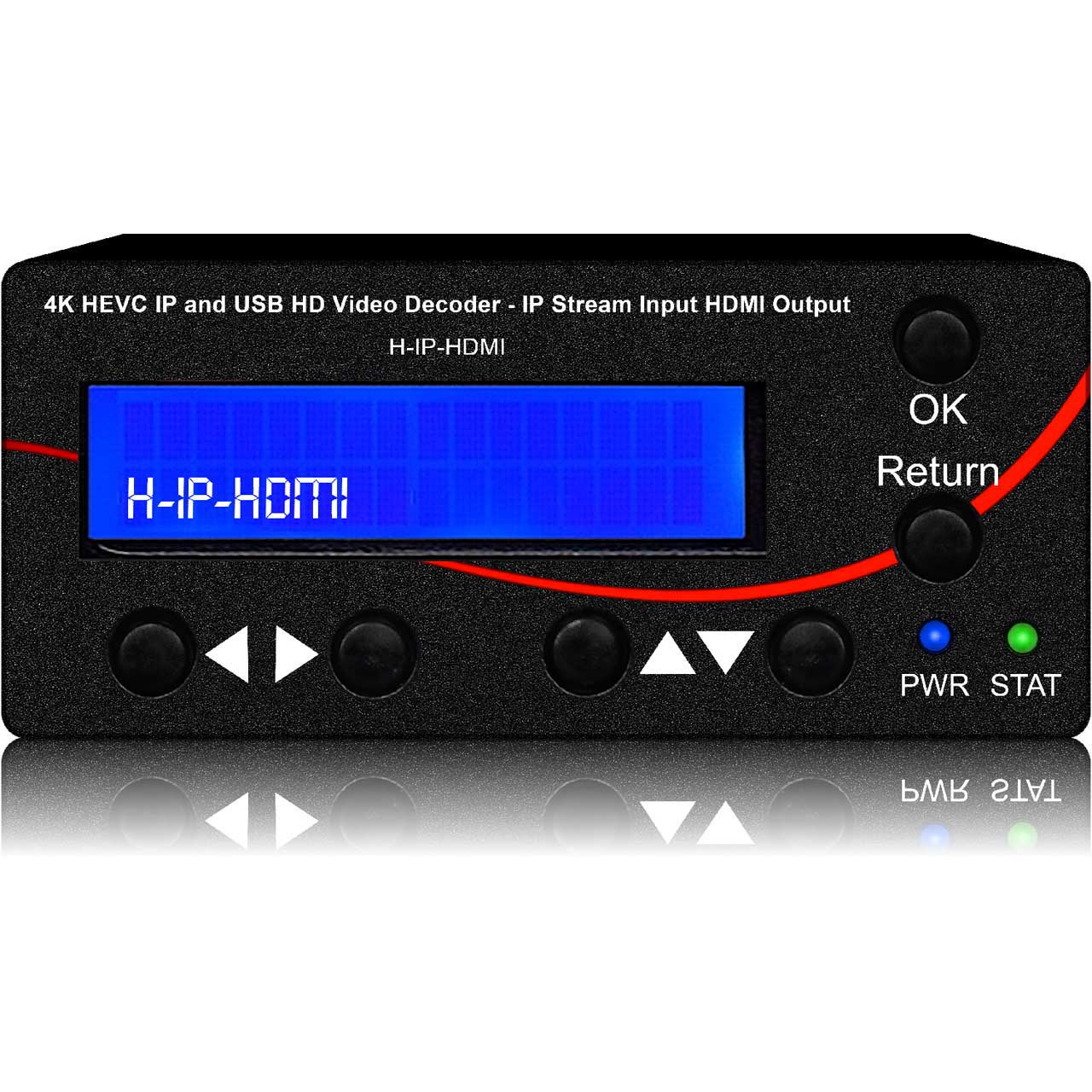

    • Display: LCD panel @ 2 x 16 characters LED X5 (Ch1~4+USB)
    • Dimensions: 4.49 x 4.33 x 1.73" (114 x 110 x 44mm)
    • Weight: 0.59Lbs (270g)


H-IP-HDMI - Required Accessories
