Thor Fiber H-HDPerformux-4 4 HDMI IPTV H.264 Streamer/H.264 Encoder/H.265 HEVC-UDP - SPTS MPTS - 4 Inputs - Gen 2

ITEM #: THR-HDPRFRMXII-4 MFG #: H-HDPERFORMUX-4 GEN2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,794.00

Our Price:

$3,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


H-HDPERFORMUX-4 GEN2 - Overview

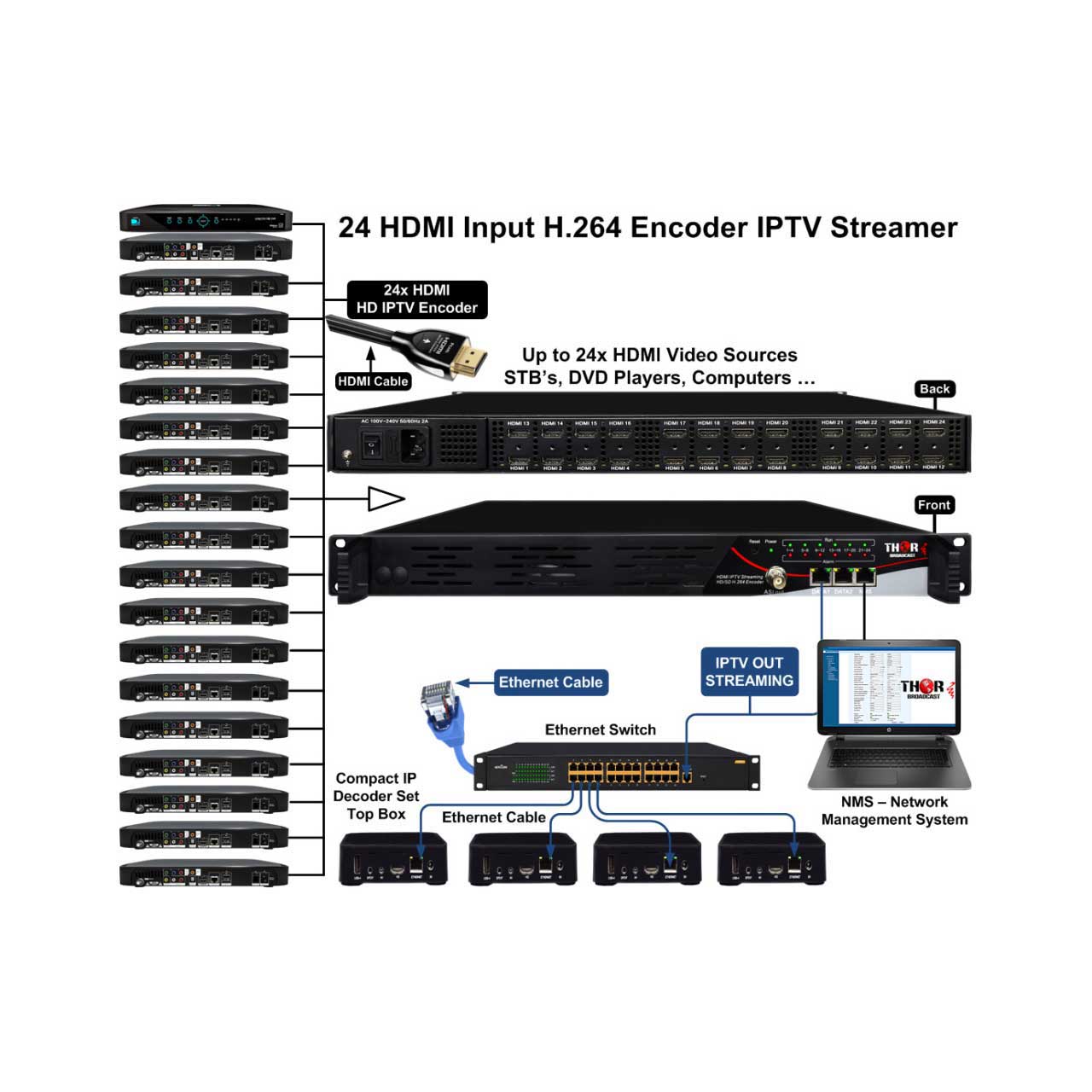

Thor Broadcast H-HDPerformux-4 Generation 2 High Density H264 Encoder H-HDPerformux-XX, specifically designed and made to handle up to 24 HDMI inputs and output via 1MPTS or 24SPTS. This unit has a full functioning GUI that Thor has designed to help navigate creating all of your H.264 Streams with Mpeg 1 Layer 2 Audio. Additionally you have a single ASI output that will mirror the MPTS output. Specifically featuring the QR code, Logo, and OSD insertion for cable operators that require this feature. Furthermore it has PID remapping, PCR and PSDI adjusting and editing as well. This 1RU unit can replace an entire headend with the high density 24 HDMI input chassis with easy operation and Thor Broadcast's leading warranty and free tech support from our lab in Los Angeles.

The Thor Peformux+ Model which includes H.265 HEVC Encoding which can save you up to 75% of the bandwidth needed to stream. The +Model also includes output up to 1080p60, and adds some audio options and other valuable features that are not found on the base model Perfomux.

  • Features:

    • 4 / 8 / 16 / 24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding ( +Model includes H.265 HEVC)
    • 1 Gigabit Output for UDP and RTP protocols ( +Model includes RTSP)
    • MPEG1 Layer II Audio encoding and support audio gain adjustment
    • +Model MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough audio encoding
    • Control via web management, and easy updates via RJ45
    • 1ASI output, copy of MPTS output
    • QR Code, Logo, OSD insertion
    • Null Packet Filter
    • PID Remapping (180 inputs per channel)
    • PCR Adjusting
    • PSI/SI Editing and Insertion
    • Exceptional Price Per Channel

  • Specifications:

    • HDMI Inputs: 4/8/12/24 (Model Dependent)
      Video Resolution:
    • Inputs:
      1920x1080/60p
      1920x1080/60i
      1920x1080/50p
      1920x1080/50i
      1280x720/60p
      1280x720/50p
    • Outputs:
      1920x1080/30p
      1920x1080/25p
      1280x720/30p
      1280x720/25p
    • Encoding: MPEG-4 AVC/H.264
    • Bit-Rate: 1 Mbps - 13 Mbps
    • Rate Control: CBR/VBR
    • GOP Structure: IP - P(P Frame Adjustment, without B Frame)

      Audio
    • Encoding: MPEG-1 Layer 2
    • Sampling Rate: 48KHz
    • Resolution: 24-Bit
    • Audio Gain: 0-255 Adjustable
    • Bit-Rate: 24/128/192/224/256/320/384 Kbps

      Multiplexing
    • Maximum PID Remapping: 180 output PIDs per channel
    • Fuction: Accurate PCR Adjusting
    • Stream Output: ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol (8/12 HDMI inputs with 8/12 SPTS and 1MPTS output 16/20/24 HDMI inputs with 16/20/24 SPTS or 1MPTS output)
    • Upgrade: Ethernet Software Upgrade
    • Operation Temperature: 32~113°F(Operating), -4~176°F(Storage)
    • Power Supply: AC 110-240 V 50/60Hz AC 220
    • Dimensions (LxWxH): 18.97 x 12.91 x 1.73 Inches

  • Item Includes:

    • 1x Thor Fiber H-HDPerformux-4 4 HDMI IPTV H.264 Streamer/H.264 Encoder/H.265 HEVC-UDP - SPTS MPTS - 4 Inputs - Gen 2
