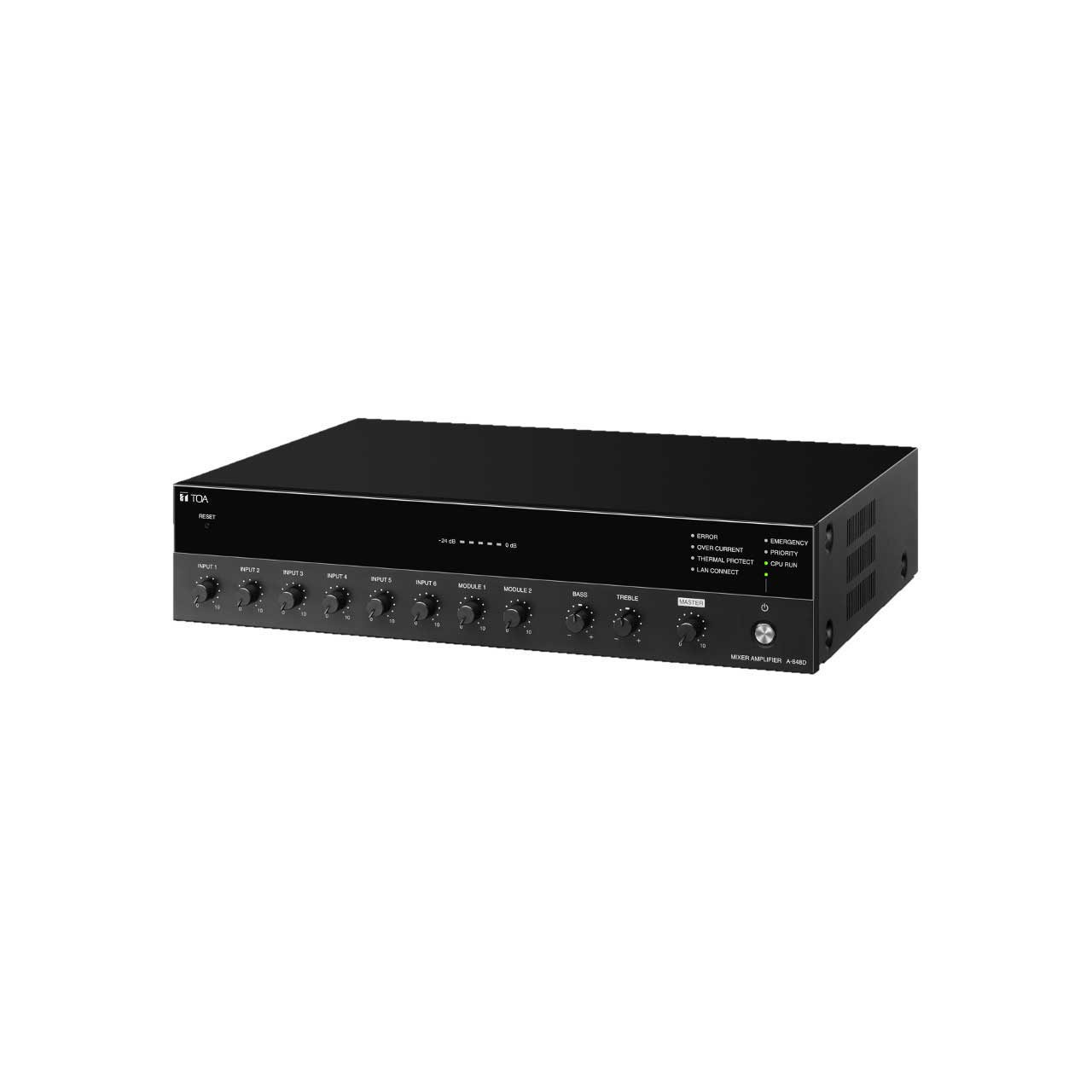

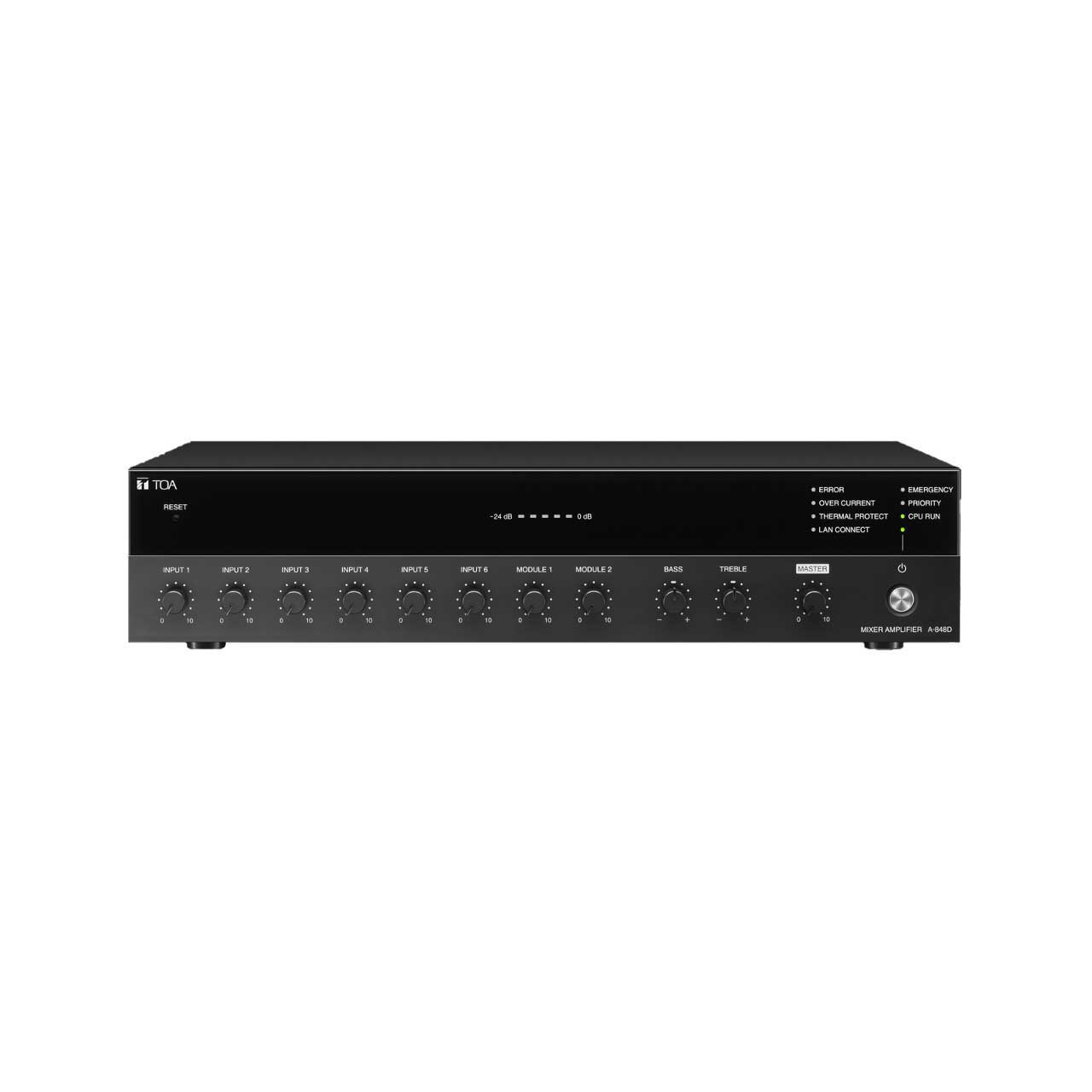

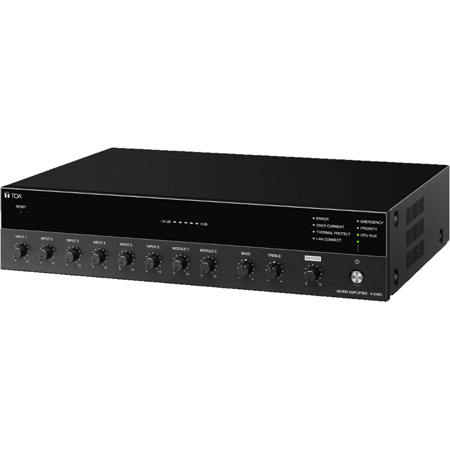

TOA A-812D3CUE00 Digital Mixer / Amplifier - DSP - MOH - Total 8 Inputs - Includes Two Modules - Networked - 120Watt

A-812D-3CUE00 - Overview

• Features:

  • TOA Class D Amplifiers for Maximum Efficiency
  • Auto Gain Control for microphone inputs
  • Onboard DSP
  • Assignable Input Priorities
  • Built-In defeatable pre-announce chime
  • Log Data
  • IP protocol available


• Specifications:

  • General:
  • Power Source: 120 V AC, 60 Hz
  • Rated Output: 120W
  • Power Consumption: 170 W (rated output), 46 W (based on UL62368), 200 mA or less (when power switch is OFF)
  • Frequency Response: 50 Hz to 20 kHz ±3 dB (1/8 rated output)
  • Total Harmonic Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
  • Tone Control: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
  • Signal to Noise Ration: 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted)
  • Operating Temperature: -10 to +40 °C (14 to 104 °F)
  • Operating Humidity: 85 % RH or less (no condensation)
  • Finish Panel: ABS resign, black
  • Case: Surface-treated steel plate, black, paint
  • Dimensions: 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33"
  • Weight: 5.2 kg or 11.46 lb

    Input:
  • 1-2: -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).
  • 3-4: -60 dB*, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable).
  • 5-6: MIC/LINE selectable MIC: -60 dB* , 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2
  • Module 1-2: -20 dB*, 10 kΩ

    Output:
  • Speaker: High impedance: 70 V line/42 O/Low impedance 4 to 16 O. Removable terminal block (5.00 mm, 3 pins) selectable
  • REC: 0 dB *, 600 O, unbalanced, RCA pin jack x 2
  • PRE AMP: 0 dB *, 600 O, unbalanced, RCA pin jack

    Control Input:
  • 4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
  • REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)

    Control Output:
  • Power Remote: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
  • Emergency Out: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable

    Indicators:
  • LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indi-cator
