B-01F - Overview

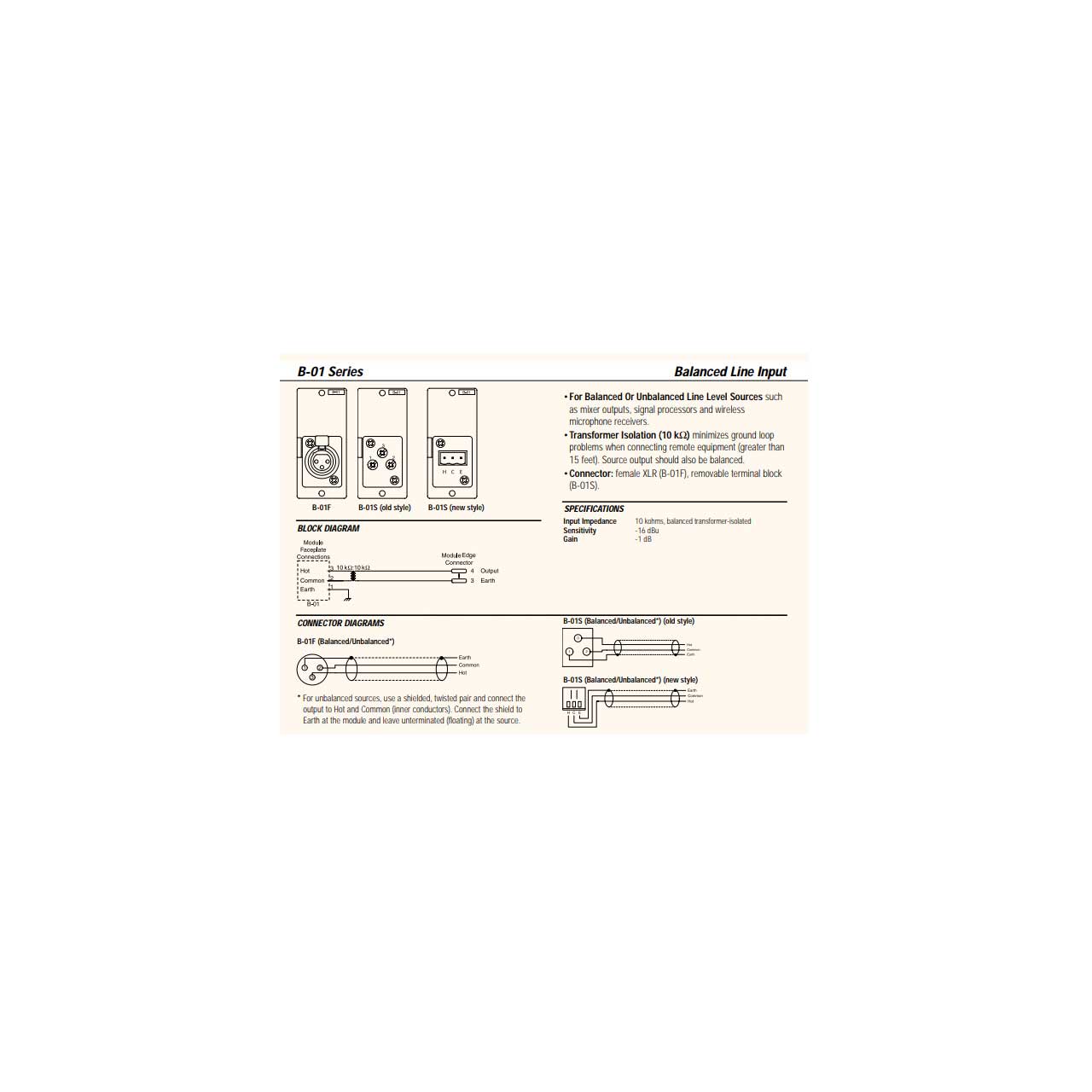

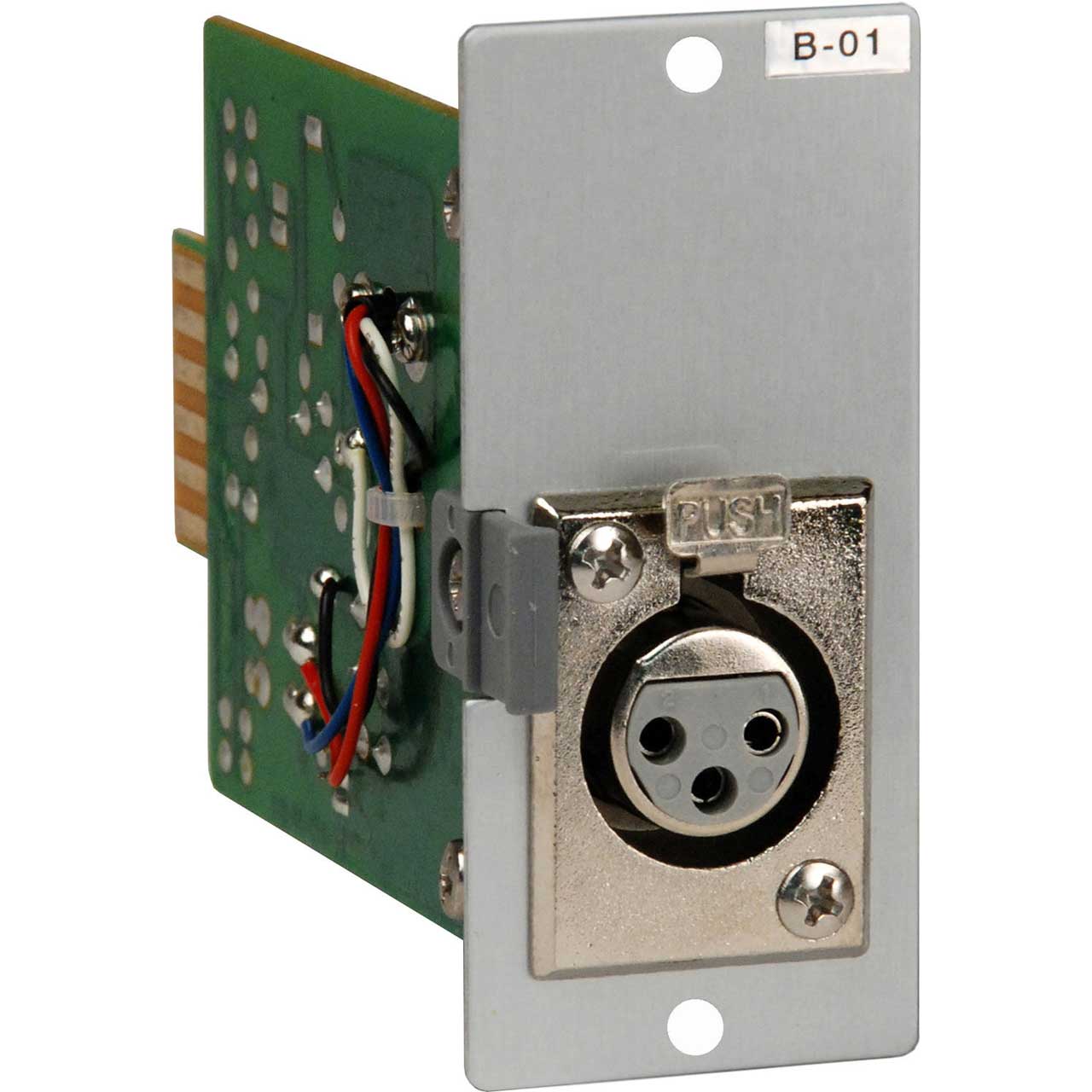

The TOA B-01F is a line input module to be used in conjunction with the 900 series components and other TOA equipment. It has a transformer balanced line input with female XLR type connector.

Note: For unbalanced sources, use a shielded, twisted pair and connect the output to Hot and Common (inner conductors). Connect the shield to Earth at the module and leave unterminated (floating) at the source

  • Features:

    • For Balanced Or Unbalanced Line Level Sources such as mixer outputs, signal processors and wireless microphone receivers.
    • Transformer Isolation (10 kΩ) minimizes ground loop problems when connecting remote equipment (greater than 15 feet). Source output should also be balanced.
    • Connector: female XLR (B-01F), removable terminal block (B-01S).


  • Specifications:

    • Input Sensitivity: -18 dB* (Rated output: -20 dB*)
    • Input Impedance: 10 kΩ, balanced transformer-isolated
    • Frequency Response: 20 Hz - 20 kHz% p1.5 dB
    • Connector: Female XLR connector (XLR-3-31 equivalent)
    • Dimensions: 35 (W) x 78 (H) x 88 (D) mm (1.38 x 3.07" x 3.46")"
    • Weight: Max. 110 g (0.24 lb)
