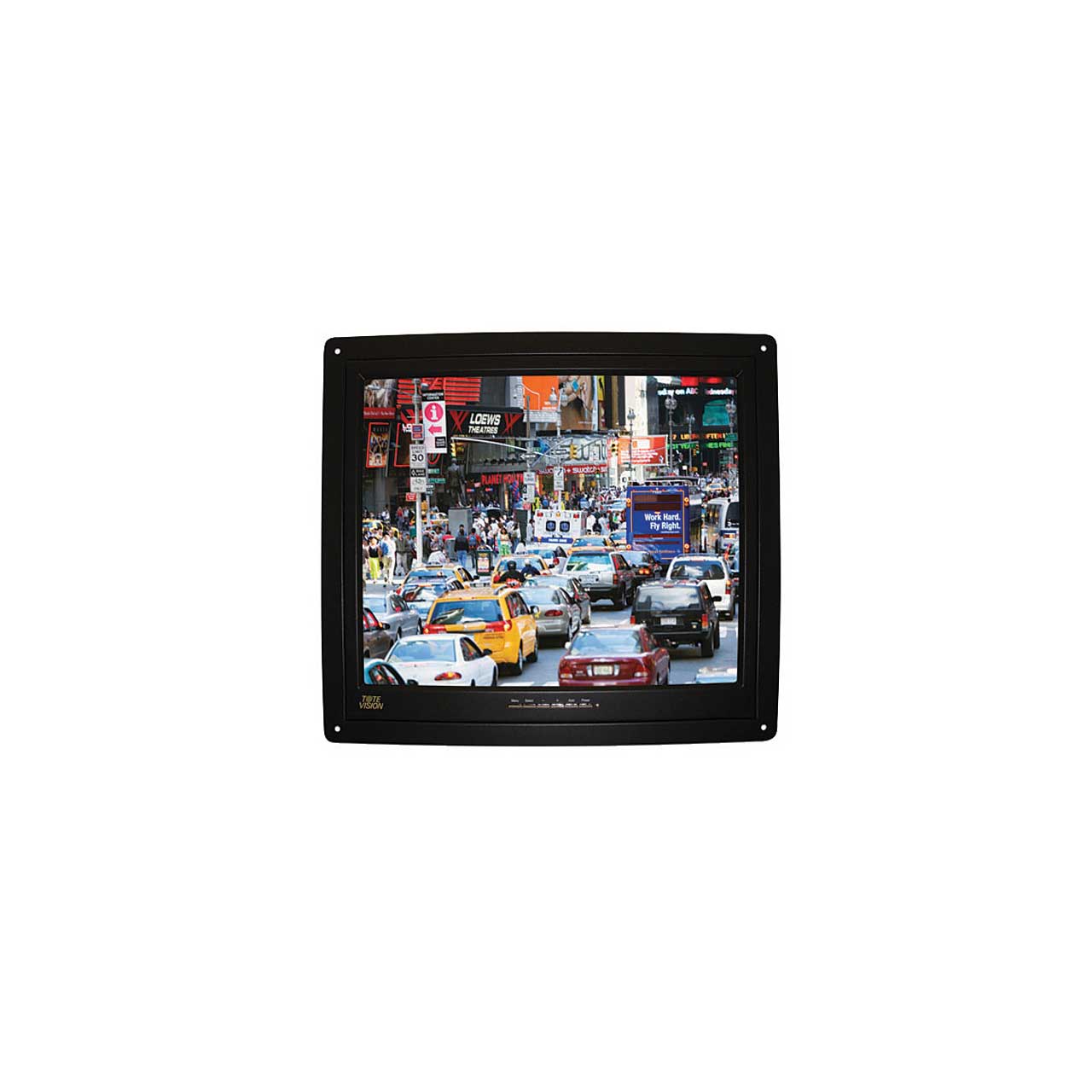

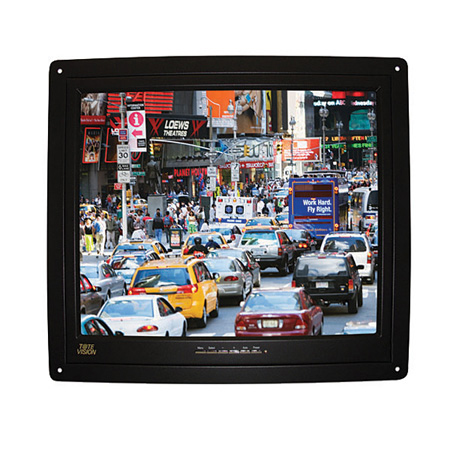

ToteVision LED-1709HDL 17 Inch LED-Backlit 1080I/P HDMI LCD Flush-Mount Monitor

LED-1709HDL - Overview

• Features:

  • HDMI – displays 1080i/p digital video
  • 3D Comb Filter for better picture quality
  • Analog video is very clear with no detail loss
  • High contrast ratio for better picture definition
  • 2x Composite BNC In/Out for looping
  • Durable metal case


• Specifications:

  • Mount: Flush mount
  • Display: 17" TFT LCD active matrix
  • Resolution: 1280 x 1024
  • Native Aspect Ratio: 5:4
  • Visible Screen Size: 13.4" x 10.7"
  • Back Light: LED (30K)
  • HD Compatible: Displays 1080i/p
  • Anti Glare Coating: Yes
  • Brightness: 250cd/m² (Nit)
  • Contrast: 1000:1
  • Dot Pitch: 0.264(H) x 0.264(V)mm
  • Color Depth: 16.7 million
  • Response Time: 5ms / 5ms (Rising / Falling)
  • Viewing Angle: 85/85/80/80 degrees (L/R/T/B)
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: 1.5 W x 2 speakers
  • HDMI: x1 Input
  • Composite: x2 BNC Inputs; x2 BNC Outputs
  • VGA: x1 15 pin D-sub Input
  • Audio: x1 L/R RCA Input; x1 3.5mm PC Input
  • Power: 2.1mm 12VDC Input
  • Operating Temp: 32 ~ 104°F
  • Humidity: 10% ~ 90%
  • Power Requirements: Regulated 12VDC, 4.1A, negative ground; 100~240VAC 50/60Hz Switching Power Supply
  • Power Consumption: 15 watts (Max)
  • Dimensions: 14.9" x 13.1" x 2.9"
  • Product Weight: Net: 9.95 lbs / Gross: 15.5 lbs
  • Case: Durable Metal
  • GSA: Yes
