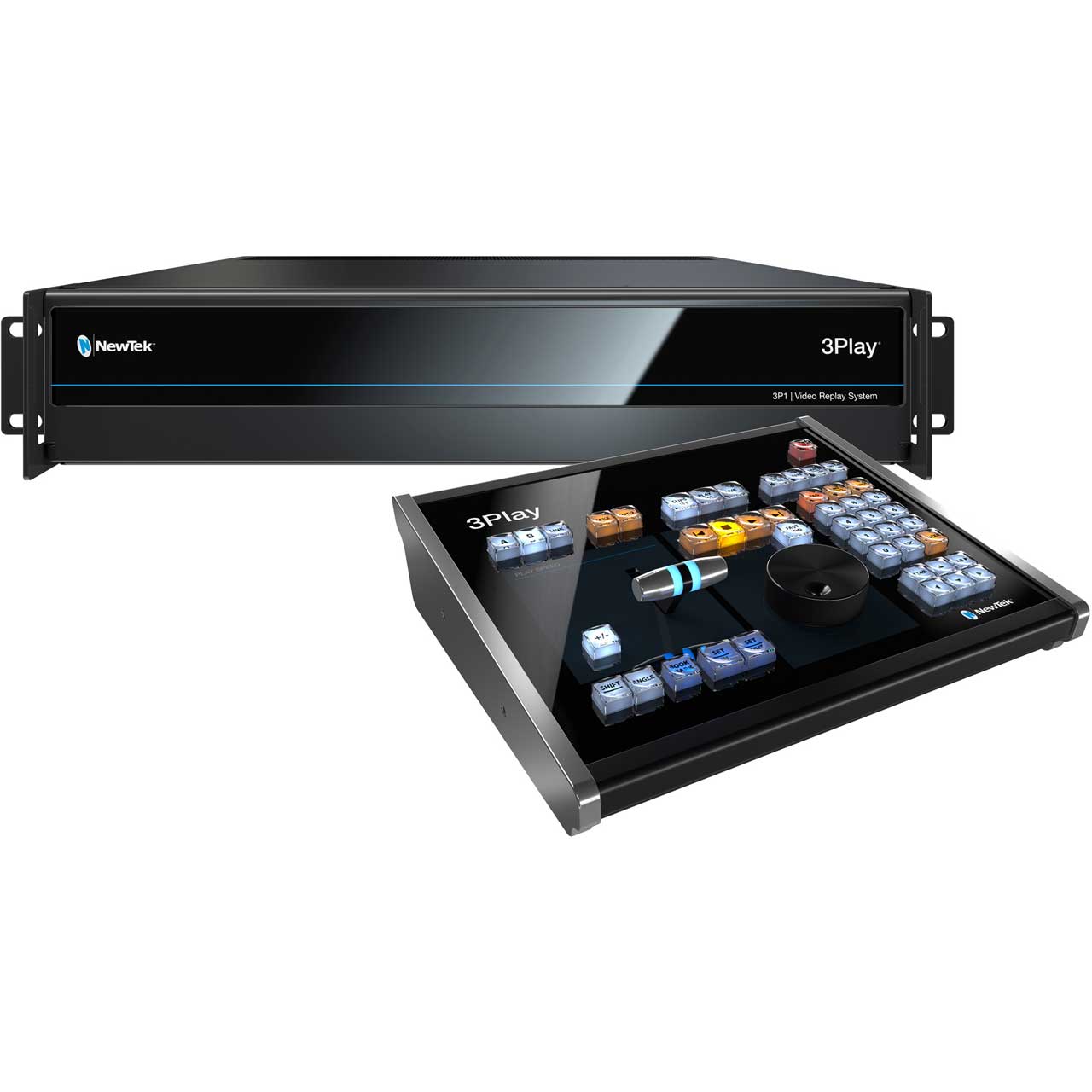

VIZRT 3Play 3P1 IP Replay System

ITEM #: TRI-3P1 MFG #: FG-001948-R001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
VIZRT
Free Shipping with $49 Minimum Order

Our Price:

$18,995.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

FG-001948-R001 - Overview

Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, the VIZRT 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.

VIZRT 3Play 3P1 integrates seamlessly with VIZRT IP Series, TriCaster TC1, and NVG1 VIZRT IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.

For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.

  • Features:

    • 3G SDI, hybrid, and end-to-end IP connectivity
    • Support for up to 4 external inputs and 2 outputs - SDI or NDI
    • 4 multi-viewer outputs
    • Synchronized, continuous, full-resolution capture
    • Record and playback simultaneously
    • Preview all angles simultaneously while recording and playing back video
    • Show all angles of recording synced on output
    • Build playlists with full transitions, audio, sound effects, and stinger animations
    • Per output overlays with positioning and transitions
    • Integrated dual-channel telestration with remote transport control
    • LivePanel option to build browser-based user interfaces and workflows
    • Multi-purpose video server with clip preview
    • Real-time social media export or transcode files for immediate delivery
    • Import external video, audio, and stills in common formats
    • Intuitive asset management and tagging system
    • Automation with custom macro commands
    • Support for MIDI, GPI, AMP protocol, and much more


  • Specifications:

    • Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
    • Network Video Input: 4 x resolution-independent IP video inputs via NDI
    • SDI Video Input: 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
    • Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
    • Network Video Output: 2 x session-format IP video outputs via NDIr
    • SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
    • Multiviewer Output: 1 x DVI user interface with multiviewer; 1 x HDMI multiviewer; 1 x DisplayPort multiviewer
    • Recording: 4 x simultaneous recording channels
    • Recording Format: QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)
    • Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
    • Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
    • Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
    • DSK: 1 x DSK channel per output, with independent source selection and transition
    • Transitions: Supports custom transitions between output channels and playlist clips
    • Telestration: Integrated NDI Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
    • Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
    • Local Audio Input: 4 x SDI embedded; 1 x Balanced XLR stereo pair (Line); 3 x Balanced 1/4" stereo pairs (Line)
    • Local Audio Output: 4 x SDI embedded; 1 x Balanced XLR stereo pair; 1 x Balanced 1/4" stereo pair; 1 x Stereo 1/4" (phones)
    • Network Audio: Native support for network audio input and output via NDI
    • Processing: Video: Floating Point YCbCr +A 4:4:4:4; Audio: Floating Point, 96 kHz
    • Throughput Latency: ~1.0-1.5 frames
    • A/V Standards: 3G-SDI video conforms to SMPTE 424M (Level A); HD-SDI video conforms to SMPTE 292M; SD video conforms to SMPTE 259M and ITU-R BT.656; Analog audio levels conform to SMPTE RP-155
    • Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
    • Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
    • AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
    • GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
    • MIDI: Support for standard MIDI protocol enabling third-party device control
    • System Drive: 120GB SSD
    • NIC: 2 x 1 Gigabit NIC

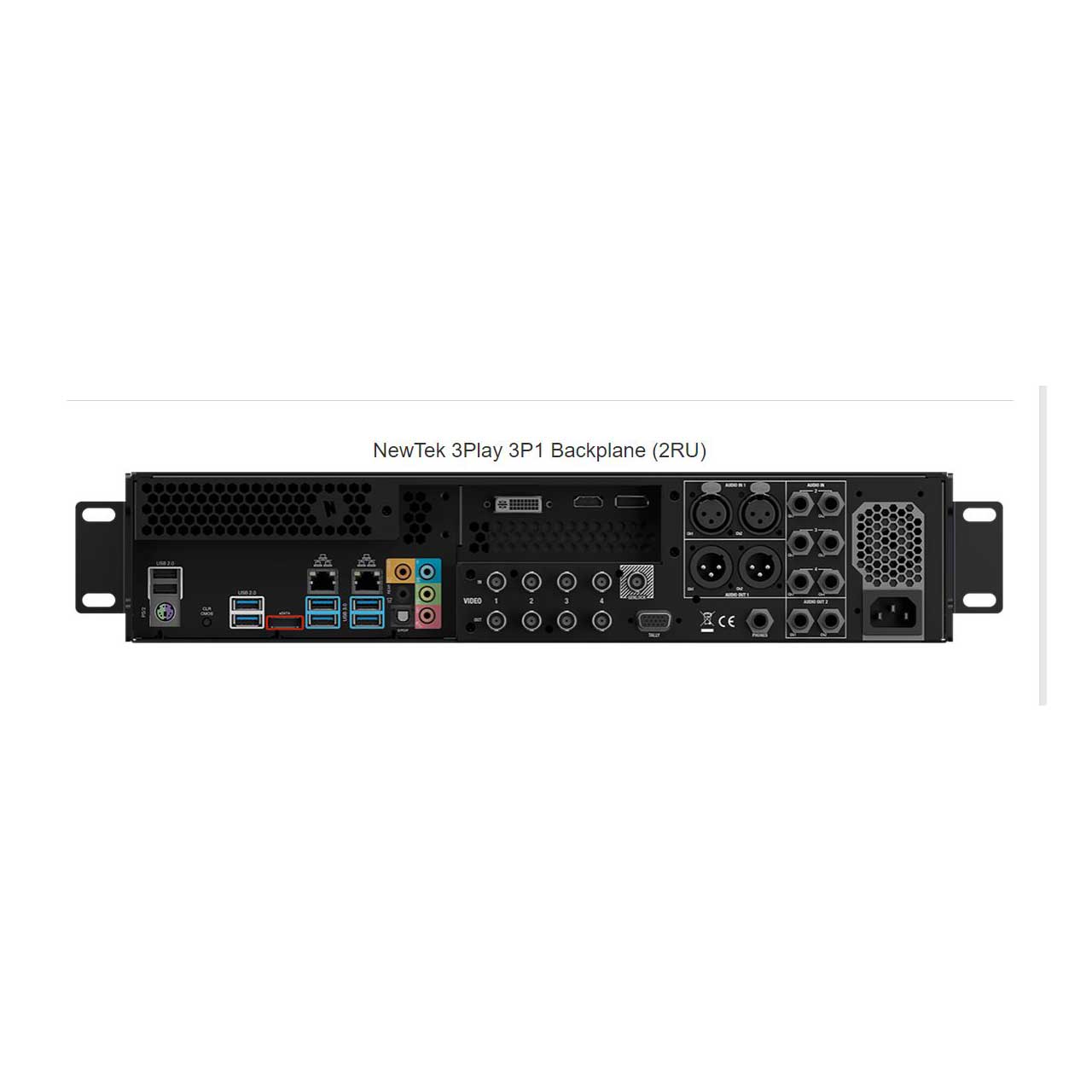

    • System Physical: 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
    • Dimensions: 19.0 x 3.5 x 19.57 in (with rack ears attached)
    • Weight: 26 lbs
