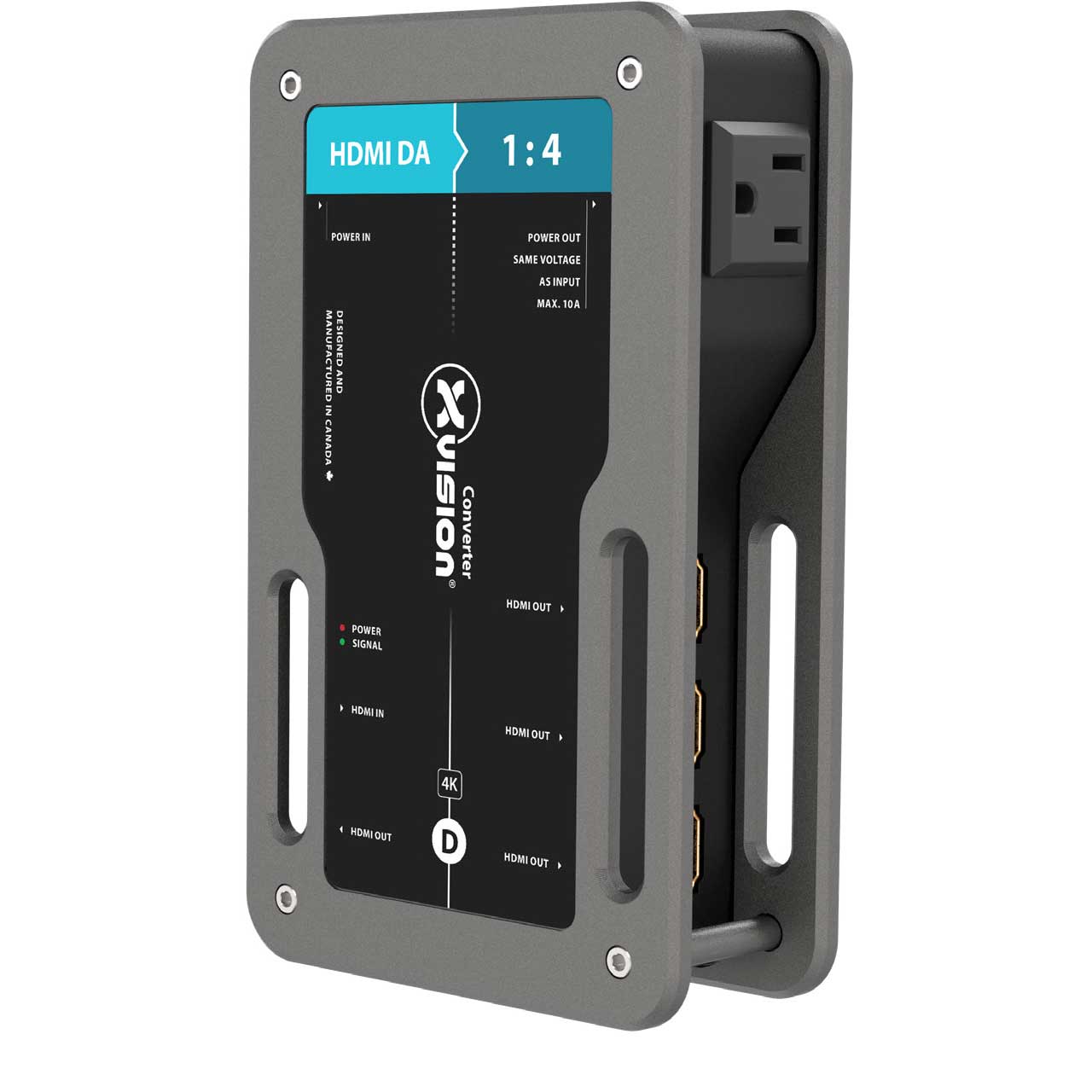

Theatrixx TXVV-HDMIDA xVision Converter 4-Output HDMI Distribution Amp - 1:4 4K60 - Edison Out

ITEM #: TTX-TXVV-HDMIDA MFG #: TXVV-HDMIDA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$479.00

Our Price:

$465.00

Availability: In Stock
iAvailability Description Popup


TXVV-HDMIDA - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the Theatrixx TXVV-HDMIDA - world's first video converter truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

  • Features:

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector.. Power bar to power both the converter and device not required anymore.
    • Magnetic stacking system and non-skid rubber pad for tabletop. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCDmount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come
    • Plug-n-play operation; No dip switches, buttons or menus to fumble with: It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • HDMI input tested and compatible with Apple computers and iPad.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Automatic downscaling per output - Effortlessly send the same signal to 4K and FullHD displays with a single signal source.
    • Proudly designed and assembled in Canada

  • Specifications:

    • Connections
    • Video Input: HDMI 2.0 type A with lock system
    • Video Ouput: 4 x HDMI 2.0 type A with lock system
    • Individual downscaling per port

      Supported Signals
    • Format Support: HDR 4K/2K @ 60fps (4:2:0 10bits) 4K/2K @ 60fps (4:4:4 8bits)
    • HDCP Compliance: HDCP 2.2/1.4
    • Video Bandwidth: Single-link 600MHz (18Gbps)
    • Embedded Audio Support: DTS-HD Master Audio, Dolby, TrueHDDolby Digital, DTS, LPCM

      Power Requirements
    • Power Supply: Built-in power supply, PowerCON input, Edison Nema 5-15 output
    • Power Consumption: 25W
    • Operational Voltage Range: 90-250V 50-60Hz also available (with PowerCON True1)
    • Courtesy Outlet :Max 10A, same voltage as input

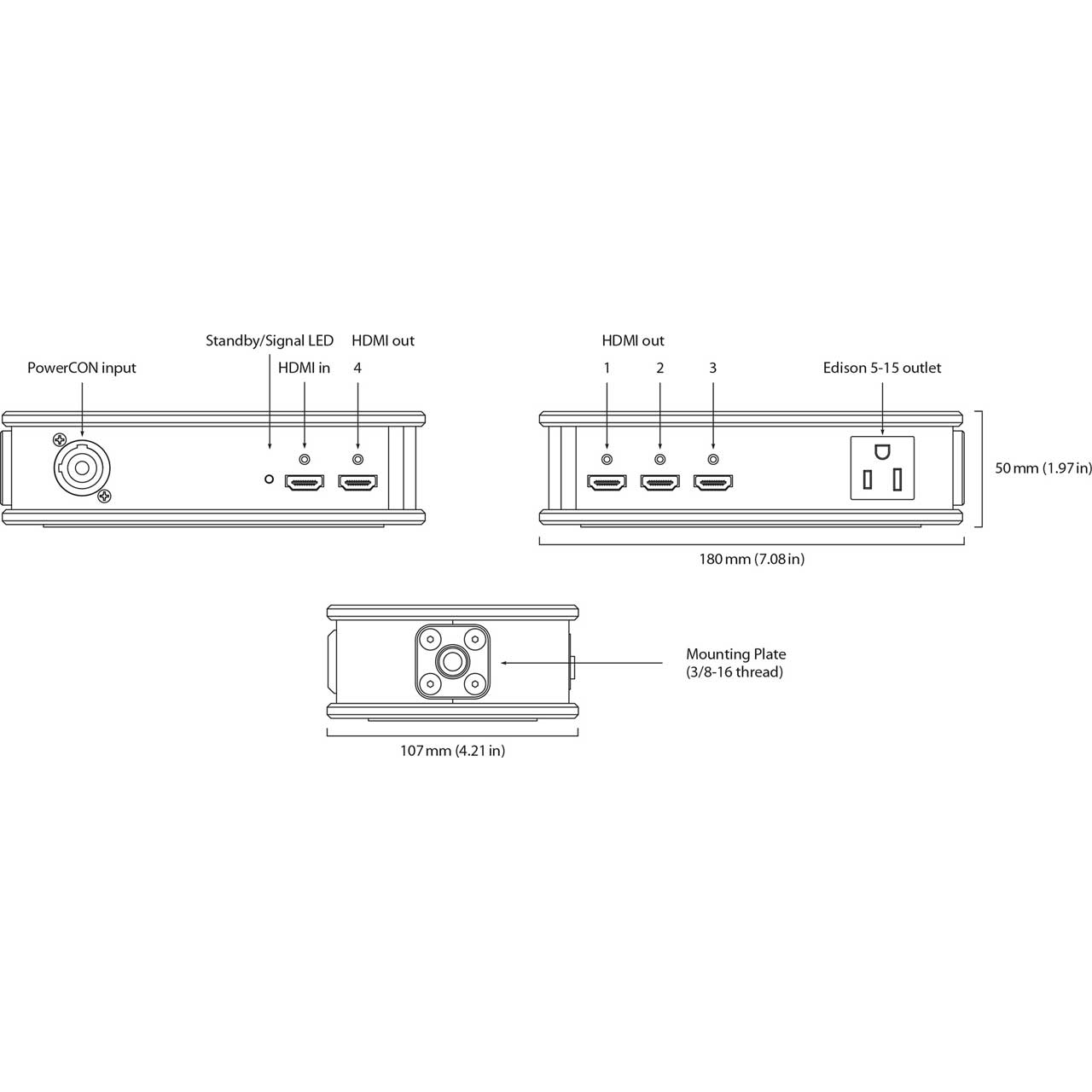

      Physical Specifications
    • Height: 50mm (1.97in)
    • Depth: 180mm (7.08in)
    • Width: 107mm (4.21in)
    • Weight: 1kg (2.2lbs)

      Environmental Specifications
    • Operating Temperature: 0-40°C
    • Relative Humidity: 0-90% non-condensing

  • Item Includes:

    • 1x xVision HDMI DA 1:4
    • 1x Edison to PowerCON (1m)
