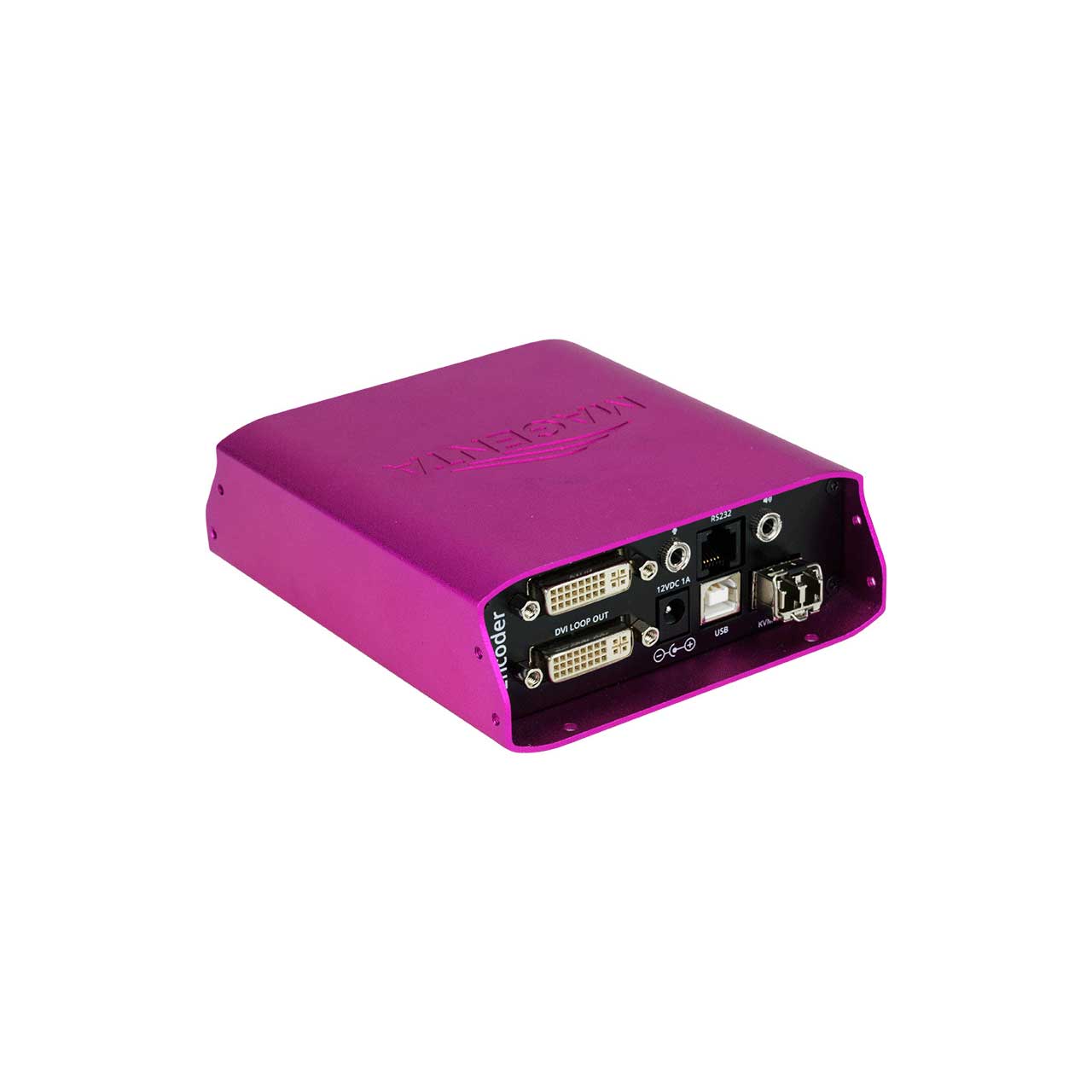

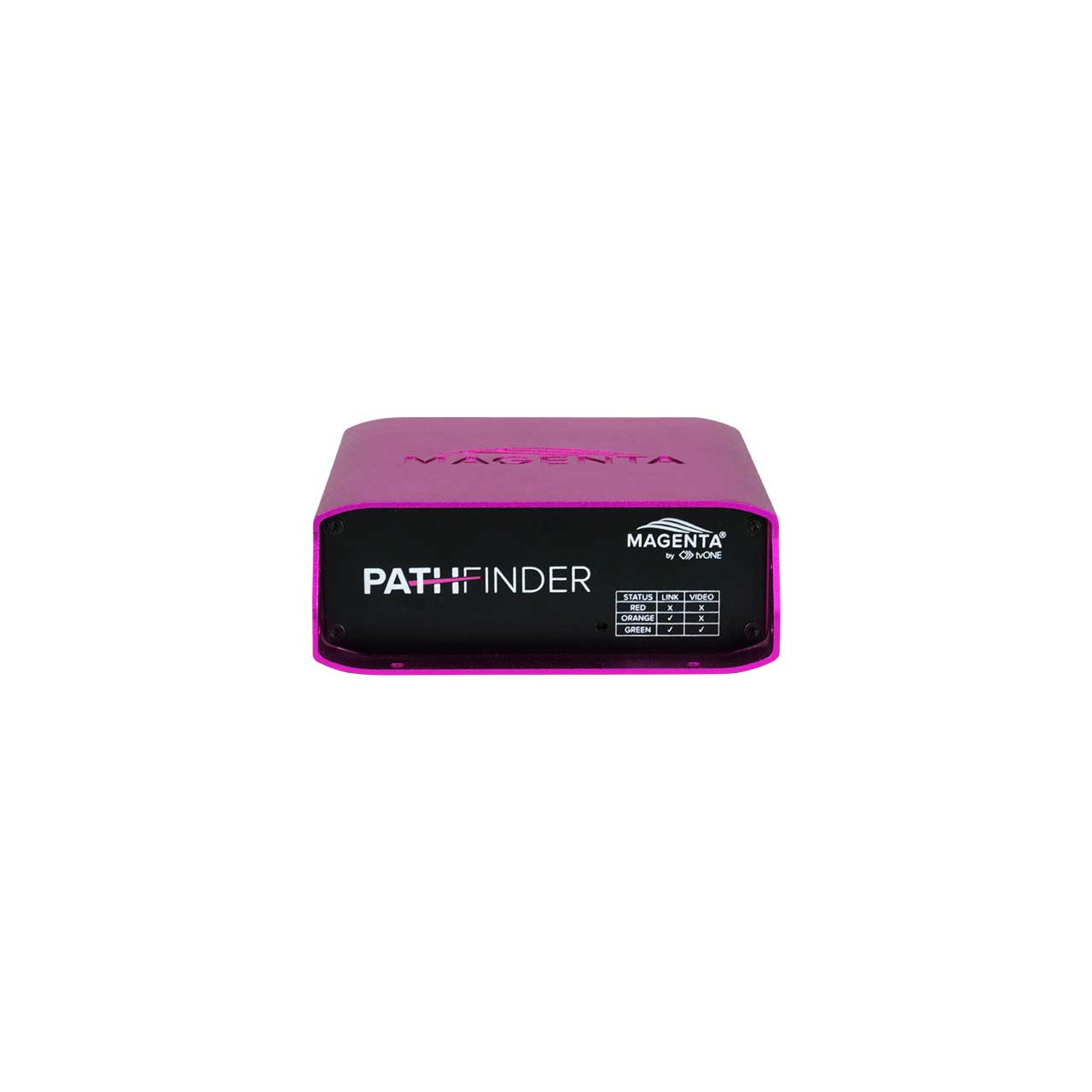

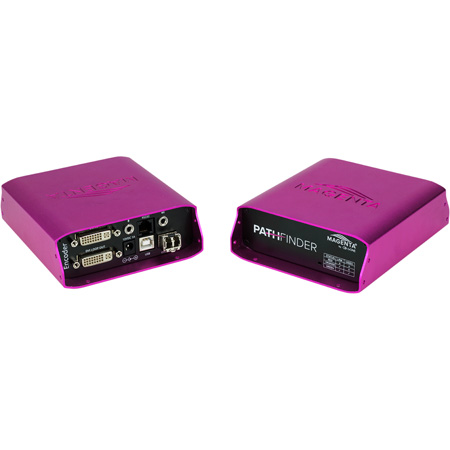

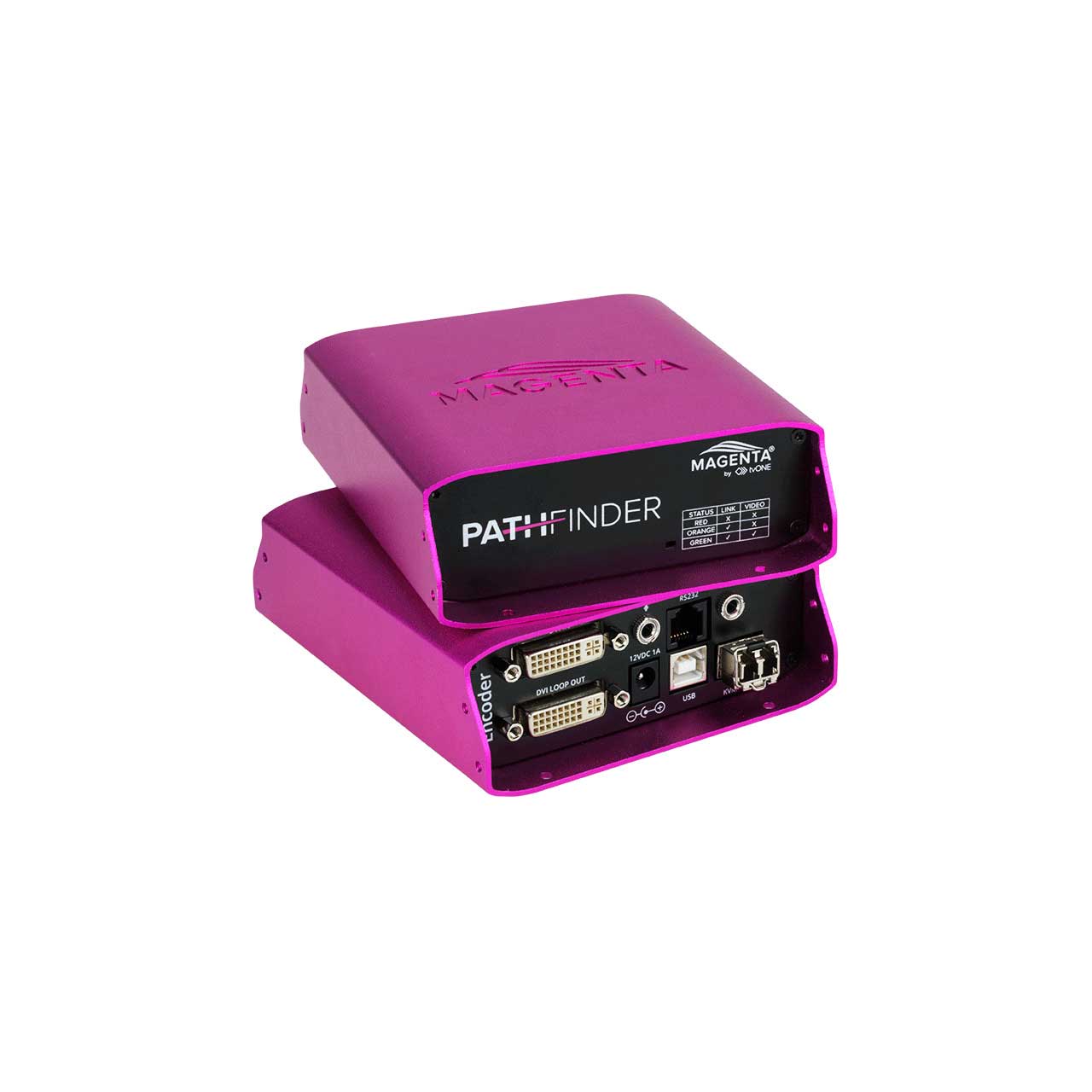

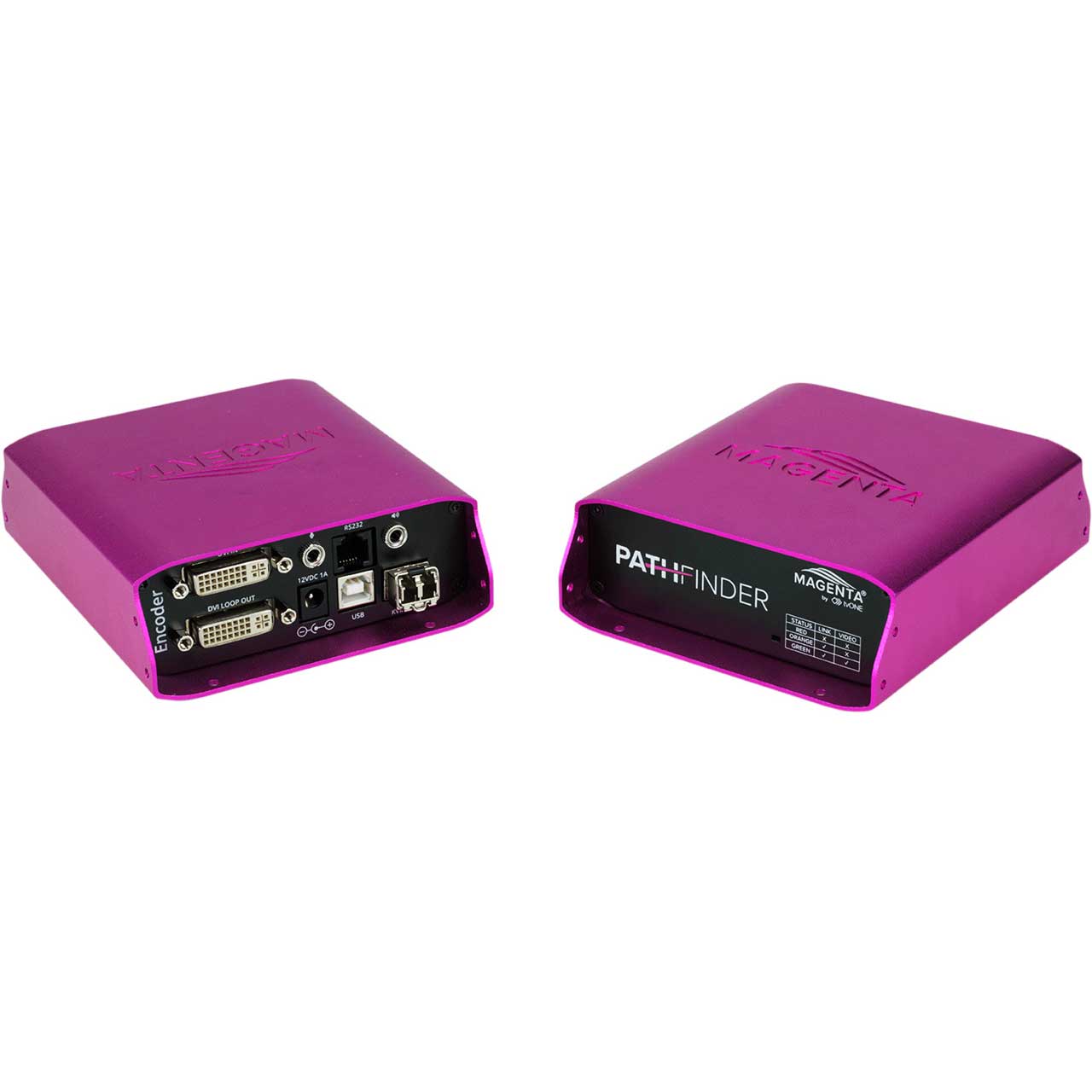

Magenta Research MG-KVM-531 Pathfinder DVI KVM Fiber Encoder 1920x1200 at 1GB

ITEM #: TV1-MG-KVM-531 MFG #: MG-KVM-531

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,785.00

Special Price:

$1,595.00

Availability: In Stock
iAvailability Description Popup


MG-KVM-531 - Overview

Magenta Research MG-KVM-531 Pathfinder provides a scalable, zero latency, KVM (Keyboard, Video, Mouse & USB 2.0) extension and switching solution. Capable of up to 3,000+ high-quality endpoints in a single system, it's the perfect solution for mission critical control and collaboration including Medical, Broadcast and Control room operations.

Magenta Pathfinder offers plug-and-play setup with no configuration of endpoints required, nor any costly user licensing fees. Pathfinder can extend and mix 4K and HD sources via CAT or Fiber cable to create a flexible wide-reaching KVM matrixing solution.

Advanced features include the ability to monitor and control up to 4 PC's from a single 4K monitor; while using only a single keyboard and mouse to control the PC of your choice. Alternatively, take your extended PC desktop to dual displays via a Pathfinder TX/RX pair.

Magenta has always engineered confidence; you can now expect this on your network. Extend, Switch and Distribute with Magenta Pathfinder KVM.

  • Features:

    • KVM matrixing solution with up to 2,000 endpoints
    • Use Cross-Click to seamlessly control PC's across multiple displays
    • 1G Networking
    • Zero latency performance guaranteed
    • Point-to-point extension up to 12miles (20km)
    • Mix copper and fiber for maximum system design flexibility
    • HDCP 1.4
    • Galvanic Isolaton
    • Plug and Play installation over IP
    • WindowView lets you Monitor up to 4PC's from a single 4K monitor, keyboard and mouse
    • Extend PC desktop to dual displays over single cable
    • Local monitor loop out
    • Update firmware remotely
    • Transparent USB 2.0
    • Netgear Certified
    • Passive Cooling

  • Specifications:

    • Interfaces:
      1x DVI-I in
      1x DVI-I (loop out)
      1x USB-B
      2x 3.5mm Analog Audio (Line In/out)
      1x RS232 via RJ11
      1x KVM link via SFP+
      1x DC power port
    • Video: Up to 1920x1200@60Hz 24bit: up to 1920x1200@60Hz 24bit
    • Audio: Analog 16bit, 44kHz, 2c
    • USB:
      USB 2.0 transparent
      Max. 480 Mbit/s
      Mass Storage and camera supported
      Transparent
    • RS232: Max. 230.400 bps, TxD, RxD, DTR, CTS
    • HDCP: 1.4
    • Max Distance:
      100ft (30m) via RJ45
      1640ft (500m) via Mulitmode Fiber
      12miles (20km) via Singlemode Fiber
    • Enclosure WxHxD: 4.3x1.57x5.2" (110x40x132.5mm)
    • Weight: 0.6lbs (302g)
    • Mounting: Built in surface mount. Rack mount kit available.
    • Power: 12V DC 1A
    • Consumption: 8W
    • Redundant Power: n/a
    • Operation Environment: 0 to 45 °C /32 to 113 °F) < 80%, non condensing
    • Storage Environment: -25 to 80 °C (-13 to 176 °F) < 80%, non condensing
    • Cooling: free air convection
    • MTBF: 82,820 hours
    • Compliance: CE, FCC
    • Network Switch Requirements: IGMP Snooping V2 or higher. Gateway bandwidth of 1Gbit on the connected port
    • Warranty: 5 years

  • Item Includes:

    • 1x tvONE MG-KVM-531 Magenta Pathfinder DVI KVM Fiber Decoder - supports up to 1920x1200 (requires SFP Module)

  • Warranty:

    • 5 years
