tvONE MWP-4Hi-1Y CORIOview - 4x1080P HDMI in - 1xAVIP in - 1x4K HDMI out Multi Window Processor

MWP-4HI-1Y - Overview

• Features:

  • Advanced 4K processor with up to 8 sources
  • 1/2 RU form factor with ultra-quiet operation

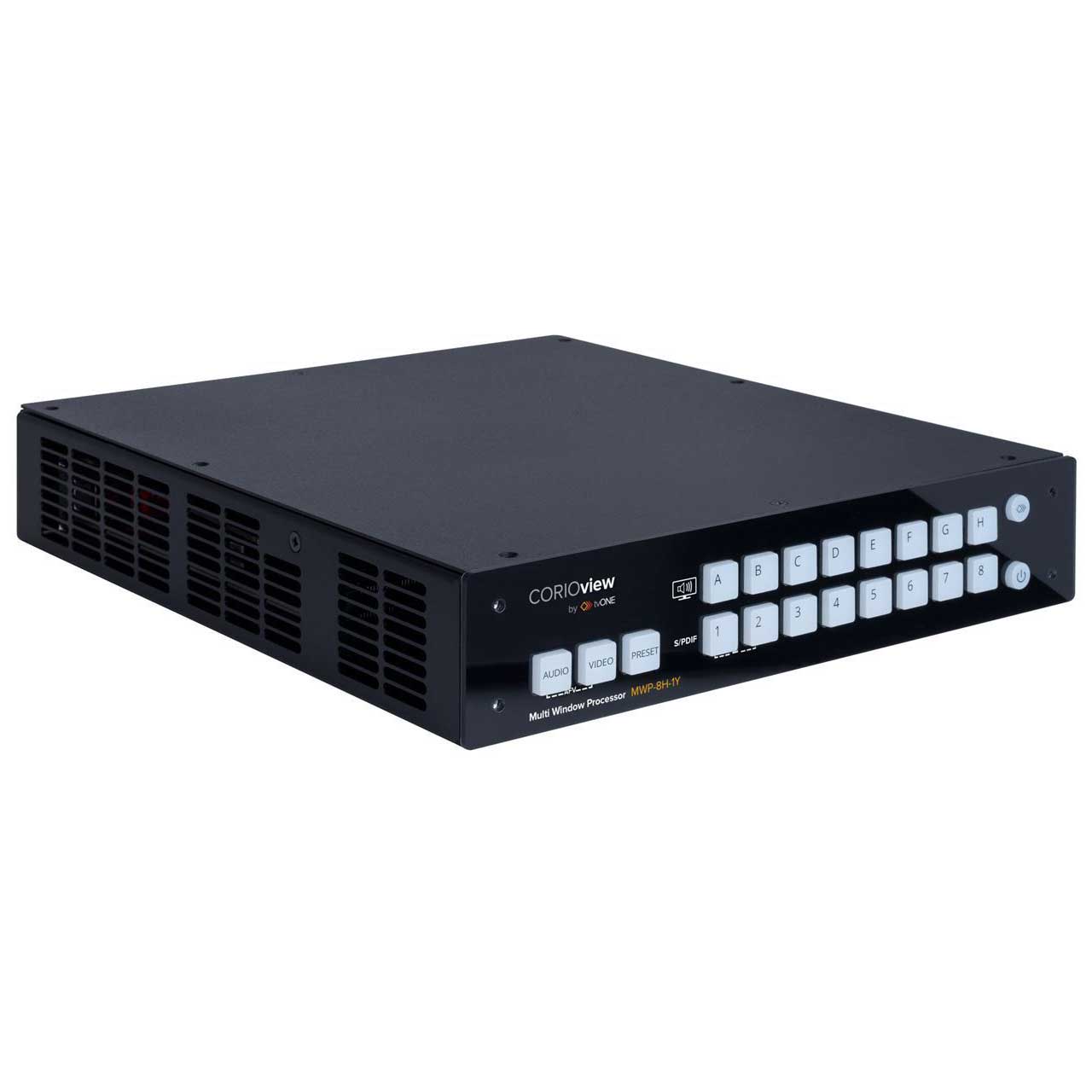

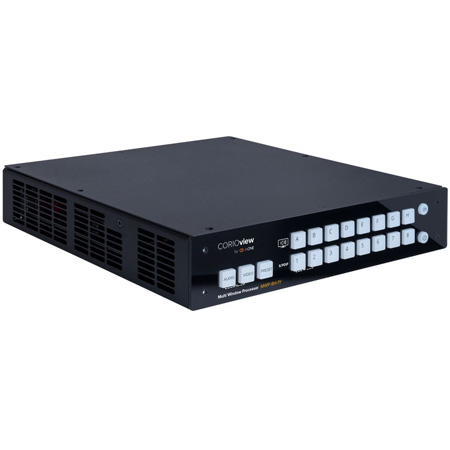

  • Intuitive Front Panel Control for presets and switching
  • Mixed Input types including: IP, HDMI , DVI-U & SDI
  • HDCP Handling on HDMI Inputs & Outputs
  • Custom resolution editor for LED walls
  • Eye-catching transitions or fade through black
  • Source labeling and Borders
  • Info button to easily indicate your source selection
  • Audio breakaway from SPDIF or display
  • CORIOgrapher touch-enabled control software
  • Third party control through API or AMX & Crestron plug-ins
  • Available in six (6) variants
  • 19" rack, surface or ONErack mounting options


• Specifications:

  • Video Processing
  • Technology: CORIO®3
  • Performance Inputs: up to 4K60 & Output up to 4K30
  • Format conversion: Up/Down/Cross Conversion
  • Max. number of Windows: 8

    Windows
  • Windows: Up to eight windows
  • Borders: Configurable color & thickness
  • Labels: Available on all windows
  • Transitions: Available when changing sources or Presets

    Presets
  • Number of presets available: 16
  • Accessible from front panel: 16
  • Preset effects: Transitions, fade through black or window movement

    Configuration & Control
  • Application: CORIOgrapher software
  • Platform: PC with Windows 10 & Windows 7 minimum
  • Standby Mode: Faster boot up & saves power

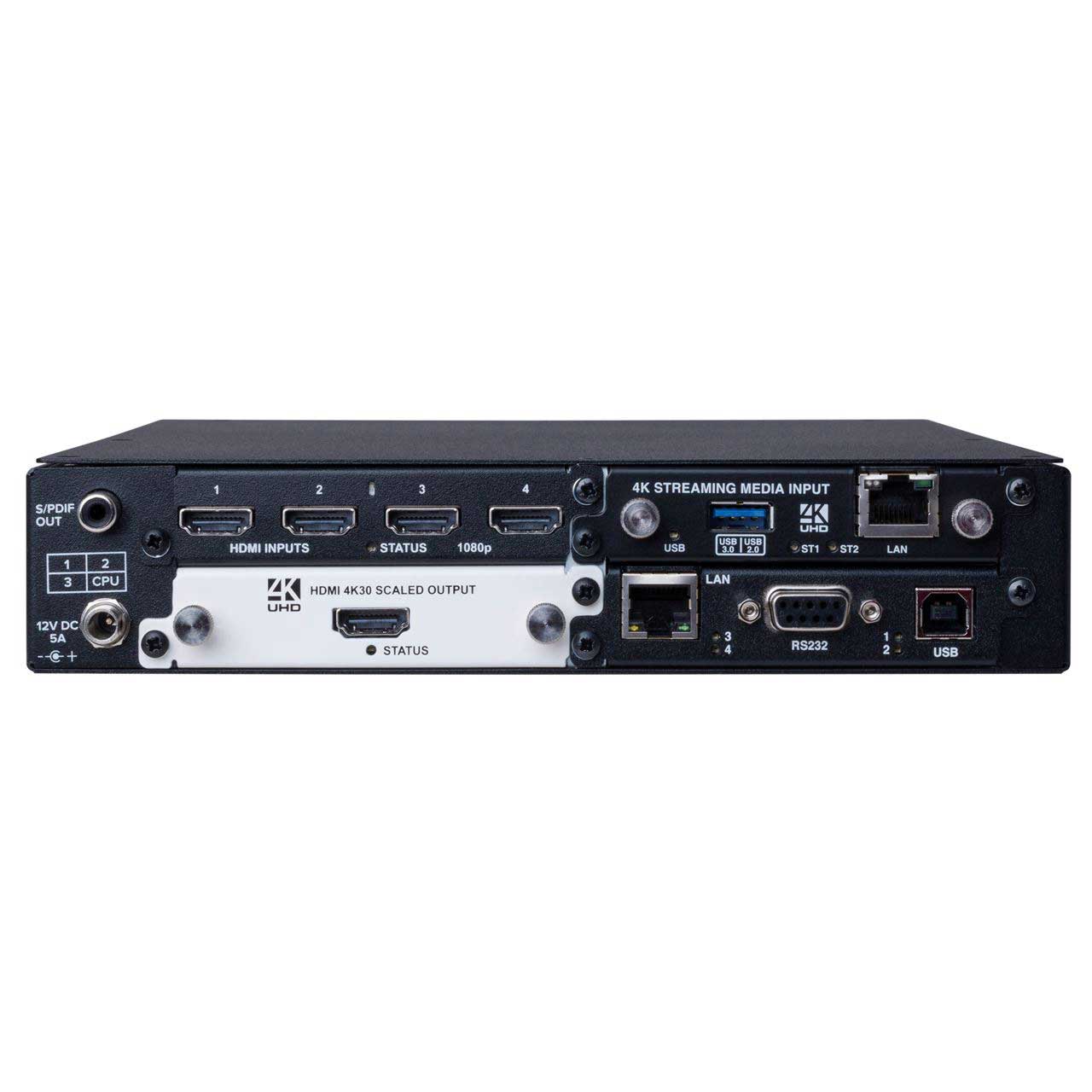

    Control Ports
  • Female Connector: RS-232 D9
  • IP Interface: RJ45 Connector
  • USB Type: B - for future use

    Video Inputs
  • HDMI Module
  • Input connectors: 4 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
  • Resolution support (4:4:4):
    480i, 576i, 24Hz to 60Hz
    720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    1035i (1920x1035) - 59.94, 60Hz
    1080i (1920x1080) - 50, 59.94, 60Hz
    1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
  • Color format support: RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
  • Color depth: 8 bpc (24 bit/px)
  • Color space support: BT.601 on standard resolutions BT.709 for 720p, 1080i, 1080p

    Media/Images
  • Interfaces: USB 3.0, Internal Storage
  • Video Codecs: H.264 (CBP, Main, High)
  • Video Formats: mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2
  • Playback Bit Rates: Single stream to 100Mbs, Dual Streams to 40Mbs

    File Playback Resolutions
  • Supported:
    Up to 3480x2160@30fps 1
    Up to 1080p60@60fps Up to 2
    Up to 7680 x 4320 Up to 2 (still images only)

    Media Handling
  • External: 1 x USB 3.0 interface
  • Supported devices: Flash file systems FAT, FAT32, ext3, ext4, NTFS
  • Internal High speed storage: up to 128GB per module

    Audio Inputs
  • Supported sampling rate: 48KHz
  • Sample size: 24 bits
  • Supported channels: 1 Stereo pair on each input 4H-1Y, 8H-1Y, 4D-1Y, 4Y-1Y, 8GS-1Y

    Audio Output
  • Connector: RCA
  • Format: S/PDIF
  • Supported sampling rate: 48KHz
  • Sample size: 24 bits
  • Supported channels: 1 Stereo pair

    Video Output
  • Output connector: HDMI
  • Resolution support:
    720p, 1080i & 1080p @ 24Hz to 60Hz
    3840 x 2160 @ 23.98Hz 24Hz, 25Hz, 29.97Hz & 30Hz
  • Chroma sampling: 4:4:4
  • Scaling: All supported resolutions
  • Compatibility HDMI: 1.4 & HDCP 1.4
  • Color depth: 8 bpc (24 bit/px)
  • Color space support: BT.709 for 720p, 1080i, 1080p and 2160p

    Embedded Audio Output
  • Supported sampling rate: 48KHz
  • Sample size: 24 bits
  • Supported channels: 1 Stereo pair

    Mechanical
  • Size (HxWxD): 1.73 x 8.54 x 9.61" (44 x 217 x 244mm)
  • Weight: 3.75 lbs (1.7 Kg) approximately

    Regulatory Compliance
  • Main unit: FCC, CE, RoHS, UL

    Environmental
  • Operating Temperature: 0° to +40°C (+32° to +104°F)
  • Operating Humidity: 10% to 85%, Non-condensing
  • Storage Temperature: -10° to +70°C (+14° to +158°F)
  • Storage Humidity: 10% to 85%, Non-condensing
  • MTBF: 50,000 Hours
  • BTU: 205 BTU/hr
  • Fan Noise: 44dBA @ 0.5m

    Power Supply
  • External: 110v-240v 50-50Hz auto-detecting
  • Connector: Locking
  • Power cable: US, UK, EU or AU


• Item Includes:

  • Quick Start Guide Printed
  • USB Key Documentation & Links
  • Power Supply Included


• Warranty:

  • Limited Warranty 5 Years Parts and Labor
