Shure ULXD4 Single Digital Wireless Receiver - V50 174 to 216 MHz

ITEM #: ULXD4-V50 MFG #: ULXD4=-V50

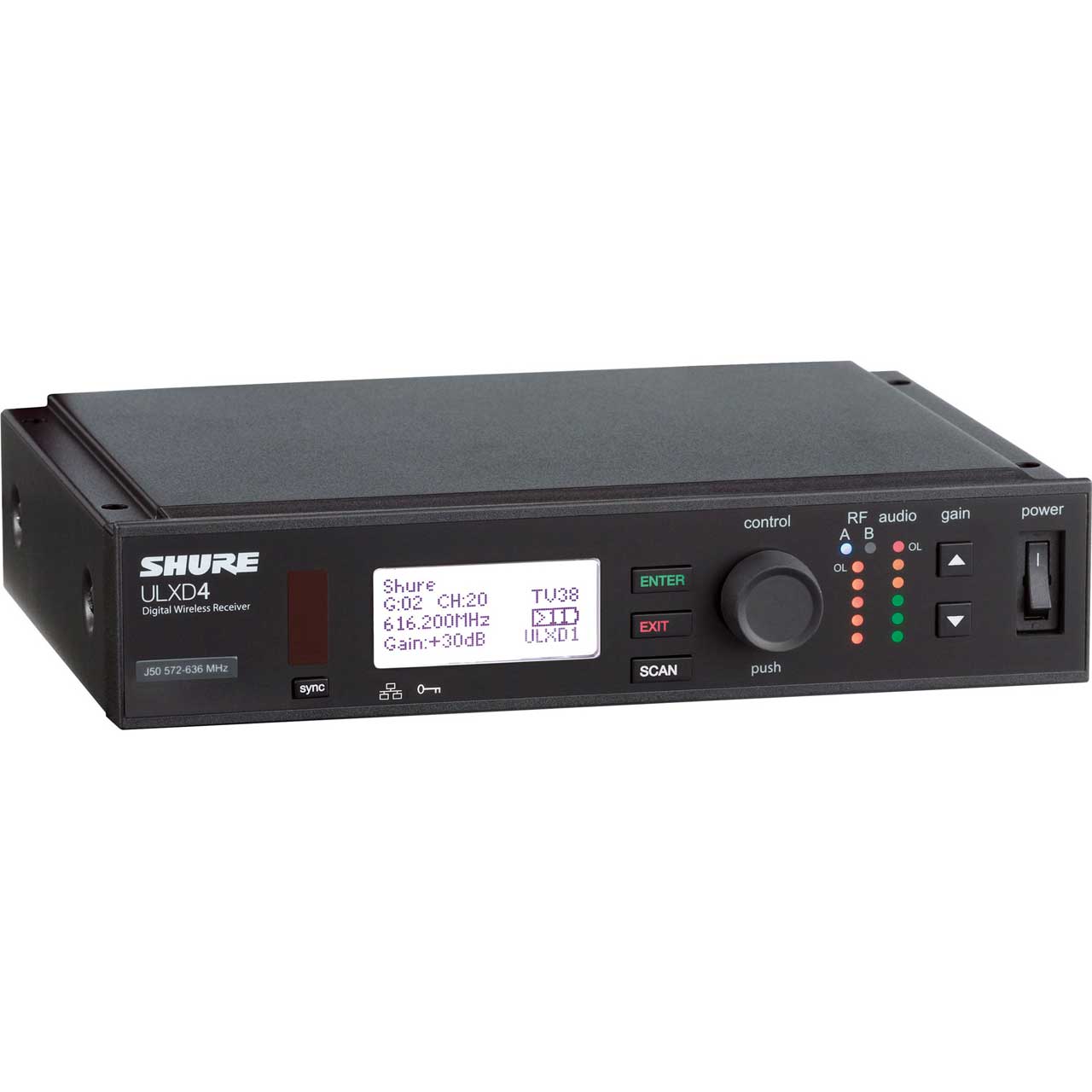

Primary Image

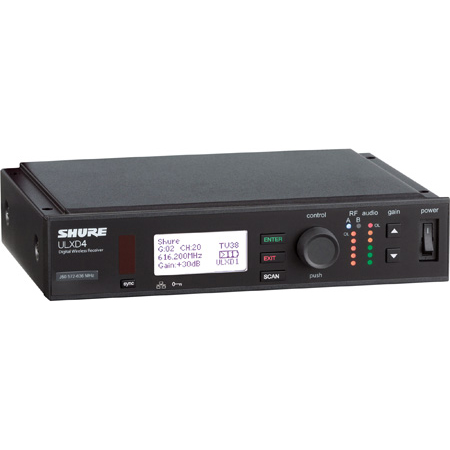

  • Product Image Thumbnail 1 of 2

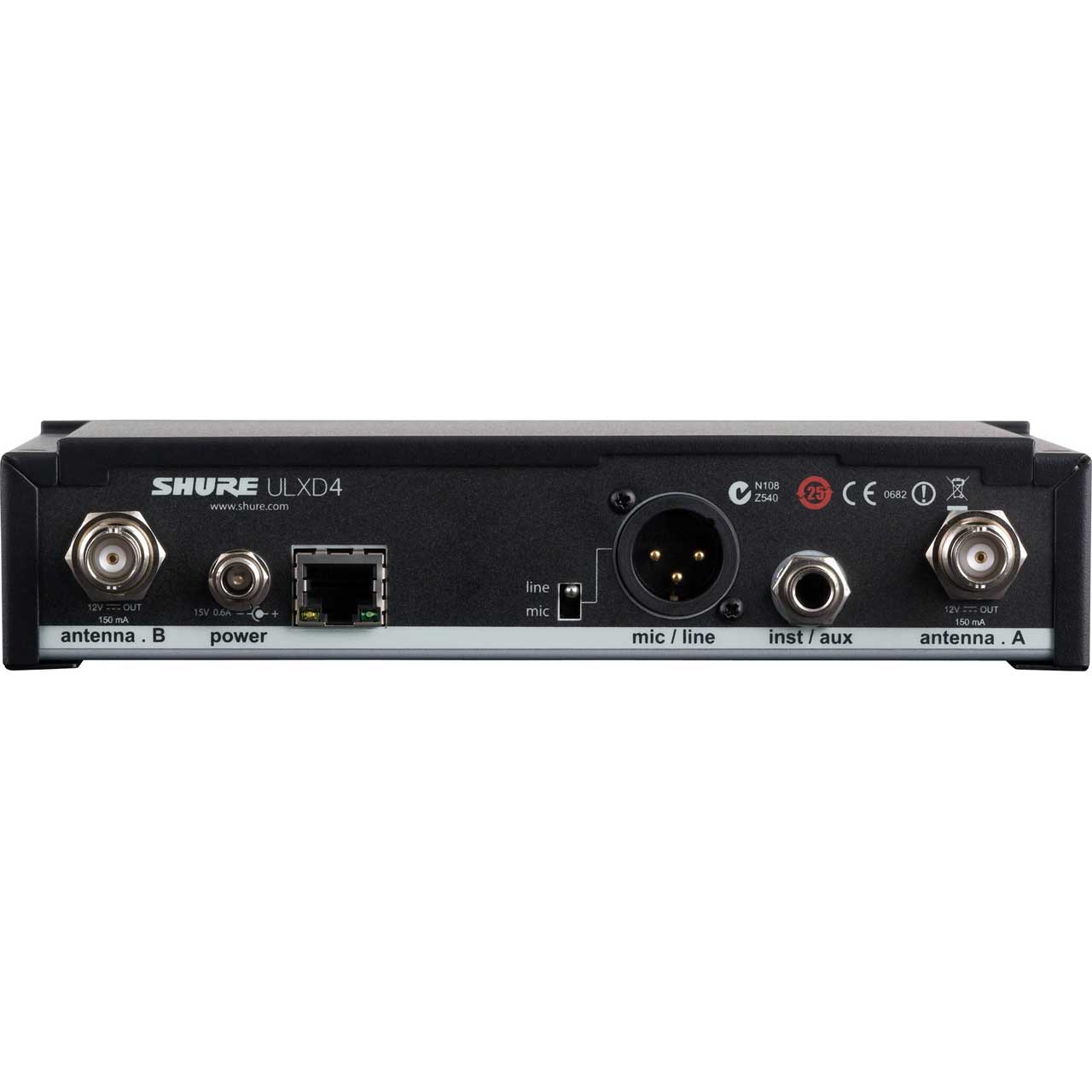

  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,578.00

Our Price:

$1,127.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ULXD4=-V50 - Overview

The Shure ULX-D Digital Wireless offers uncompromising 24-bit audio quality and RF performance, with intelligent, encryption-enabled hardware, flexible receiver options, and advanced rechargeability options for professional sound reinforcement.

A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source material ever available in a wireless system, with a wide selection of trusted Shure microphones to choose from. Extended 20 Hz - 20 kHz frequency range and flat response captures every detail with clarity, presence, and incredibly accurate low end and transient response. With greater than 120 dB, ULX-D delivers wide dynamic range for excellent signal-to-noise performance. Optimized for any input source, ULX-D eliminates the need for transmitter gain adjustments.

ULX-D sets a new and unprecedented standard for spectral efficiency and signal stability. The intermodulation performance of ULX-D is an incredible advancement in wireless performance, enabling a dramatic increase in the number of simultaneous active transmitters on one TV channel. Rock-solid RF signal with zero audio artifacts extends over the entire range. For applications where secure wireless transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted signal for unbreakable privacy.

For scalability and modular flexibility, ULX-D receivers come in single, dual, and even quad channel versions. The dual and quad channel receivers offer conveniences such as RF cascade, internal power supply, bodypack frequency diversity, audio output channel summing, and Dante digital networking for multi-channel audio over Ethernet. All receivers offer High-Density mode for applications where high channel counts are needed, greatly increasing the amount of simultaneous channels possible over one frequency band.

Advanced Lithium-ion rechargeability provides extended transmitter battery life over alkaline batteries, battery life metering in hours and minutes accurate to within 15 minutes, and detailed tracking of battery health status. Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound reinforcement.

  • Features:

    • Predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
    • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
    • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
    • Front panel gain adjustment buttons provide up to 60 dB additional gain
    • AES 256-bit encryption-enabled for applications where secure transmission is needed
    • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
    • Support for frequency coordination with the Axientr Spectrum Manager
    • Rugged metal chassis
    • Intuitive front panel LCD menu and controls with lockout feature
    • Upgraded LCD with adjustable contrast and brightness
    • Audio and RF LED meters with peak indicator
    • Remoteable ½ wave antennas
    • Furnished rack hardware
    • Frequency 174 to 216 MHz

  • Specifications:

    • RF Carrier Frequency Range: 470-814 MHz, varies by region
    • Working Range: 100 m (330 ft)
    • RF Tuning Step Size: 25 kHz, varies by region
    • Image Rejection: >70 dB, typical
    • RF Sensitivity: -98 dBm at 10-5 BER
    • Latency: <2.9 ms
    • Audio Frequency Response: 20 - 20 kHz (±1 dB)
    • Frequency: 174 to 216 MHz
    • Audio Dynamic Range (System Gain @ +10): >120 dB, A-weighted, typical
    • Total Harmonic Distortion: -12 dBFS input, System Gain @ +10 (<0.1%)
    • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
    • Operating Temperature Range: 0°F to 122°F Note: Battery characteristics may limit this range.
    • Storage Temperature Range: -20°F to 165°F Note: Battery characteristics may limit this range.

  • GTIN:

    0042406463065
