280704 - Overview

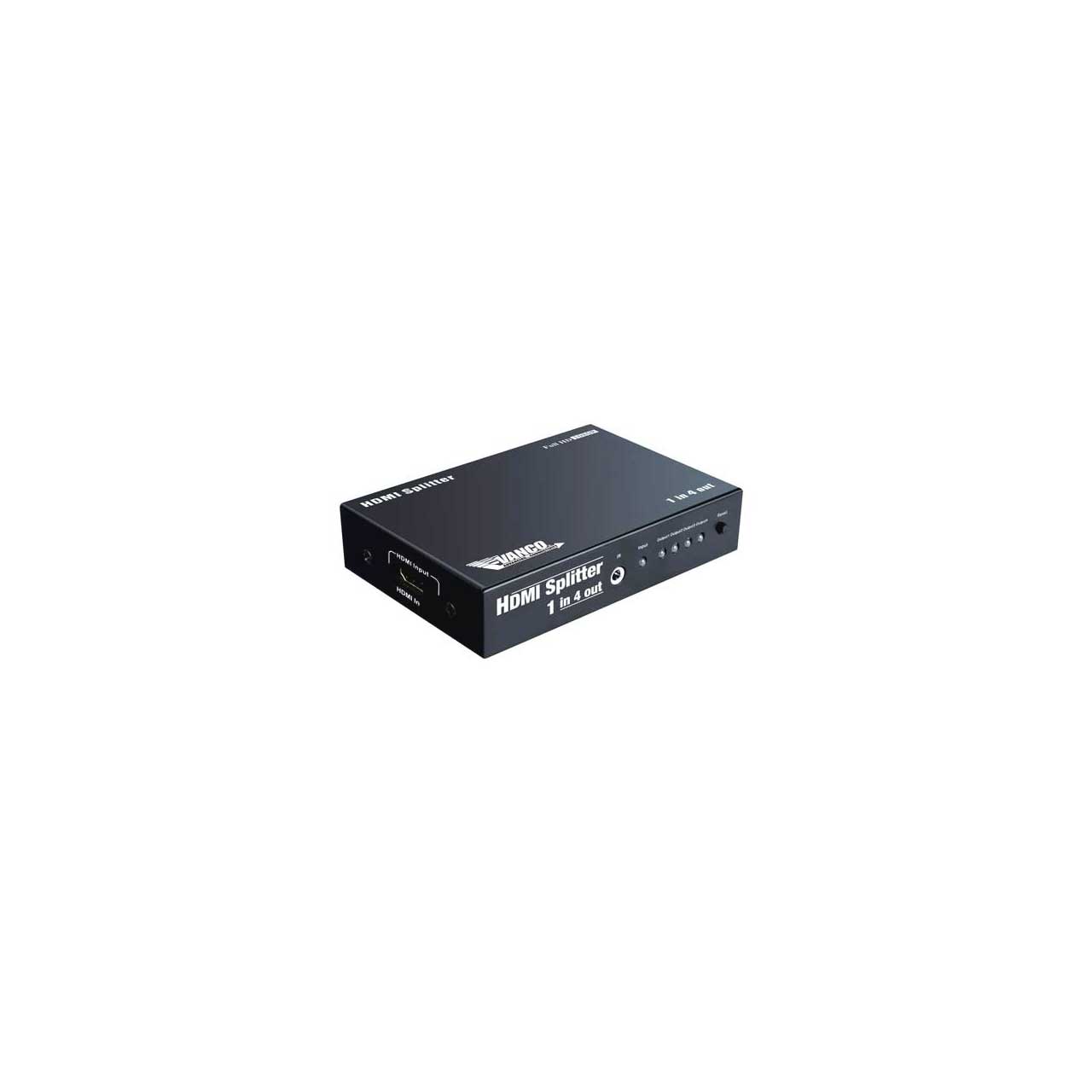

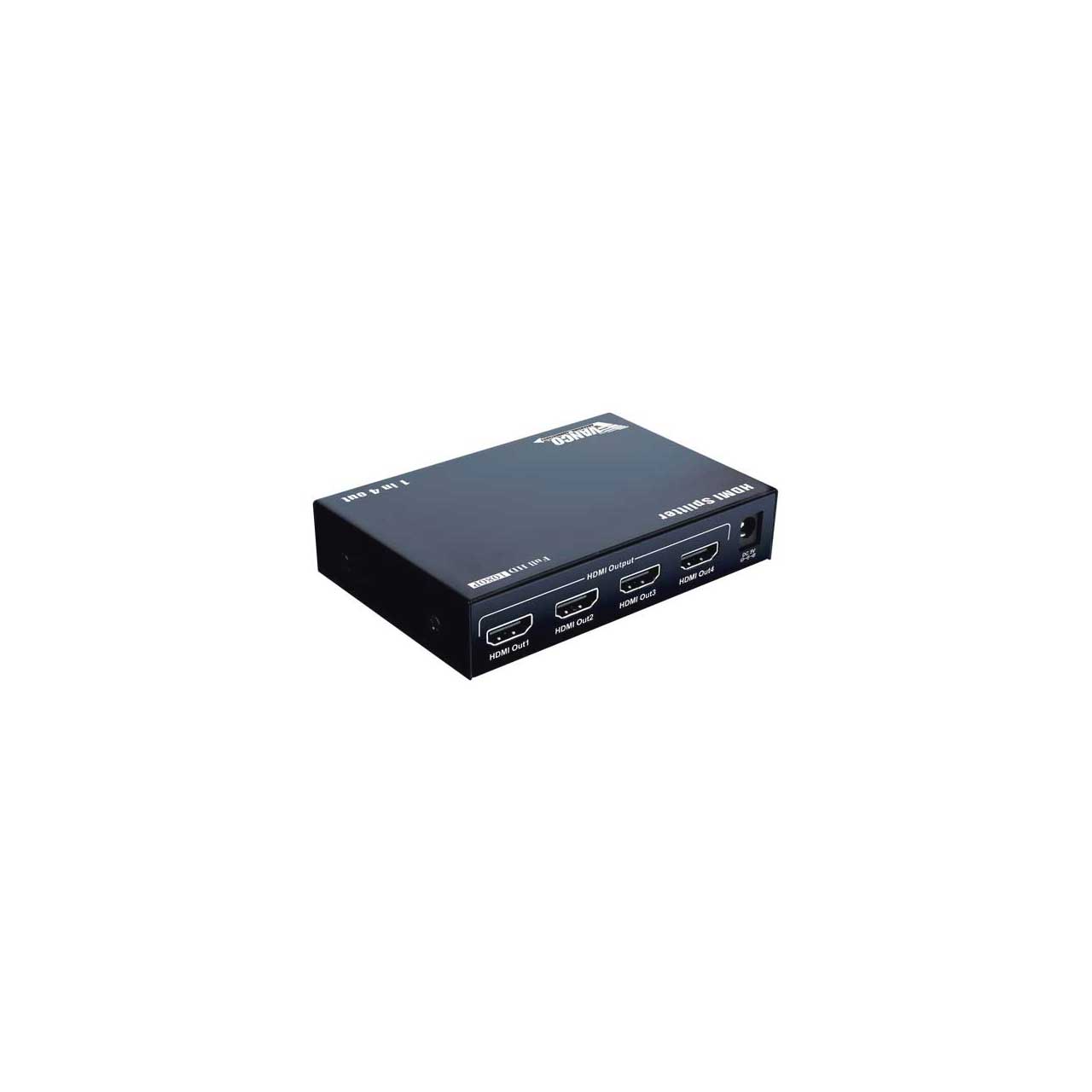

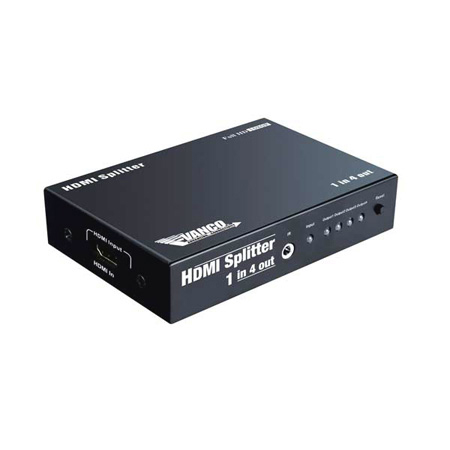

Vanco 280704 allows 1 HDMI source to be displayed on up to 4 HDMI displays. Features EDID management which supports default HDMI EDID options or has the ability to copy the EDID of any display connected to the source for any "handshake" issues. Supports 4K2K (2160p @30) Ultra High Definition resolution. Full high definition resolution support: 2160p- 1080p- 1080i- 720p and other standard video formats.

  • Features:

    • Allows 1 HDMI Source to be Connected to 4 HDMI Displays Devices

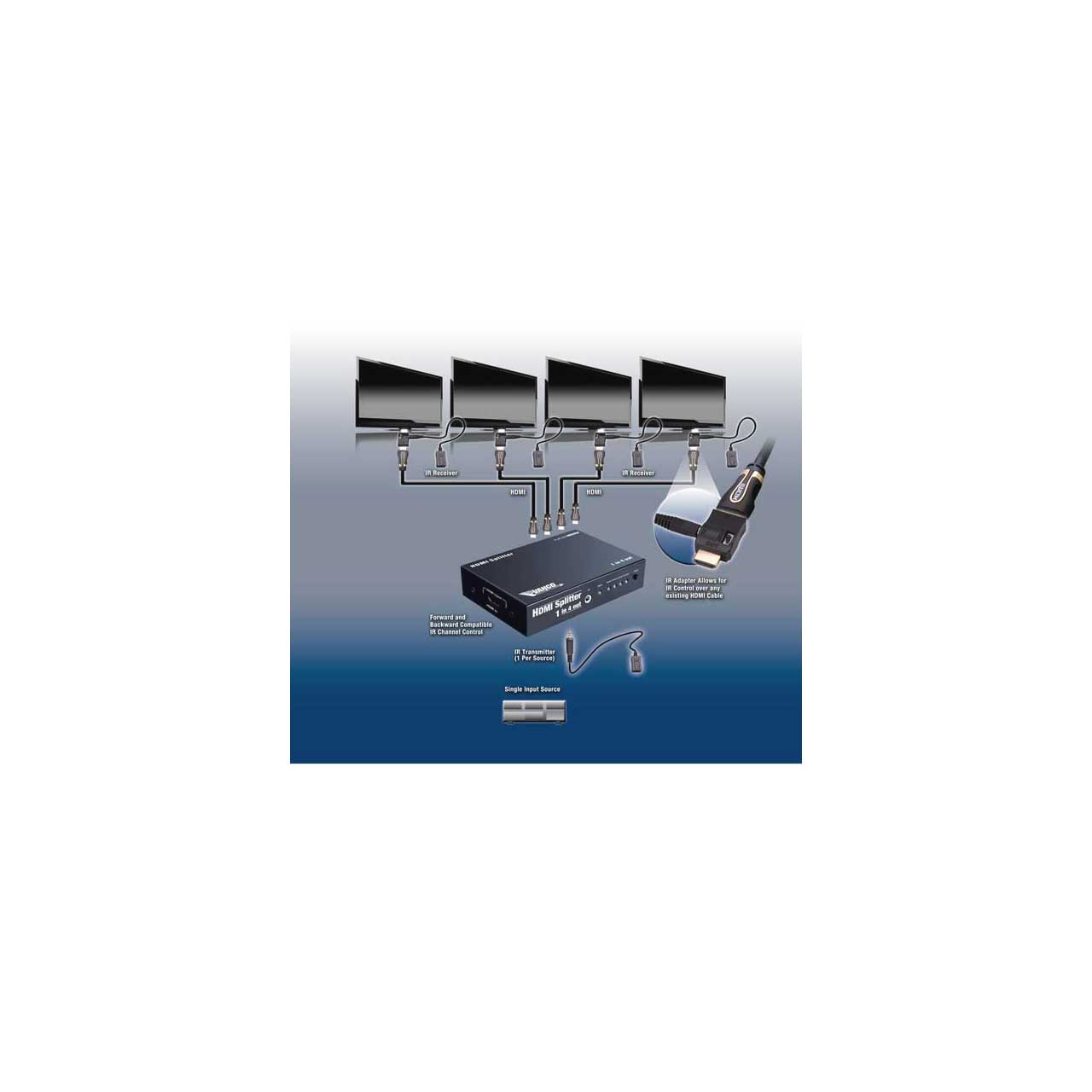

    • Super IR control system, IR transport channel can be forward or backward. HDMI IR adapters (Part # 280703) and IR transmitters and receivers are needed (Part #s 280720, 280721)
    • Shelf Mounting
    • 5V DC, UL Listed Power Supply
    • Dimensions: 4.375" W x 1" H x 3" D
    • High Speed Chip Set that Supports 3D, 4K x 2K
    • Full HD1080P/60HZ
    • HDCP Compliant
    • Supports Digital Audio Format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
    • Built-in equalization support output
    • Unique Circuit Design Allows for Protection against High Voltage and Peak Currents
    • Tested for Compatibility with all leading HD Video brands
    • Tested with Dolby 7.1 Home Theater Systems


  • GTIN:

    0741835091688
