Vanco 280734 1-Zone 3-Source In-Wall Decor Style IR Kit

280734 - Overview

• Features:

  • Allows for the Transmission of IR signals from up to 3 IR Emitters to one IR Receiver

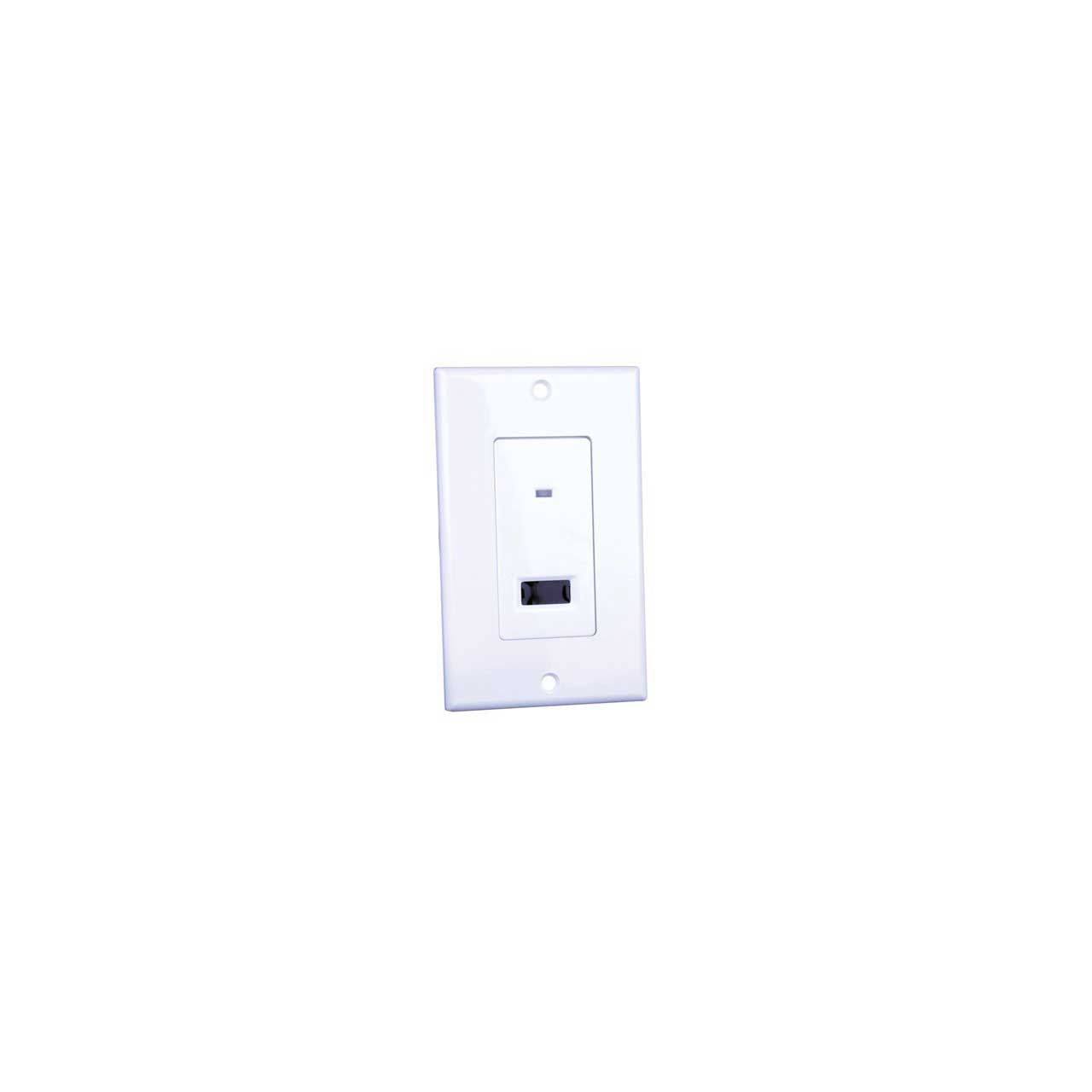

  • In-Wall IR Receiver works in most lighting environments, including CFL

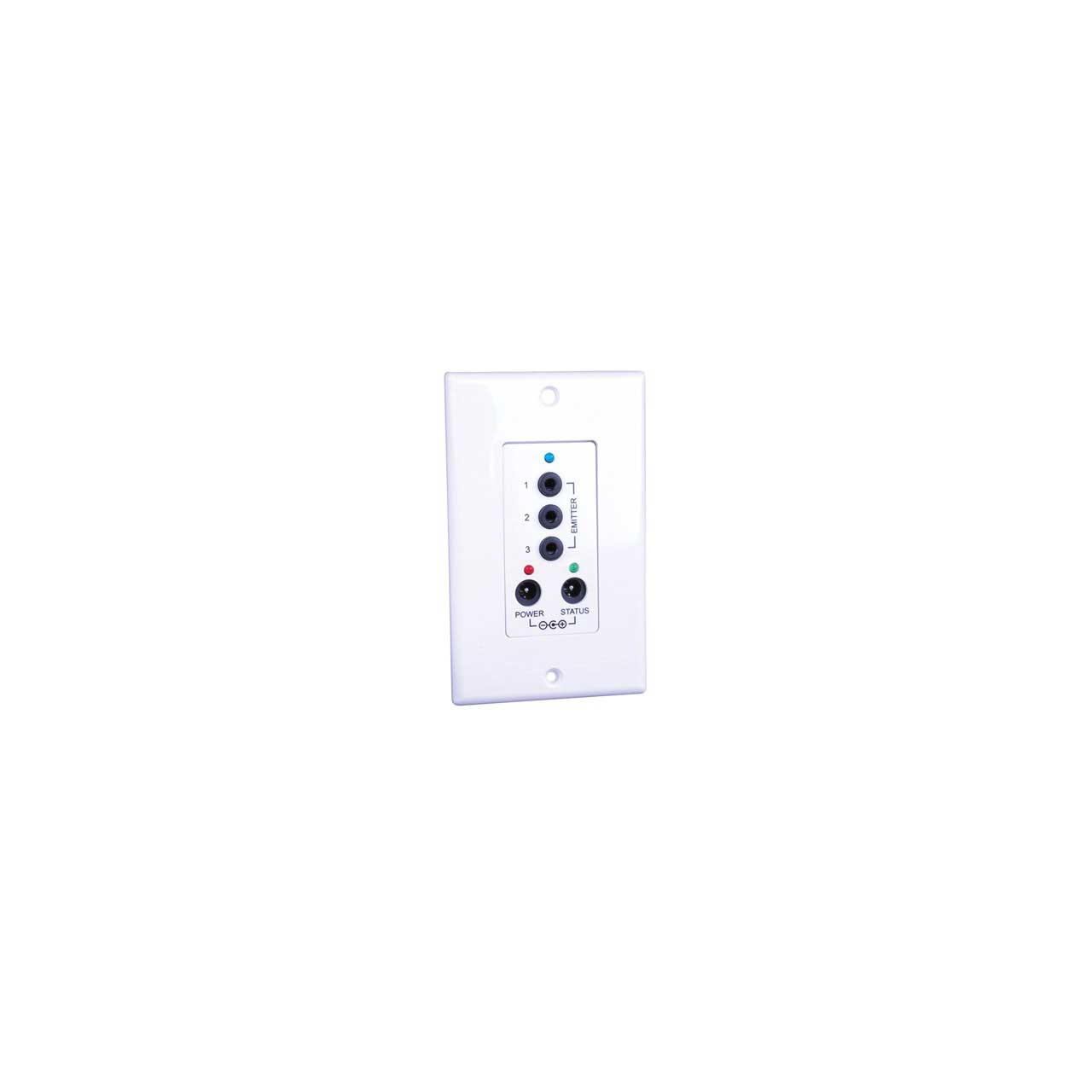

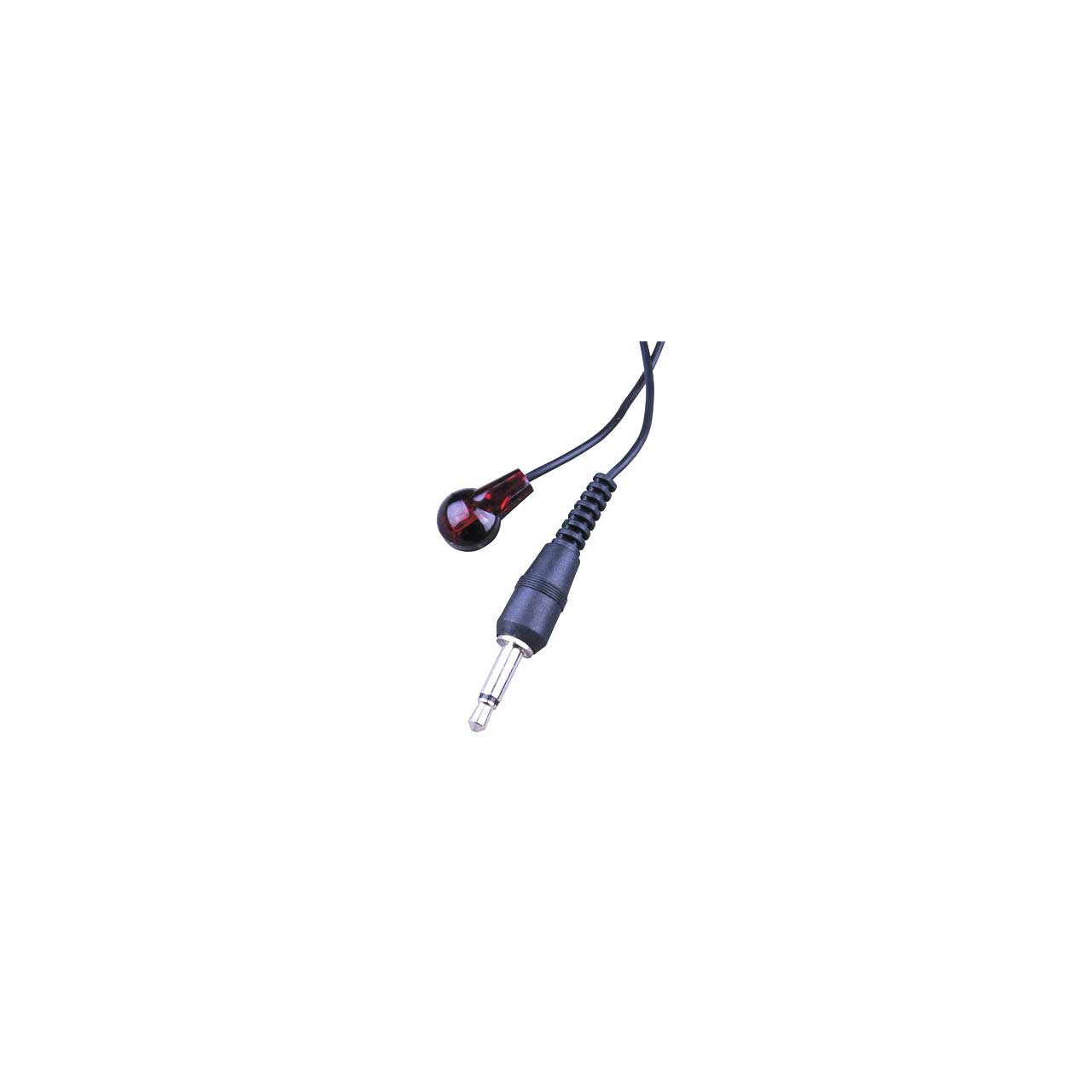

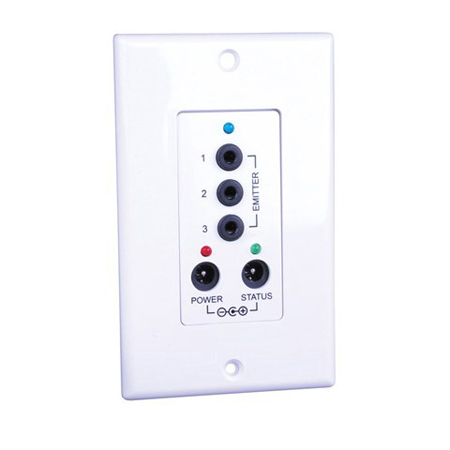

  • Kit includes (1) In-Wall IR Connecting Block, (1) In-Wall IR Receiver, (2) Single IR Emitters and (1) 12 VDC PowerSupply
  • A total of 6 IR Emitters can be supported
  • Requires 18 AWG 4 Conductor Low Voltage Wire (Not Included)
  • IR Receive Frequency: 34 kHz to 60 kHz
  • IR Transmit Frequencies: 38 kHz & 56 kHz
  • Range: 40 ft at 38 kHz & 25 ft at 56 kHz
  • Power Supply, 12 VDC, 3 milli-amps
  • In-Wall Connecting Block Dimensions: 2.75" W x 4.5" H x 1.6" D


• GTIN:

  0741835095433
