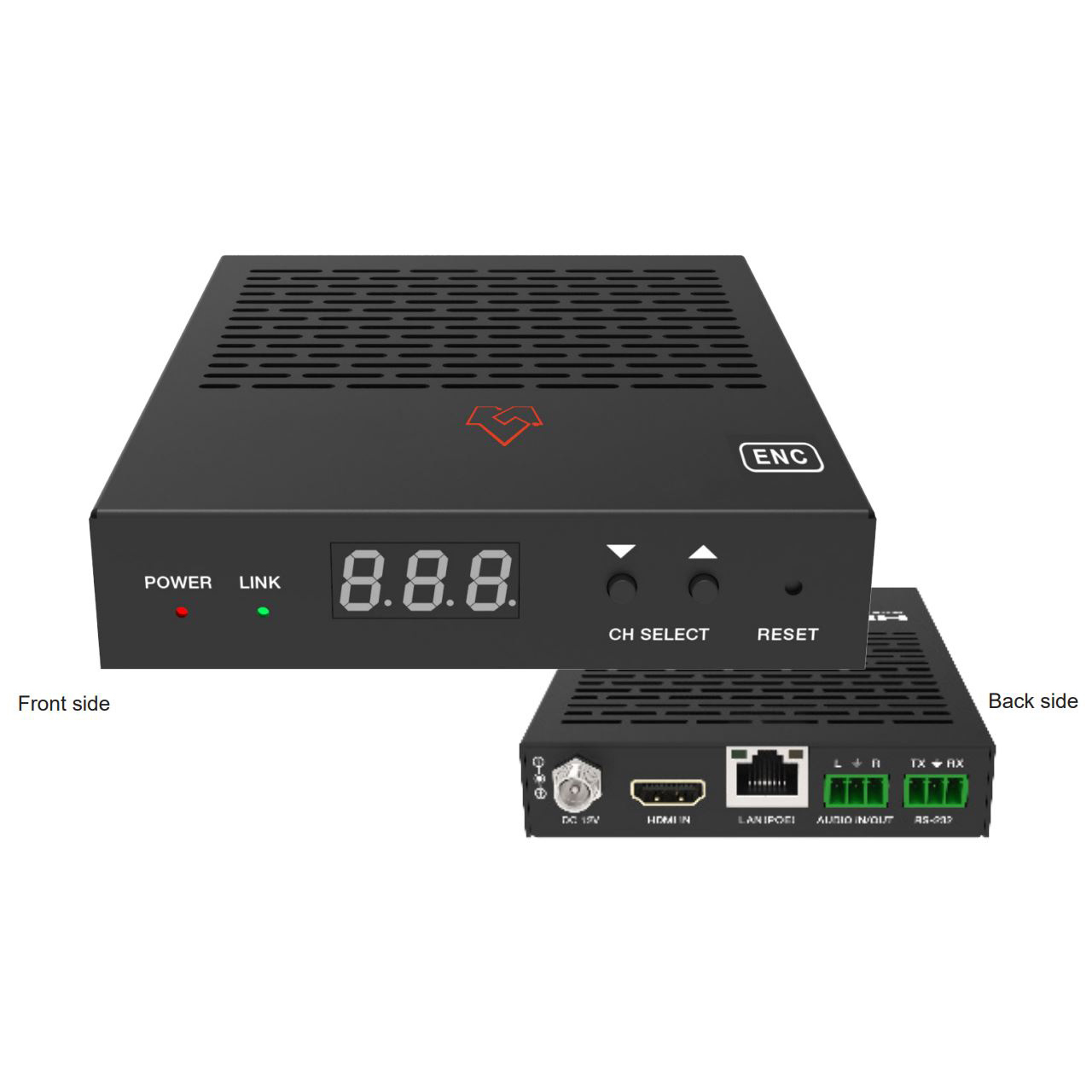

VigilLink VLIP-H5HD-EC 1G H.265 1080p@60HZ AVoIP Transmitter with Videowall Processing

ITEM #: VGL-VLIP-H5HD-EC MFG #: VLIP-H5HD-EC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$530.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-H5HD-EC - Overview

The VigilLink VLIP-H5HD-EC AV over IP product distributes multiple HD contents to multiple HD display devices over a 100M/1G Network Switch. It offers configurable high-quality, low-bandwidth H.265/H.264 configurable compression video and supports resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be extended up to 328ft / 100m via CATE5E/6/6A/7 cable. The product supports analog audio embedding and extracting. It also supports RS-232 control (pass-through & Guest mode) and single-machine control (without a Controller Box, matrix switching can be realized with panel buttons or RS-232 control).

  • Features:

    • HDMI 1.3 and HDCP 1.4 compliant
    • Video resolution up to 1920x1200@60Hz 4:4:4
    • Supports 4.95Gbps video bandwidth
    • Signal transmission distance can be extended up to 328ft / 100m via CATE/6/6A/7 cable
    • Supports point-to-point signal extension

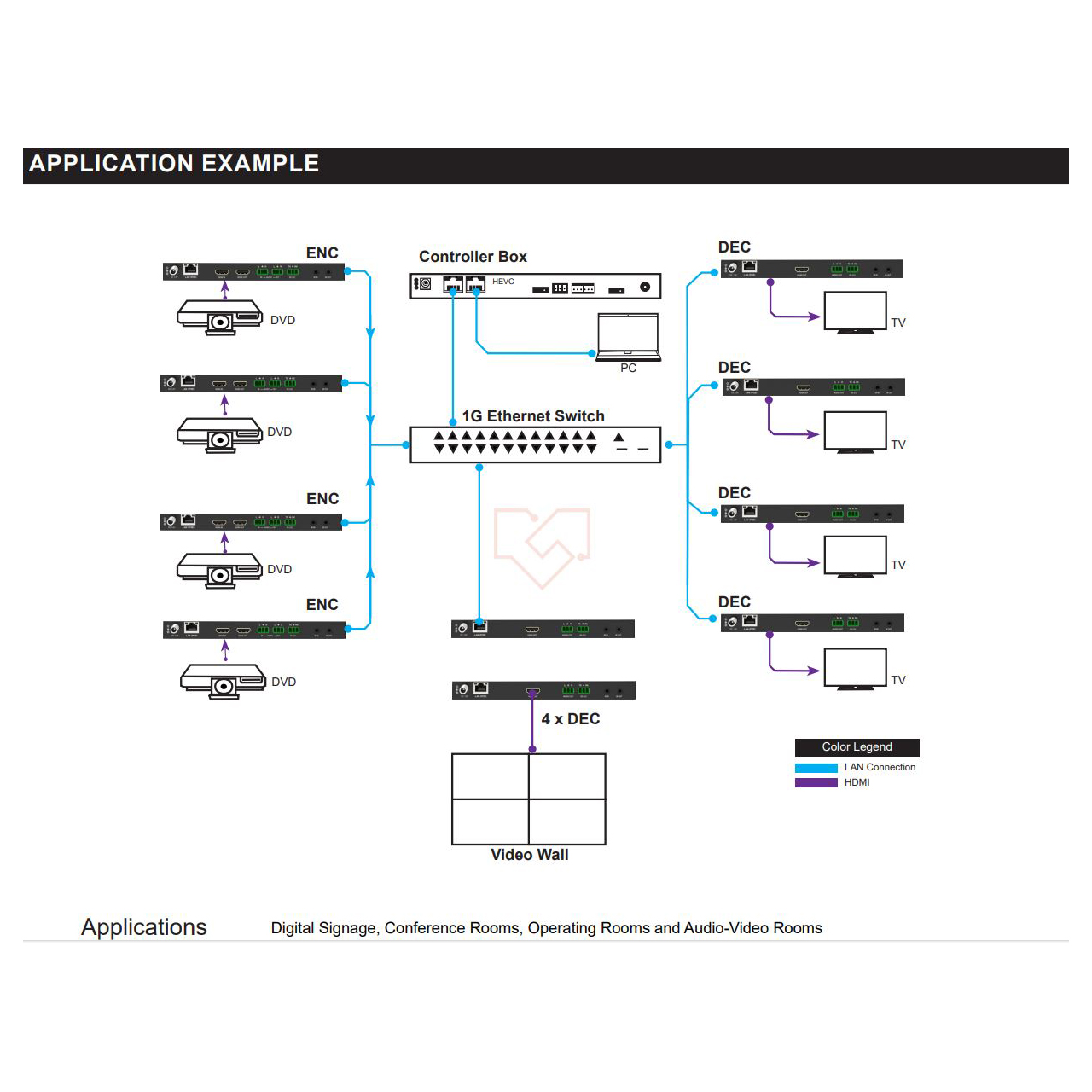

    • Supports signal distribution, multicast mode, distributed matrix, and video wall (up to 9x9) functions over a 1G Network Switch
    • Intelligent video wall management makes it achievable for the novel layout of wall configurations
    • Supports LPCM 2.0CH (32/44.1/48KHz) audio format
    • Supports audio embedding and extracting
    • Supports RS-232 control (pass-through & Guest mode)
    • Supports mainstream and Substream encoding modes
    • Stream parameters can be configured via Web GUI or Controller Box
    • Controlled via panel buttons, RS-232, TCP/IP, Web GUI, and Controller Box
    • Supports POE function (802.3af Class 3, PD mode)
    • Smart networking design for easy and flexible installation


  • Specifications:

    • HDMI Compliance: HDMI 1.3
    • HDCP Compliance: HDCP 1.4
    • Video Bandwidth: 4.95Gbps
    • Video Compression Standard: H.265/H.264
    • Transmission Distance: 100m (CAT5e/6/6a/7)
    • Video Resolution: Up to 1920x1200 @60Hz (4:4:4)
    • Color Space: RGB (4:4:4), YCbCr (4:4:4), YCbCr (4:2:2)
    • Color Depth: Input: 8-bit, 10-bit, 12-bit (1080p@60Hz), Output: 8-bit
    • Audio Formats: LPCM 2CH (32/44.1/48KHz)

      Connection
    • Encoder:
      1x HDMI OUT [Type A, 19-pin female]
      1x LAN [RJ45 connector, PoE]
      1x AUDIO OUT [3-pin Phoenix connector]
      1x RS-232 [3-pin Phoenix connector]

      Mechanical
    • Housing: Metal enclosure
    • Color: Black
    • Dimensions: 3.74 x 8.03 0.85" (120 x 95 x 21.5mm)
    • Weight: 2lbs (468g)
    • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
    • Power Consumption: 2.88W
    • Operating Temperature: 14 - 113°F (-10 - 45°C)
    • Storage Temperature: -4 - 140°F (-20 - 60°C)
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x 1080P over IP 100M/1GbE Encoder
    • 2x 3-pin Phoenix Connector (3.81mm, male)
    • 4x Machine Screw (KM3, 4mm)
    • 2x Mounting Ear
    • 1x 12V/1A Locking Power Adapter
    • 1x User Manual


  • Warranty:

    • 6 Years
