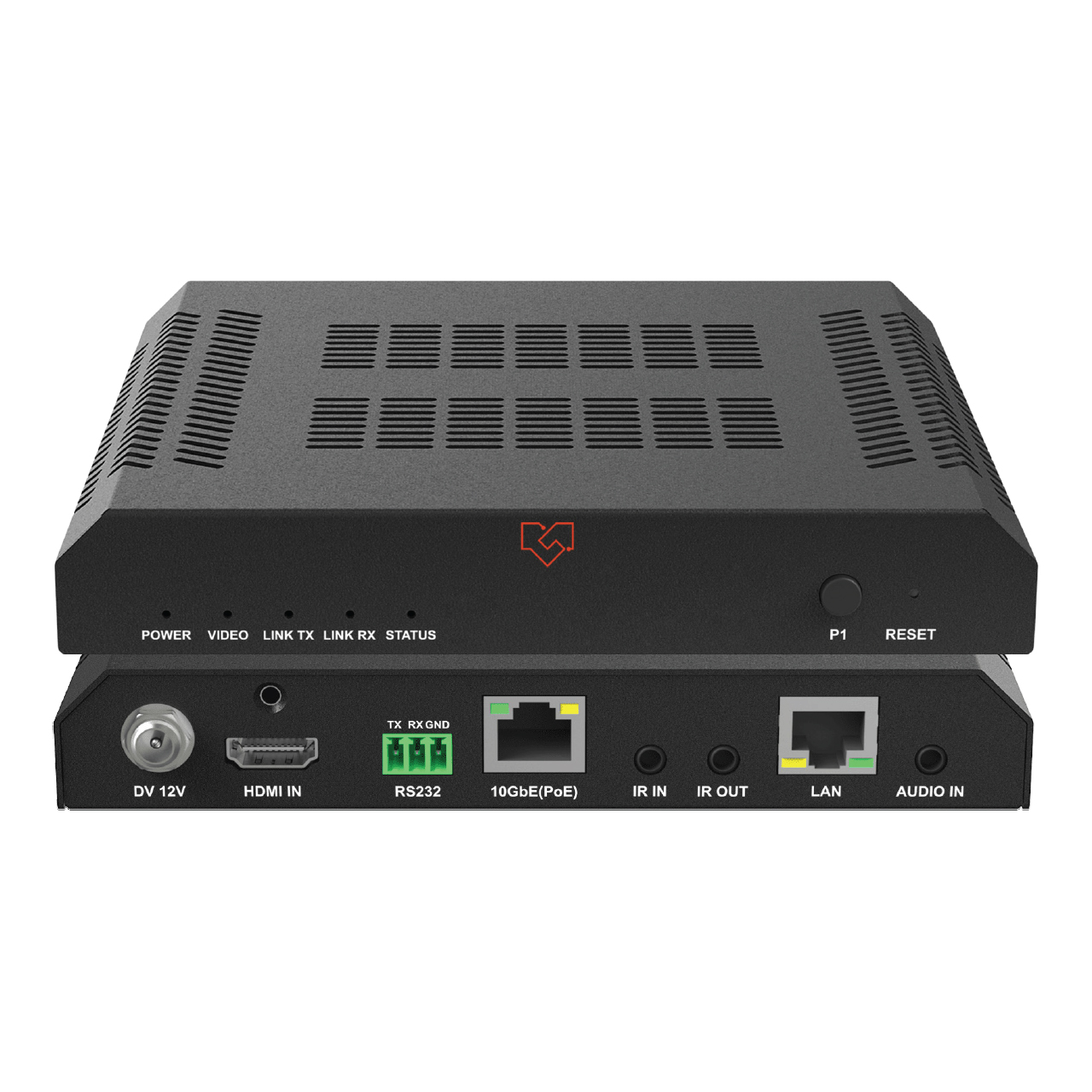

VigilLink VLIP-SDCP-TX SDVoE 10G HDMI 2.0 AV over IP Transmitter with IR and RS-232

ITEM #: VGL-VLIP-SDCP-TX MFG #: VLIP-SDCP-TX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,100.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-SDCP-TX - Overview

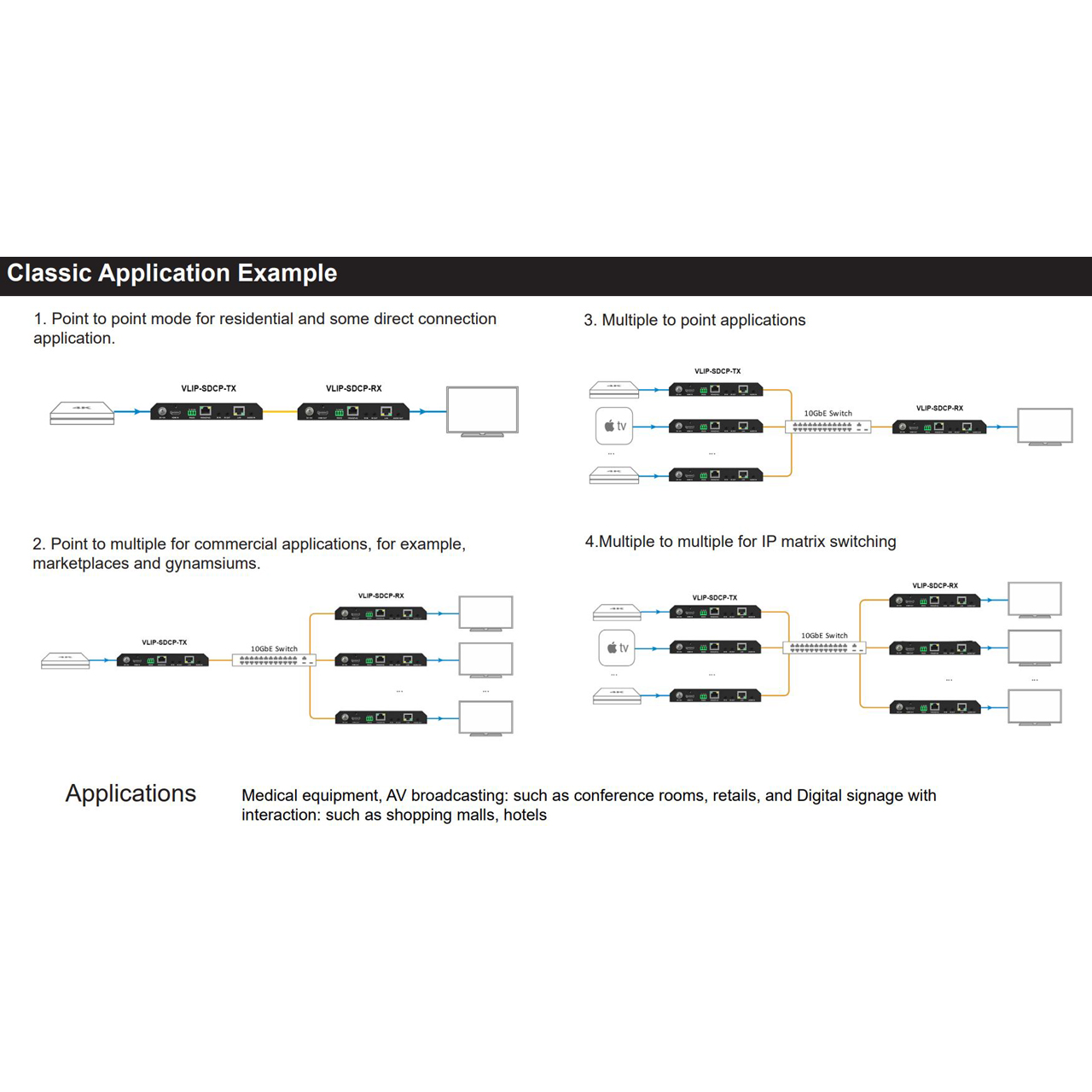

VigilLink VLIP-SDCP-TX Transmitter is a cutting-edge solution for seamless AV signal distribution. Featuring HDMI 2.0 input and 10GBase-T output, it ensures high-quality transmission of up to 4K@60Hz resolution with zero latency. LED indicators provide clear status feedback, while flexible EDID settings cater to various display requirements. With support for multiple installation scenarios, including point-to-point and matrix switching via 10G Network switch, it adapts to diverse applications. Its compact design and comprehensive control options make it perfect for residential, commercial, and medical AV setups, delivering unparalleled performance and reliability.

  • Features:

    • HDMI 2.0b and HDCP 2.2 compliant
    • Support the input timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@60Hz (4:2:0 10-bit HDR)
    • Supports HDR10, Dolby Vision, HLG, 3D as well
    • Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X
    • Supports Zero-Frame latency operating mode
    • The input bit rate is 3.2 Gbps for 1080p@60Hz, 6 Gbps for 3840x2160@30Hz or 12 Gbps for 3840x2160@60hz
    • Between the device and the Ethernet switch or the receiver, the maximum transport distance is 100m


  • Specifications:

      Video/Audio
    • Input Connectors:
      - 1x HDMI 2.0
      - 1x Unbalanced stereo audio
    • Supported Input - HDMI in:
      - 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900
      - 1440x1050, 1600x1200, 720x480(480i59), 720x480(480p59)
      - 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59)
      - 1280x720(720p60), 1920x1080(1080i50), 1920x1080(1080i59), 1920x1080(1080i60)
      - 1920x1080(1080p23), 1920x1080(1080p24), 1920x1080(1080p25), 1920x1080(1080p29)
      - 1920x1080(1080p30), 1920x1080(1080p50), 1920x1080(1080p59), 1920x1080(1080p60)
      - 3840x2160(2160p23), 3840x2160(2160p24), 3840x2160(2160p25), 3840x2160(2160p29)
      - 3840x2160(2160p30), 3840x2160(2160p60), 4096x2160, 4096x2160
    • Supported Input [Audio]:
      - LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz
      - Dolby True HD, up to 7.1,192kHz
      - DTS-HD Master, up to 7.1,192kHz
      - Dolby Digital AC-3 (DVD format)
    • Audio in: Unbalanced stereo audio
    • Output Connectors: 1 x 10GBase-T
    • Supported Output - HDMI in [Video]:
      - 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900
      - 1440x1050, 1600x1200, 720x480(480i59), 720x480(480p59)
      - 720x576(576i50), 720x576(576p50), 1280x720(720p50), 1280x720(720p59)
      - 1280x720(720p60), 1920x1080(1080i50), 1920x1080(1080i59), 1920x1080(1080i60)
      - 1920x1080(1080p23), 1920x1080(1080p24), 1920x1080(1080p25), 1920x1080(1080p29)
      - 1920x1080(1080p30), 1920x1080(1080p50), 1920x1080(1080p59), 1920x1080(1080p60)
      - 3840x2160(2160p23), 3840x2160(2160p24), 3840x2160(2160p25), 3840x2160(2160p29)
      - 3840x2160(2160p30), 3840x2160(2160p60), 4096x2160, 4096x2160
    • Supported Output [Audio]:
      - LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz
      - Dolby True HD, up to 7.1,192kHz
      - DTS-HD Master, up to 7.1,192kHz
      - Dolby Digital AC-3 (DVD format)
      - DTS version 1 (DVD format)
    • Audio in: Unbalanced stereo audio

      Control
    • Ethernet: PC Configurator: for configuring, controlling and upgrading
    • RS232: PC Configurator: for testing and upgrading

      Mechanical
    • Operating Temperature: 0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing
    • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
    • Humidity: 10% to 90%, non-condensing
    • Product Weight: 1.72lbs
    • Power Supply: 5V 2A DC
    • Transport Distance: 100m
    • Product Dimension: 5.72 x 6.30 x 0.09" (145.2 x 160 x 25mm)
    • ESD Protection: Human-body Model: Ý8kV(Air-gap discharge)/Ý4kV(Contact discharge)


  • Warranty:

    • 6 Years
