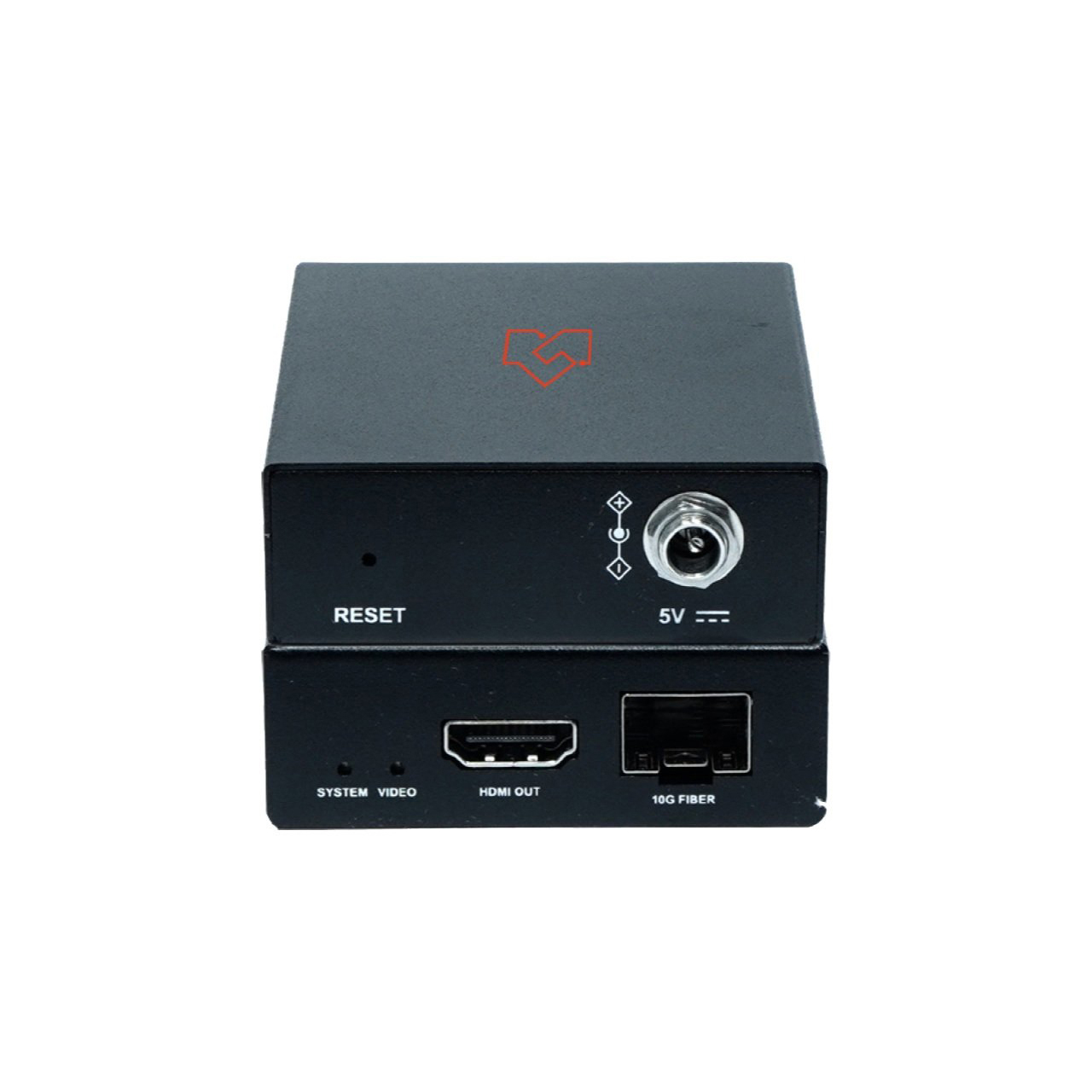

VigilLink VLIP-SDFR-RX SDVoE Ultra Compact 4096x2160@60Hz HDMI 2.0 Fiber AV Over IP Receiver

ITEM #: VGL-VLIP-SDFR-RX MFG #: VLIP-SDFR-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,150.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-SDFR-RX - Overview

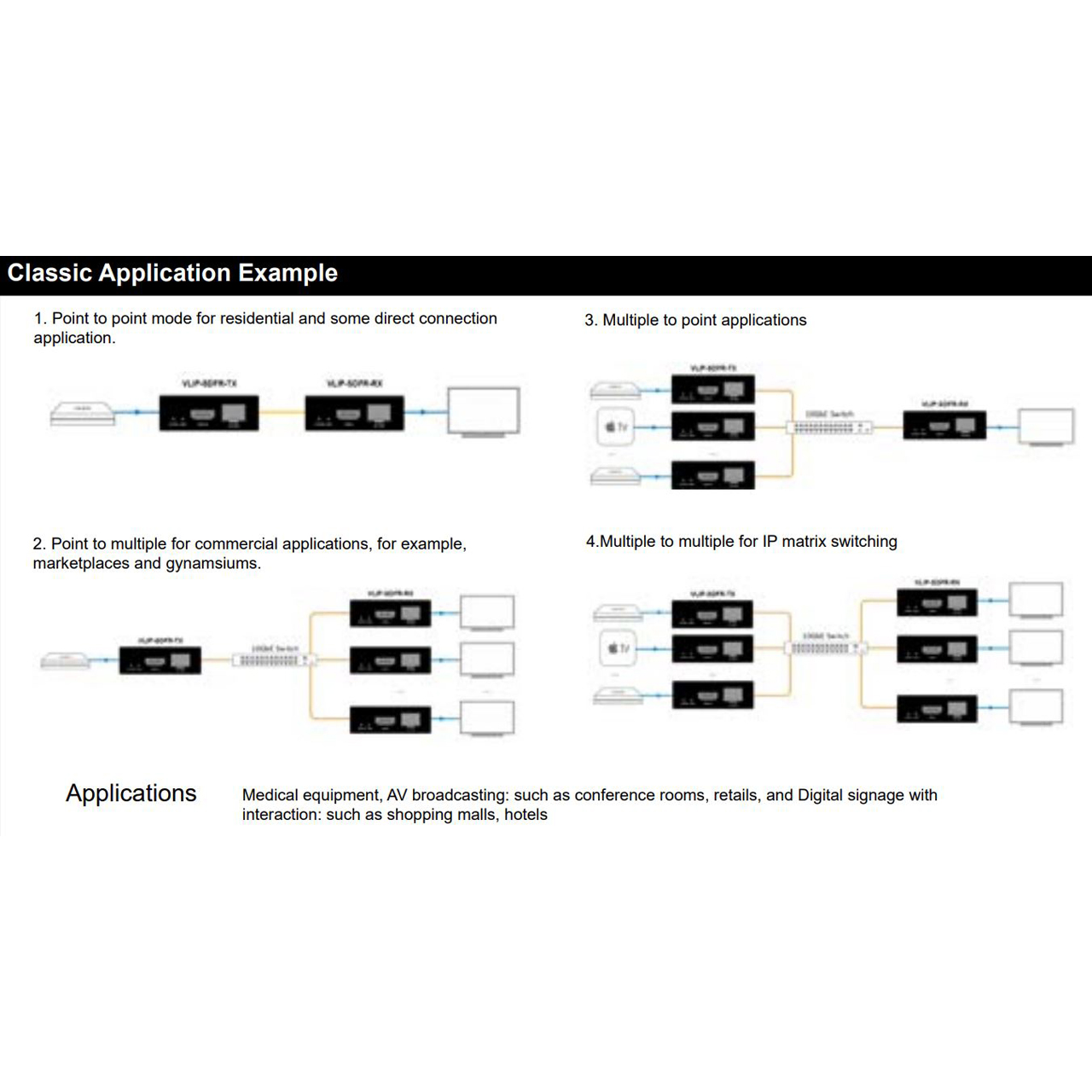

Experience seamless AV signal distribution with the VigilLink VLIP-SDFR-TX and VLIP-SDFR-RX extenders. Powered by SDVoE technology, these compact devices support true 4K/60Hz video with zero frame latency over 100 meters. Its ultra-small size allows easy installation even in tight spaces. These extenders can be used in a point to point configuration, or connected to a 10G network switch along with a controller for full asymmetrical matrix capabilities

  • Features:

    • Compact size and economical design
    • HDMI 2.0 and HDCP 2.2 compliant
    • Lossless distribution of most timing formats
    • Light compression with the raw data rate exceeding 10Gb Ethernet bandwidth
    • Supports input and output resolutions up to 4096x2160@60Hz 8-bit 4:4:4, 4096x2160@60Hz 10-bit 4:4:4 and 4096x2160@60Hz12-bit 4:2:0 HDR
    • Supports point-to-point transmission of 4K signal at the distance up to 300m
    • Supports point-to-multipoint, multipoint-to-multipoint transmission via 10GbE switch at the distance of up to 300m (between a device and the switch)
    • Zero-frame latency
    • Required bandwidth: 6~8 Gbps for 4K, 3.2 Gbps for 1080P
    • Compatible with Semtech BlueRiver AV Manager


  • Specifications:

      Video
    • Input Connectors: 1x SFP+, 10GBase-SR
    • Supported Input:
      - 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900
      - 1440x1050, 1600x1200, 720x480(480i59), 720x480(480p59)
      - 720x576(576i50), 720x576(576p50), 1280x720(720p50), 1280x720(720p59)
      - 1280x720(720p60), 1920x1080(1080i50), 1920x1080(1080i59), 1920x1080(1080i60)
      - 1920x1080(1080p23), 1920x1080(1080p24), 1920x1080(1080p25), 1920x1080(1080p29)
      - 1920x1080(1080p30), 1920x1080(1080p50), 1920x1080(1080p59), 1920x1080(1080p60)
      - 3840x2160(2160p23), 3840x2160(2160p24), 3840x2160(2160p25), 3840x2160(2160p29)
      - 3840x2160(2160p30), 3840x2160(2160p60), 4096x2160, 4096x2160
    • Output Connectors: 1x HDMI
    • Supported Output:
      - 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900
      - 1440x1050, 1600x1200, 720x480(480i59), 720x480(480p59)
      - 720x576(576i50), 720x576(576p50), 1280x720(720p50), 1280x720(720p59)
      - 1280x720(720p60), 1920x1080(1080i50), 1920x1080(1080i59), 1920x1080(1080i60)
      - 1920x1080(1080p23), 1920x1080(1080p24), 1920x1080(1080p25), 1920x1080(1080p29)
      - 1920x1080(1080p30), 1920x1080(1080p50), 1920x1080(1080p59), 1920x1080(1080p60)
      - 3840x2160(2160p23), 3840x2160(2160p24), 3840x2160(2160p25), 3840x2160(2160p29)
      - 3840x2160(2160p30), 3840x2160(2160p60), 4096x2160, 4096x2160

      Audio
    • Input Connectors: 1x SFP+, 10GBase-SR
    • Supported Input:
      - LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz
      - Dolby True HD, up to 7.1,192kHz
      - DTS-HD Master, up to 7.1,192kHz
      - Dolby Digital AC-3 (DVD format)
      - DTS version 1 (DVD format)
    • Output Connectors: 1x HDMI
    • Support Output:
      - LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz
      - Dolby True HD, up to 7.1,192kHz
      - DTS-HD Master, up to 7.1,192kHz
      - Dolby Digital AC-3 (DVD format)
      - DTS version 1 (DVD format)

      Control
    • Control Connectors: 1x SFP+, 10GBase-SR, 10GbE
    • Control Method - Ethernet:
      - PC software: for configuring, controlling and upgrading
      - Web browser: for controlling
      - API set: for integrating with the 3rd party control system

      Mechanical
    • Operating Temperature: 0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing
    • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
    • Humidity: 10% to 90%, non-condensing
    • Product Weight: 0.35lb (0.16kg)
    • Power Supply: 5V 2A DC
    • Power Consumption : 4.75W
    • Transport Distance: 300m with OM-3 multi-mode optical fiber
    • Product Dimension: 3.43 x 2.52 x 0.87" (87 x 64 x 22mm)
    • ESD Protection: Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)


  • Item Includes:

    • 1x VLIP-SDFR-RX
    • 1x 5VDC 2A Power Adapter (with US Pins)
    • 1x Optical transceiver
    • 2x Mounting Brackets (with Screws)


  • Warranty:

    • 6 Years
