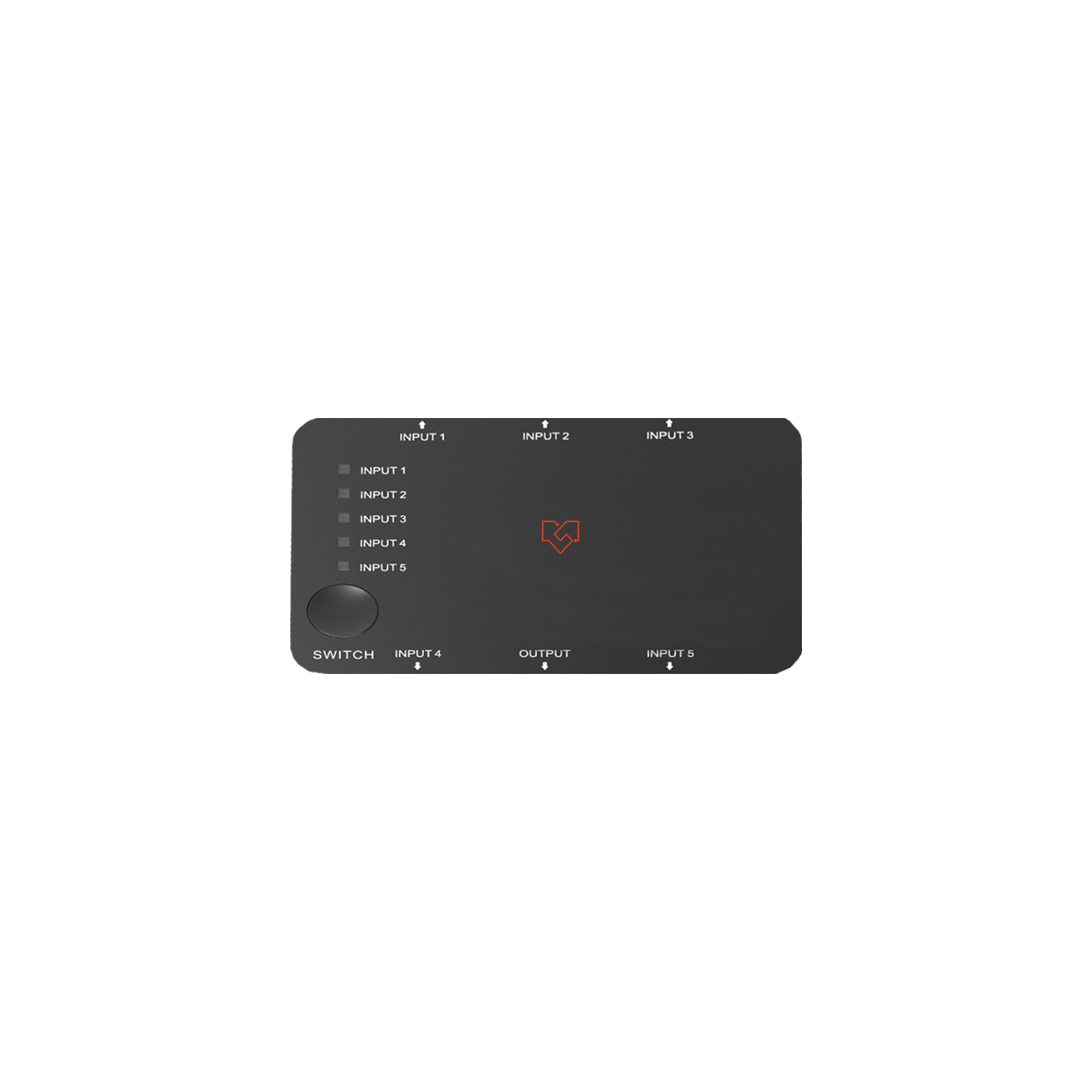

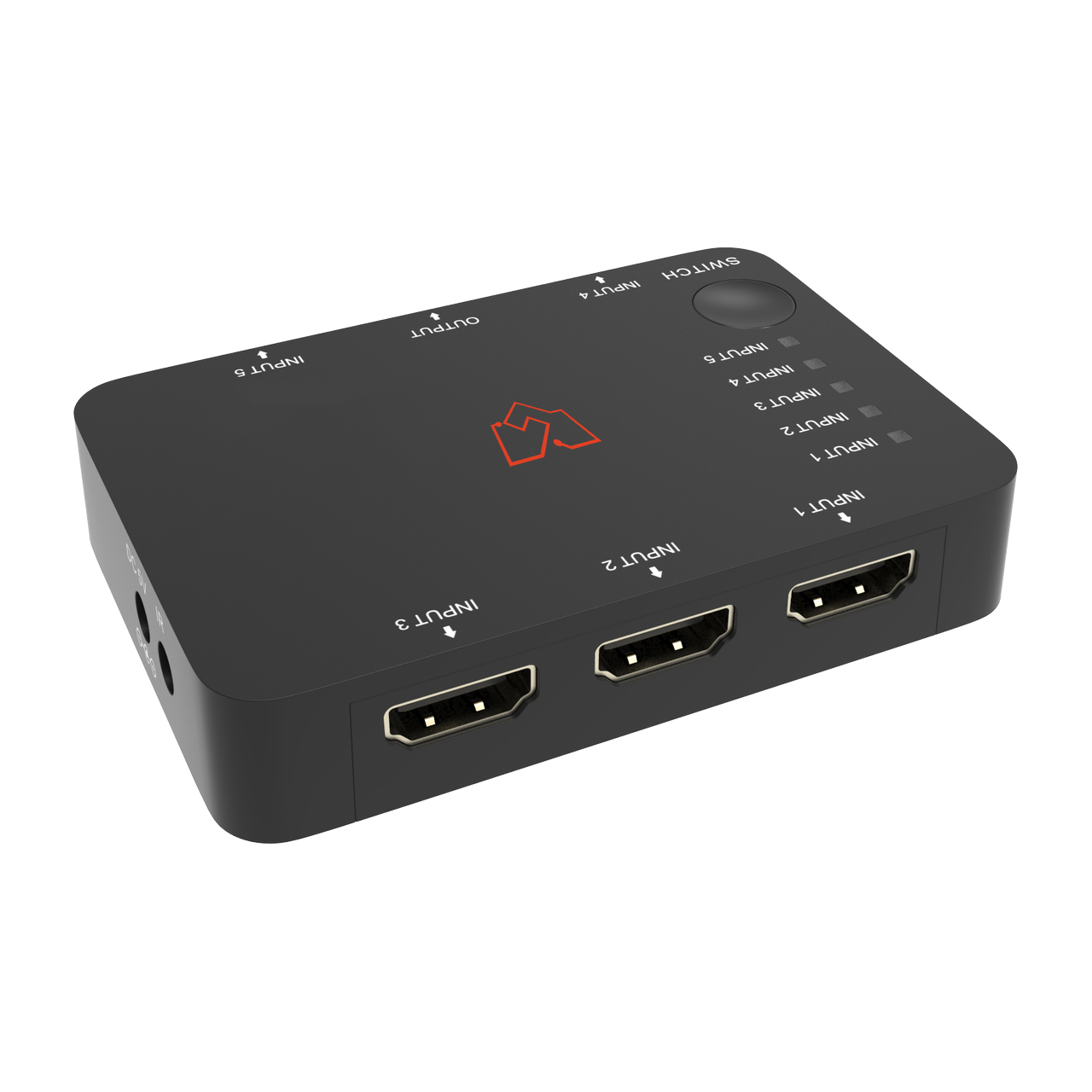

VigilLink VLSW-51H20 5x1 HDMI 2.0b 18Gbps Switcher - HDR/HDR10/Dolby Vision/HLG Supported

VLSW-51H20 - Overview

• Features:

  • HDCP 2.2/1.x and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision and HLG are supported
  • Supports video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
  • Supports 3D video format
  • Low power consumption
  • Supports IR remote control and panel button control
  • Compact design for easy and flexible installation


• Specifications:

  • Technical
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4k2k@60Hz
  • Color Depth: 8-bit (4K60Hz)
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

    Connection

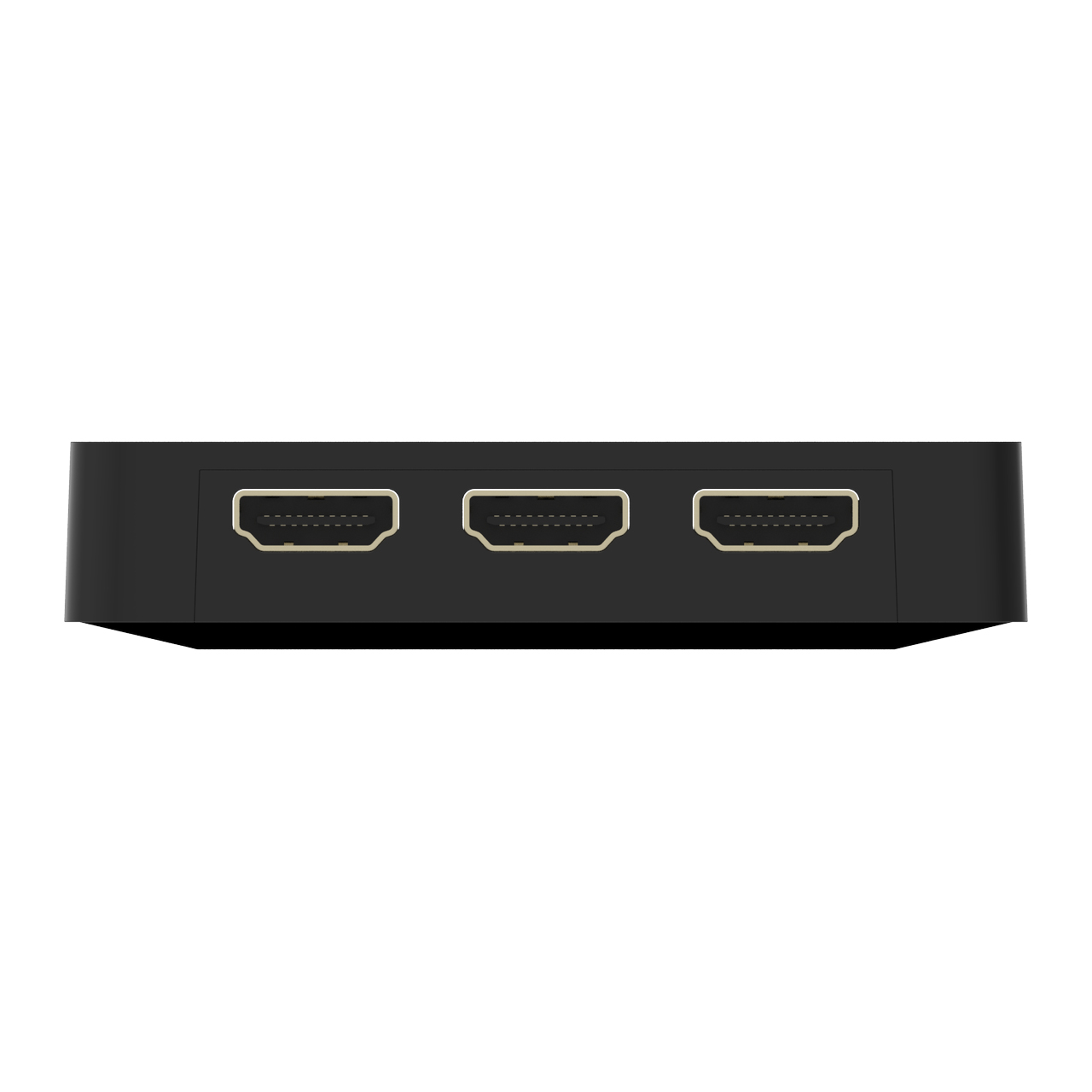

  • Input Ports:
    - 5x HDMI Type A (19-pin female)
    - 1x IR IN [3.5mm Stereo Mini-jack]
  • Output Ports: 1x HDMI Type A (19-pin female)

    Mechanical
  • Housing: Plastic Enclosure
  • Silkscreen Color: Black
  • Dimensions: 3.42 In (87mm) W x 2.34 In (59.5mm) D x .75 In (19mm) H
  • Weight: .13 lbs (60g)
  • Power Supply: 5V/1A
  • Power Consumption: 1.5W
  • Operating Temperature: 32 °F ~ 104 °F / 0 °C ~ 40 °C
  • Storage Temperature: -4 °F ~ 140 °F / -20 °C ~ 60 °C
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x HDMI 5x1 Switcher
  • 1x IR Receiver Cable
  • 1x 5V USB Power Cable
  • 1x Remote Control
  • 1x User Manual


• Warranty:

  • 6 Year Warranty
