VPG-HL HDMI 4K Video Pattern Generator with 16 Patterns & 4K/60Hz Support

ITEM #: VPG-HL MFG #: VPG-HL

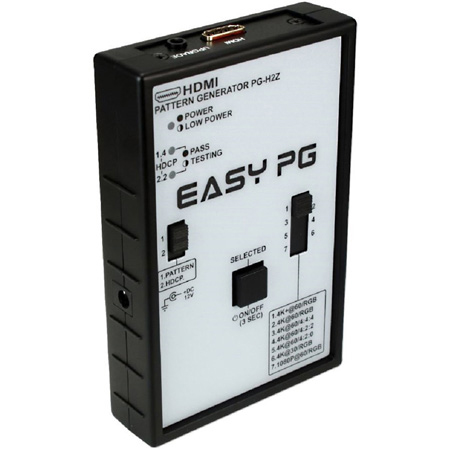

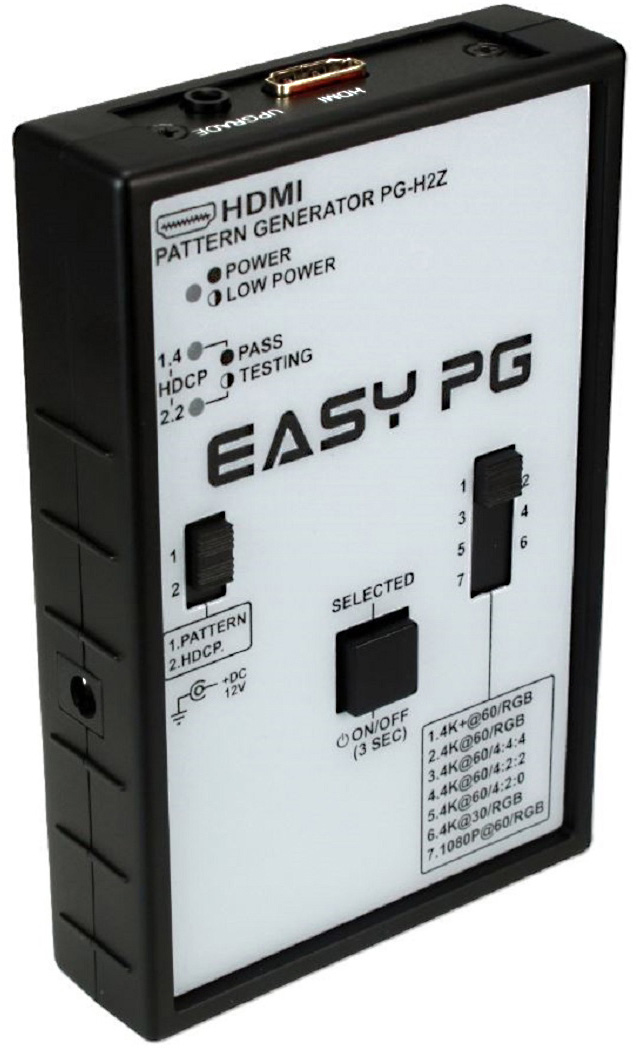

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VPG-HL

VPG-HL - Overview

The VPG-HL is an economical way to test and evaluate HDMI HDTV/HDCP displays/panels and easily troubleshoots any calibration issues. It has 7 different resolutions from 1080p to 4096x2160 @ 60Hz, 16 different video test patterns that quickly determine color performance & linearity, easy-to-use push-button control, and built-in audio & HDCP signal tester. It can be powered either by using a 9v battery or using a power adaptor. Ideal for installer/integrator to save time and solve problems with HDTV displays. Includes 12vDC 120-240vAC universal power adaptor with interchangeable plugs and 9v battery. HDCP 1.4 & 2.2 Compliant. REV:2 (Connector: HDMI Female)

  • Features:

    • High-resolution video test pattern generator
    • 594MHz, 7 different resolutions up to 4K @ 60Hz
    • 16 different video test patterns
    • Easy-to-use push-button control
    • Built-in audio and HDCP signal tester
    • Powered either by using a 9v battery or using a power adapter
    • Includes 9v battery and universal power supply with global plugs
    • HDCP 1.4 & 2.2 Compliant

  • Item Includes:

    • 12vDC 120-240vAC universal power adaptor with interchangeable plugs and 9v battery.

  • GTIN:

    0037229007459
