ViewZ VZ-070FM-HDR 7 Inch HD Broadcast IPS 8-bit Monitor - HDR(PQ/HLG)/3D-LUT/3G SDI/HDMI Converter

VZ-070FM-HDR - Overview

• Features:

  • 7" LED 3G-SDI Portable Monitor
  • 3D-LUT - 8 Default Logs & 6 User Logs
  • SDI to HDMI Cross Conversion
  • HDR (PQ / HLG) Supported
  • SDI (1080p) / HDMI Inputs and loop through
  • Gamma 1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8
  • RGB Gain
  • Check Field
  • Waveform, Vector Scope
  • Time Code, Marker, Image Flip, Peaking
  • Audio Level Indicators, Scan, Underscan, Freeze, H/V Delay, DSLR
  • False Color, Exposure, Histogram, Optional Color Calibration Tool


• Specifications:

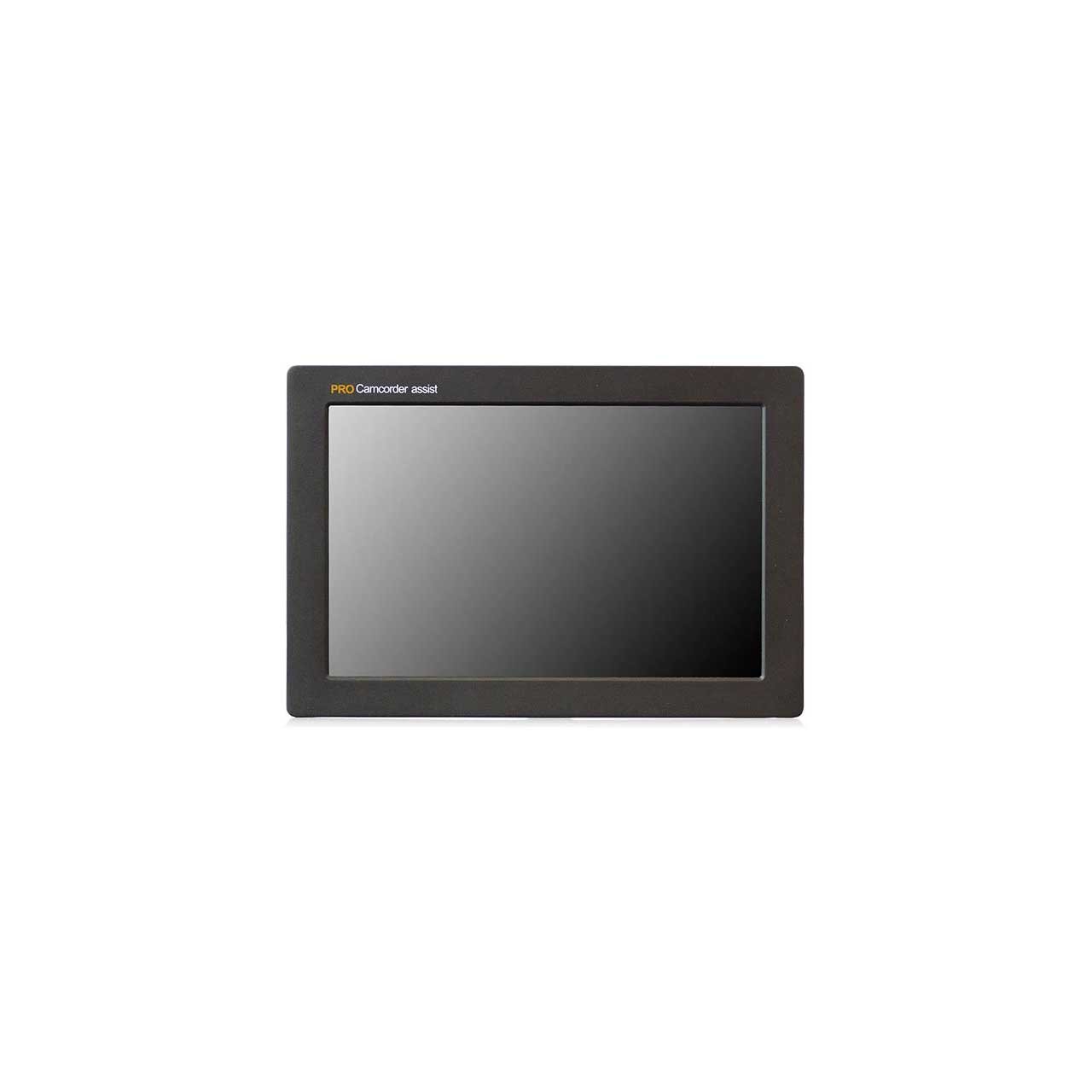

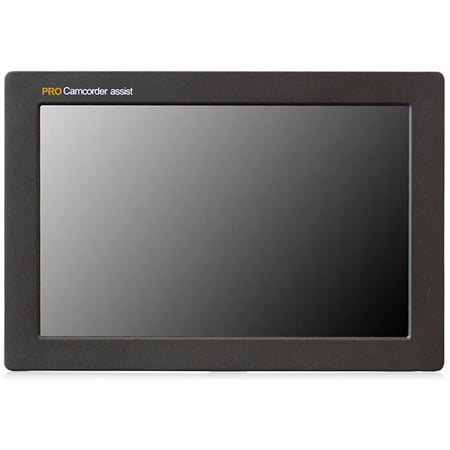

  • Display
  • Screen Size: 7" (IPS Panel)
  • Max Resolution: 1920 x 1080 @60Hz
  • Pixel Pitch: 0.039 mm x 0.117 mm
  • Brightness: 500 cd/m²(Typical)
  • Contrast Ratio: 1000 : 1
  • Aspect Ratio: 16 : 10
  • Viewing Angle (H/V): 170°/170°
  • Display Color: 16.7 Million (8bit)

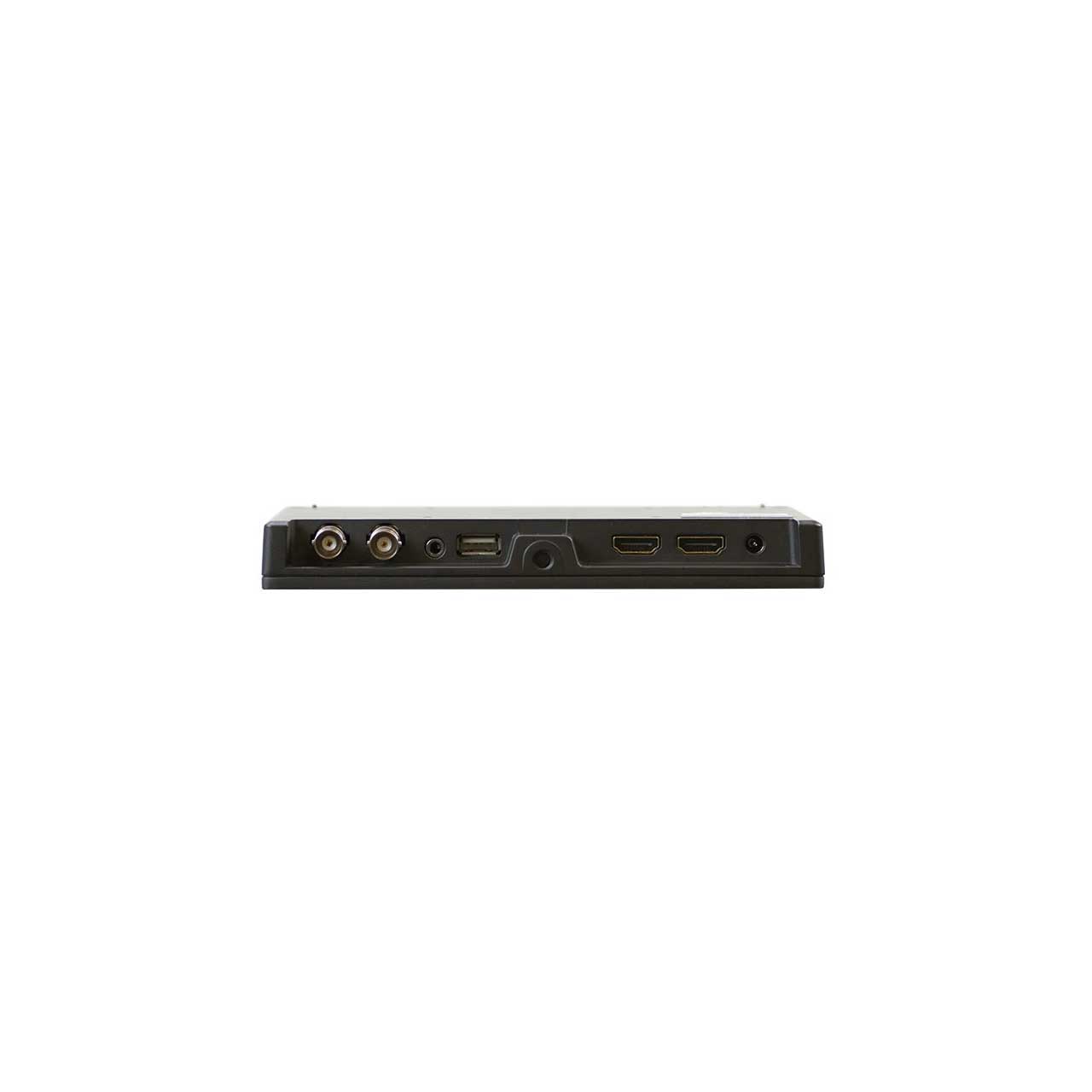

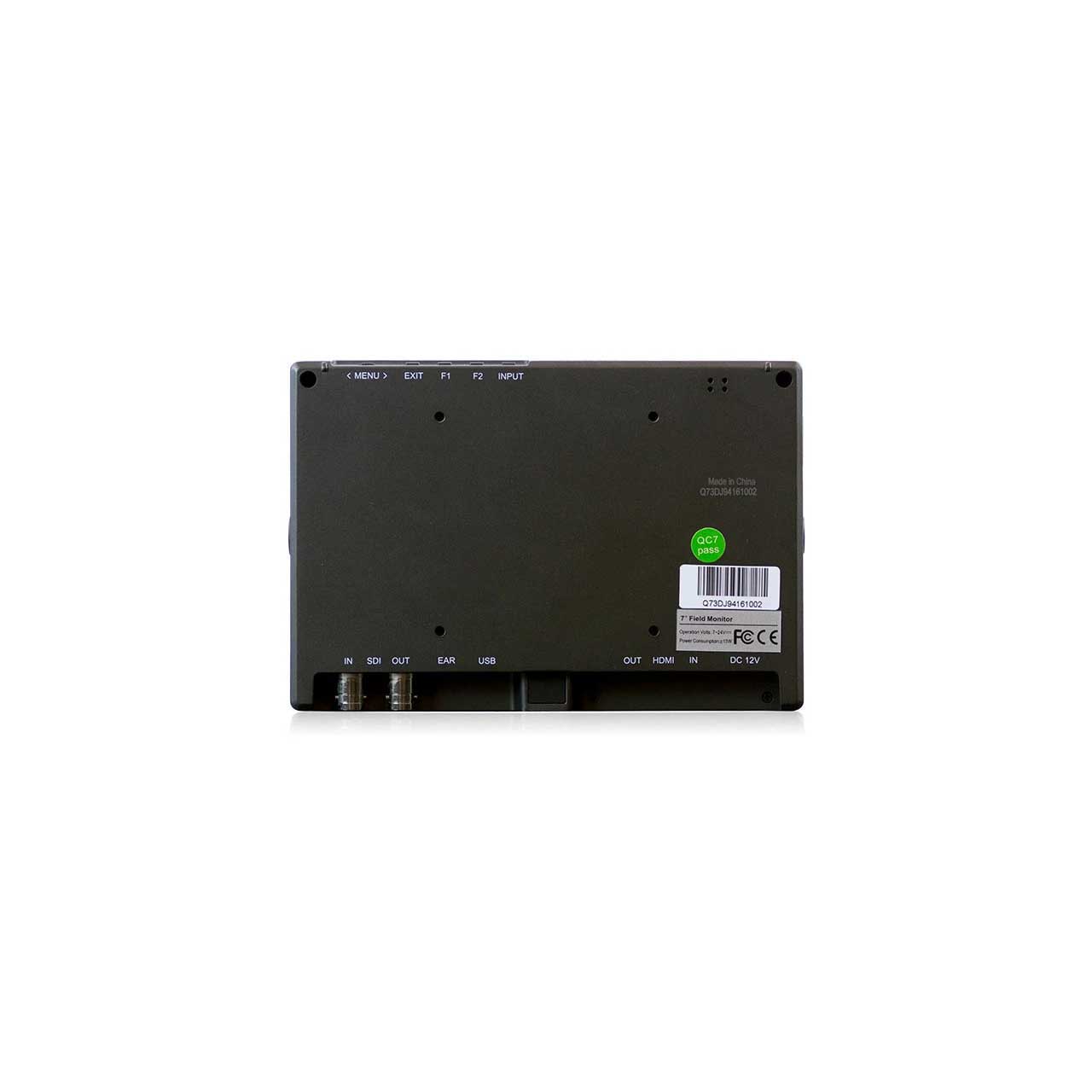

    Interface
  • 3G-SDI In/Out: 1/1
  • HDMI In/Out: 1/1
  • USB (3D-LUT load): 1
  • Audio Out: 1/1

    Audio
  • Built in speaker: 1W x 1
  • Dimensions & Weight
  • Outline Dimension (WxHxD): 7.16" x 4.88" x 0.86" (182mm x 124mm x 22 mm)
  • Net Weight: 0.89bs (405g)

    Input Format
  • SMPTE 425M-A & B: 1920 x 1080p / 60/59.94/50
  • SMPTE 372M: 1920 x 1080p / 30,29.97,25,24,23.98, 1920 x 1080i / 29.97,25,24,23.9, 1280 x 720p / 60,59.94,50
  • SMPTE 296M: 1280 x 720p / 60,59.94,50,30,29,25,24,23.98
  • SMPTE 292M: 1920 x 1080p / 30,29.97,25,24,24sf,23.98, 23.98sf
  • SMPTE 274M: 1920 x 1080p / 30,29.97,25,24,24sf,23.98, 23.98sf, 1920 x 1080i / 60,59.94,50
  • SMPTE 125M: 480i / 59.94
  • ITU-R BT.656: 576i / 50
  • HDMI: 1080p, 1080i, 720p, 576p, 576i, 480p, 486i

    General Summary
  • Power - Electrical Ratings: DC 7V - 24V / 1A
  • Power - Consumption: ≤ 12 W
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating Humidity: 90% RH
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)


• Item Includes:

  • 1x Monitor
  • 1x Hood
  • 1x 12V DC Adapter
  • 1x HDMI A/C Cable
  • 1x Shoe Mount
  • 1x VESA battery Plate
  • 1x V-Mount
  • 2x Battery Plate (QM91D, DU21, F9870,LPE6)
  • 1x Battery Plate Bracket
  • 1x Manua
  • 1x Battery
  • 1x Auto Bauer Mount


• Warranty:

  • 2 Year Warranty
