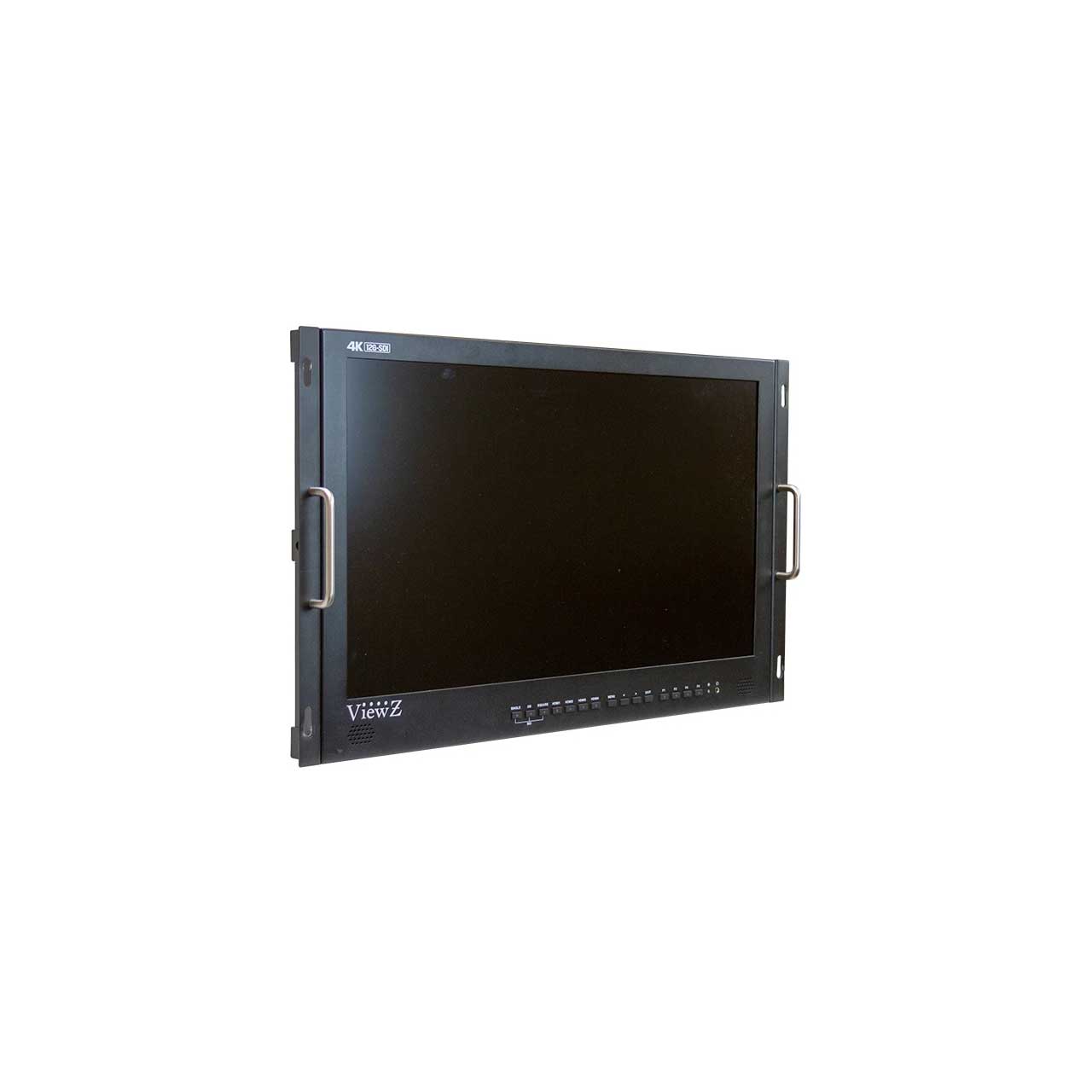

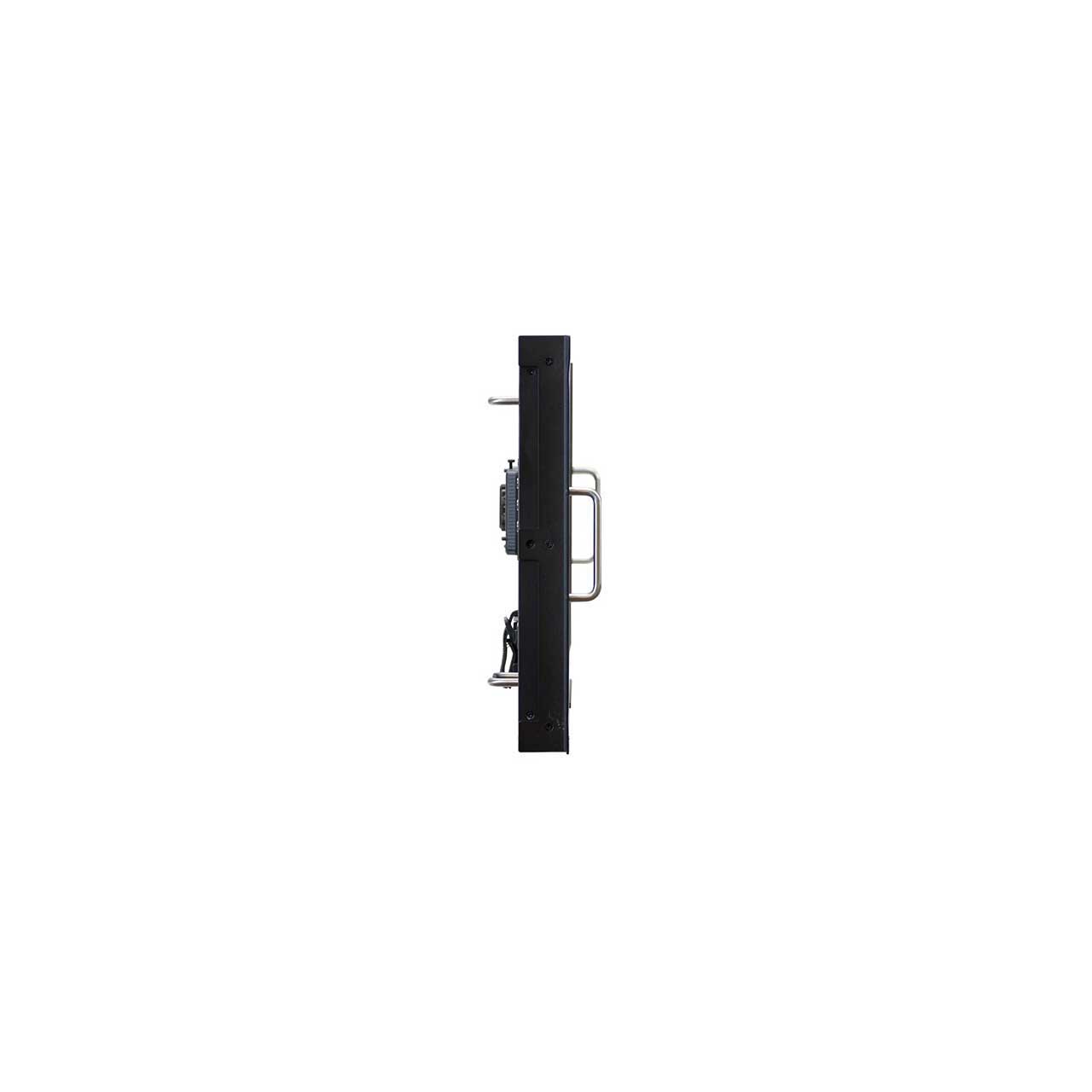

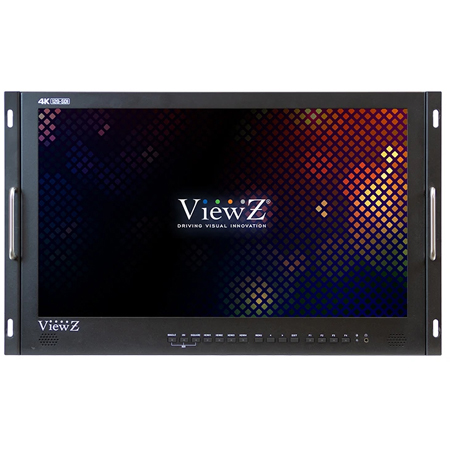

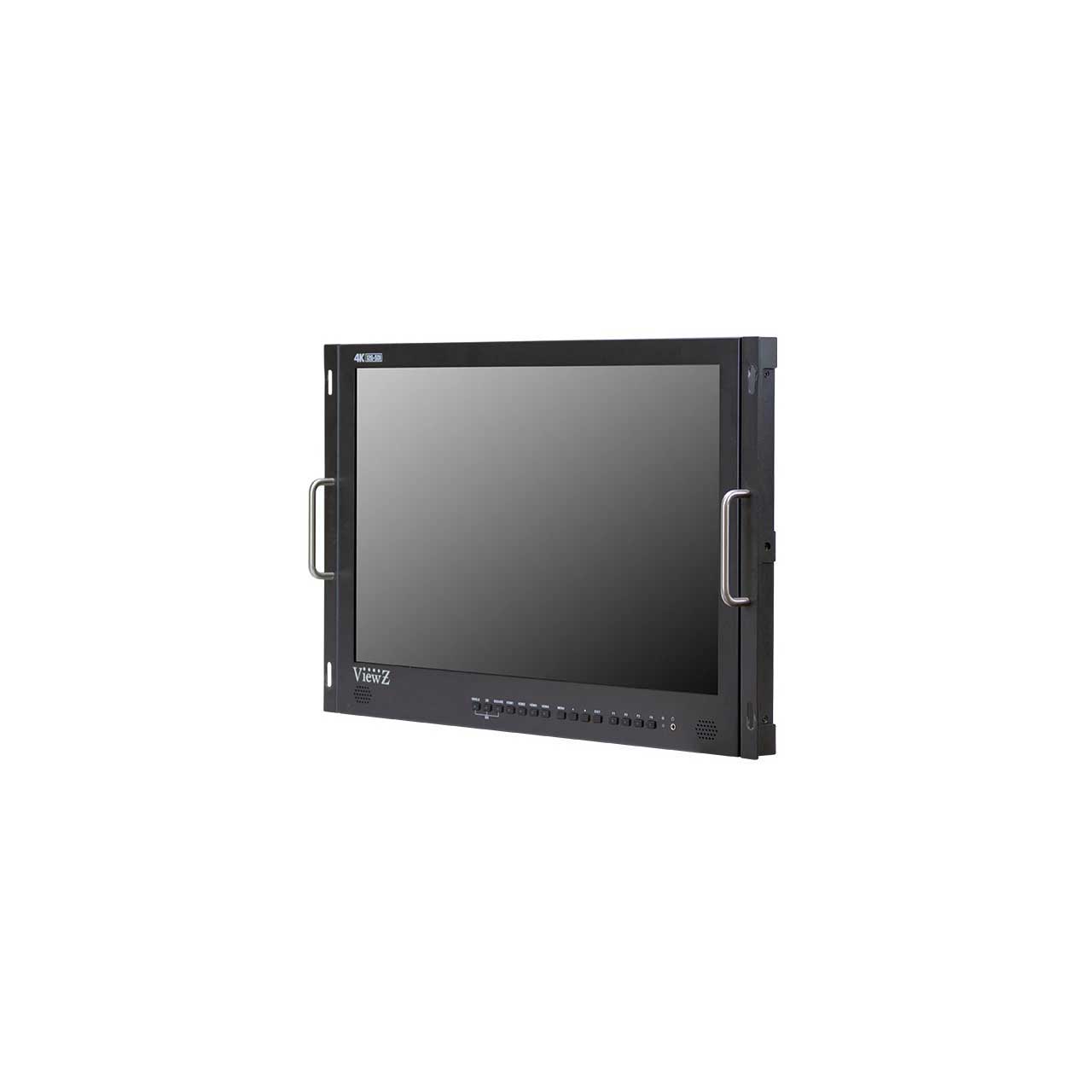

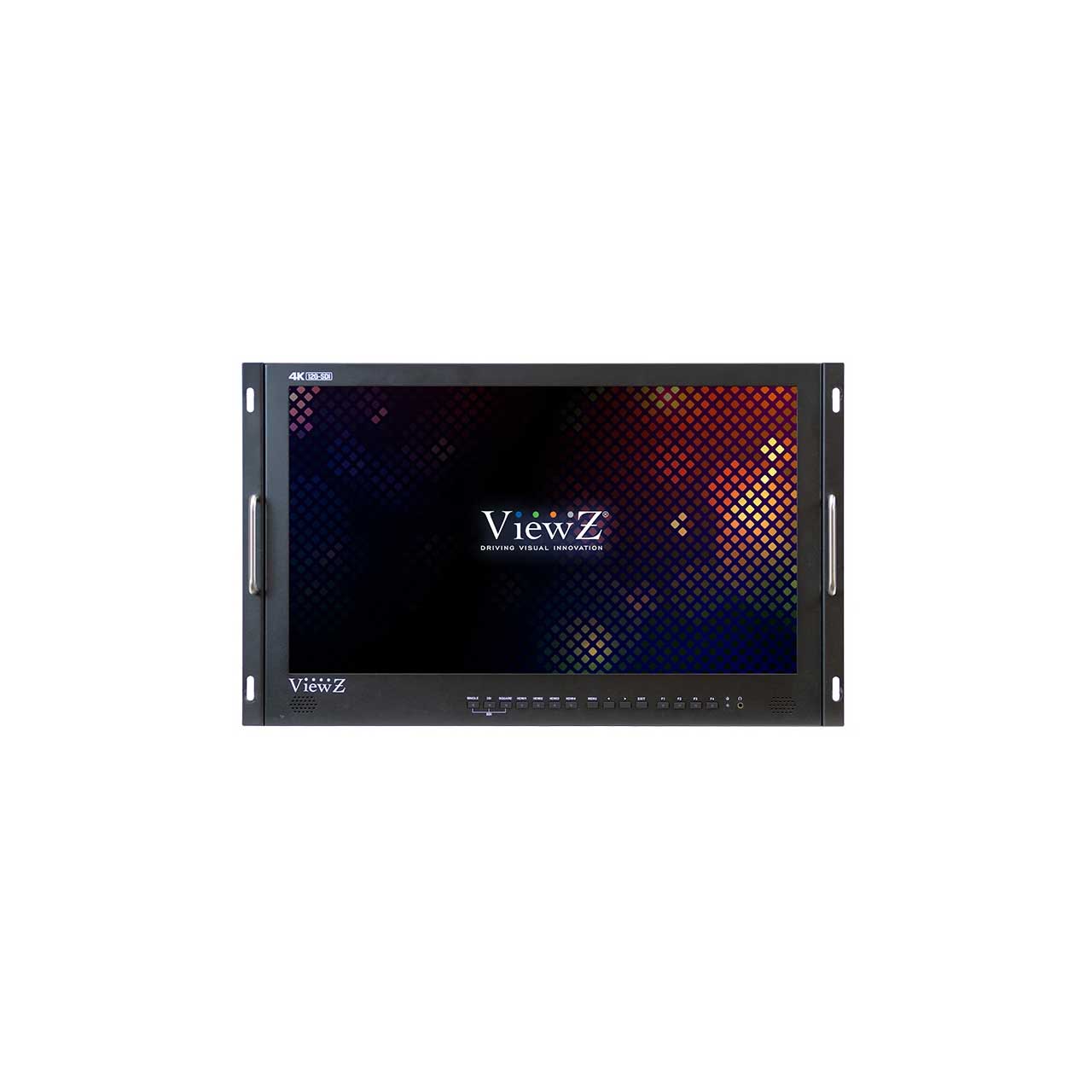

ViewZ VZ-156PM-4K 15.6 Inch 4K UHD Broadcast Monitor - 300cd/m2 - IPS 3840x2160 Pixels - HDMI 4K/3G-SDI/DVI/VGA/HDR

VZ-156PM-4K - Overview

• Features:

  • 15.6" 4K/3D LUT/3G-SDI Monitor
  • 4K (3840*2160) Ultra-HD native resolution
  • Front User definable button F1 to F4
  • False Color / Color Temperature / Color space / Audio Level Meter
  • Audio Channel Output 2ch (out of 16ch)
  • Display Flip / Mirror / Various Markers / Peaking
  • Underscan / Pixel to Pixel / Exposure / Histogram / Check Field
  • Time-Code / Aspect Ratio / Quad View / Tally (D-Sub 9pin) / Freeze
  • HDR (HDMI) / 3D-LUT / Loop-Through (SDI)


• Specifications:

  • Display
  • Screen Size: 23.8"
  • Max Resolution: 3840 x 2160 @60Hz
  • Pixel Pitch: 0.08970mm x 0.08970mm
  • Brightness: 330 cd/m² (Typical)
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Viewing Angle (H/V): 176°/176°
  • Display Color: 16.7 M

    Interface
  • 3G-SDI In/Out: 1/1 (Loop through)
  • HDMI 2.0/1.4 In: 1 (4K@60Hz)/3 (4K@30Hz)
  • DVI In: 1
  • VGA In: 1
  • USB In: 1 (3D LUT)
  • Audio In: 2 (L/R)
  • Tally: 1

    Audio
  • Built-In Speaker: 1W x 2
  • Ear Jack: 3.5mm

    Dimensions & Weight
  • Outline Dimensions (WxHxD): 15.32" x 10.51" x 1.49" (389mm x 267mm x 38mm)
  • Net Weight: 6.39lbs (3.4kg)
  • Gross (with case) Weight: 26.45lbs (12kg)

    Input Format
  • SDI - SMPTE-425M: 1920 x 1080p / 60/59.94/50
  • SDI - SMPTE-372M: 1920 x 1080p / 60/59.94/50/30/29.97/25/24/23.98, 1920 x 1080i / 29.97/25/24/23.98
  • SDI - SMPTE-296M: 1280 x 720p / 60/59.94/50/30/29/25/24/23.98
  • SDI - SMPTE-292M: 1920 x 1080p / 30/29.97/25/24/24sF/23.98/23.98sF
  • SDI - SMPTE-274M: 1920 x 1080p / 30/29.97/25/24/24sF/23.98/23.98sF, 1920 x 1080i / 60/59.94/50
  • SDI - SMPTE-125M: 480i / 59.94
  • HDMI - 4K: 4096x2160 / 3840x2160 / 1080p, 1080i, 720p, 720i, 480p

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC 12V - 24V), 2.7A (15V)
  • Power - Consumption: = 18 W
  • Operating Temperature: 32°F - 140°F (0°C - 60°C)
  • Operating Humidity: 90% RH
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Battery Plate: V-mount/Anton Bauer Mount


• Item Includes:

  • 1x 15V DC Adapter
  • 1x Tally Connector
  • 1x Manual
  • 1x Aluminum Carrying Case
  • 1x Field Hood
  • 1x Battery Bracket (V-Mount)
  • 1x Desktop Stand Set
  • 1x V-mount or Anton Bauer mount Power cable
  • 1x V-mount or Anton Bauer mount
  • 1x Adapter Fixing Belt


• Warranty:

  • 2 Years
