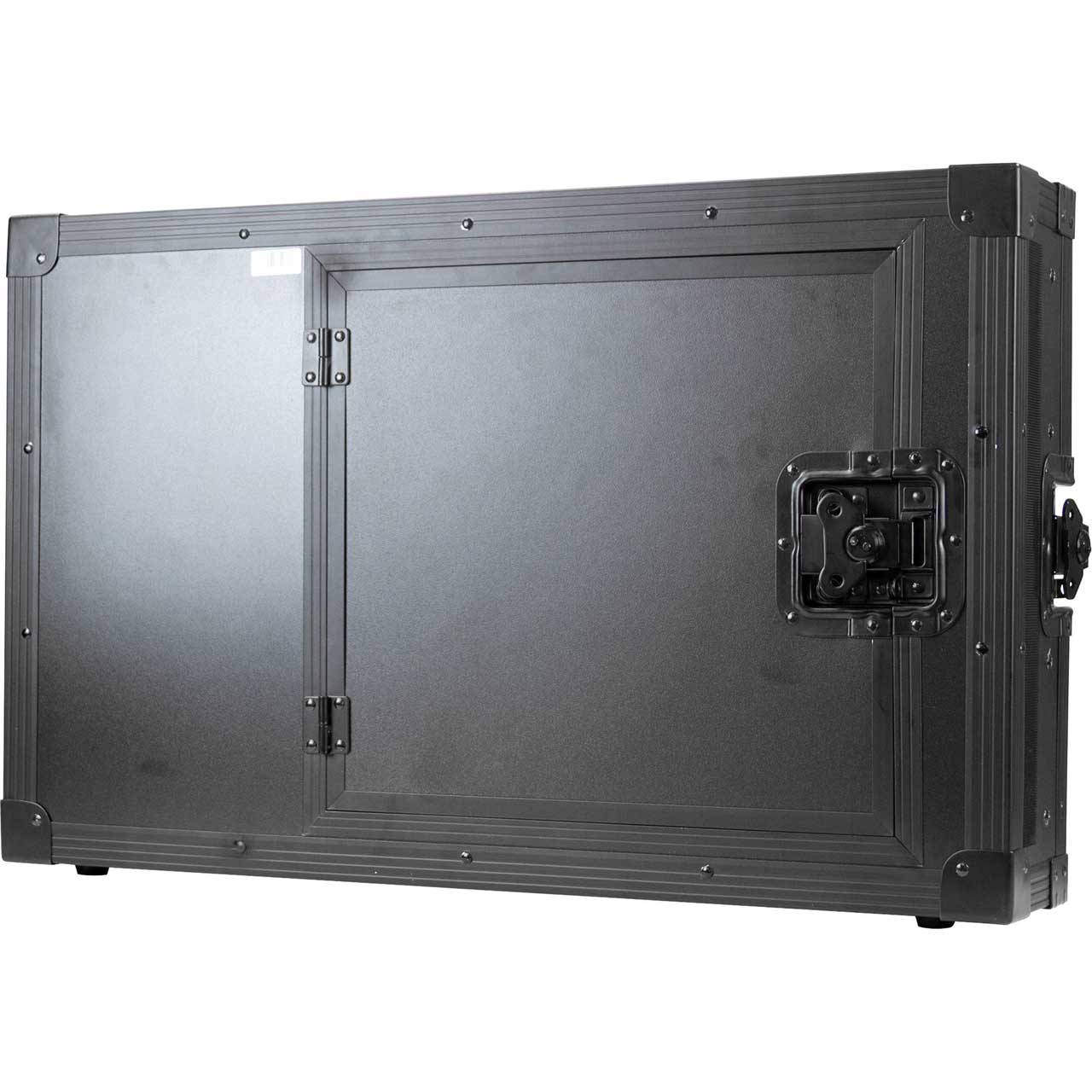

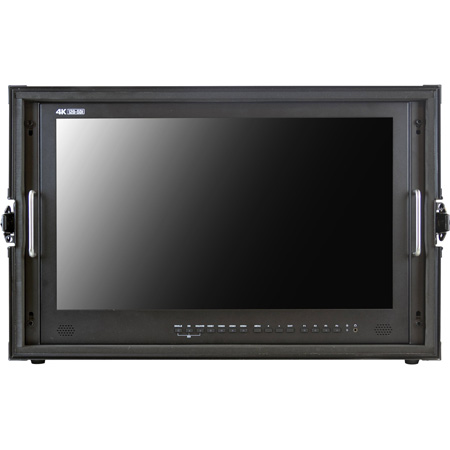

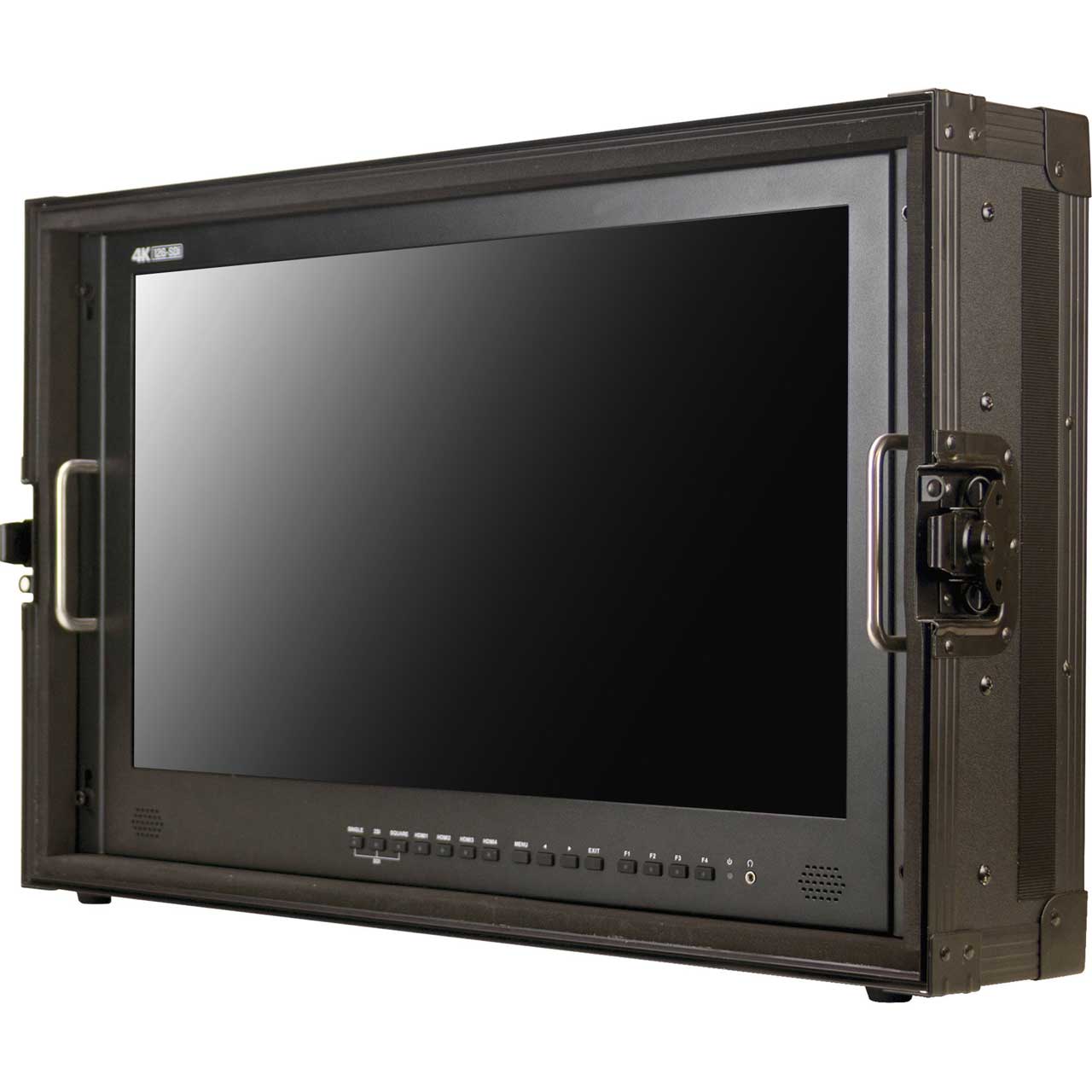

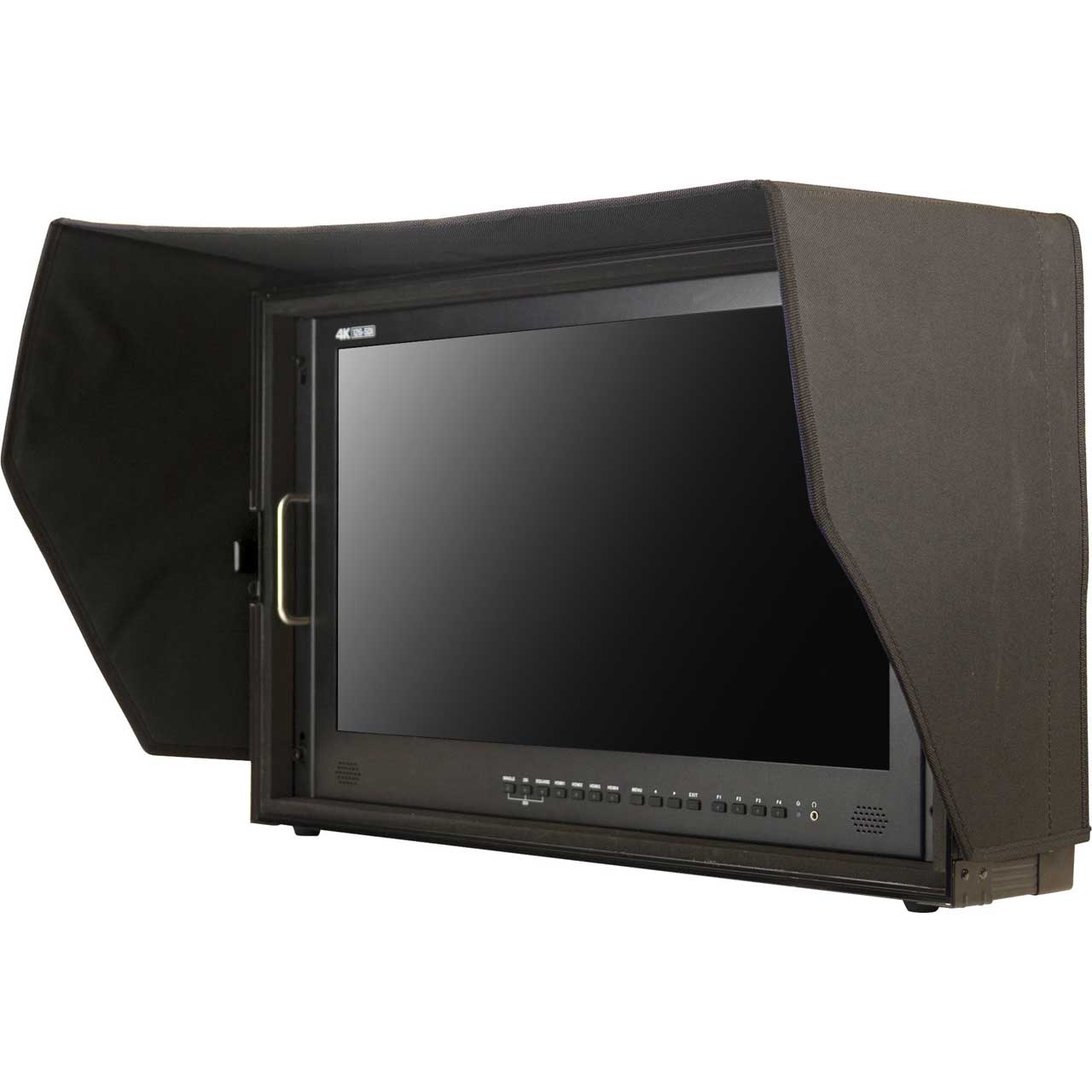

ViewZ VZ-238PM-12G 24 Inch 4K UHD Broadcast 10bits Monitor 300cd/m2 IPS 3840x2160 Pixels 12G-SDI / Quad SDI In x4/Out x4

VZ-238PM-12G - Overview

• Features:

  • 23.8" LED HD-SDI Monitor
  • 3840 x 2160 Resolution
  • 12bit to 10bit Dithering
  • 10 bit Wide Gamut Panel
  • Abailable Color Temperature - 9300, 7500, 6500, 5800°K and built-in user mode
  • SDI Active Loop Through Out / Tally


• Specifications:

  • General Specification
  • Power:
    Electrical Ratings: XLR-4p (DC 12~24V)
    Consumption: 34W
  • Operating Temperature: 32 - 140°F / 0 - 60°C
  • Humidity at High Operating Temperature: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -4 - 140°F / -20 - 60°C

    Display
  • Screen Size: 23.8 inch
  • Max Resolution: 3840 x 2160
  • Brightness: 300cd/m²
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Viewing Angle (H/V): 178°/178°
  • Color Depth: 16.7 M

    LUT Specification / Calibration
  • Gamut: 709, DCI, SMPTE, Adobe and more
  • Gamma: 1.0 ~ 3.0 (Default 2.2)
  • Color Temp: 9300K, 7500K, 6500K, 5800K and built-in user mode

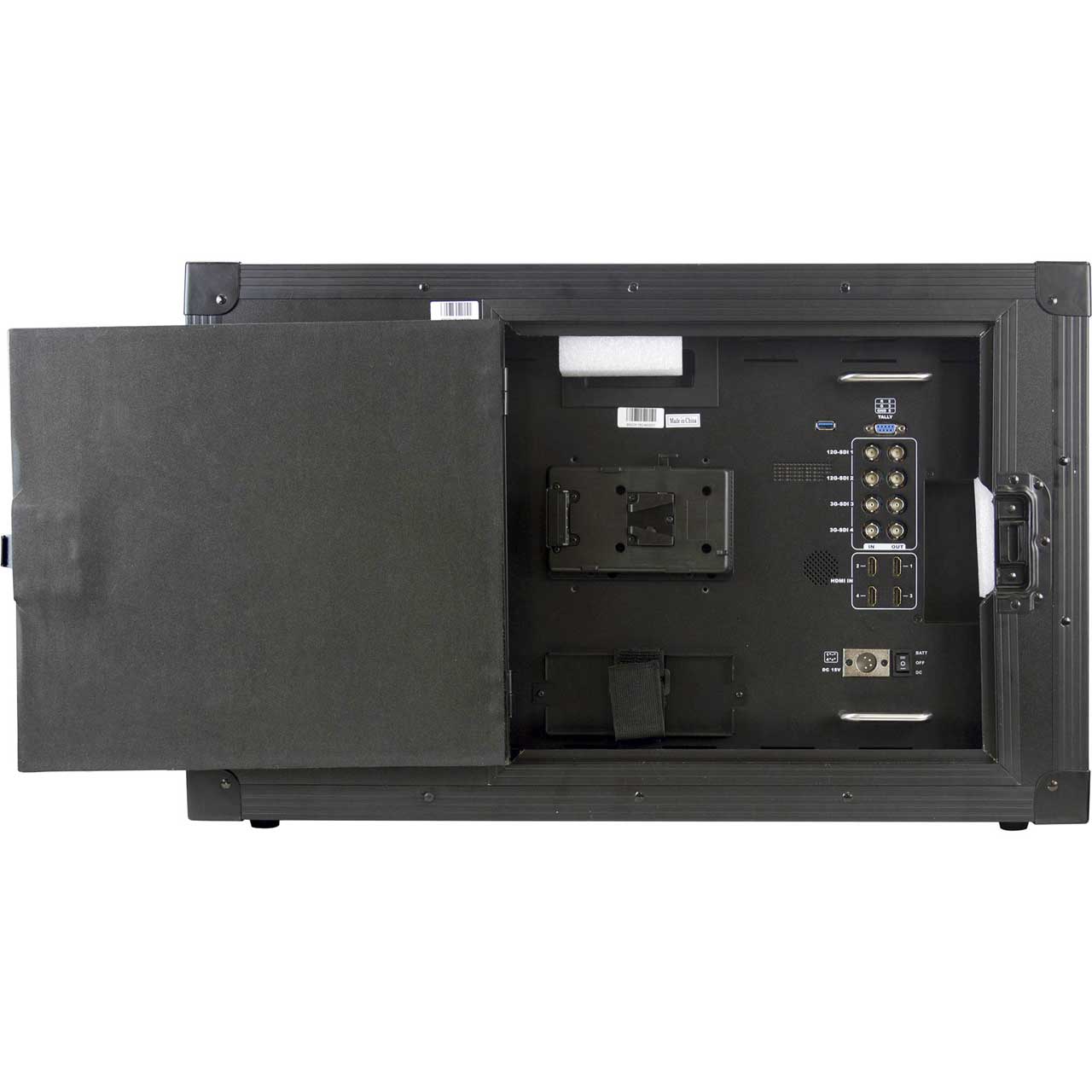

    Interface
  • 12G SDI In-Out: 2 / 2 (Loopthrough)
  • 3G SDI In-Out: 2 / 2 (Loopthrough)
  • HDMI In: 4
  • Tally: 1
  • USB: 1

    Audio
  • Built-in Speakers: 1W x 2

    Input Signal Format
  • SDI:
    12G-SDI (4:2:2) 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
    12G-SDI (4:4:4) 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    DL-6G (4:2:2) 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    DL-6G (4:4:4) 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    6G-SDI (4:2:2)3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    6G-SDI (4:4:4) 1920p/2048x1080 (47.95/48/50/59.94/60p)
    2SI-3G (4:2:2) 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
    2SI-3G (4:4:4) 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    SQ-3G (4:2:2) 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
    SQ-3G (4:4:4) 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    SQ-HD,2SI DL-3G, SQ DL-3G 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
    DL 3GSDI-Level B (4:2:2) 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p) 720p(23.98/24/25/29.97/30/50/59.94/60p)
    DL 3GSDI-Level B (4:4:4) 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf/50i/59.94i/60i)
    3GSDI-Level A (4:2:2) 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p)
    3GSDI-Level A (4:4:4) 1080p / 2048x1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf) 720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p)
    HD: 2048x1080/1080P/720P
    SD: 525i/625i


• Item Includes:

  • 1x 15V DC Adapter
  • 1x Battery Plate (V-Mount)
  • 1x Manual
  • 1x VESA plate
  • 1x Desktop stand set
  • 1x USB disk
