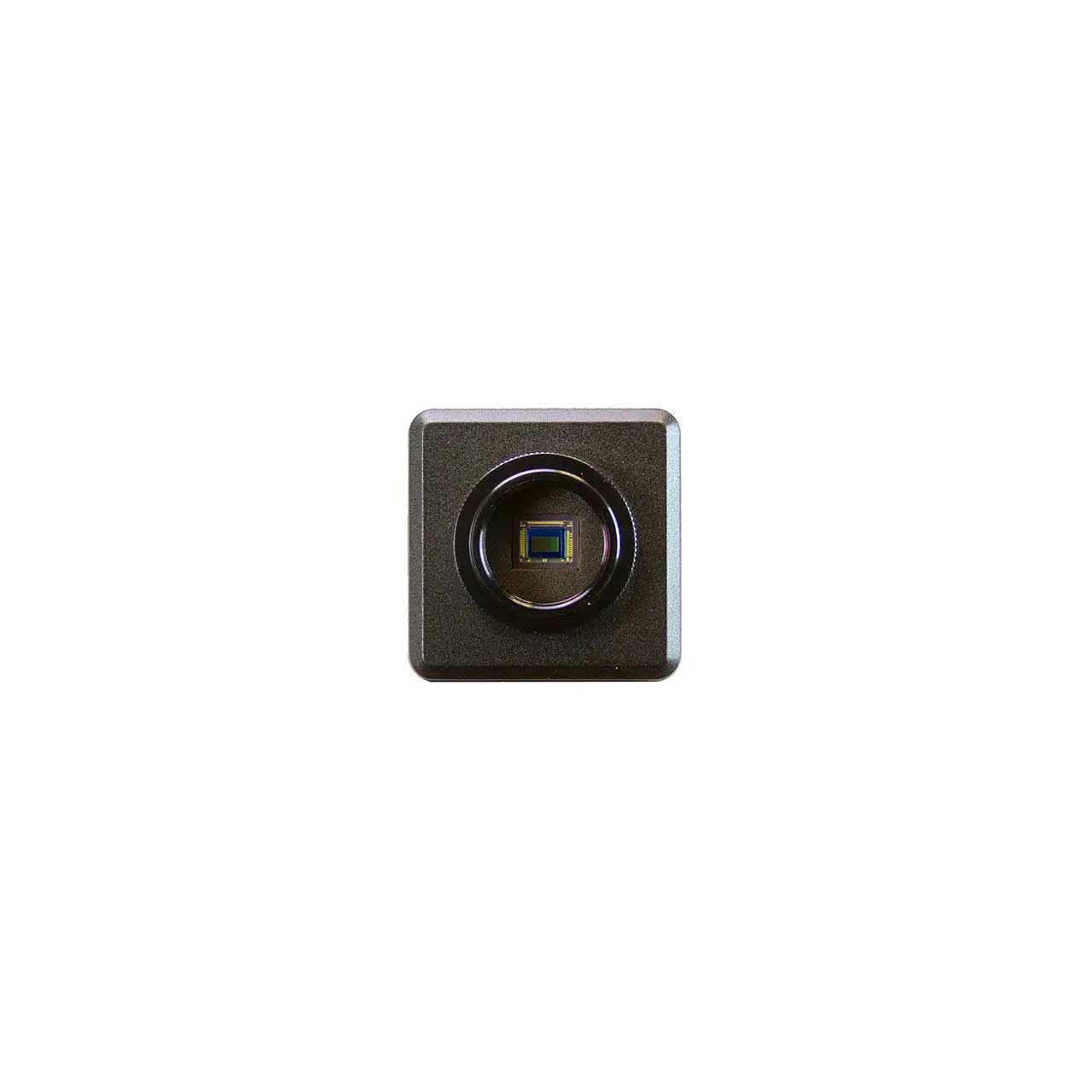

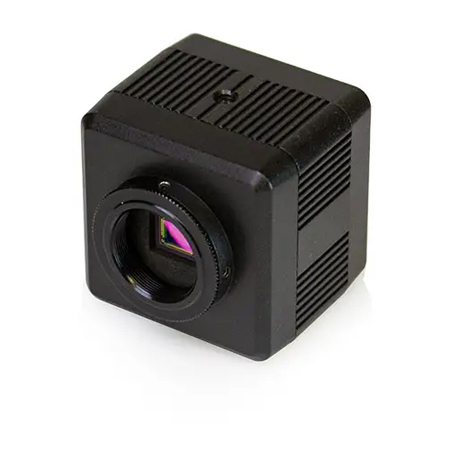

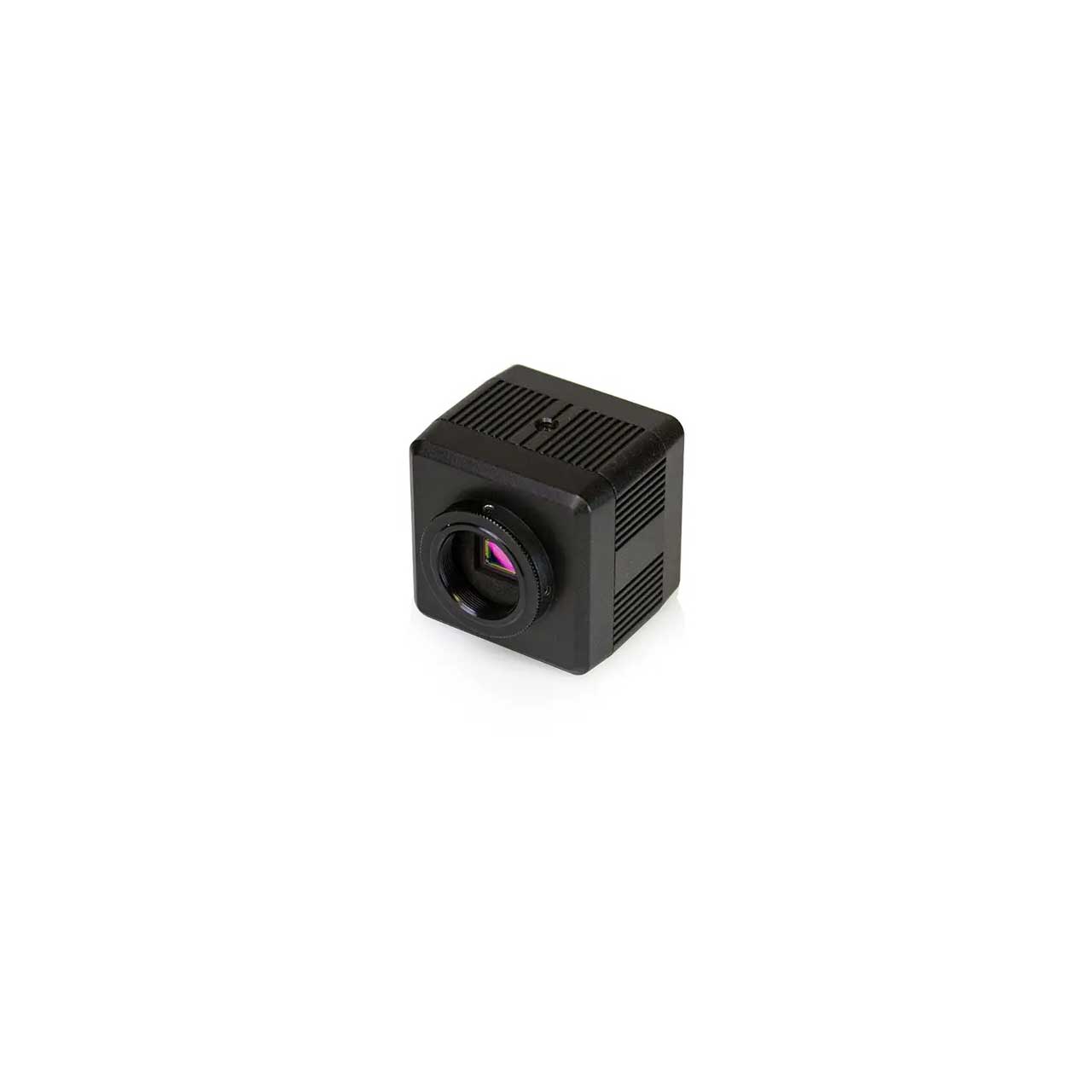

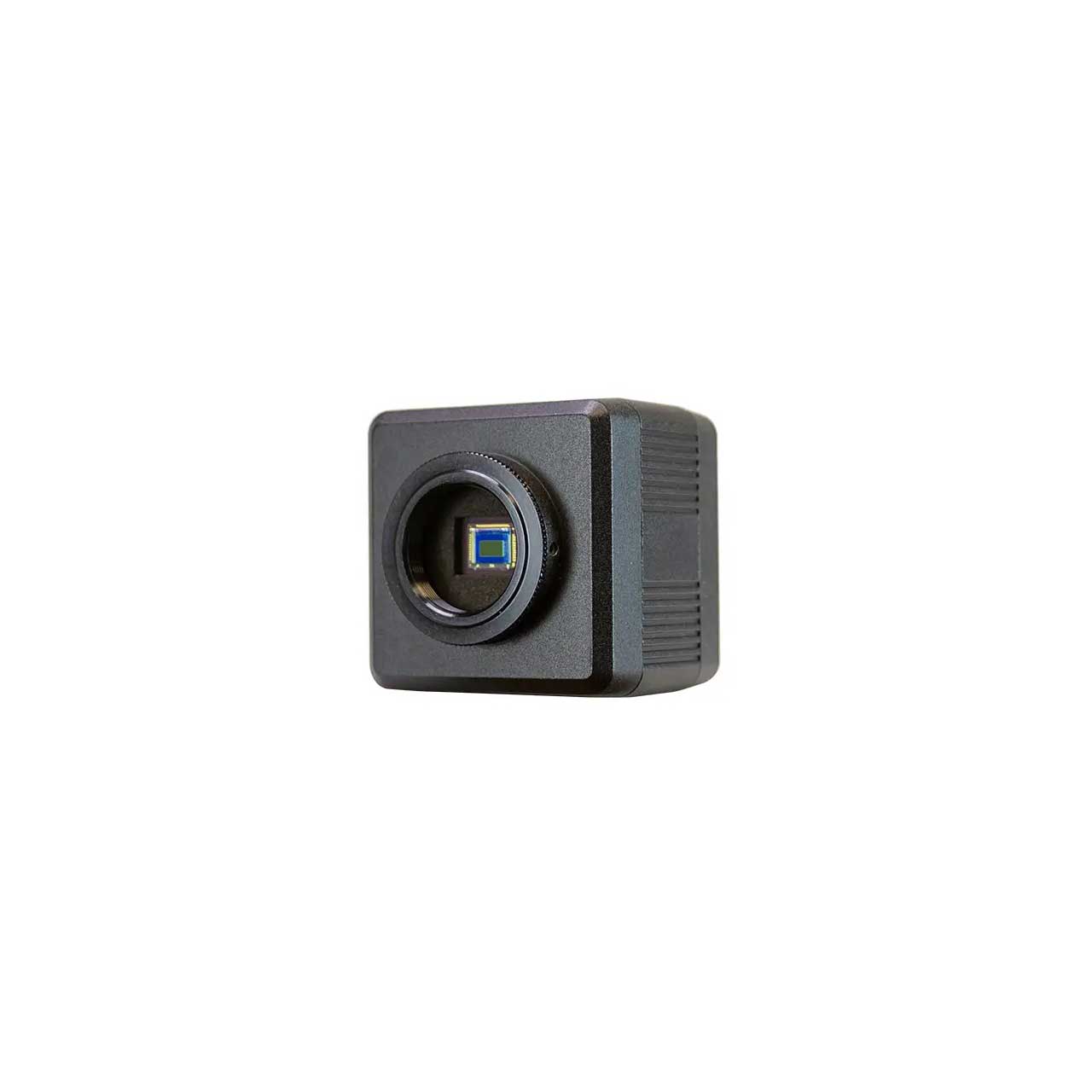

ViewZ VZ-BCHS-1 3G/HD-SDI/HDMI Full HD Box Camera - C/CS Mount - 1080p (25/30/50/60fps)

VZ-BCHS-1 - Overview

• Features:

  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3" 2.1MP Progressive Scan CMOS Sensor
  • Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • More than 1000 TVL, WDR, Privacy Masking, Motion Detection
  • No additional installation cost. (Compatible with existing coaxial cables)
  • Video outputs for diverse applications. ( 3G/HD-SDI, HDMI, CVBS )
  • DNR (Digital Noise Reduction)
  • Built in OSD Control Switch
  • DC 12V, 400mA


• Specifications:

  • Imaging Sensor: 2.1 Megapixel CMOS Sensor
  • HD Scanning System: 1/3" Progressive Scan
  • S/N Ratio: More than 50dB (AGC Off)
  • HD Video Output / Resolution: HD-SDI, 3G-SDI, 1080p (25, 30, 50, 60fps), 1080i (50, 60fps), 720p (50, 60fps), HDMI, Color Bar Signal
  • Image Frame: NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • Min. Illumination: 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • Horizontal TVL: More than 1000 TVL
  • Electronic Shutter Speed: AUTO / MANUAL ( 1/30 sec ~ 1/30,000 sec )
  • Digital Noise Reduction: DNR (Off / Low / Middle / High)
  • Backlight Compensation: BLC (Off / On)
  • Wide Dynamic-Range: WDR (Off / Low / Middle / High)
  • SENS-UP: OFF / x2 / x3 / x4
  • AGC: Adjustable 0 ~ 10
  • Color Temperature / R-Gain / B-Gain: Adjustable
  • Mirror Image: MIRROR, FLIP (Off / On)
  • Privacy Masking: Support
  • Motion Detection: Support
  • Digital Zoom: Support

    Interface
  • HD/3G-SDI: 1
  • HDMI: 1
  • CVBS ( BNC ): 1
  • DC 12V / Auto-Iris Connector: 1

    Dimensions & Weight
  • Outline Dimension (W x H x D): 2.32" x 2.32" x 4.02" / 58.93 mm x 58.93 mm x 102.1 mm
  • Net Weight: 0.44 lbs / 200g

    General Summary
  • OSD Language: English ( Selectable )
  • Construction: Aluminum Alloy
  • Power - Supplied Voltage: DC12V 400mA
  • Power - Consumption: 4.8 W
  • Operating Temperature / Humidity: 14 - 131°F / -10°C - 55°C / 0% to 90% Non-condensing

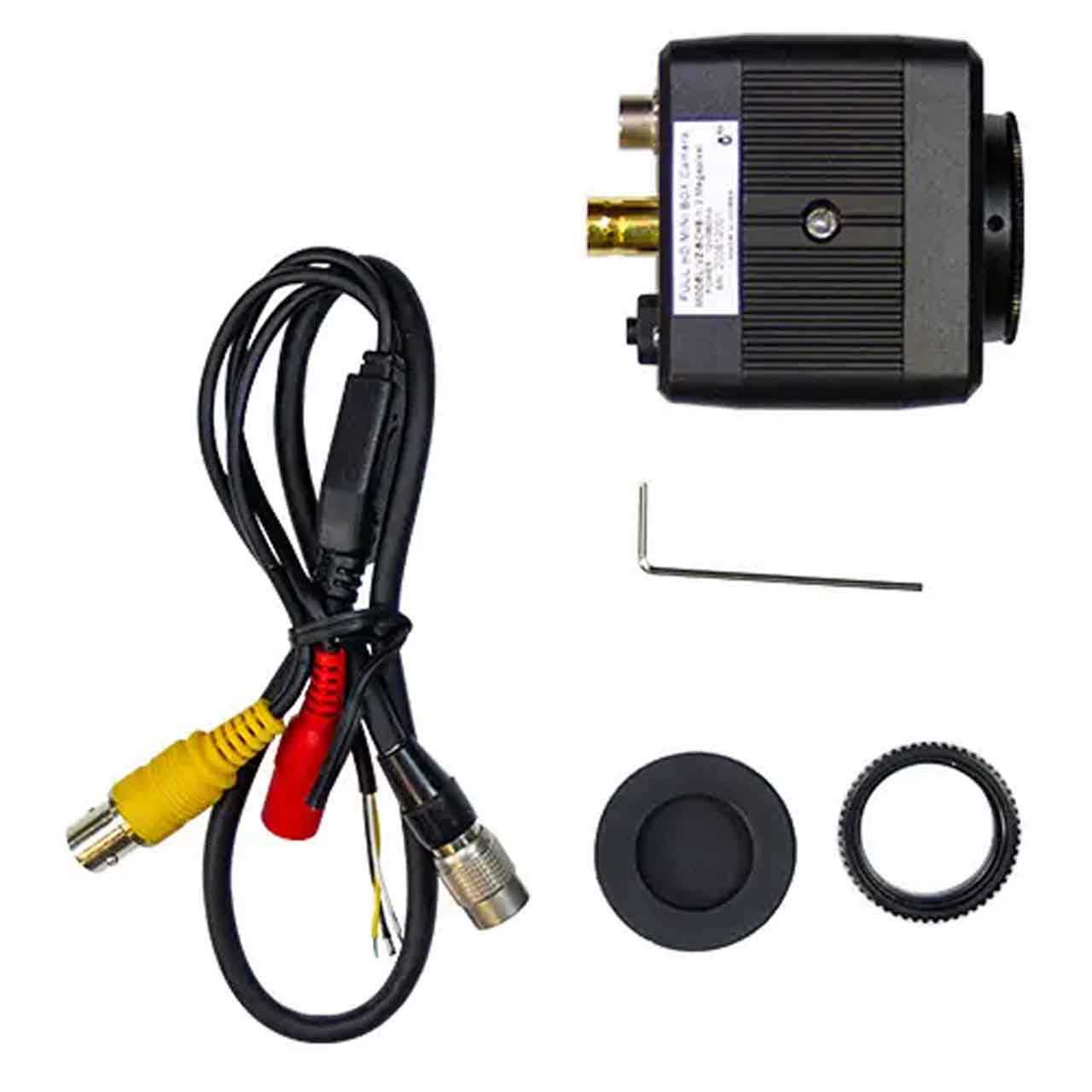

• Item Includes:

  • 1x ViewZ VZ-BCHS-1 3G/HD-SDI/HDMI FullHD Box Camera - C/CS Mount - 1080p (25/30/50/60fps)
