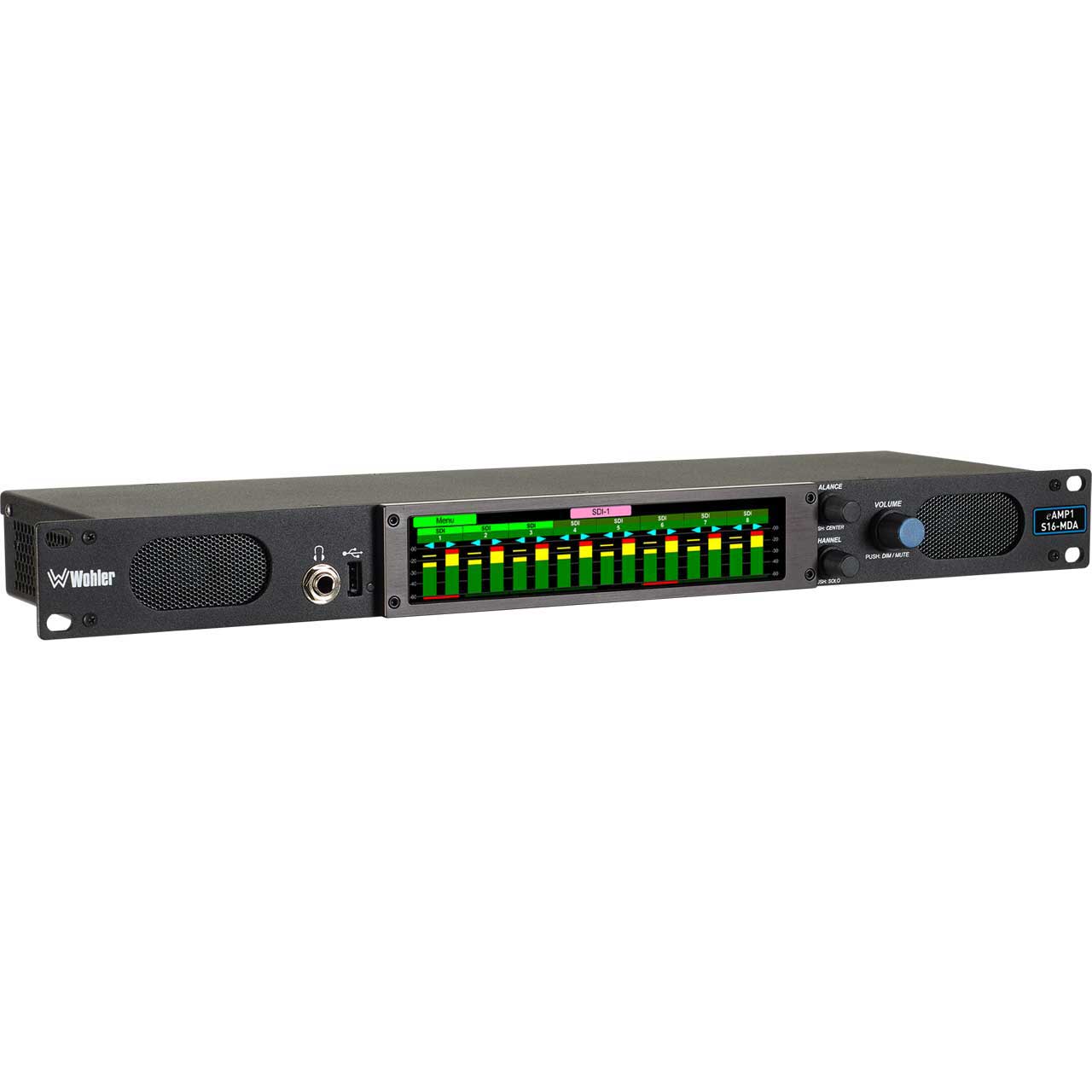

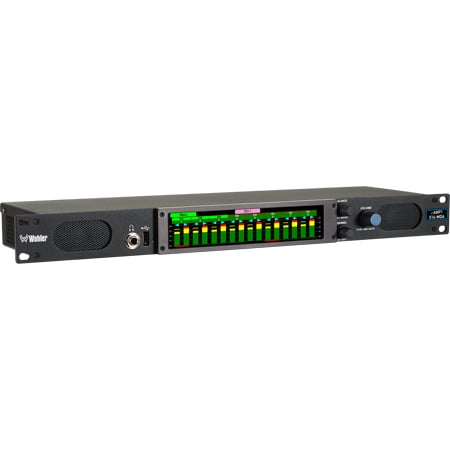

Wohler eAMP1-S16-MDA 1RU Single 7 Inch Touchscreen / Single Input 16 Channel 3G/HD-SD/SDI Audio Monitor w/ Looped Output

ITEM #: WOH-EAMP1S16MDA MFG #: EAMP1S16MDA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Wohler Technologies
Free Shipping with $49 Minimum Order

Our Price:

$3,795.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EAMP1S16MDA - Overview

The eAMP1-S16-MDA offers fast and intuitive confidence monitoring of 3G/HD/SD-SDI, AES3 and analog audio sources. Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications.

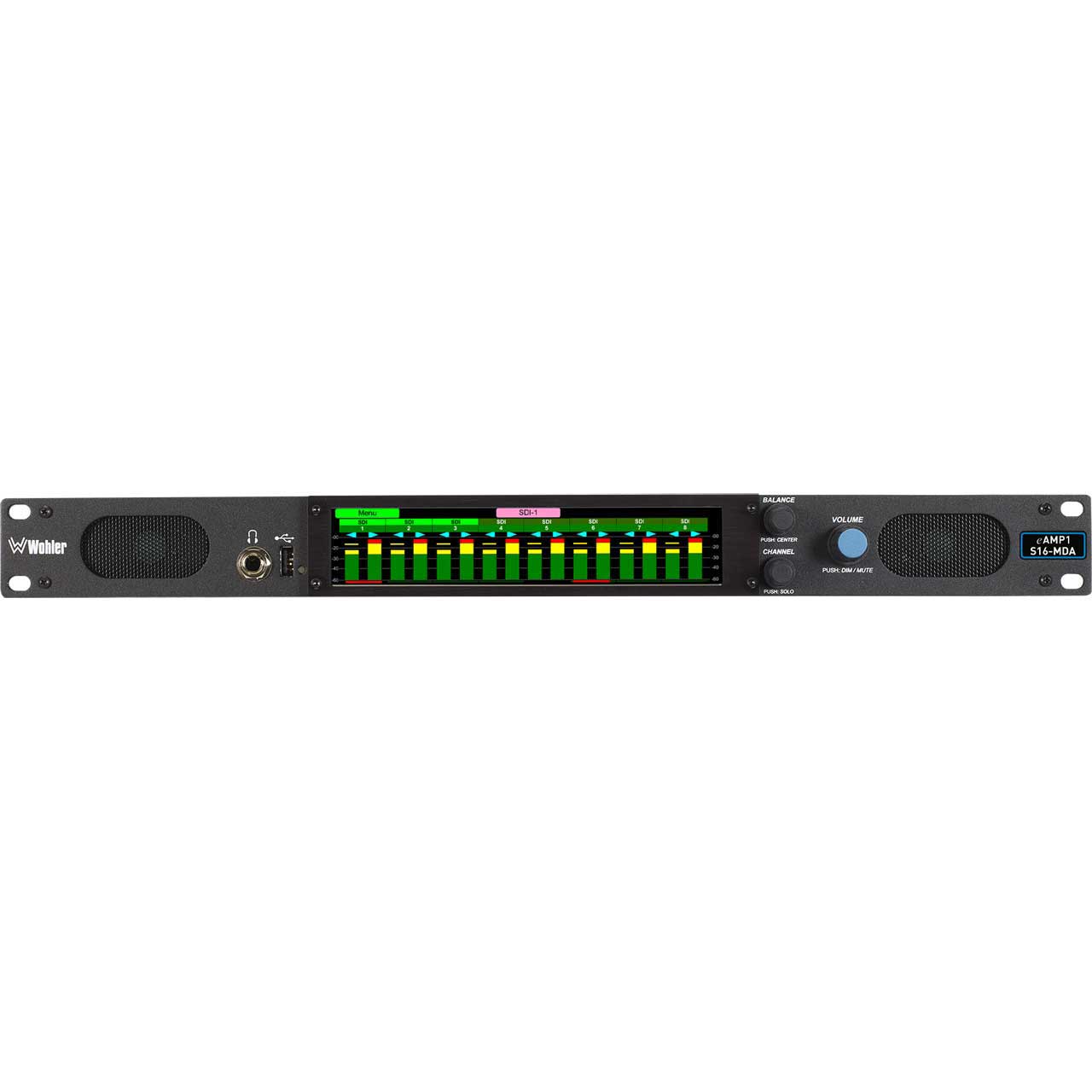

The e AMP1-S16-MDA is designed to be much easier to operate than the retired S8's and include a wide 7" LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes 3G/HD/SD-SDI, AES and Analog inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list. Dolby D, DD+ and E decoding are also optional add-ons

  • Features:

    • Low cost and energy efficient

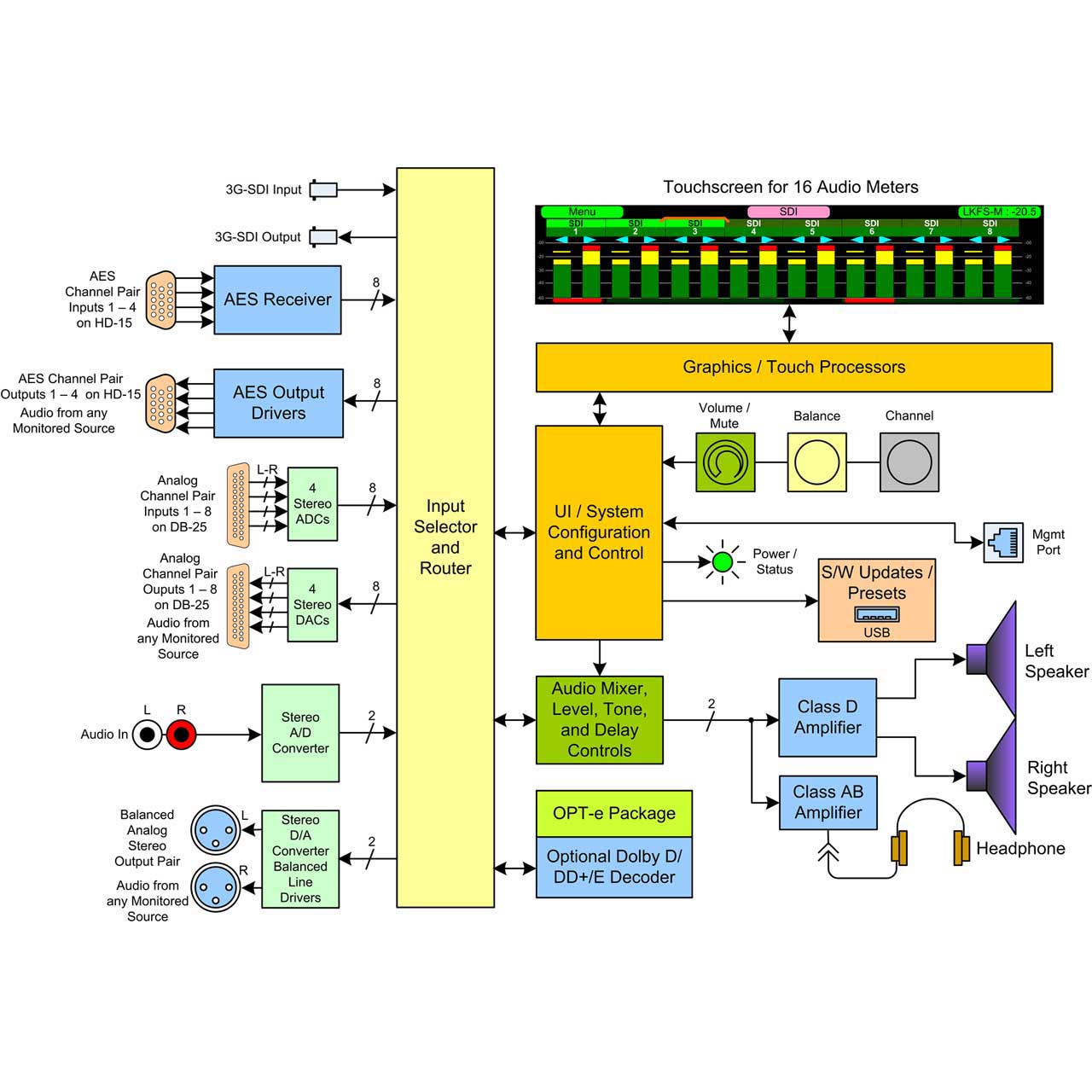

    • Simultaneous level metering of 16 de-embedded audio channels from SDI input, AES or Analog sources
    • Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
    • Monitor through built-in speakers, headphones or analog outputs with Optional muting for internal speakers
    • Stereo phase indicators
    • Adjustable Volume and Balance

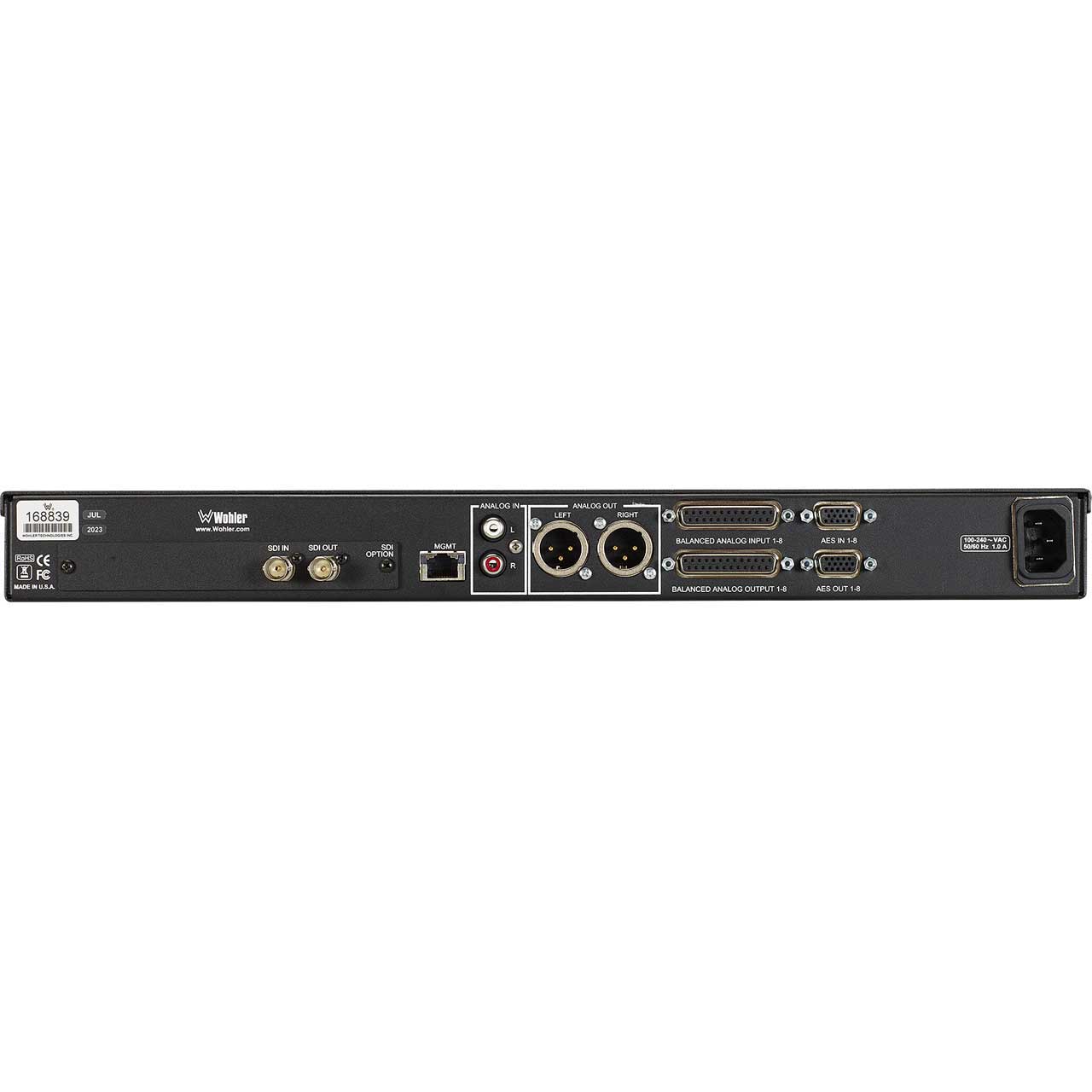

    • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
    • Automatic frame rate detection and selection
    • Selectable line level or front panel volume control and outputs
    • Shallow chassis depth for easy installation in OB vehicles and consoles
    • OPT DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
    • APIs provide easy integration with 3rd party systems (requires OPT- e package)


  • Specifications:

    • Dimensions (W x H x D): 1RU in standard 19" rack: 19" x 1.75" x 5.5" (483 mm x 45 mm x 140 mm). Shipping dims: 23"x 6"x 12"
    • Shipping Weight / Net Weight: 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    • Power Consumption / Supply: 19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    • Display Type / Resolution: 7" (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    • Viewing Angle: 160° (H) x 160° (V)
    • Audio Channels: 16 Max
    • Hum and Noise: Better than -68 dB below full output
    • Peak Acoustic Output: 90 dB SPL @ 2 feet
    • Speaker Power Output: 5W RMS per side, 12W Peak
    • Upgrades: Via USB or GUI web interface
    • APIs: Provide easy integration with 3rd party control systems
