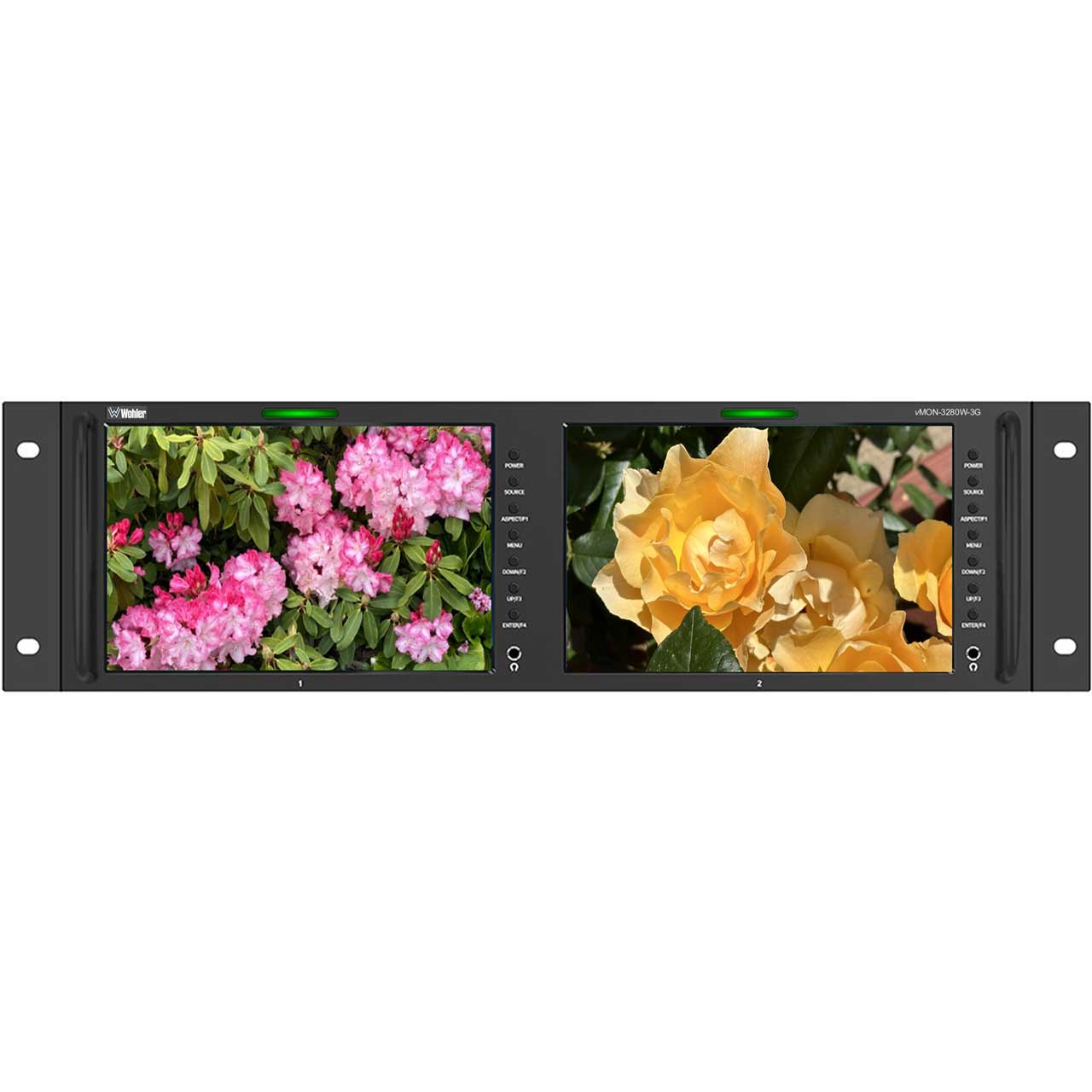

The vMON-3280W-3G is a full-featured in-rack video monitor ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These tilting monitors come standard with in-monitor level metering, selectable video waveform/vectorscope/histogram, safe area and aspect ratio markers, IMD labeling and tally, as well as a variety of picture controls and assistive video features such as zoom controls and focus assist.

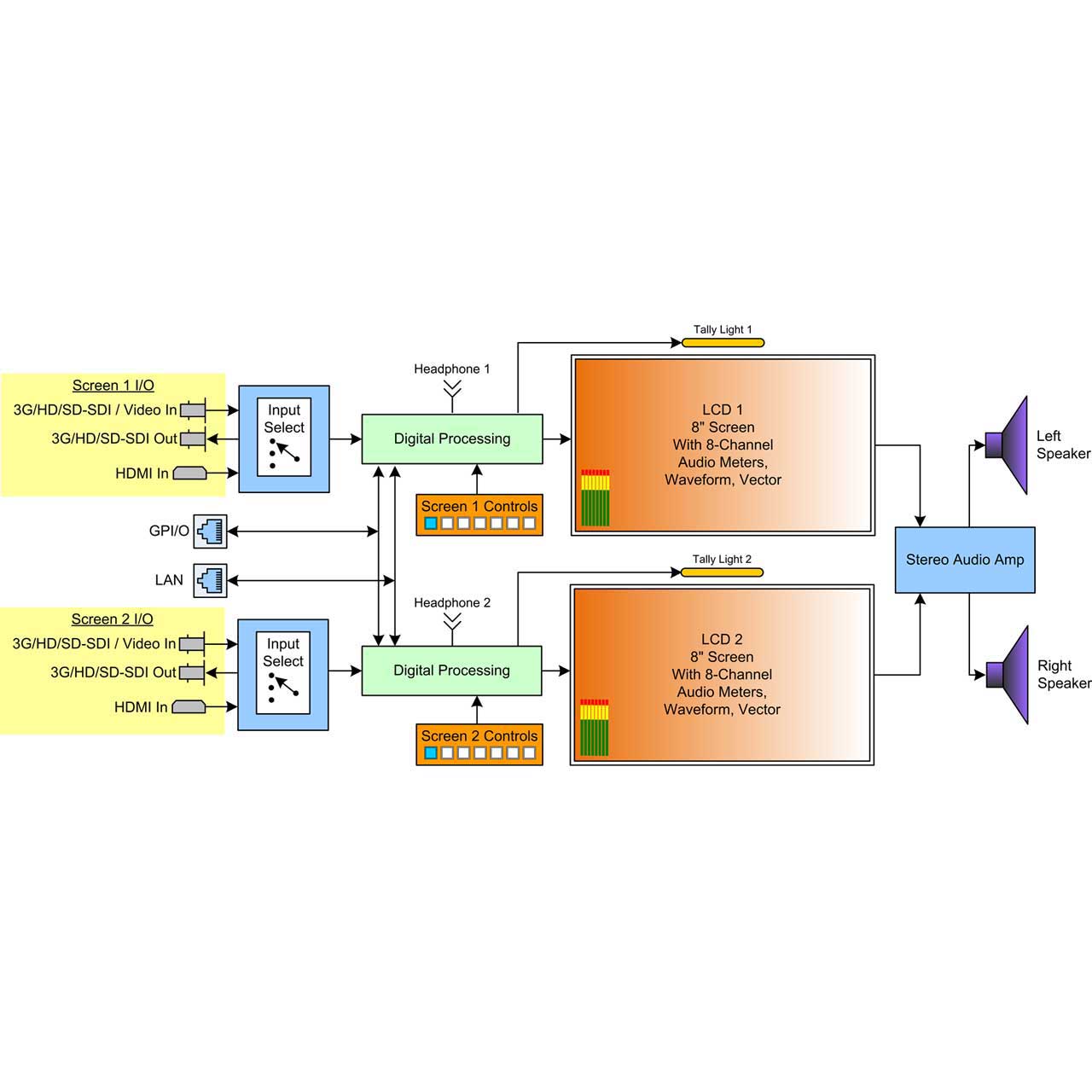

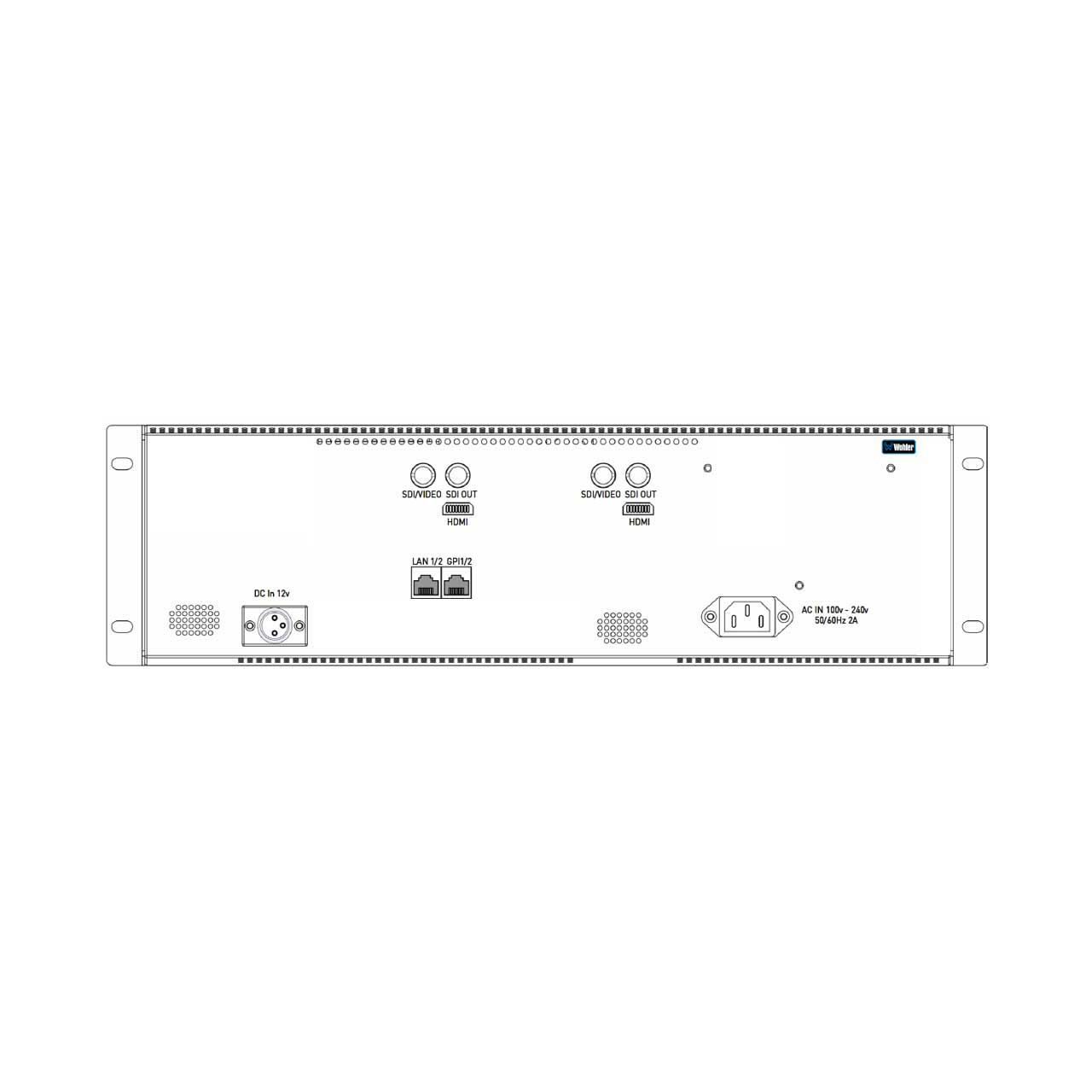

All standard frame rates and resolutions are supported from 3G-SDI, HDMI input sources with SDI looping output. Up to 8 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring.
Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.
