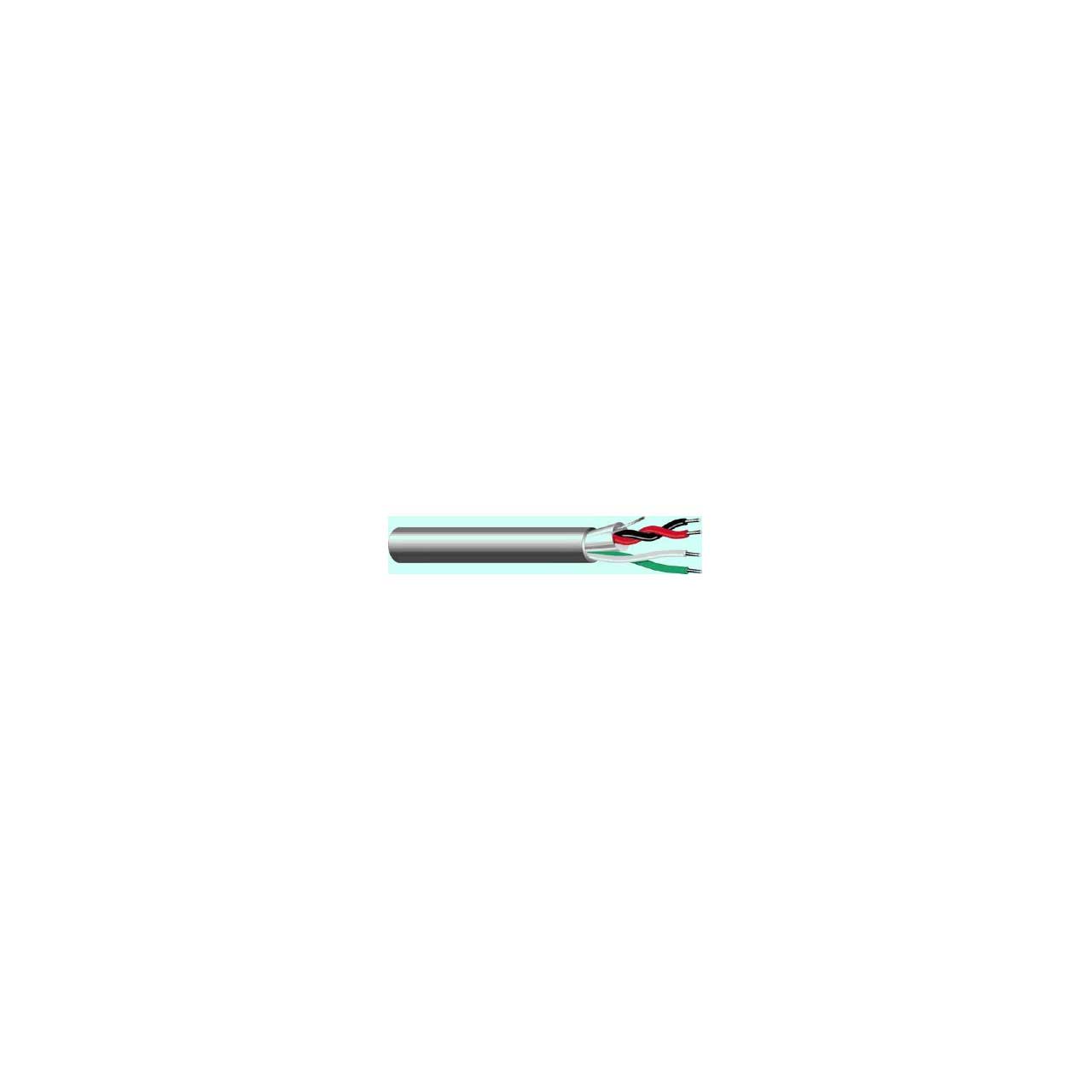

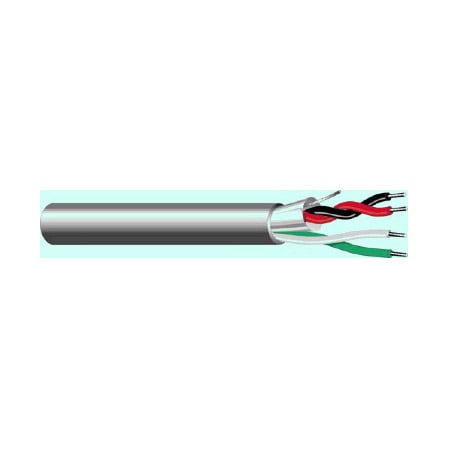

West Penn 25359B 4-Conductor 20 Gauge Plenum Control Cable 1000 Feet

25359B - Overview

• Features:

  • Number of Conductors: 4 - 2 Shielded, 2 Unshielded
    AWG: 20
    Stranding: 7x28
    Nominal O.D.: 0.186
    ASTM bare copper
    Polymer alloy insulation
    Cabled construction
    Polyester binders as required
    Shielded component coverage 100% aluminum polyester foil with TC drain wire


• Specifications:

  • Conductor: 20 AWG Bare Copper
    Stranding: 7x28
    Insulation Material: Flex Plenum PVC
    Insulation Thickness: 0.008'' Nom.
    Number of Conductors: 4 (2 Shielded)(2 Unshielded)
    Shield: 100% Aluminum Polyester Foil
    Drain: Stranded Tinned Copper
    Jacket Material: Flex Plenum PVC
    Jacket Thickness: 0.015'' Nom.
    Overall Cable Diameter: 0.180'' Nom.
    Approximate Cable Weight: 25 Lbs/1M' Nom.
    Flame Rating: NFPA 262 Flame Test
    Temperature Rating: -10¡C To +60¡C
    Operating Voltage: 300 V RMS
    Max.Capacitance Between Conductors: @ 1 KHz 60 pf/ft Nom.
    Capacitance Between Conductors to Shield: @ 1 KHz 108 pf/ft Nom.
    DC Resistance per Conductor: @ 20deg C 10.5 Ohms/1M' Nom.
    Insulation Colors: Black, Red, White
    Jacket Color: Gray
    RoHS Compliant: Yes


• GTIN:

  0612825048930
