Elite Core PROCAT5E-S-500 Pro Cat5E Shielded Cable - Ultra Flexible - 500 Foot

ITEM #: WP-PROCAT5E-S500 MFG #: PROCAT5E-S-500

Primary Image
Elite Core Audio
Free Shipping with $49 Minimum Order

List Price:

$863.85

Our Price:

$643.03

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PROCAT5E-S-500 - Overview

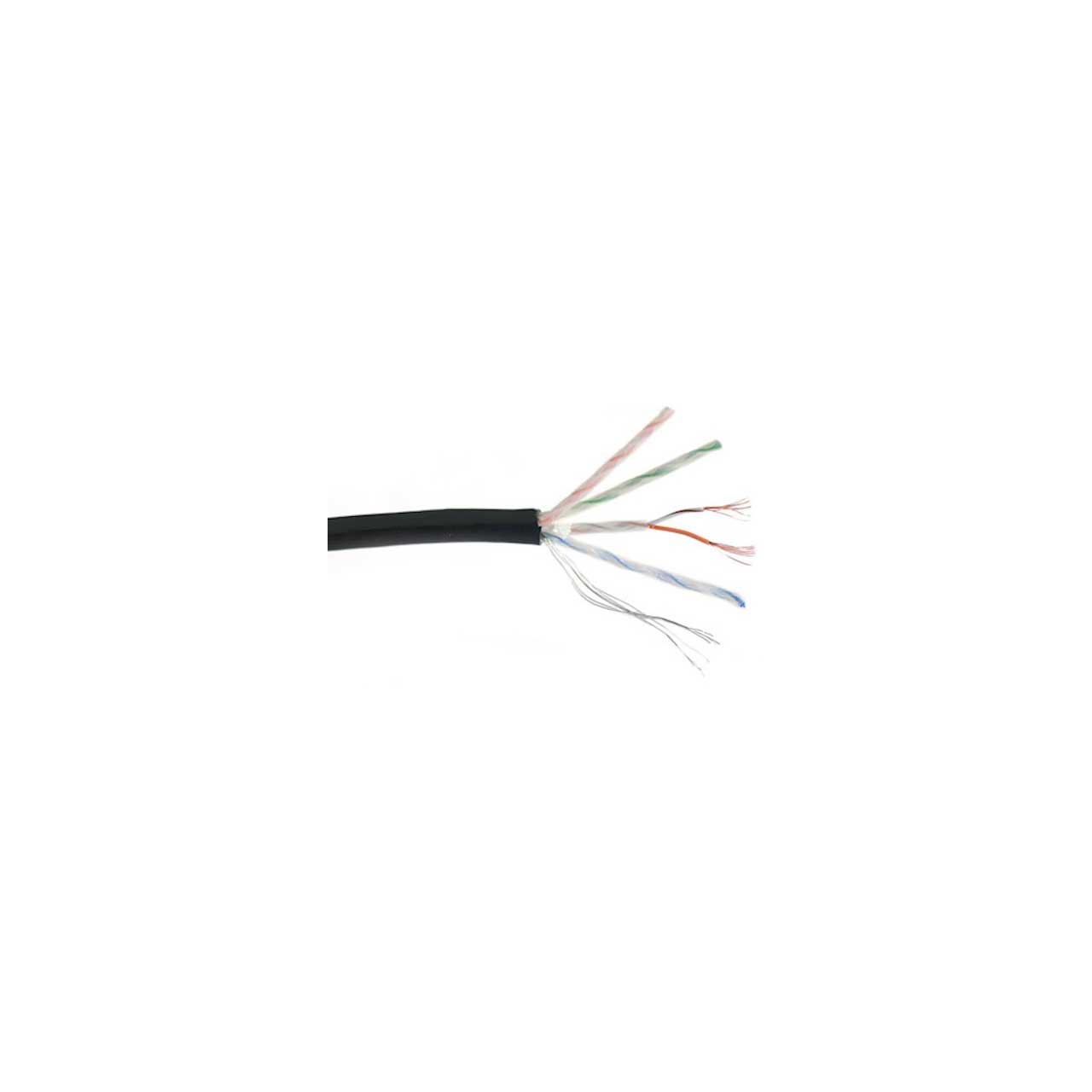

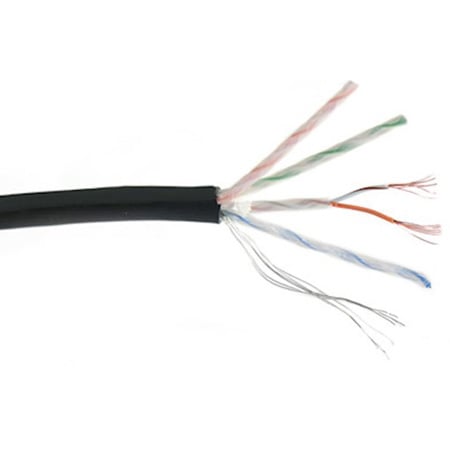

The West Penn PROCAT5E-S cable is fully shielded and features a super soft outer rubber jacket that allows it to lay flat and make it very easy to handle.

This tactical shielded ethernet cable is tour-grade rugged and tough.

  • Features:

    • Shielded Tactical CAT5E cable
    • Super Soft Outer Rubber Jacket
    • Flexible design provides for flat lay and smooth roll-up
    • Rugged build protects cable from damage caused by external force or roll-overs
    • Perfect for mobile audio, DMX, video, and LED screens


  • Specifications:

    • Type: PROCAT5E STP Tactical Shielded Twisted Pair
    • Jacket Color: Black
    • Outside Diameter: 6.5mm
    • Conductor Count: 4 Pair
    • Construction Details: (7/0.20+PE0.99)*4 PAIR+ DW 7/0.20TC+AL- FOIL+PVC
    • Main Conductor Guage: 24 AWG
    • Conductor D.C.R. ohm/1Km: <86.44
    • Nominal Capacitance ~ Conductors: <36.4 pF/m
    • Nominal Capacitance ~ Pairs: <54.3 pF/m
    • Impedance: 100 ohm
    • Voltage Breakdown: 300V
    • Optimal Working Temperature: -4°F - 140°F
    • Max Working Temperature: -40°F - 158°F
