Yamaha UC ADECIA Ceiling Bundle RM Ceiling Mic - White - RM Audio Processor - Network Switch & 2 Black Speakers - Dante

ADCGWB - Overview

Dante Ready!

• Features:

  • Dynamic, Multi-Beam Tracking Technology
  • Constant live tracking beams search for voice when system in use
  • Supports lively discussions with multiple participants
  • No fixed lobes = no dead spots
  • Room set up flexibility - no need to preprogram lobes when design changes
  • Easy Install/Set Up
  • Three-step guided configuration
  • No need to program fixed beams

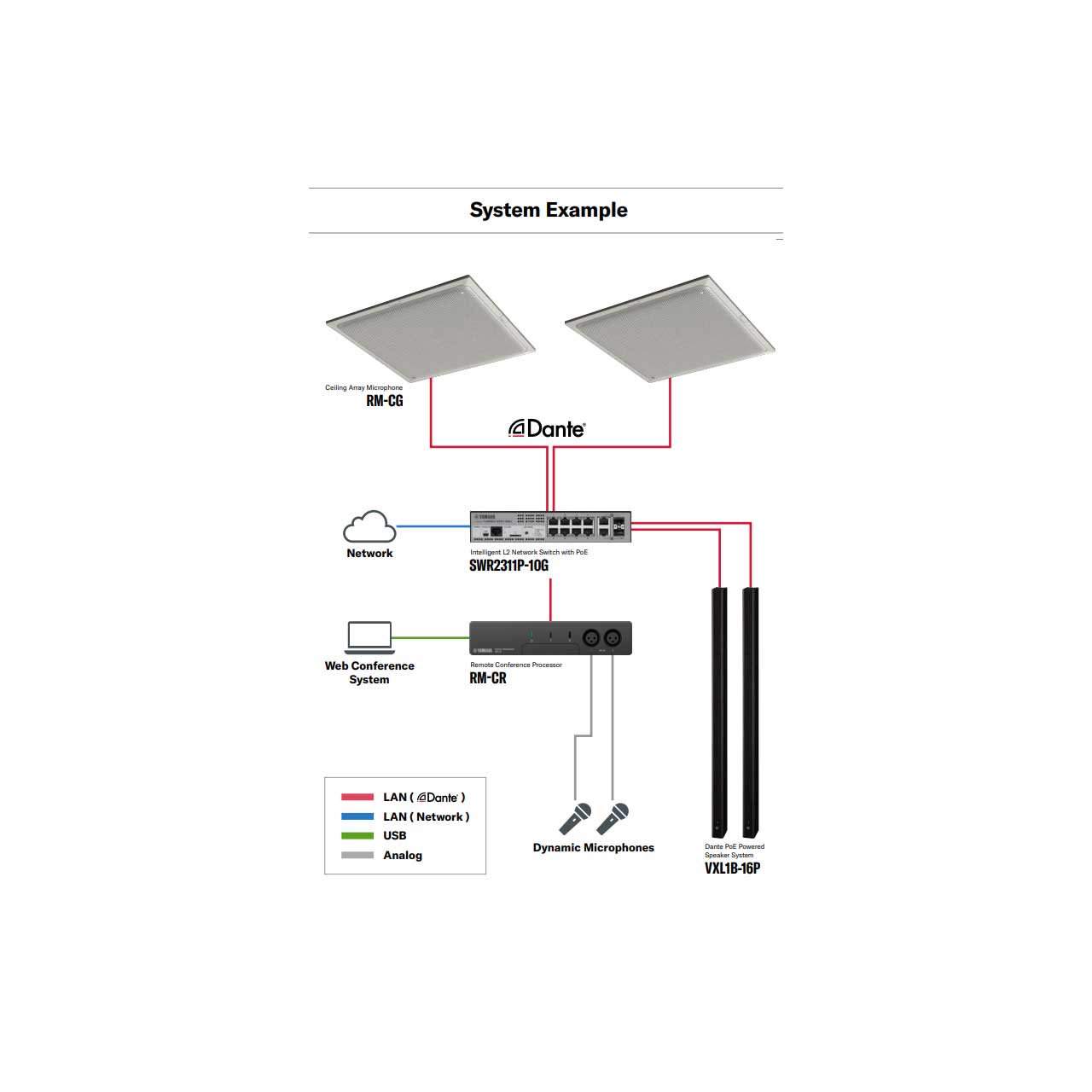

  • Components utilize one network cable connection avoiding troublesome wiring
  • Integration into all audio environments: USB, analog I/O, Bluetooth, SIP telephony and Dante
  • Open API for integration with other Yamaha or 3rd-party components
  • Yamaha Acoustic Technologies
  • Human Voice Activity Detection
  • Noise Reduction algorithms
  • Speaker tracking
  • Adaptive acoustic echo cancellation


• Specifications:

  • RM Ceiling Array Microphone
  • Dimensions (WxHxD): 22 x 3.54 x 22" (560 x 90 x 560mm) (includes protrusion/microphone panel: 22mm)
  • Weight: 12Lbs (5.6kg)
  • Power Requirements: PoE (IEEE 802.3af), DC 48V
  • Maximum Power Consumption: 7.2W
  • Connector: RJ45
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Operating Humidity: 30 to 90% (non-condensing)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Storage Humidity: 20 to 90% (non-condensing)
  • Indicator: Front indicator (Mute/Unmute & Status), Network port indicator
  • Mount: Ceiling mount, Wire mount, VESA mount (not included)
  • Dust Protection: IP5X equivalent (when using junction cover)
  • Plenum Rating: UL2043 (with junction cover)

    RM Audio Processor
  • Dimensions (WxDxH): 8.46 x 10.23 x 1.73" (215 x 260 x 44mm)
  • Weight: 3.30Lbs (1.6kg)
  • Power Requirements: PoE+(IEEE 802.3at, LLDP), DC 48V
  • Maximum Power Consumption: 15.0W
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Operating Humidity: 30 to 90% (non-condensing)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Storage Humidity: 20 to 90% (non-condensing)
  • Indicator: Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator x3

    SWR-2311P-10G Network Switch
  • Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
  • Number of ports: 10 ports
  • Communication mode: Auto negotiation
  • Connector: RJ-45
  • MAC address: Printed on top surface label
  • Polarity: Straight/cross automatic detection
  • Combo ports - LAN ports: IEEE 802.3 (1000BASE-T) 2 ports (use is mutually exclusive with SPF ports)
  • Combo ports - SFP ports: SFP (Small Form-factor Pluggable) 2 ports (use is mutually exclusive with LAN ports)
  • Console port: RJ-45(RS-232C), USB mini-B(5pin)(USB2.0): 9600 bit/s
  • Ports available for PoE power supply: 8 ports (1-8)
  • PoE standards: IEEE 802.3at
  • Power supply system: Alternative A
  • Maximum power supply Per port: 30 W
  • All ports power: 240 W
  • microSD slot: Standard SD/SDHC, 1 Slot
  • Indicators: POWER, microSD, LED MODE, LAN port, SFP port
  • Operating environment: Ambient temperature: 0-40 °C, Ambient humidity: 15-80%, non-condensing
  • Storage environment: Ambient temperature: -20-50 °C, Ambient humidity: 10-90%, non-condensing
  • Power supply voltage, frequency: AC100 Ω 240V, 50/60Hz
  • Maximum power consumption: 280 W
  • Dimensions (WxHxD): 8.6 x 1.67 x 11.56"
  • Weight: 5 Lbs.

    For a list of full specifications, please visit the Data Sheets Tab.

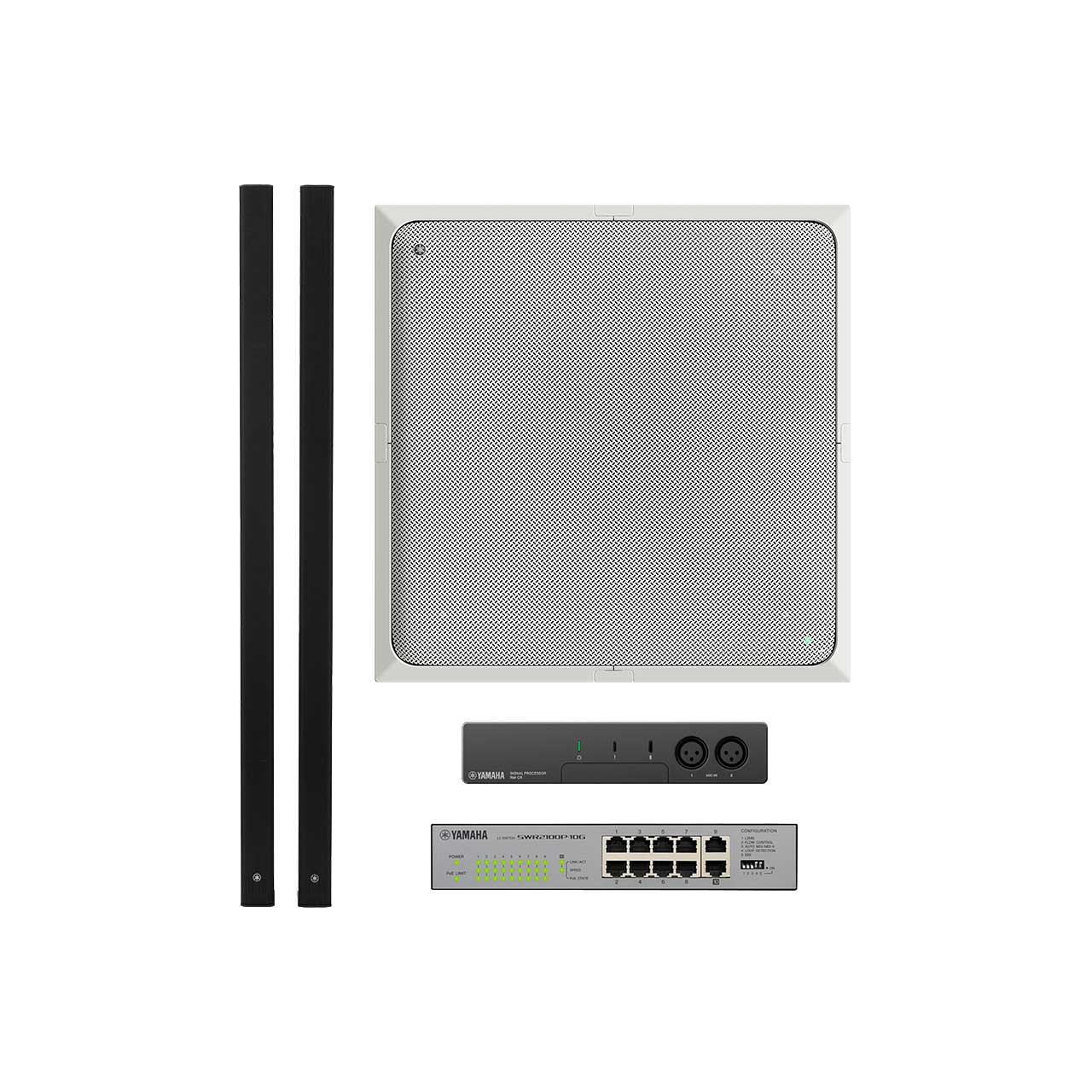

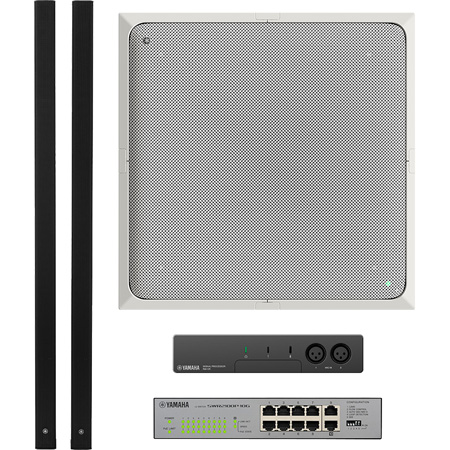

• Item Includes:

  • 1x Ceiling Array Microphone (RM-CG)
  • 1x Signal Processor (RM-CR)
  • 1x L2 Network switch with PoE (SWR Series)
  • 2x Line-array POE+ powered speakers (VXL1B-16P)
