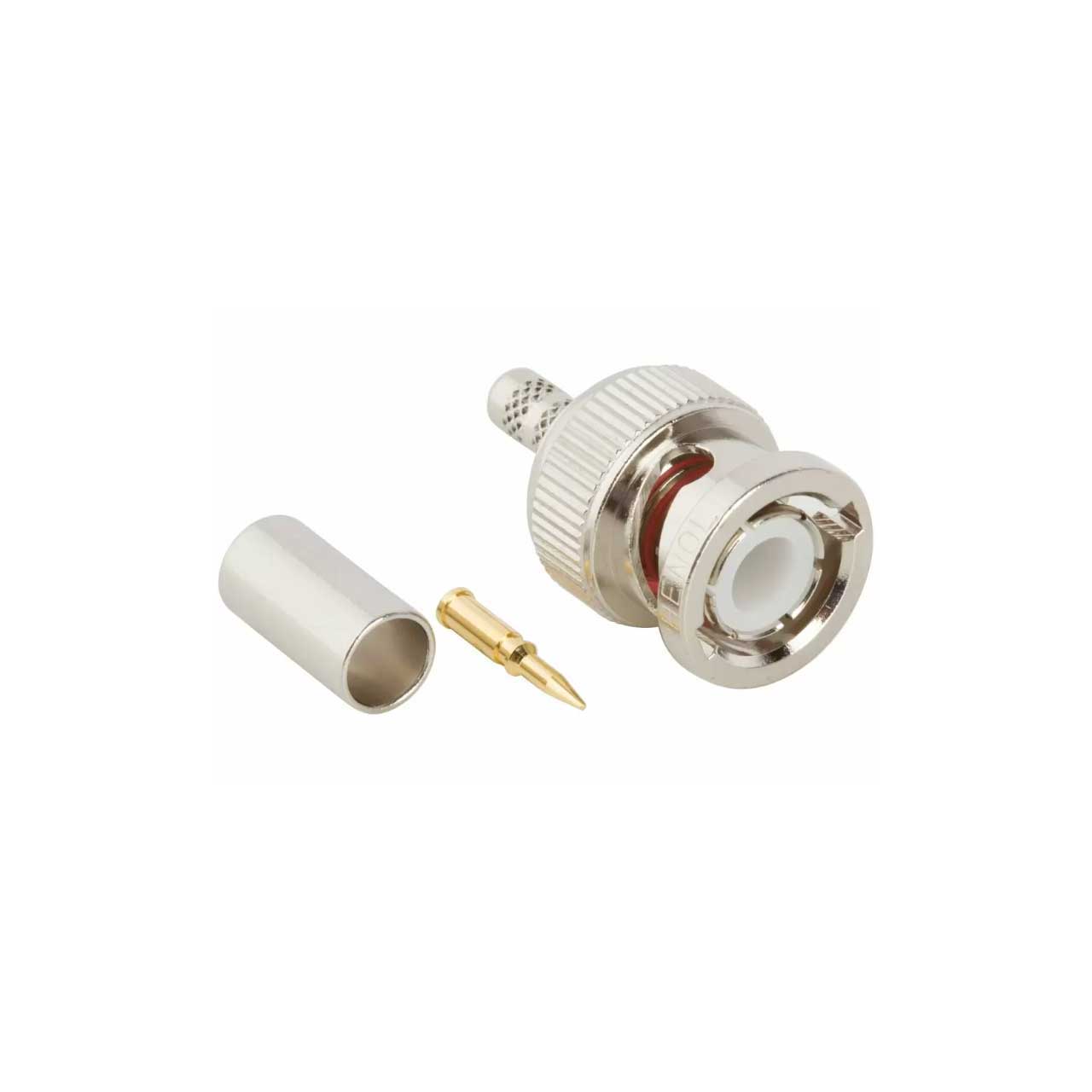

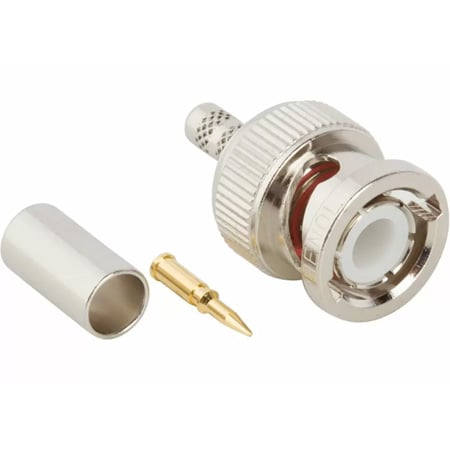

Amphenol 031-320-RFX BNC Crimp Plug for RG-58 - 50 Ohm

031-320-RFX - Overview

• Specifications:

  • Body Finish: Nickel
  • Body Material: Brass
  • Cable Type (Terminates to): RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
  • Contact Finish: Gold
  • Contact Material: Brass
  • Contact Termination: Crimp
  • Coupling Mechanism: Bayonet
  • Crimp Tool: CTL-3
  • Export Control Classification Number: EAR99
  • Frequency (Max GHz): 4
  • Gender: Plug
  • IP Rating: Not Rated
  • Impedance (Ohms): 50
  • Insulator Material: Delrin
  • Isolated: No
  • Low PIM: No
  • Mil Qualified: No
  • Non Magnetic: No
  • Orientation: Straight
  • Panel Mounting Feature: Not Applicable
  • Size Category: Miniature
  • Temperature Range: -85° to 329°F (-65° to 165°C)
  • Termination Style: Cable - Crimp
