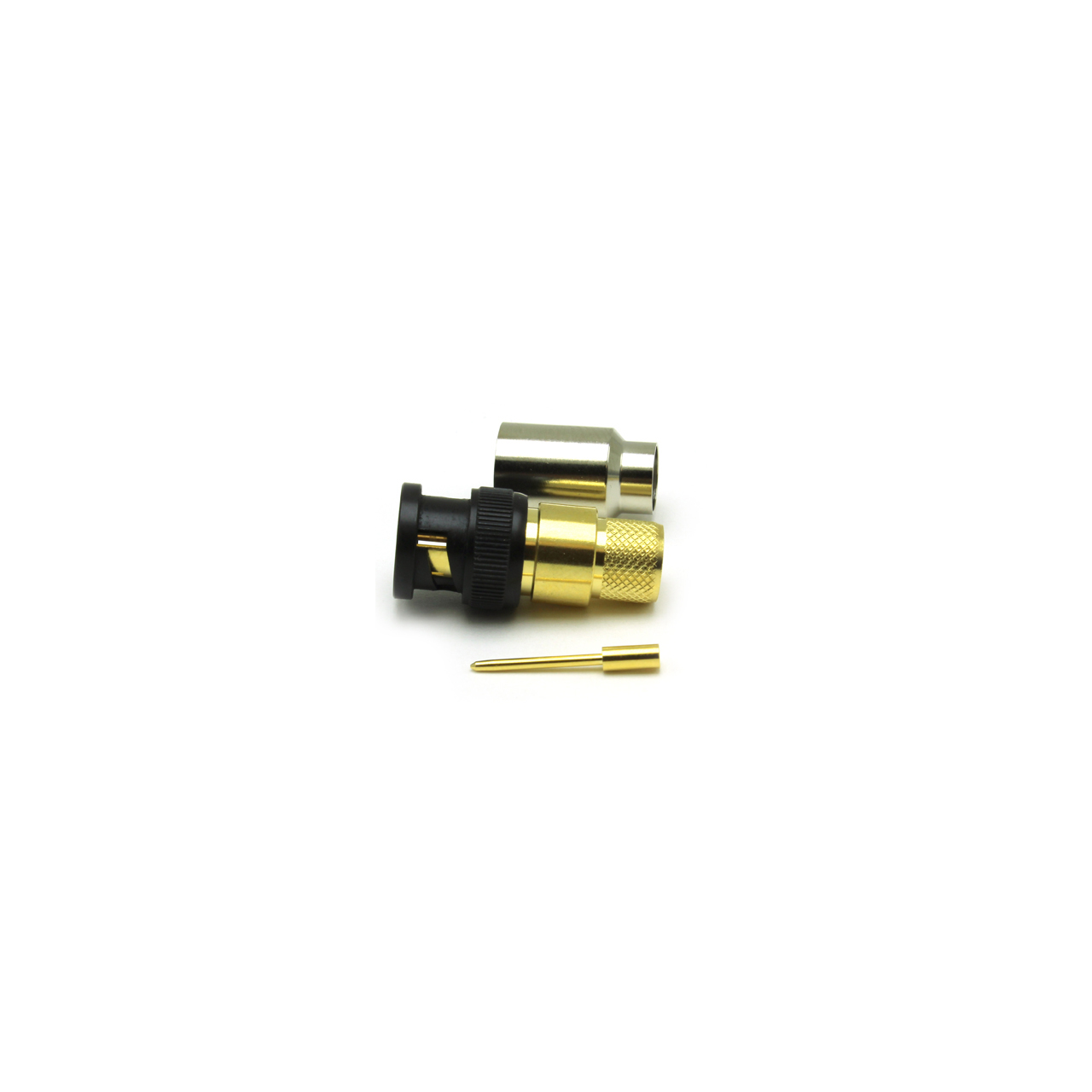

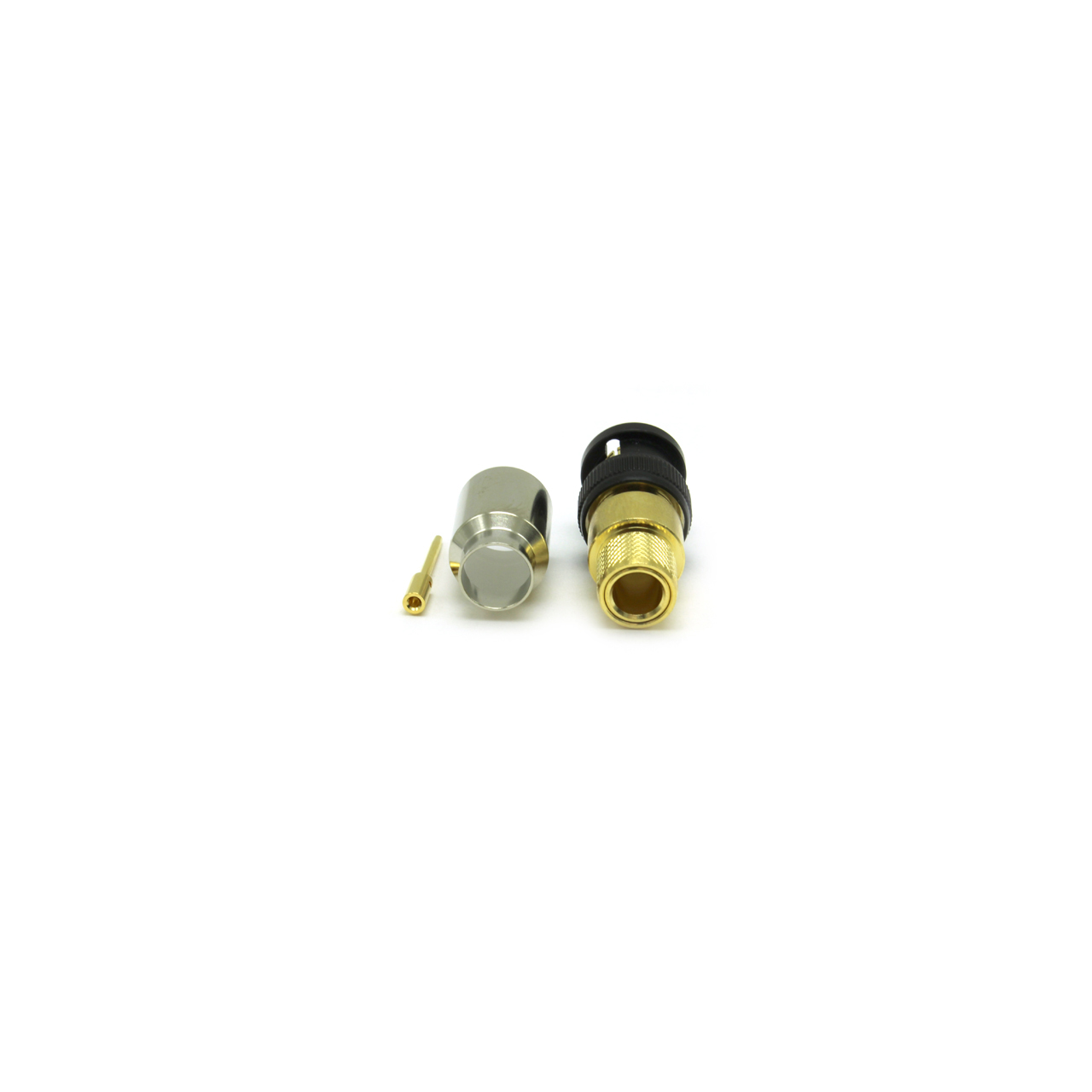

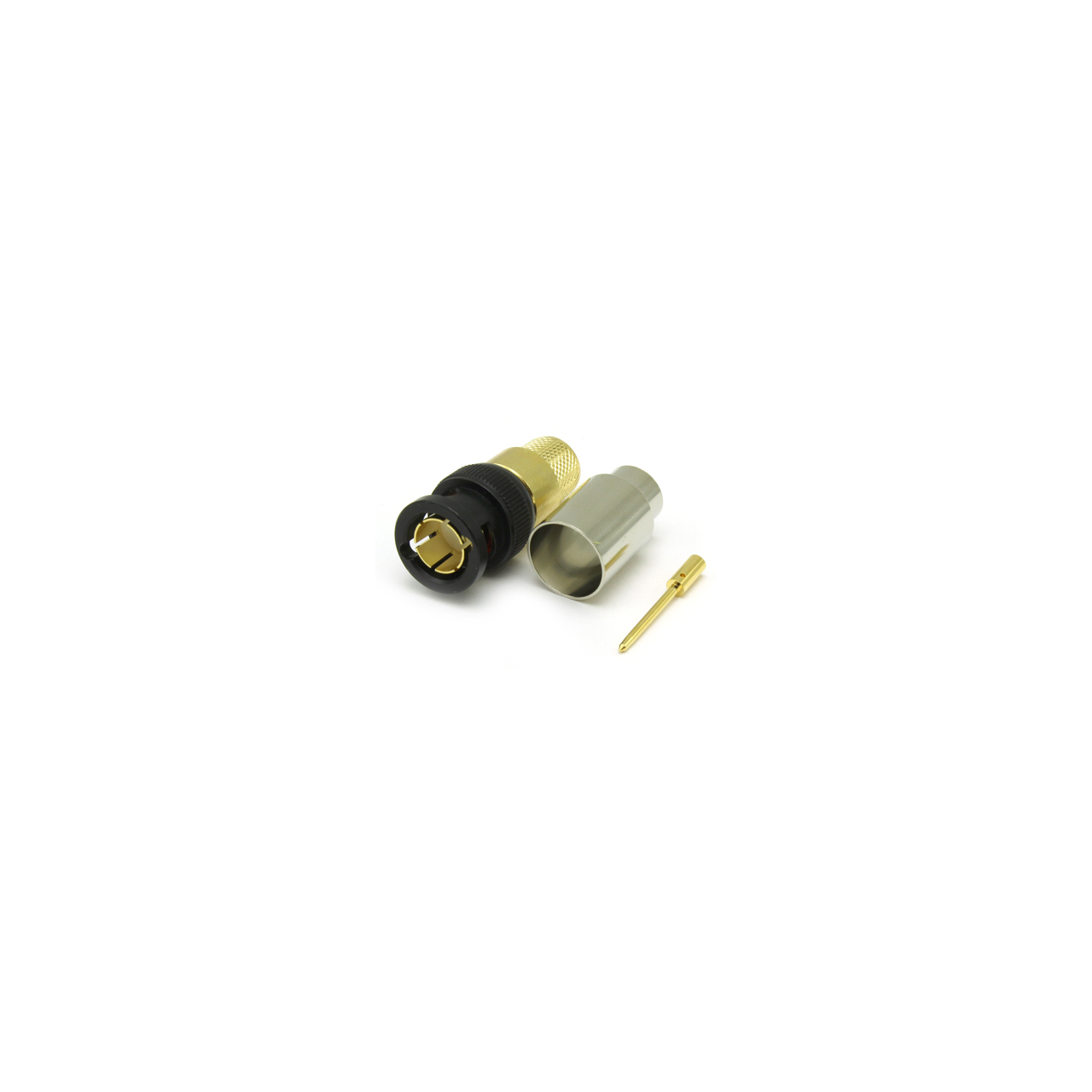

Coax Connectors 10-005-W126-FI KORUS UHD 12GHz BNC Straight Crimp Plug for BELDEN 1794A/4794R- True 75 Ohm - 100 Pack

10-005W126FIB100 - Overview

• Features:

  • Compatible with Belden 1794A and 4794R
  • High Performance 75 ohm BNC crimp plug
  • Tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1
  • For use in 6G & 12G systems


• Specifications:

  • Electrical Specification
  • Impedance: 75 Ohm
  • Frequency Range: Up to 12GHz
  • Dielectric Withstand Voltage: 1500 Veff
  • Insulation Resistance: 5000 M-Ohm
  • Return Loss: -20. dB @ 6GHz

    Mechanical Specification
  • Design Standard: IEC 61169-8
  • RoHS 3 Compliant: Yes
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 150N min
  • Weight: 11.11g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Center Contact: Hex .172mm A/F
  • Crimp Sleeve: Hex 8.23mm A/F

    Environmental Specification
  • Operating Temperature: -55 to +155 Deg C
  • IP Rating ( Mated ): IP64

    Material:
  • Center Contact: Brass
  • Outer Contact: Brass
  • Insulator: PTFE
  • Bayonet Cap: Brass
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Gold
  • Pack Size: 100

    Recommended Accessories
  • Center Contact Crimp Tool: 96-HTS-75A
  • Outer Contact Crimp Tool: 96-HTS-75A
  • BNC Plug Insertion And Extractor Tool: 96-2208


• Item Includes:

  • 1x 10-005-W126-FI KORUS UHD 12GHz BNC Straight Crimp Plug - 100 Pack
