Belden 1858A Coax RG-11/U Type Triaxial Cable - Per Foot

ITEM #: 1858A MFG #: 1858A PER FT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 1858A

1858A PER FT - Overview

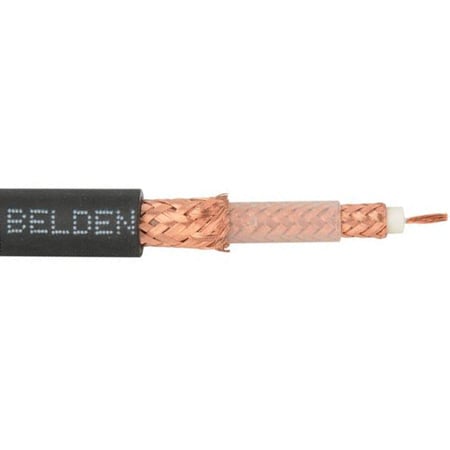

Belden 1858A is a Flexible, RG-11 Video Triax Cable. It features a 15 AWG stranded (19x27) .064" bare copper conductor, with foam HDPE insulation, bare copper braid shields (95% coverage), in a Belflex PVC jacket.

Applications
Analog Video
Interconnect Camera to CCU (Camera Control Unit)

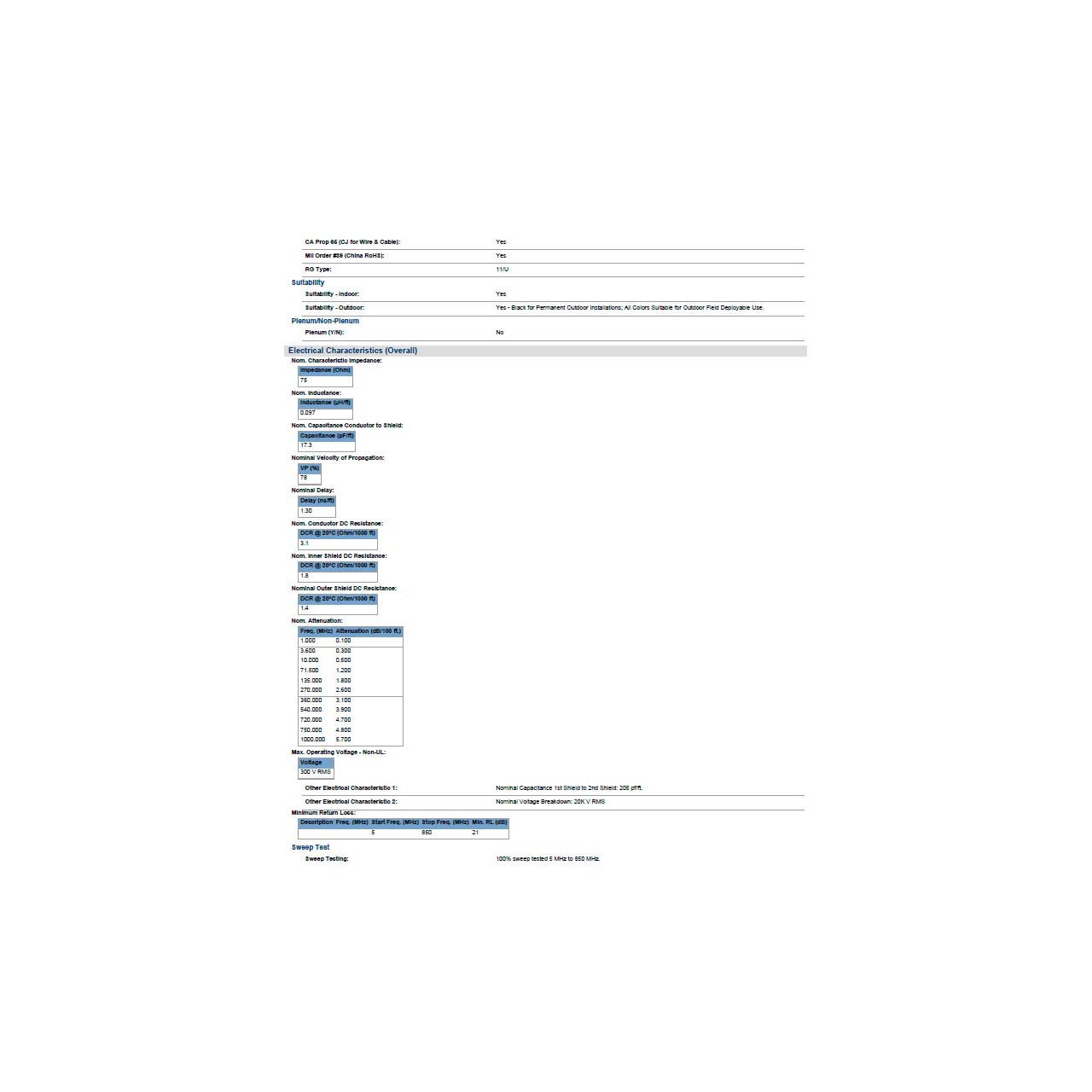

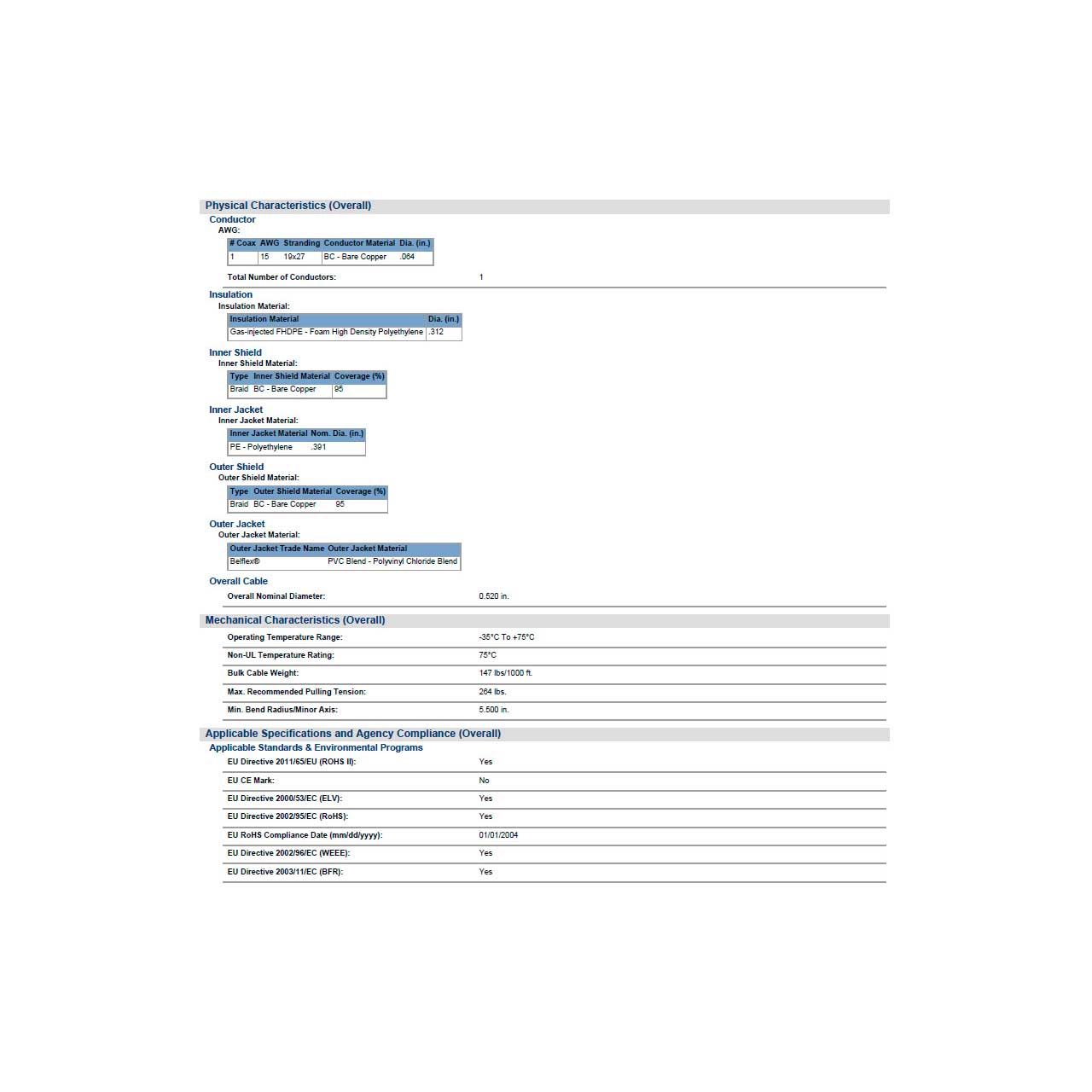

  • Specifications:

    • AWG: 15
    • Stranding: 19x27
    • Material: BC - Bare Copper
    • Nominal Diameter: 0.064 in
    • Conductor Count: 1
    • Nom. Capacitance Conductor to Shield: 17.3 pF/ft
    • Nominal Inductance: 0.097 uH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • Non-UL Voltage Rating: 300 V RMS
    • Electrical Characteristics Notes: Nominal Capacitance 1st Shield to 2nd Shield: 205 pf/ft.
    • Other Electrical Characteristic 2: Nominal Voltage Breakdown: 20K V RMS
    • Non-UL Temp Rating: 75°C
    • Operating Temp Range: -35°C To +75°C
    • Bulk Cable Weight: 147 lbs/1000ft
    • Max. Pull Tension: 264 lbs
    • Min Bend Radius/Minor Axis: 5.5 in
