Liberty 22-2C-PSH-WHT-500 Commercial Grade General Purpose 22 AWG 2-Conductor Plenum Shielded Cable - White - 500FT Reel

ITEM #: 22-2C-PSH-WHT500 MFG #: 22-2C-PSH-WHT-500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$274.86

Our Price:

$247.38

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


22-2C-PSH-WHT-500 - Overview

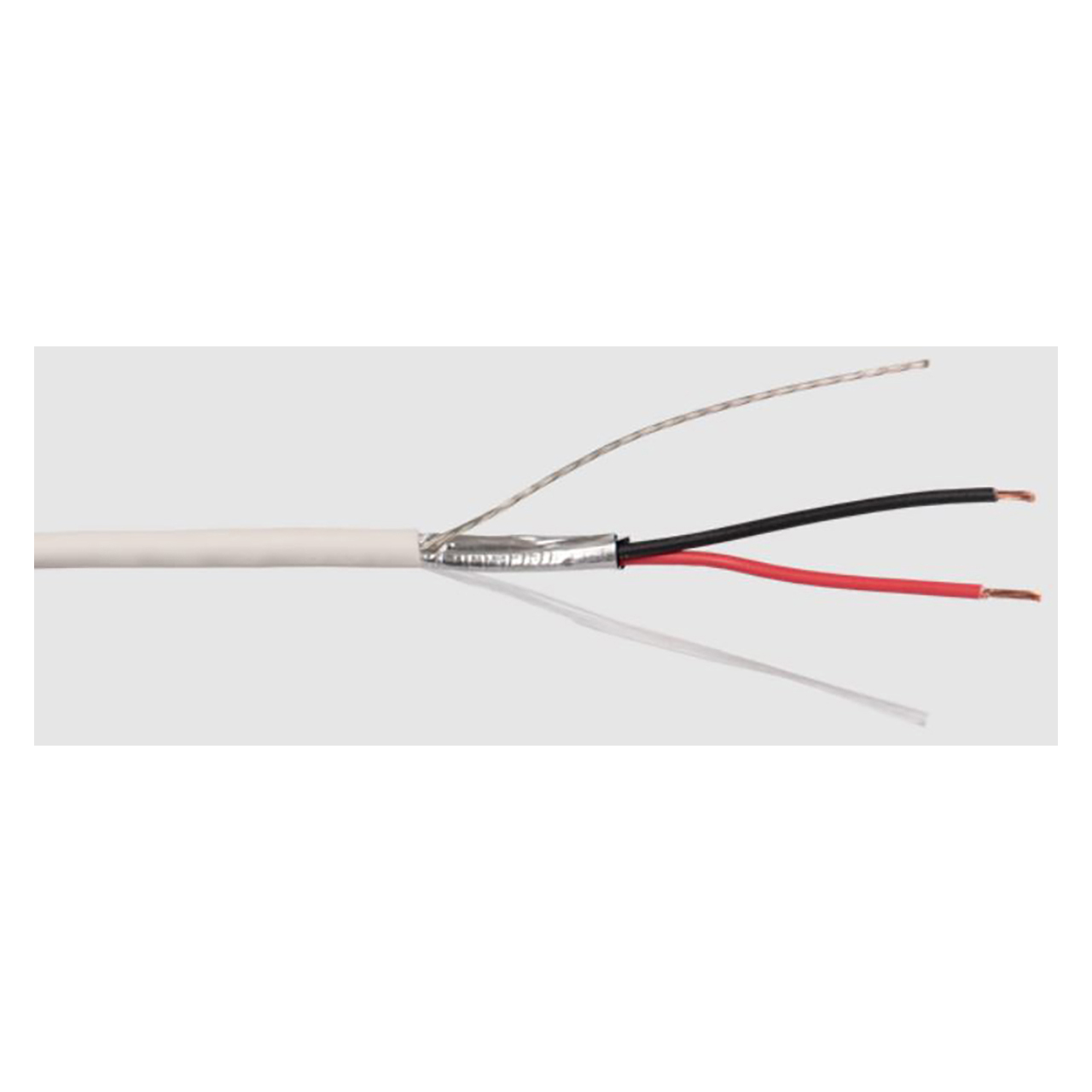

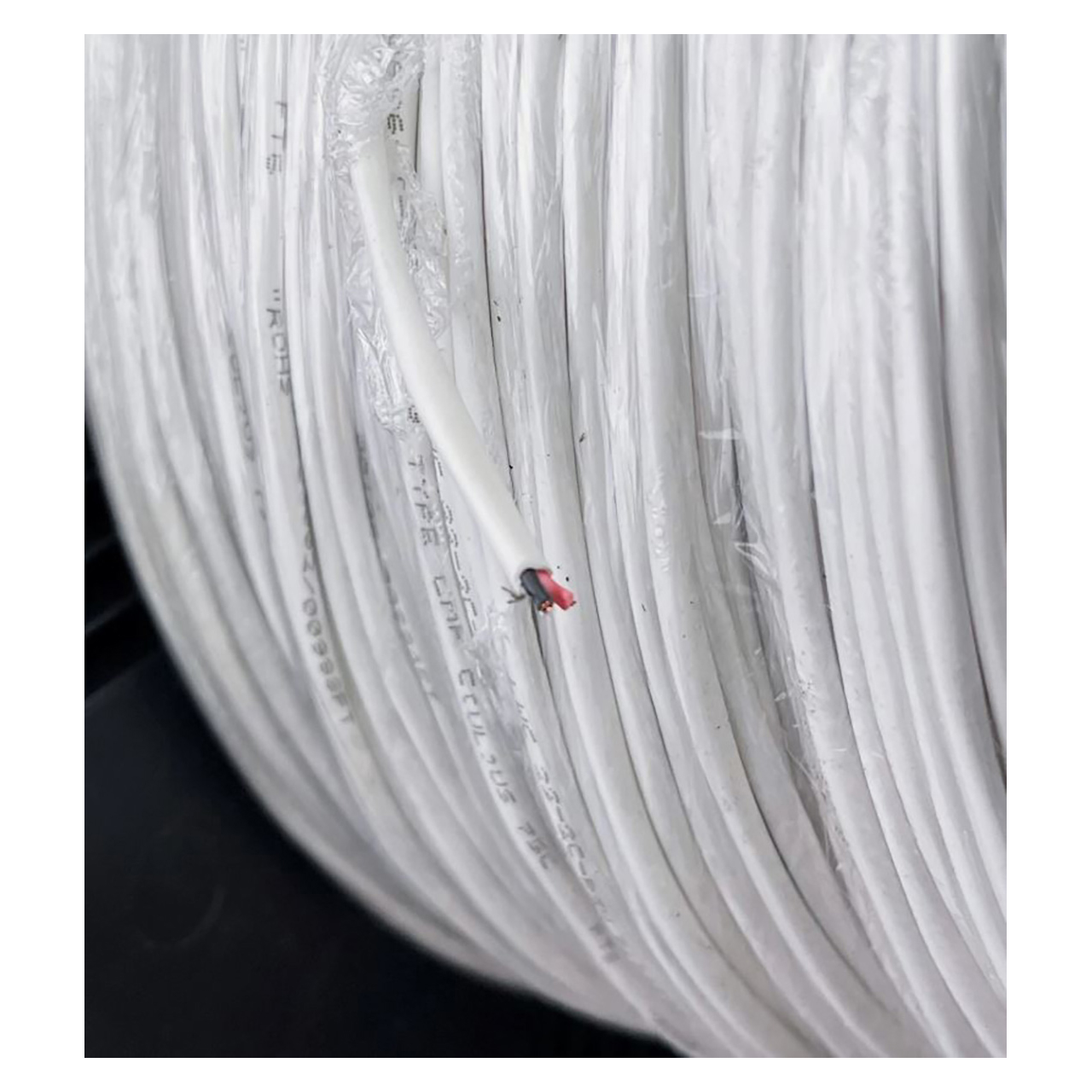

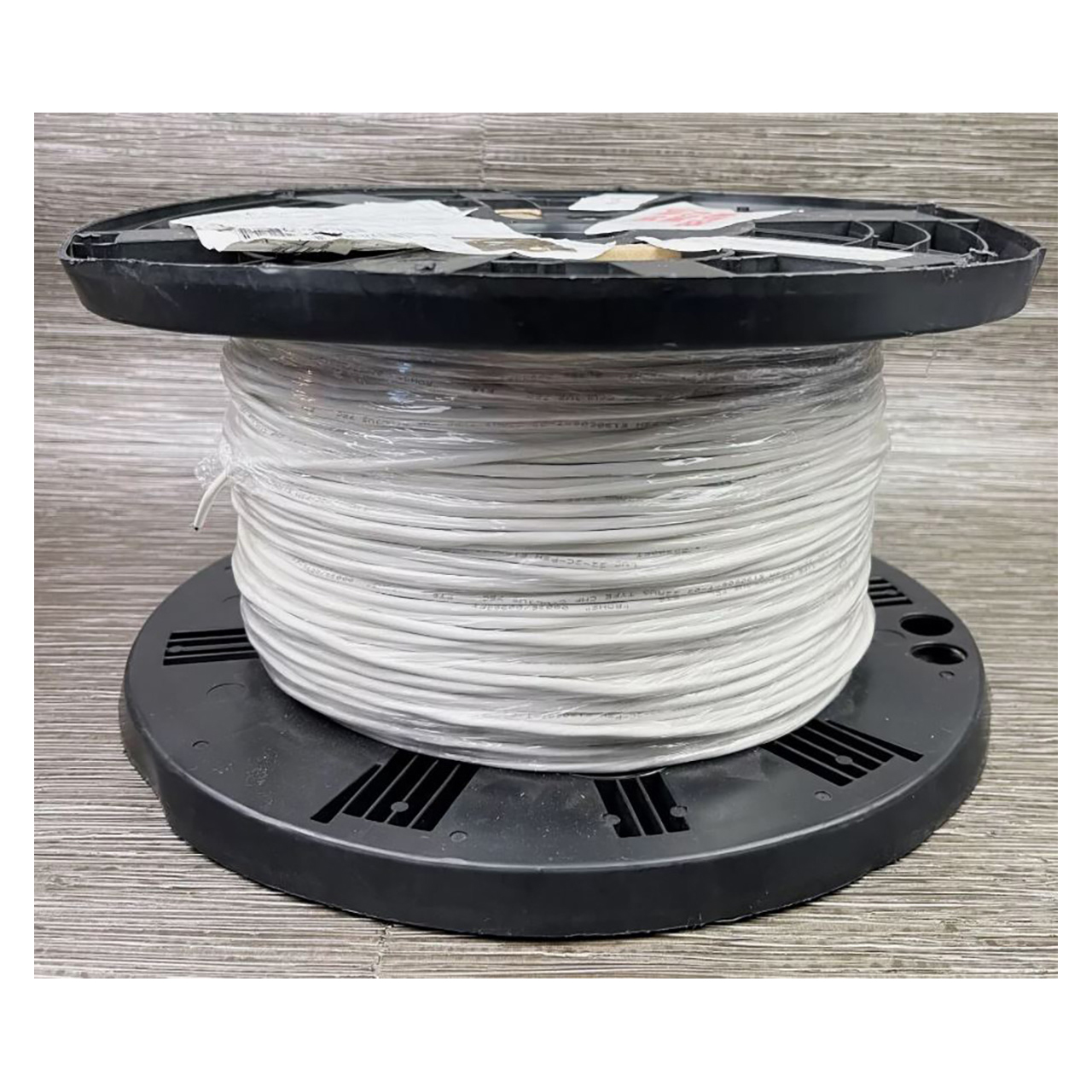

The Liberty Cable 22-2C is a 500 foot reel of commercial grade general purpose 2 conductor 22 AWG stranded, twisted, and shielded cable in white. It's NEC type, CMP and CEC, FT6 rated and was manufactured to be UL444 compliant for installations and applications in accordance with NEC articles 725 and 800.

Applications Include:
- Plenum line level balanced audio
- Plenum general purpose security
- Low voltage power

  • Features:

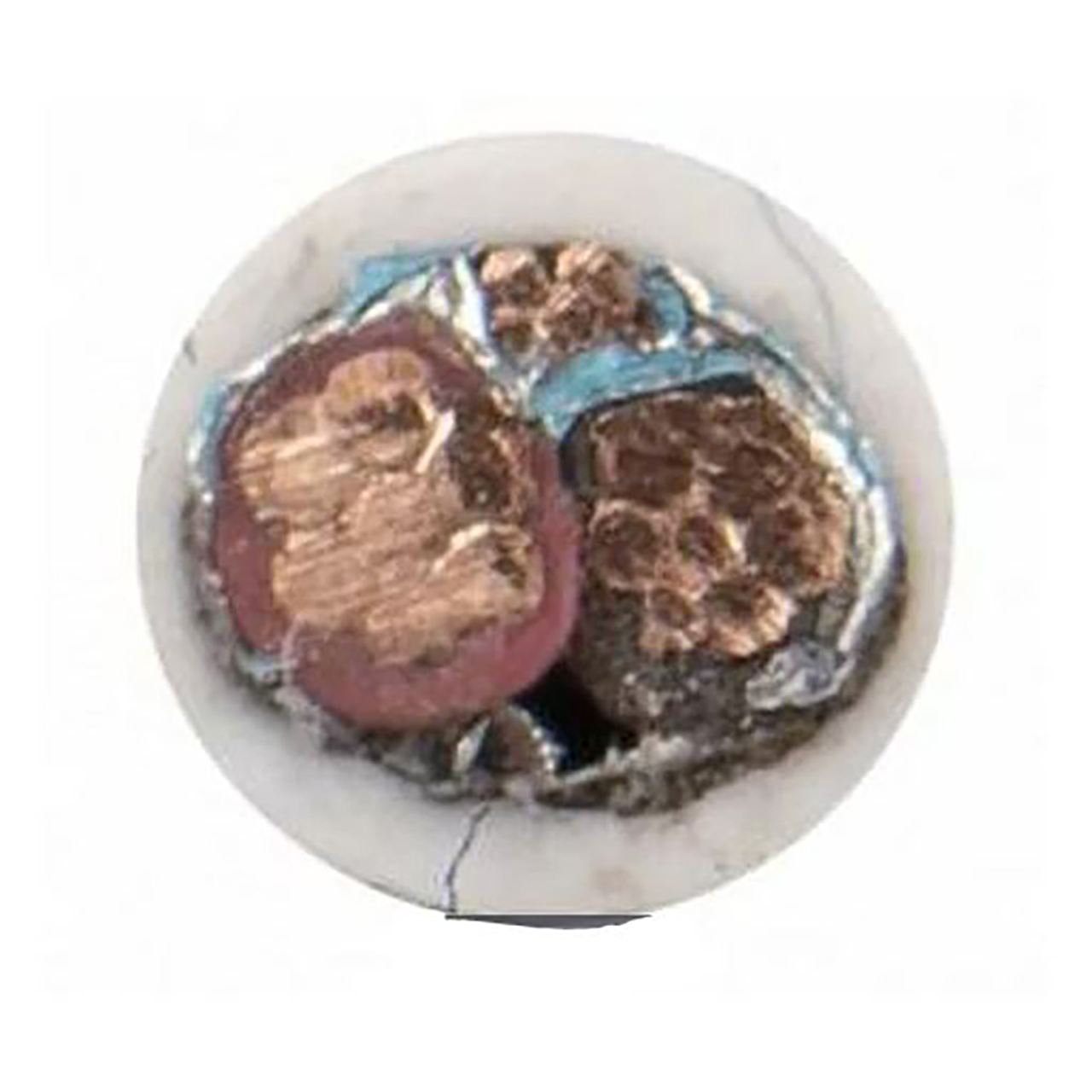

    • 7-Strand Annealed Bare Copper Conductors
    • Plenum rated PVC Alloy Insulation
    • Twisted, shielded
    • Plenum rated PVC Alloy Jacket
    • NEC CMP, CEC CMP FT6, RoHS Compliant
    • 1000 Foot Spools
    • Applications are Low Voltage Security and Control, 70V Speaker systems, distributed audio, DC Power, Class 2 and Class 3 power

  • Specifications:

    • DC Resistance: 16.4Ω/500'/53.79Ω/KM
    • Mutual Capacitance: 39.7pF/FT/130.22 pF/M
    • Impedance: 47Ω
    • Velocity of Propagation: 55%
    • Voltage Rating: 300V
    • Maximum Current: 2.8A@25°C
    • Rated: Plenum Rated Polyvinyl Chloride
    • Wall Thickness: 0.008" (0.20mm)
    • Diameter: 0.044" (1.13mm)
    • Colors: Natural White
    • Wall Thickness: 0.014" (0.36mm)
    • Diameter: 0.118" (3.00mm)


22-2C-PSH-WHT-500 - Required Accessories
