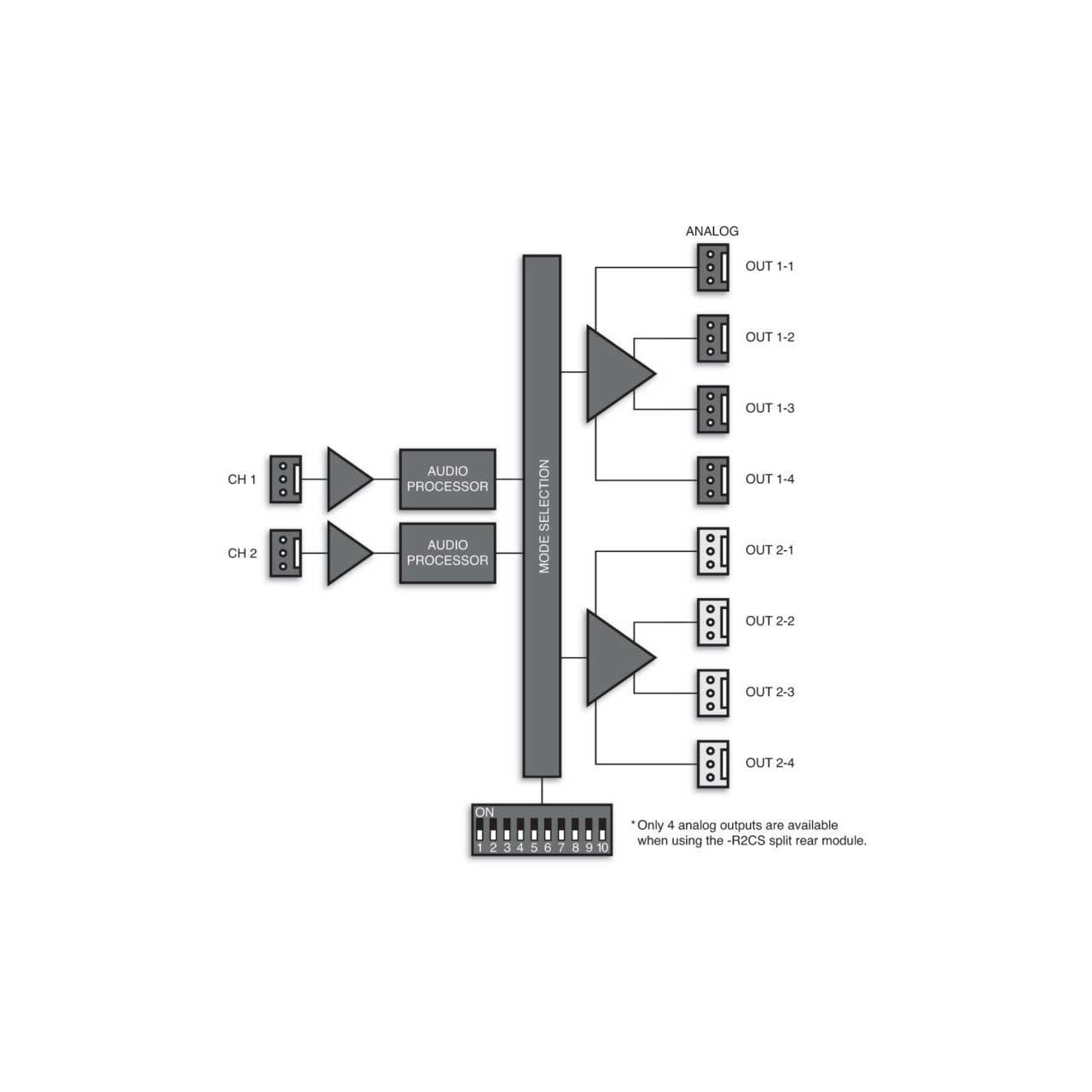

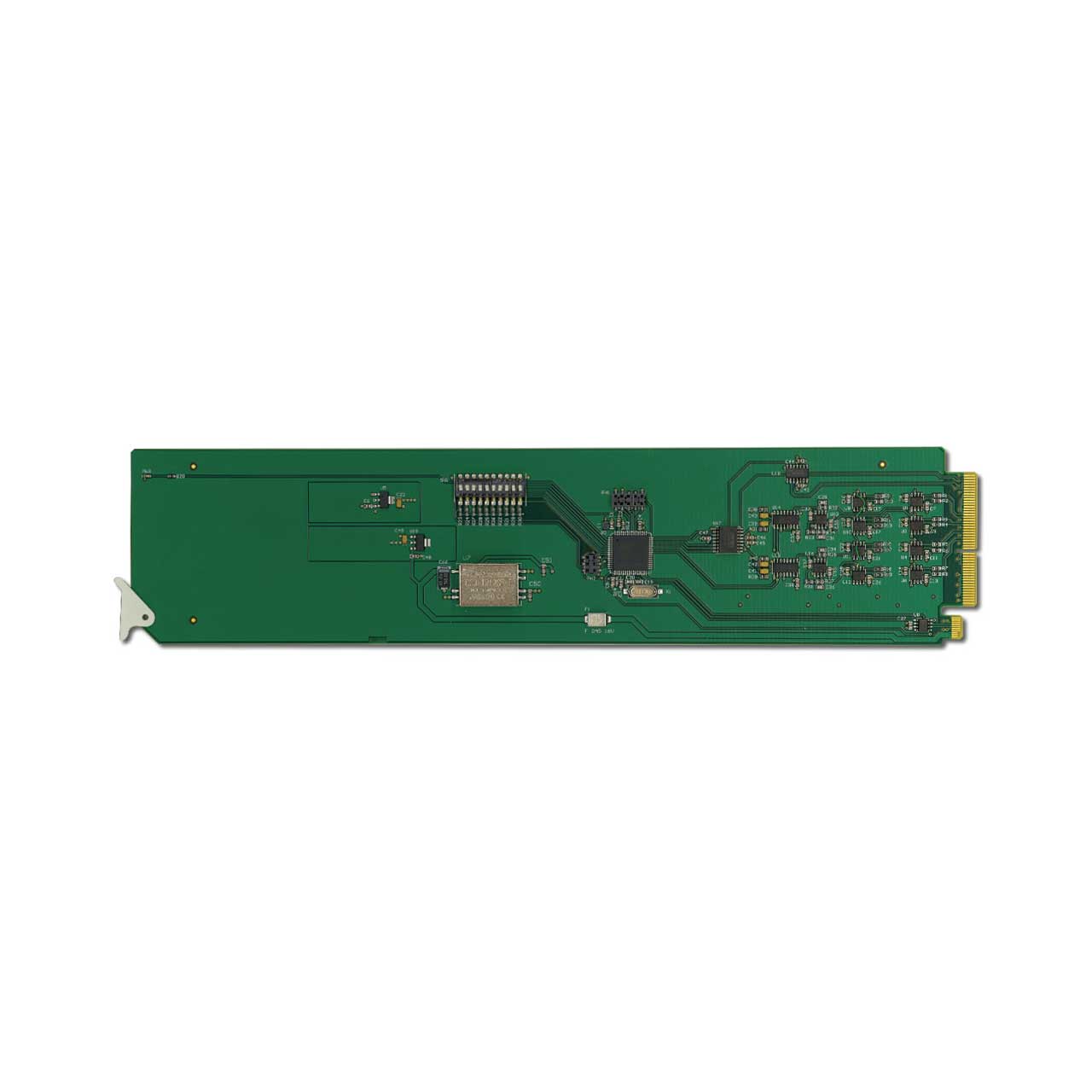

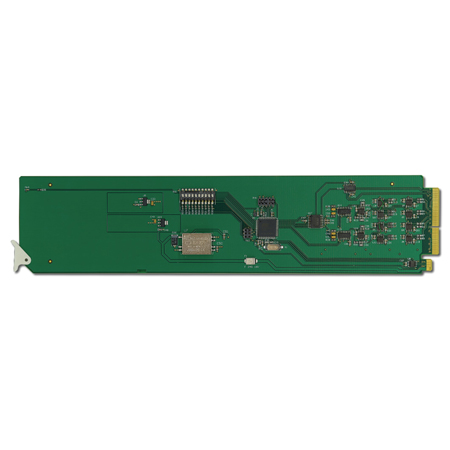

The ADA-8405-C is a remote gain analog audio distribution amplifier designed for broadcast use. It can be used as either a mono 1x8, or dual channel (stereo) 1x4 audio DA. When used with the standard -R2C rear module, it provides 8 copies of the single (mono) input signal or 4 copies each of the dual (stereo) inputs.

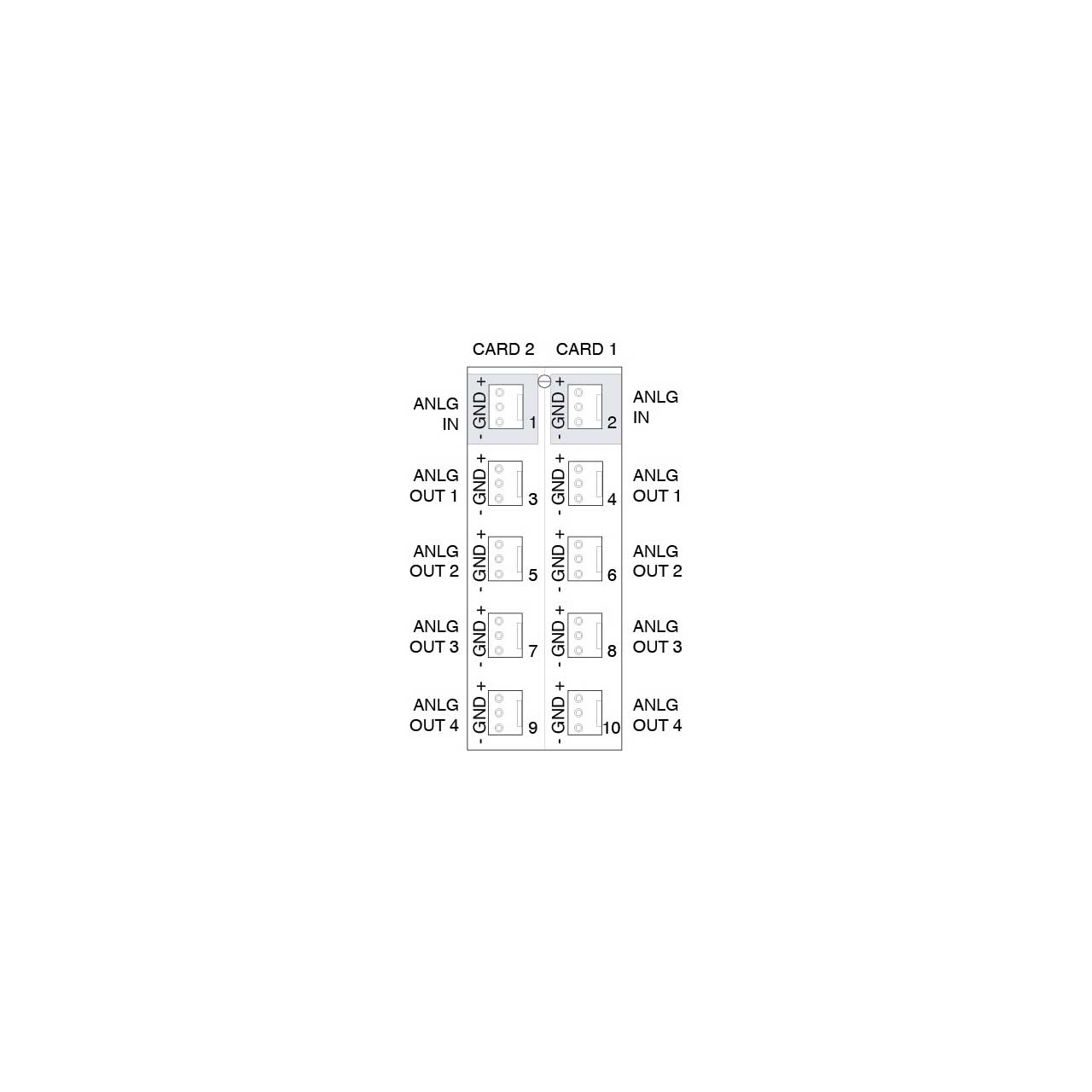

The included -R2CS split rear module can support 2x ADA-8405-C cards, each operating as a 1x4 audio DA. This can be used to separate left and right stereo pair signals to be amplified in separate paths for critical signals.
The ADA-8405-C has internal audio processing for independent channel or stereo gain control and summing capability.
