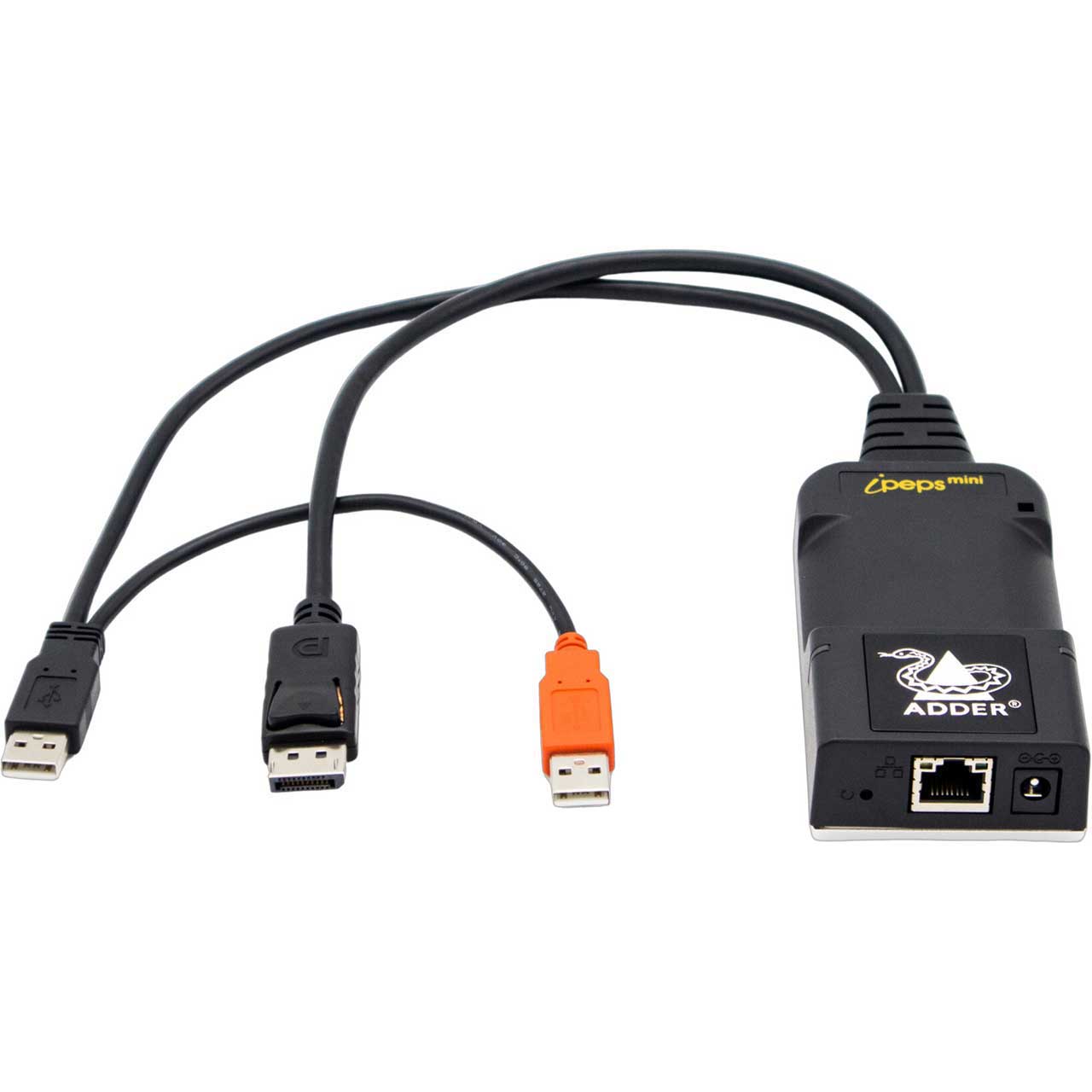

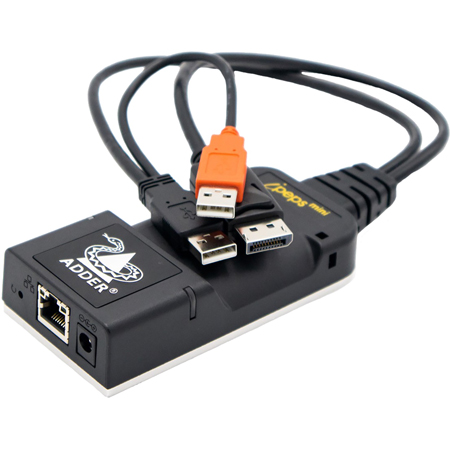

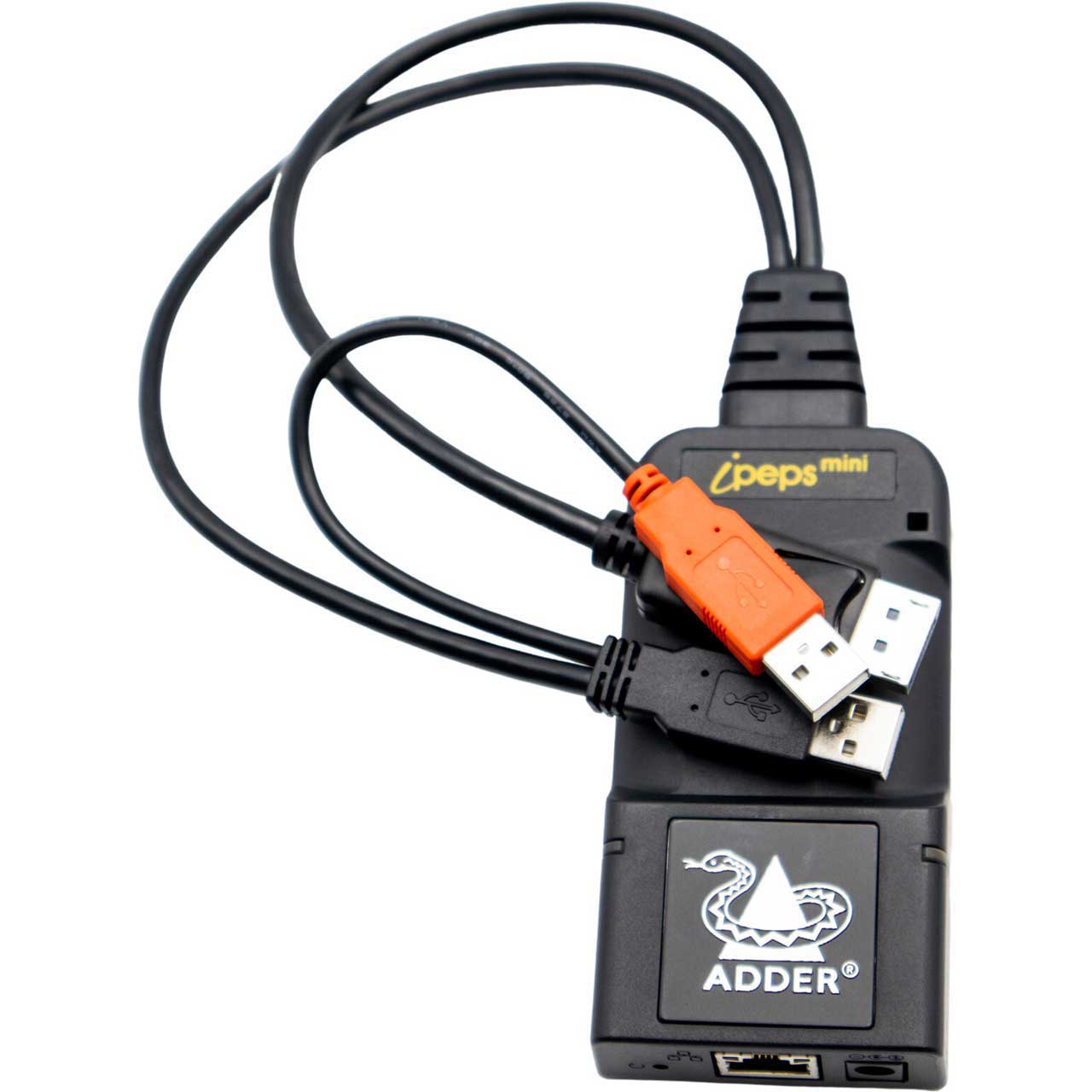

ADDERLink ADR-IPEPSMINI-DP Standalone KVM-over-IP Unit (DP & USB) for Remote VNC Access

IPEPSMINI-DP - Overview

• Features:

  • Independent Operation
  • Gives full control even during boot up, BIOS level or computer crash states. The ADDERLink ® ipeps mini will work even if the controlled device is not operational.

    High Video Performance
  • The ipeps mini accept a DP input up to 1920x1200 resolution. It incorporates VNC™ Viewer from RealVNC®, provides high streaming performance, subject to network bandwidth and content.

    Highly Secure
  • Enterprise grade security (using AES 128 or 256-bit encryption and RSA 2048-bit public key authentication) is employed as standard. This is further enhanced by VNC, which allows the creation of ciphered user communications.

    User Management
  • The ipeps mini can create up to 16 user profiles with defined access rights. Up to 8 remote users may access the unit simultaneously.

    EDID Management
  • The ipeps mini has intelligent EDID management allowing the user to specify the video modes generated by the controlled device.

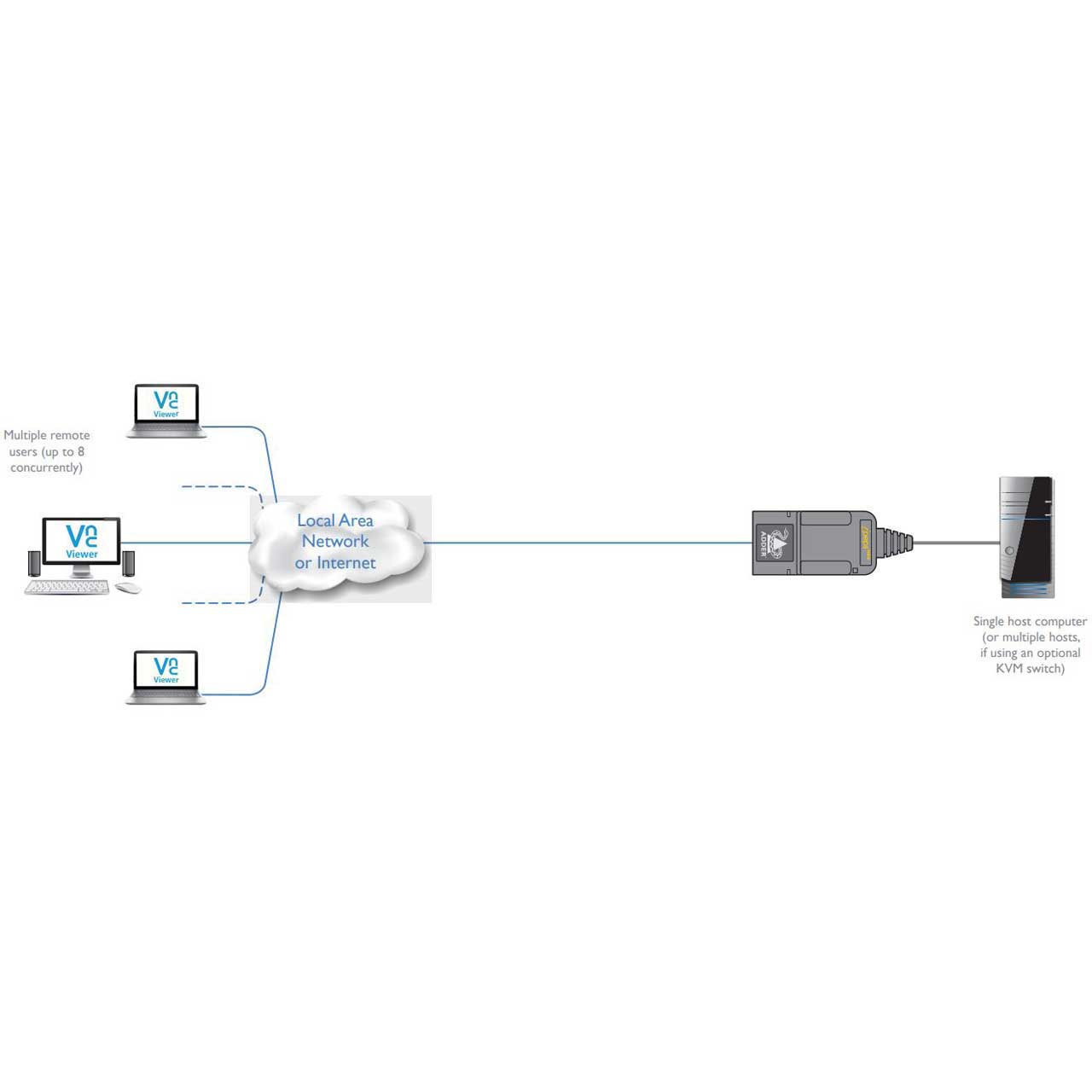

    Remote Gateway
  • The ipeps mini may be used as a remote gateway into the ADDERLink® INFINITY, DDX and XDIP matrix systems, plus the ADDERView® 4 PRO Switch. This will allow remote users to access any computer connected to the switch.


• Specifications:

  • Operating Systems and Compatibility
  • All known operating systems.

    Video resolutions
  • The system supports up to 1920x1200 @60Hz.
  • Color Depth: 8 bpc

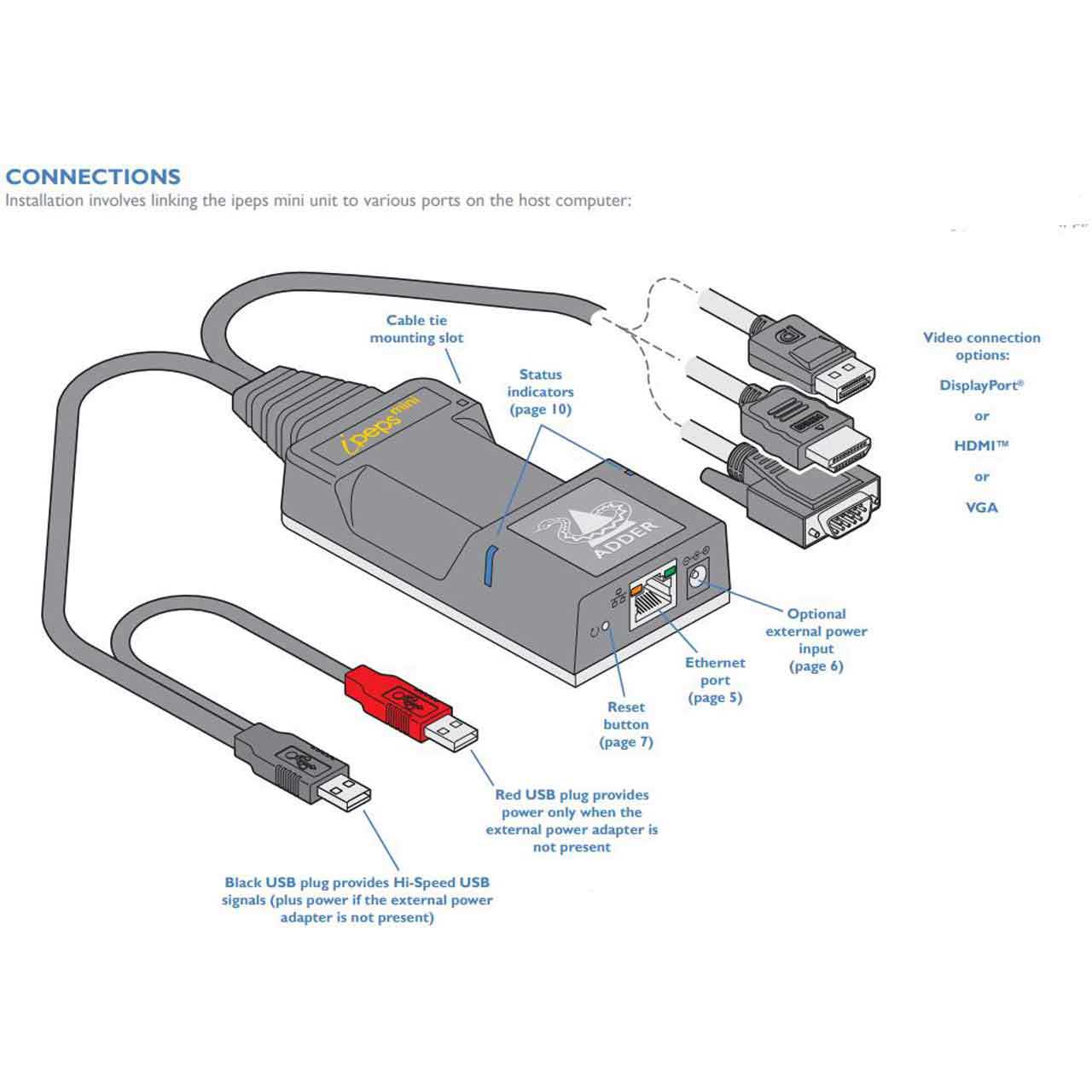

    Computer Connections
  • 2 x USB A 2 (True Emulation, High Speed, Full Speed, Low Speed)
  • 1 x DisplayPort™

    Link Ports
  • 1 x 8p8c (RJ45)

    Network Support
  • Bandwidth: 1GbE

    Physical design
  • ZeroU™, ABS and aluminium construction
  • Dimensions: 25mm/0.98"(H) x 55mm/2.17(W) x 110mm/4.33"(D)
  • Flying Lead Length: 300mm
  • Weight: 0.2kg/0.44lb

    Packing Box
  • Dimensions: 292mm/11.5"(L) x 245mm/9.65(W) x 55mm/2.17"(D)
  • Weight: 0.5kg/1.1lb

    Approvals
  • CE, cULus - E476334, FCC, ICES, UKCA

    Standards
  • ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003

    Other
  • Cal Prop 65, China ROHS, EU REACH, UK REACH

    Power
  • USB power: 2x USB2.0 (2x 500mA @5V) 5W
  • External power: 5VDC, 1A, (LPS)
  • Maximum power (Watts): 5W
  • Maximum power (Current): 1A
  • Typical power (Watts): 3W
  • BTU/hr: 10.2

    Environmental
  • Operating temperature: 0 - 50°C/32 - 122°F
  • Storage temperature: -10 - 60°C/14 - 140°F
  • Storage and operating humidity: 10% - 90% (non-condensing)
  • Altitude: 2,000m/6,562ft

    Mean Time Between Failure
  • Mean Time Between Failure (MTBF) @ 55degC: 2,000,000 h


• Item Includes:

  • ipeps mini unit: PEPSMINI-DP.
  • Information wallet containing: Four self-adhesive rubber feet, Safety document.


• Warranty:

  • 2 years
