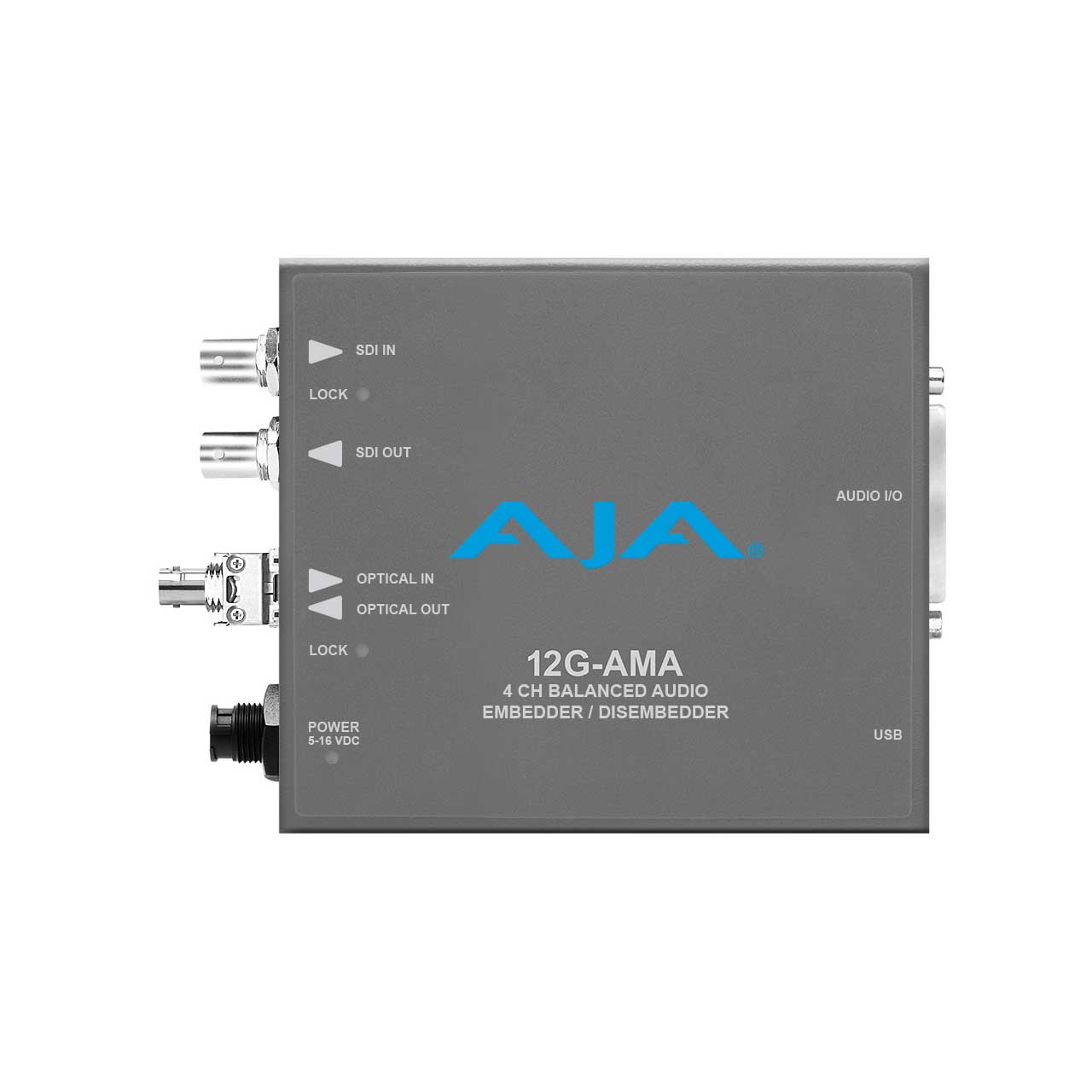

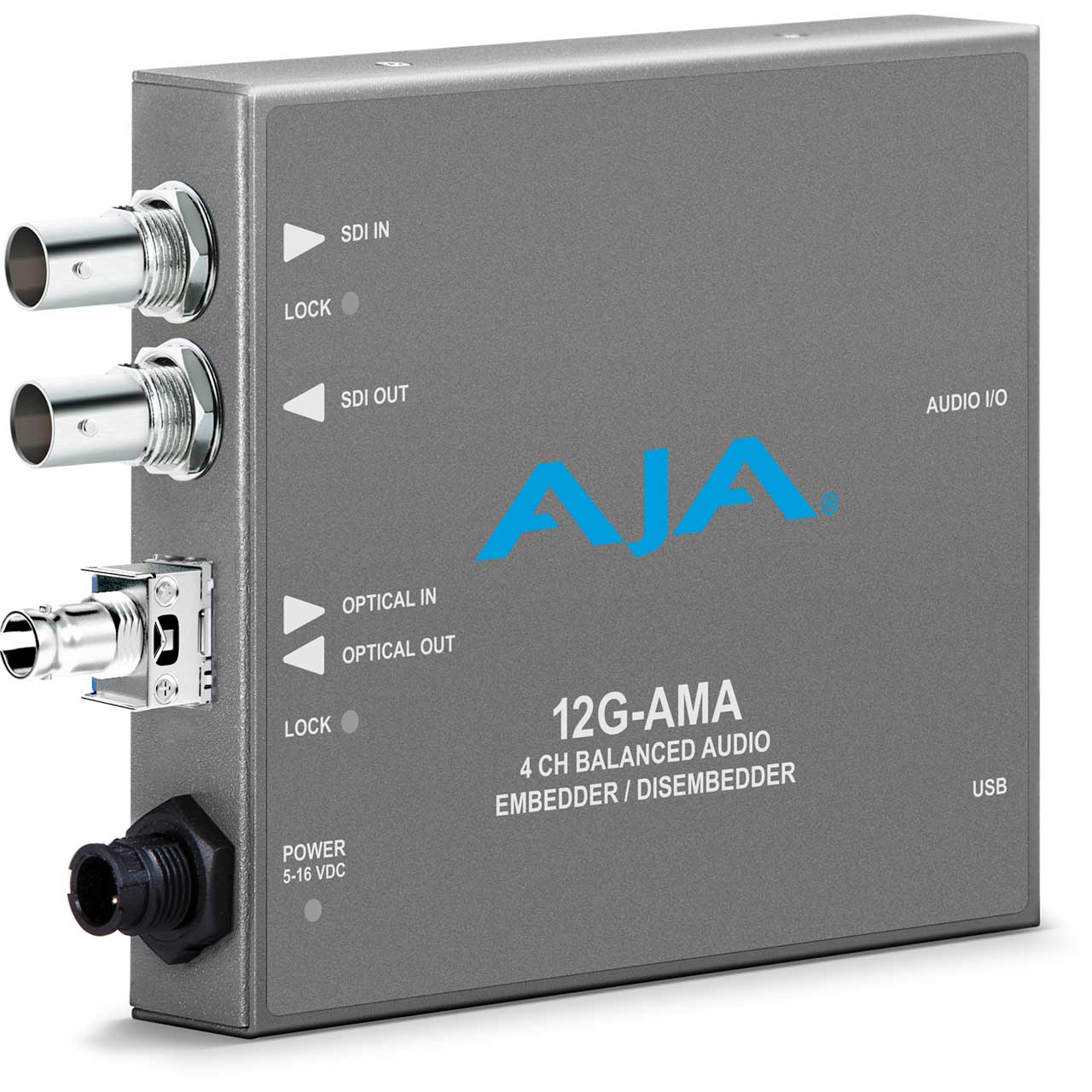

AJA 12G-AMA-T-ST 12G-SDI Mini Converter with 4-Channel Audio Embed/Disembed - ST Fiber Transmitter

12G-AMA-T-ST - Overview

• Features:

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 4-channel balanced audio Embedder/Disembedder
  • Ships with a Fiber ST single channel SFP Transmitter for extending 4K/UltraHD signals over long distances
  • Audio Disembedding is always functional with four Analog outputs
  • Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
  • Selectable Analog audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 4-channels In and 4-channels Out for a total of eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-16 VDC Power


• Specifications:

  • Video Formats
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60*
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit
  • *1280x720p is Level A Only
  • Note: Raster and frame rate dependent, please see 12G-AMA Video Formats on the Data Sheets Tab.

    Video Input Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

    Fiber Input (12G-AMA-R, 12G-AMA-TR)
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Wavelength: Rx 1260 nm (min), 1620 nm (max)
  • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  • Overload Power: -2 dBm (min)

    Fiber Input (12G-AMA-R-ST)
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Wavelength: Rx 1260 nm (min), 1620 nm (max)
  • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  • Overload Power: -2 dBm (min)

    Video Output Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

    Fiber Output (12G-AMA-T, 12G-AMA-TR)
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 5.4 dB (min)

    Fiber Output (12G-AMA-T-ST)
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 2 dBm (max)
  • Extinction Ratio: 3.4 dB (min)

    Cable Equalization (Belden 1694A coax)
  • 12 Gbps, 65m
  • 6 Gbps, 125m
  • 3 Gbps, 190m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m

    Audio Inputs and Outputs
  • Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
  • Breakout cable provided with 1x 25 pin D male connector:
  • 4x XLR female input breakout connectors
  • 4x XLR male output breakout connectors

    Digital Audio Converters
  • 24-bit

    Embedded Audio
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • Up to 16 channels supported
  • Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

    Audio Latency
  • Embed Path 1100 æsec
  • Disembed Path 1200 æsec

    Analog Audio Levels
  • Configured via Mini-Config software:
    Pro 1: 0 dBfs = +24 dBu
    Pro 2: 0 dBfs = +18 dBu
    Pro 3: 0 dBfs = +15 dBu
    Consumer 1: 0 dBfs = +12 dBu

    User Interface
  • External DIP switch
  • USB port used with Mini-Config software application to configure the device via PC/Mac

    Dimensions (WxDxH)
  • 5.8 x 3.1 x 1.0" (147.32 x 78.74 x 25.4 mm)

    Weight
  • 0.6Lbs (0.3kg)

    Power
  • +5-16VDC, 10 watts. power supply required, included with purchase

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • Five year warranty
