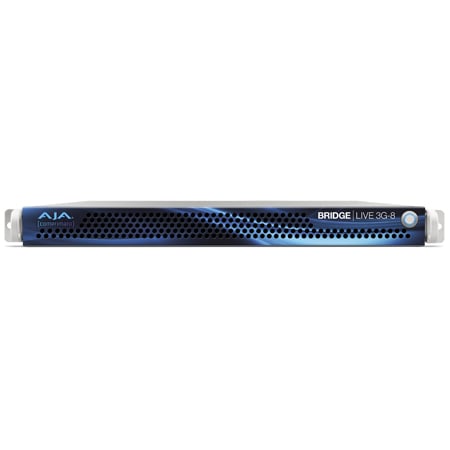

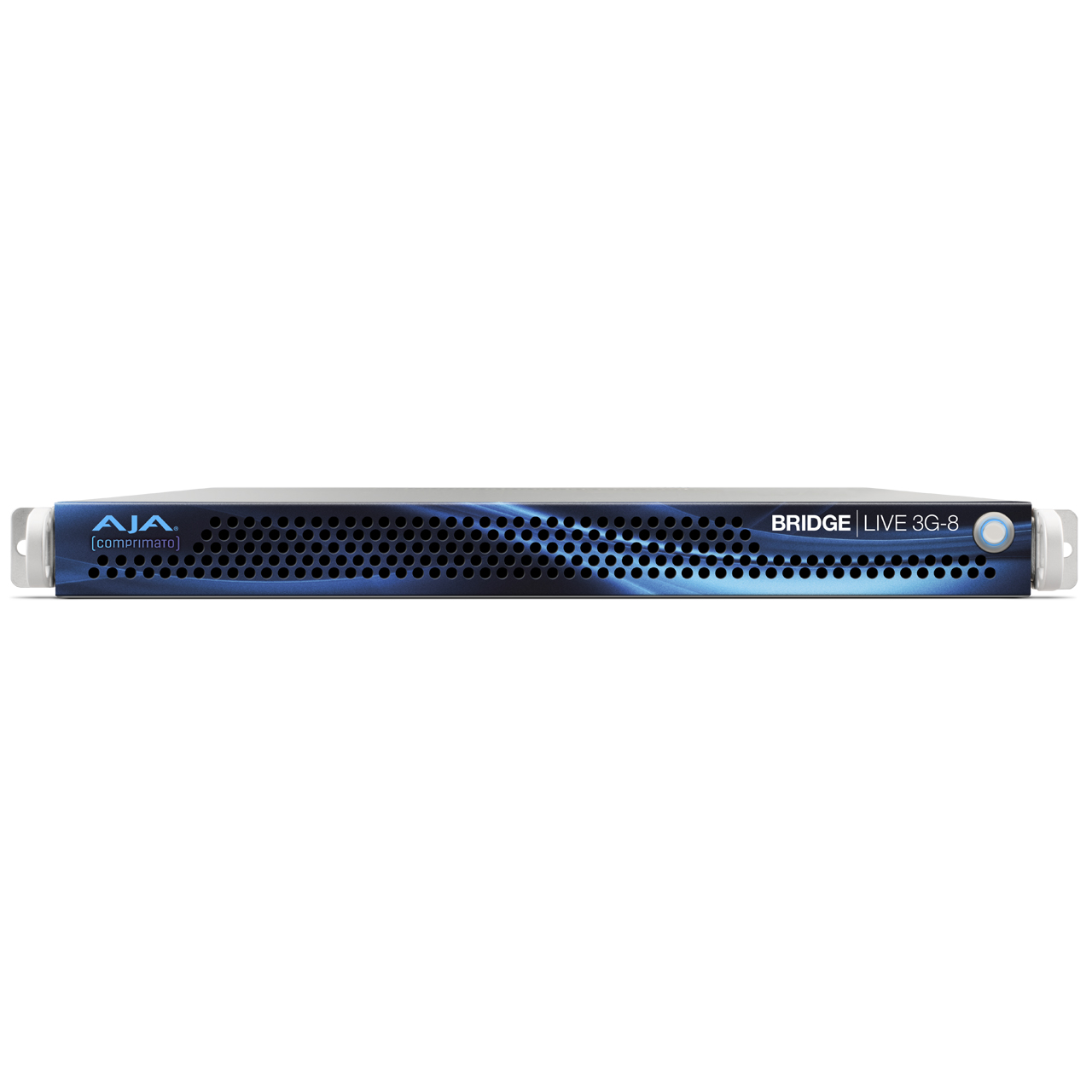

AJA BRIDGE LIVE 3G-8 3G-SDI High Density SDI/IP Streaming Solution with 8 Bidirectional 3G-SDI Ports - H.265/264/NDI/SRT

ITEM #: AJA-BRIDGLIVE3G8 MFG #: BLVE-3G8-S01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AJA Video
Free Shipping with $49 Minimum Order

Our Price:

$18,999.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BLVE-3G8-S01 - Overview

The AJA BRIDGE LIVE 3G-8 is a broadcast quality, low latency turnkey system for REMI, Synchronous Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming, and Multi-Bitrate/Multi-Format Delivery via a wide range of IP video standards and/or SDI. The BRIDGE LIVE 3G-8 is a high-density HD version of BRIDGE LIVE, which supports up to 8x bi-directional 3G-SDI I/O.

BRIDGE LIVE and BRIDGE LIVE 3G-8 were developed as a collaboration between AJA and Comprimato to deliver the performance, reliability, and ease of use necessary for critical live encode, decode, or transcode needs. Equipped with either 12G-SDI I/O or 3G-SDI I/O with the power and flexibility to enable real time, bidirectional encoding, decoding, and transcoding for critical UltraHD or HD workflows, BRIDGE LIVE is an essential part of any modern video production toolkit. A compact and robust 1RU form factor, with redundant power supplies, and a three year warranty, means peace of mind even when dealing with the most demanding applications.

Whether facilitating remote production, interviews, live event streaming, synchronous multi-camera backhaul with HDR, cloud contribution, program return, confidence monitoring, collaborative production, or ABR ladder profiles to hand off for OTT packaging, BRIDGE LIVE ensures simultaneous, secure, and reliable workflows over purpose built dedicated lines or the public internet.

BRIDGE LIVE FAMILY I/O Overview
The BRIDGE LIVE family of products, BRIDGE LIVE and BRIDGE LIVE 3G-8, support the most widely used IP video compression schemes and transport protocols to solve your workflow needs. The BRIDGE LIVE family supports conversion to/from SDI to numerous IP video solutions and well as pure IP conversion and distribution workflows.

Simultaneous Bidirectional Encoding and Decoding
BRIDGE LIVE supports simultaneous bidirectional encoding and decoding from UltraHD (BRIDGE LIVE only), HD, and SD sources. Both models support up to UltraHD from IP-based sources.

NDI Encode/Decode/Transcode
BRIDGE LIVE includes support for NDI (Network Device Interface), the high quality, real time, low latency IP video standard developed by NewTek. BRIDGE LIVE can support up to 8x simultaneous 60p HD NDI encodes/decodes or 1x 30p UltraHD NDI encode/decode to/from SDI (BRIDGE LIVE model dependent). BRIDGE LIVE's NDI functionality offers:

- SDI to NDI (encode)
- NDI to SDI (decode)
- IP Video Streams to NDI (transcode)
- NDI to IP Video Streams (transcode)
- Multiple Discovery Servers

BRIDGE LIVE provides broad NDI compatibility with 3rd party NDI software and hardware transmitters and receivers.

  • Features:

    • Supports Multi-Channel HD (up to 8x channels)
    • Supports multiple frame rate families at the same time
    • Bidirectional Encode/Decode/Transcode; NDI, H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), JPEG 2000 (TR-01), and JPEG XS (TR-07)

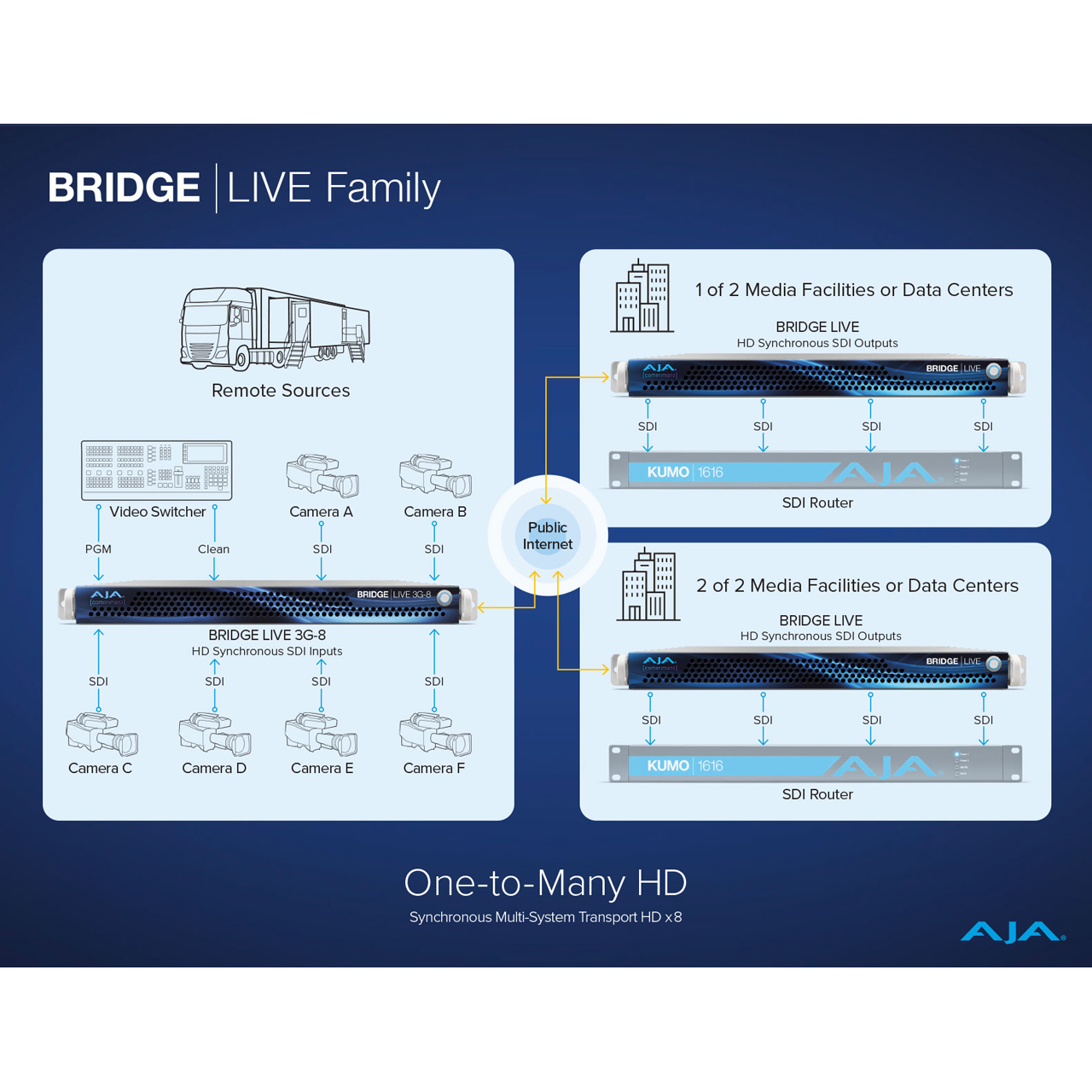

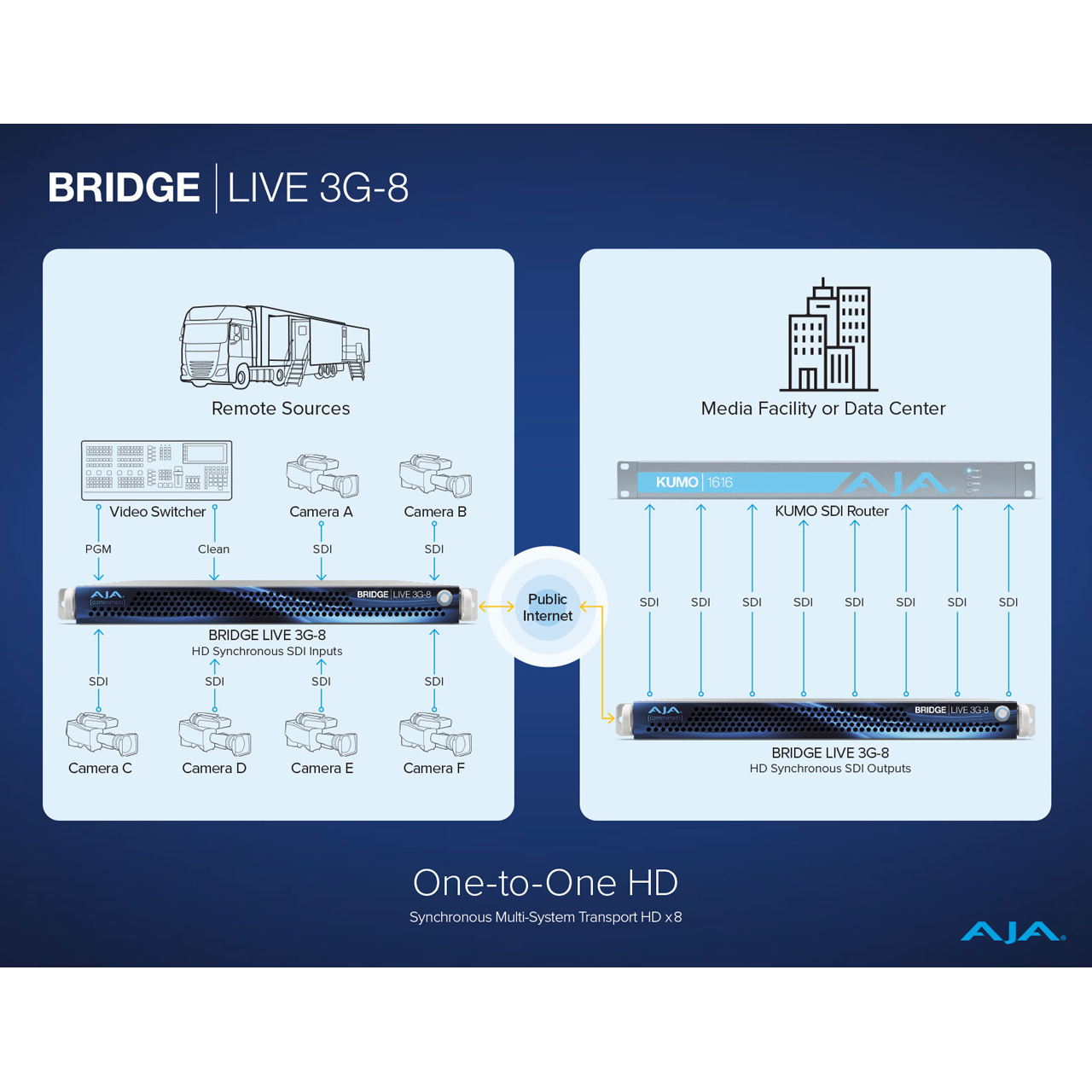

    • Synchronous Multi-Channel / Multi-System Transport for SDI backhaul or Cloud Delivery
    • Protocols; SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
    • Transports; MPEG-TS, NDI, AVC-TS, Fragmented MP4
    • NDI Multiple Discovery Server and NDI Groups support
    • Multi bit rate/format distribution, ABR Ladder Profiles for OTT hand-off
    • Selectable profiles for 12-bit, 10-bit and 8-bit, 4:2:2 and 4:2:0 depending on the codec
    • Hitless Redundancy via ST 2022-7 and SRT 1.5.3
    • HDR/SDR from SDI source to SDI destination in BRIDGE LIVE end-to-end configurations
    • Remote WebUI or local GUI for easy administration, control, and operation
    • Monitoring, Control, and Automation supported via REST API or SNMP

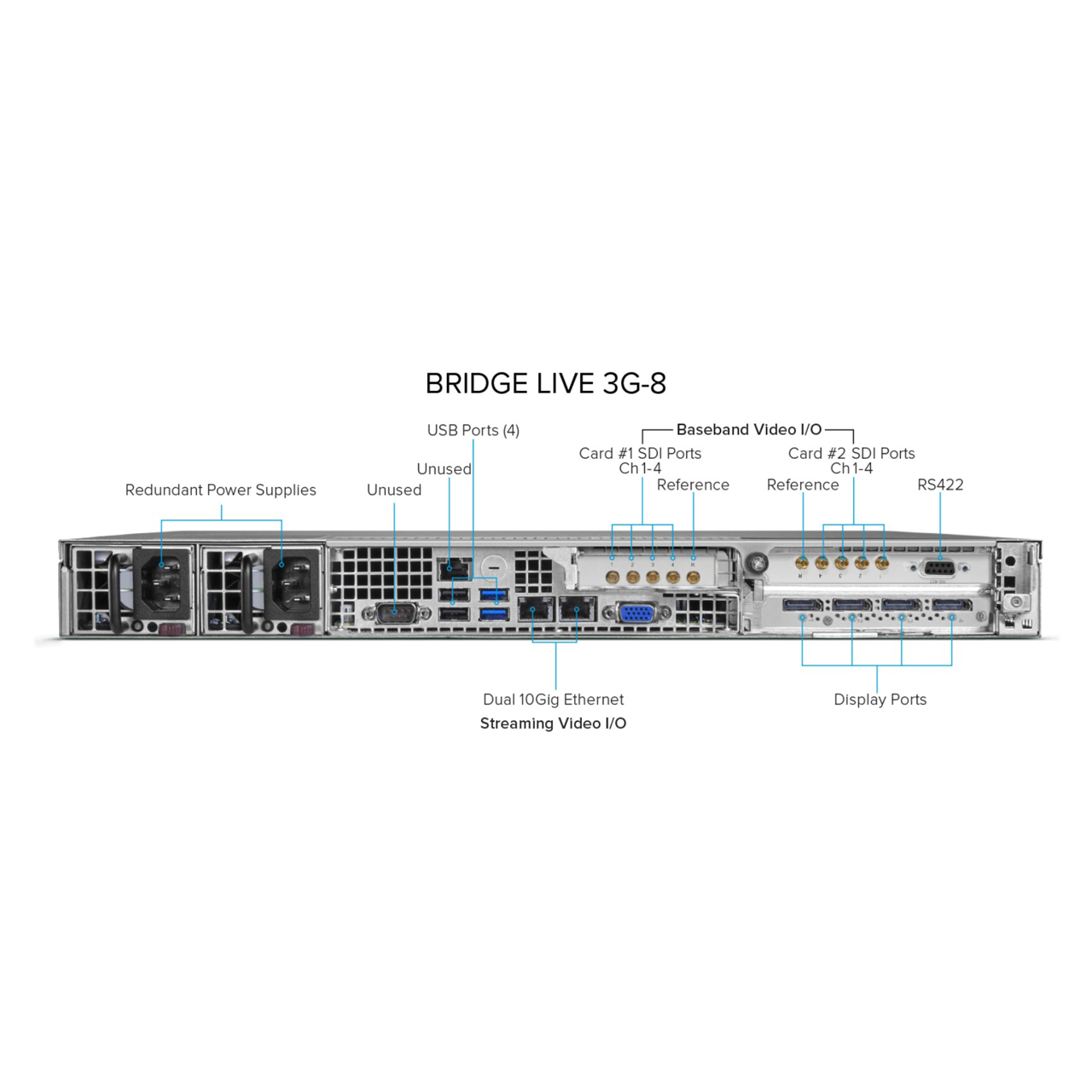

    • Dual 10 GigE interface for control and transport
    • Dual power supplies for critical application redundancy


  • Specifications:

    • Video Formats:
      - (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      - (HD) 1080i 50, 59.94, 60
      - (HD) 720p 50, 59.94, 60
      - (SD) 625i 50
      - (SD) 525i 59.94
      - 3G-SDI, SMPTE ST 424, 10-bit
      - 1.5G-SDI, SMPTE ST 292M, 10-bit
      - 270 Mbit/s SDI, SMPTE ST 259M-C, 10-bit

      Video Color Component Sampling
    • SDI: YCbCr, 4:2:2, 10-bit
    • Transport Streams:
      - YCbCr, 4:2:2, 10-bit/8-bit
      - YCbCr, 4:2:0, 10-bit/8-bit
    • NDI:
      - P216, 4:2:2, 16-bit
      - UYVY, 4:2:2, 8-bit

    • Video Codecs:
      - H.264 (AVC, MPEG-4)
      - H.265 (HEVC)
      - JPEG 2000 (VSF TR-01)
      - MPEG-2
      - NDI
      - JPEG XS (VSF TR-07)
    • Audio Streams/Codecs:
      - AAC-LC (ADTS, LATM)
      - AAC-HE (ADTS, LATM)
      - AAC-HE v1 & v2 (ADTS, LATM)
      - AC3
      - E-AC3 (input)
      - Dolby E pass-through
      - MPEG-2 Audio
      - NDI (uncompressed float)
      - Uncompressed PCM multi-channel (SMPTE ST 302M-2007)
    • Metadata:
      - MPEG-2 ancillary packet support (SMPTE ST 2038)
      - HDR over SDI end-to-end via VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
      - Closed Captioning (EIA-608/708)
      - Line 21 Captions
      - Metadata pass-through
      - SCTE-35, SCTE-104
      - Subtitles embedded within H.264 SEI messages
      - Timecode embedded within HEVC and H.264 SEI messages
      - Electronic program guide (EPG) on input

      Containers and Protocols
    • HLS (input):
      - AVC TS segments
      - Fragmented MP4
    • HLS (output):
      - AVC TS segments
    • MPEG-TS
    • MPTS (input)
    • RTMP
    • RTMPS (output)
    • RTP, UDP
    • SRT (including encryption)
    • VSF TR-01
    • VSF TR-07

      Synchronization
    • Input PCR:
      - Global configuration (in separate transport stream)
      - Local configuration (in each transport stream)
    • Output PTS:
      - Pass-through
      - Add offset to input PTS
    • NTP: Encoder Synchronous Multi-Channel Transport
    • PCR: Decoder Synchronous Multi-Channel Transport

    • Audio Input/Output Digital: 16-channel, 16 and 24-bit SDI embedded audio, 48kHz sample rate, synchronous per SDI connection

      Physical
    • Dimensions: 17.2" x 16.9" x 1.7" (436.88mm x 429.26mm x 43.18mm)
    • Weight:
      - 28lbs (12.7kg) in box
      - 18lbs (8.2kg) server only
    • Power:
      - 100V - 240V AC 50/60Hz (Dual, redundant power supplies)
      - 190W typical, 245W Maximum
    • Safe Operating Temperature: 41°F - 95°F (5°C - 35°C)
    • Safe Storage Temperature (Power OFF): -40°F - 140°F (-40°C - 60°C)
    • Operating Relative Humidity: 8% - 90% noncondensing
    • Nonoperating Relative Humidity: 5% - 95% noncondensing


  • Item Includes:

    • 1x AJA BRIDGE LIVE 3G-8 3G-SDI High Density SDI/IP Streaming Solution w/ 8 Bidirectional 3G-SDI Ports
    • 1x Set of Rack Rails
    • 2x Power Cables


  • Warranty:

    • 3 Year Limited Warranty
