AJA C10DA Analog Video/Tri-Level Sync 1x6 Distribution Amplifier - Bstock (Opened/No Damage/In Warranty)

ITEM #: AJA-C10DA-BS MFG #: AJA-C10DA-BS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-C10DA-BS

AJA-C10DA-BS - Overview

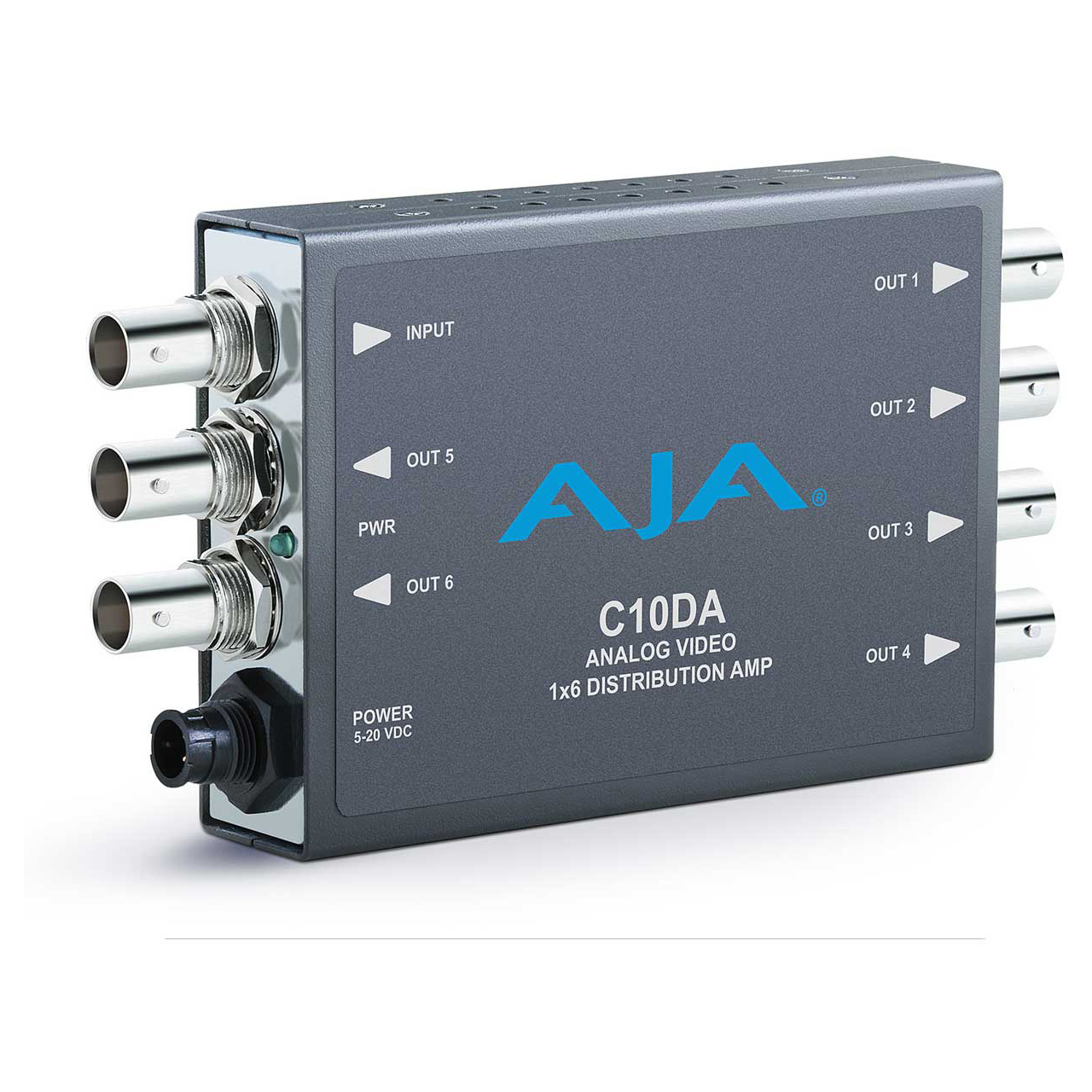

The AJA C10DA is a miniature, low-cost utility 1x6 analog video distribution amplifier that can be used for distributing analog video, bi-level video reference, and tri-level video reference signals in NTSC and PAL formats. It can also be used to distribute other single ended signals such as AES3-id and Linear Timecode (LTC). Featuring six separately buffered analog outputs, the C10DA provides gain adjustment.

Please Note: This unit has been opened and used, with no damage.

  • Features:

    • Compact 1 x 6 Analog Distribution Amplifier NTSC / PAL
    • May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
    • Low Cost
    • 5 year warranty
    • B-Stock - This unit has been opened and used, with no damage.

  • Specifications:

    • Formats
    • NTSC
    • PAL
    • Bi-level Reference
    • Tri-level Reference
    • AES3-id
    • LTC

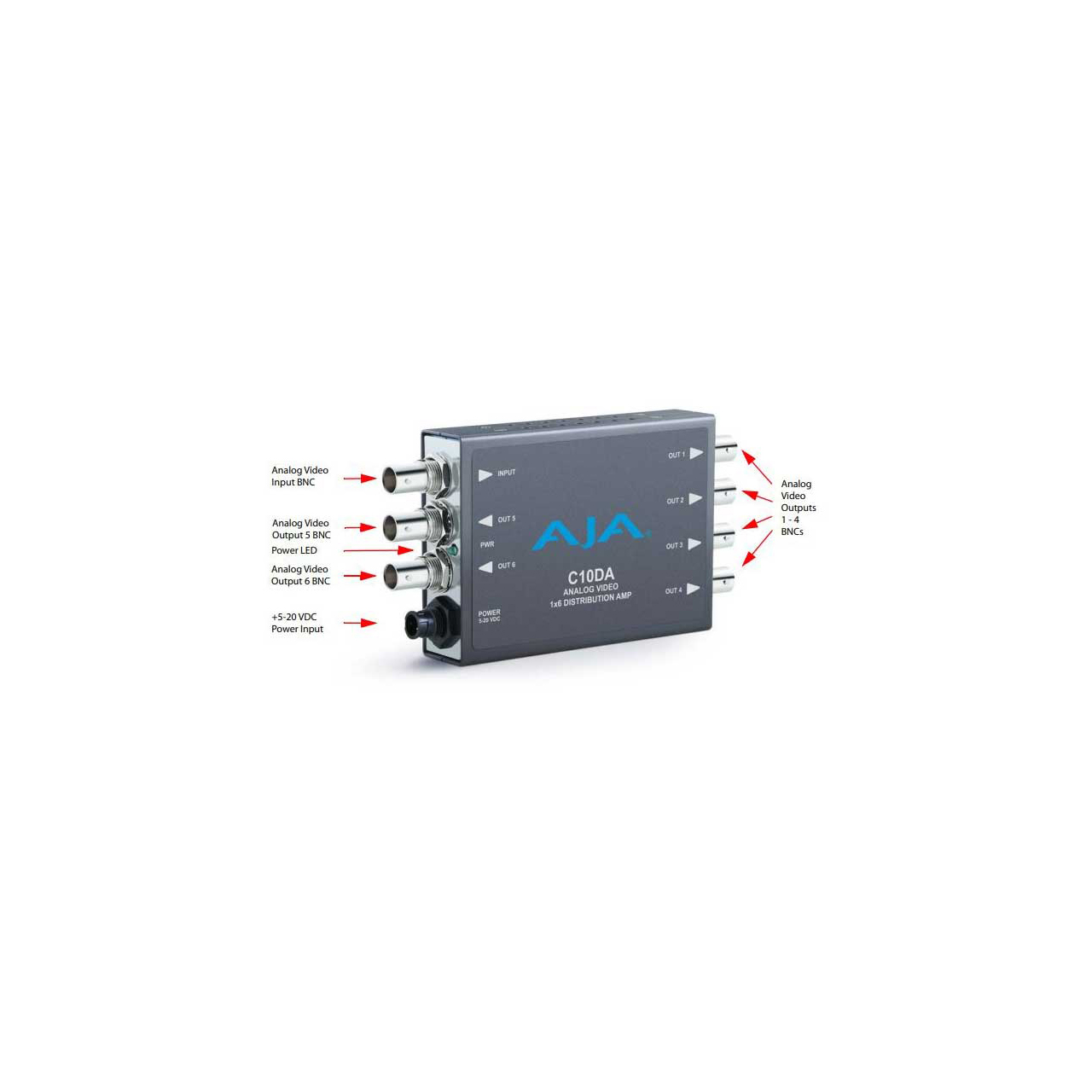

      Inputs
    • 1 Analog, Differential, 1 x BNC

      Outputs
    • 6 Analog, 6 x BNC

      Termination
    • 75 Ohms or nonterminated

      Video Bandwidth
    • 0 - 6 MHz ±0.1dB

      Gain
    • -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, ±0.3dB

      Diff Gain
    • 0.15%, not load dependent

      Diff Phase
    • 0.1 degree, not load dependent

      H/V Tilt
    • < 0.1%

      Response Variation
    • < 0.1dB 1 to 6 loads

      Coupling
    • DC

      Max Common Mode Signal
    • 10Vp-p

      Return Loss
    • > 35dB to 6 MHz all inputs and outputs

      Output Isolation
    • >40dB

      User Controls
    • External Dipswitch
    • Termination
    • Gain

      Size (w x d x h)
    • 5.8 x 3.1 x 1.0" (147 x 79 x 25mm)

      Weight
    • 0.8Lbs (0.3kg)

      Power
    • 5VDC Regulated, 2 Watts, power supply required, included with purchase

      Environment
    • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10 to 90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • Warranty:

    • 5 Years
