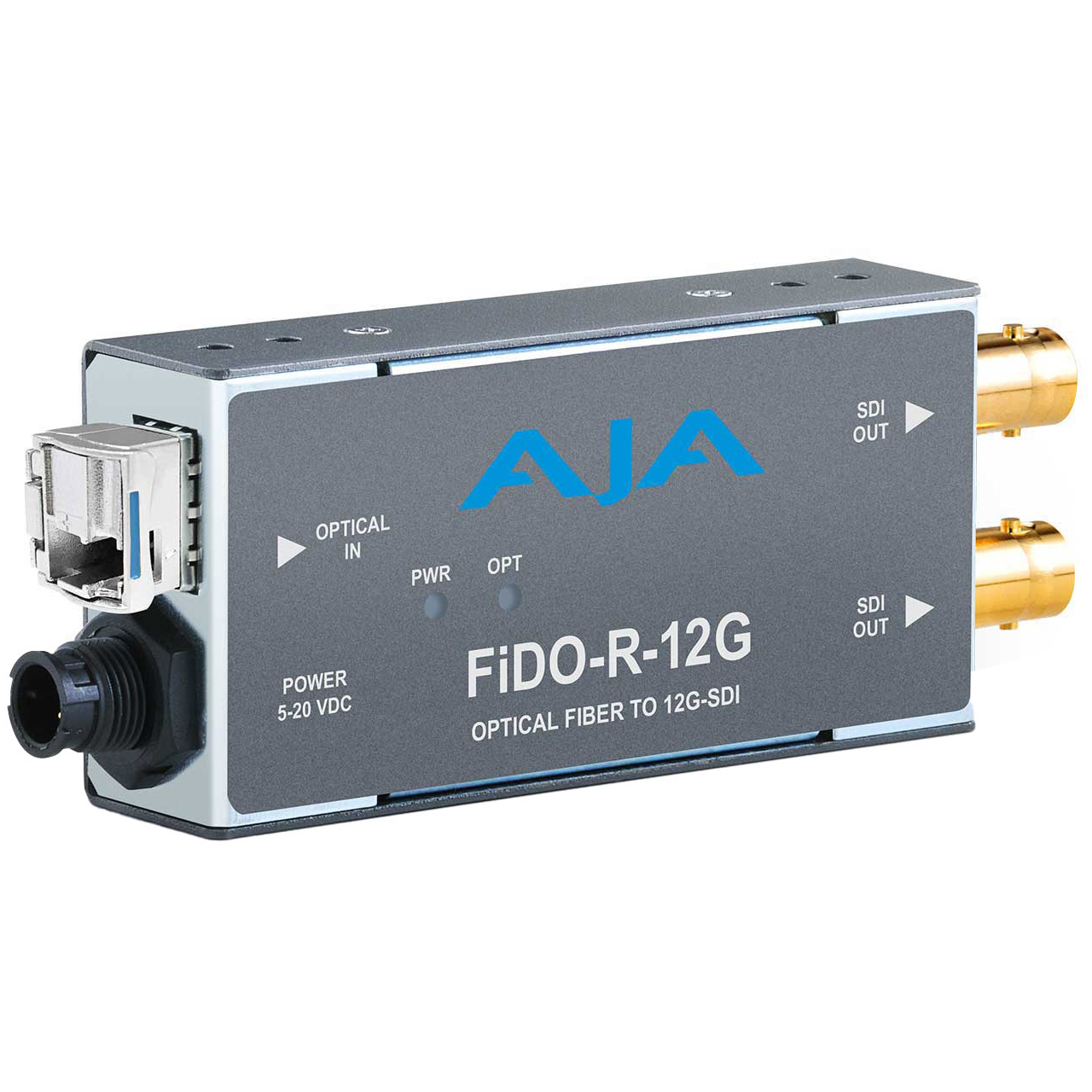

AJA FiDO-R-12G 1-Channel Single-Mode LC Fiber to 12G-SDI Receiver

ITEM #: AJA-FIDO-R-12G MFG #: FIDO-R-12G

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$989.00

Availability: In Stock
iAvailability Description Popup


FIDO-R-12G - Overview

The AJA FiDO-R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world. AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

  • Features:

    • 1-Channel Single-Mode LC Fiber to 12G-SDI Receiver
    • Simplex connection (LC connector)
    • 12G-SDI output, which also supports 6G/3G/HD/SD-SDI
    • Second SDI output (DA: same signal)
    • Dual, matching SDI outputs
    • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

  • Specifications:

    • Video Formats
    • 270 Mbps - 12 Gbps, format agnostic

      Video Input Digital
    • 1-Channel Independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

      Video Output Digital
    • 1-Channel Dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

      Reclocking
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked

      Size (w x d x h)
    • 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

      Weight
    • 0.4 lb (0.2 kg)

      Power
    • 2 watts (max)
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

  • Warranty:

    • 5 Year

  • GTIN:

    0812321030662


FIDO-R-12G - Required Accessories
