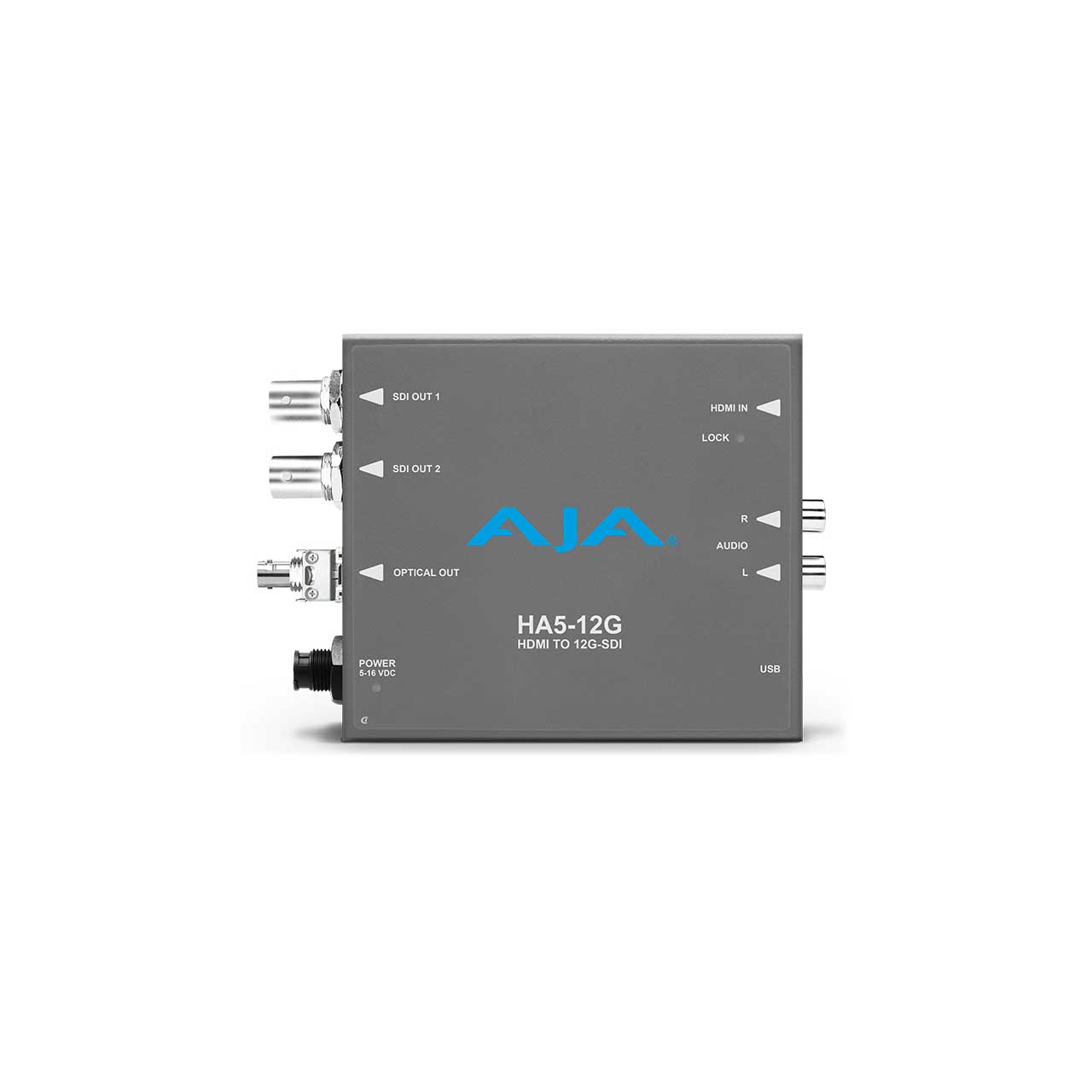

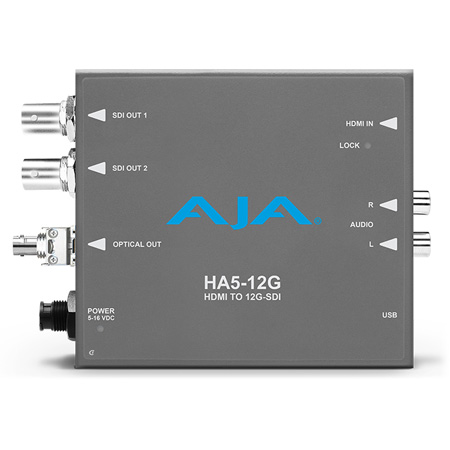

AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Mini-Converter with Single Channel Fiber 12G ST Transmitter

HA5-12G-T-ST - Overview

• Features:

  • Convert HDMI 2.0b up to 4K 60p to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T-ST ships with Fiber ST-1T-12G SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • HDMI EDID Emulation
  • Two Sample Interleave (2SI) 4K/UHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC) immersive sound
  • Configure via USB port and supplied AJA Mini-Config software on PC/Mac
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576p 50
  • (SD) 720 x 576i 50
  • (SD) 720 x 480p 59.94
  • (SD) 720 x 480i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
  • Note: Raster and frame rate dependent, please see HA5-12G Video Formats in Documents and Manual.


  • Video Input Digital
  • 1x HDMI Type A connector, HDMI v2.0b
  • 1x 12 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 6 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B-Dual Link)
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2/, 8/10/12-bit
  • (Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual)
  • *1280 x 720p is Level A Only


    Video Output Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K


  • Fiber Output (HA5-12G-T-ST)
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1360 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 2 dBm (max)
  • Extinction Ratio: 3.4 dB (min)

    Cable Equalization (Belden 1694A coax)
  • 12 Gbps, 65m
  • 6 Gbps, 125m
  • 3 Gbps, 190m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m

    Audio Input Digital
  • HDMI embedded audio, 24-bit, 8-channel

    Audio Input Analog
  • 2x RCA style connector, 2-channel -10dBu (nominal)

    Audio Output Digital
  • SDI embedded audio, 24-bit, 8-channel

    User Interface
  • USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

    Dimensions (WxDxH)
  • 4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)

    Weight
  • 0.5Lbs (0.3kg)

    Power
  • 5-16VDC regulated, 11 watts, power supply required included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 Year Warranty
